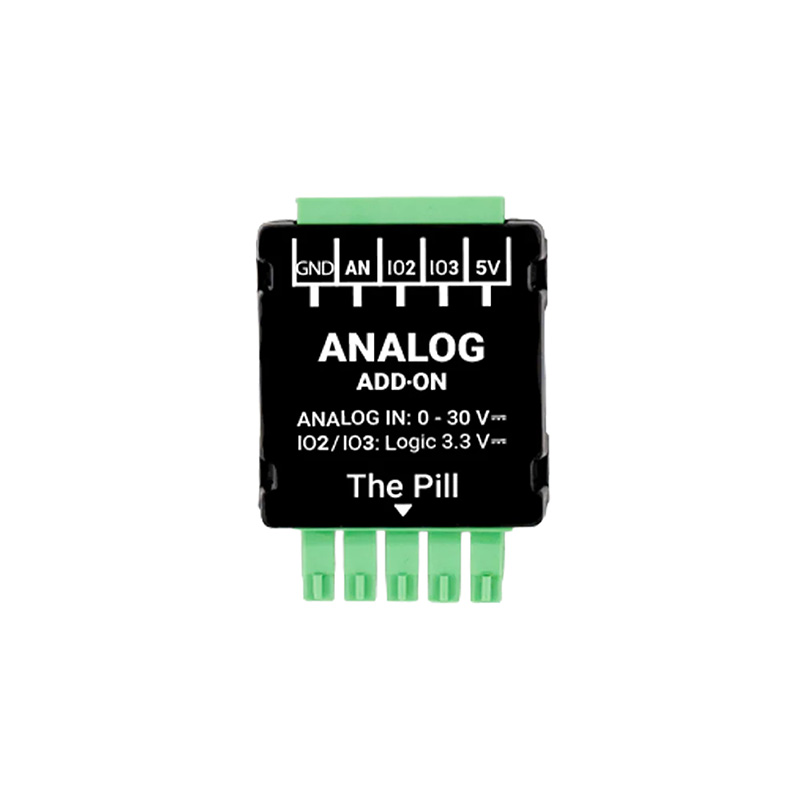

Analog 0 – 30V Add-on (Shelly Pill)
Measures analogue sensors and DC voltages up to 30 V. Extends the voltage measurement capabilities of The Pill to support analogue sensors and batteries with voltages up to 30 V. Suitable for popular analogue sensors in the 0–5 V range, as well as battery monitoring for 4.2 V, 12 V, and 24 V systems.
*Requires the 5‑Terminal Add‑on for connection with The Pill.
£5.93 inc VAT
Any Questions?
Our technical team is on hand to solve any problems or help you find the ideal solution.
Description
Add‑on module for The Pill by Shelly designed to measure analogue sensors and DC voltages up to 30 V.

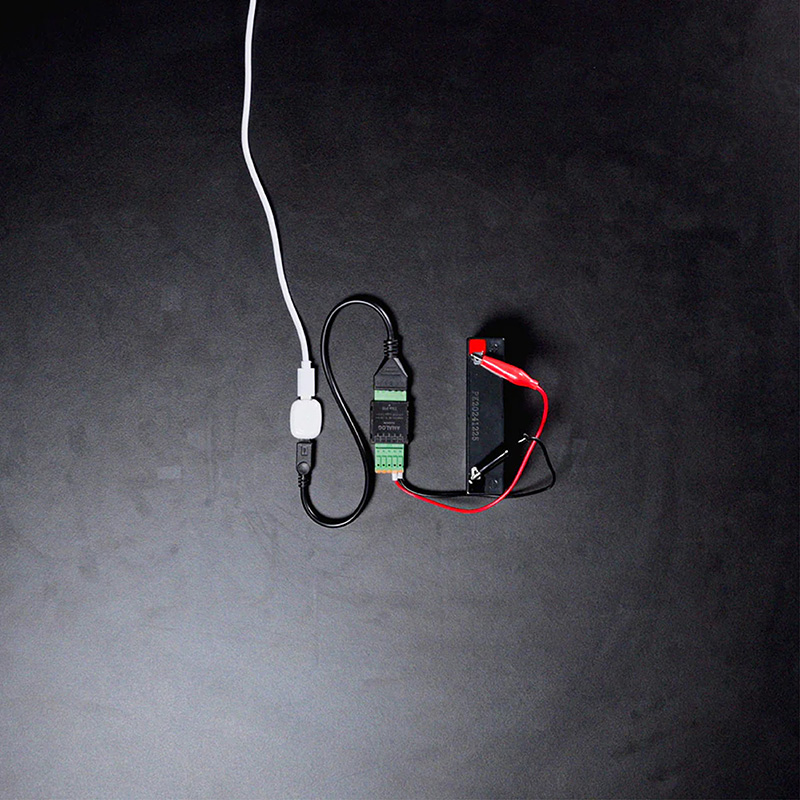

Ideal for monitoring batteries, power supplies, and other low‑voltage devices.
*The Analog 0-30 V Add-on is sold separately and requires the 5-Terminal Add-on to connect with The Pill by Shelly.
Key Features:
- Measurement range: 0-30 V DC
- Extends The Pill’s measurement range for sensors and batteries
- Compatible via 5-Terminal Add-on

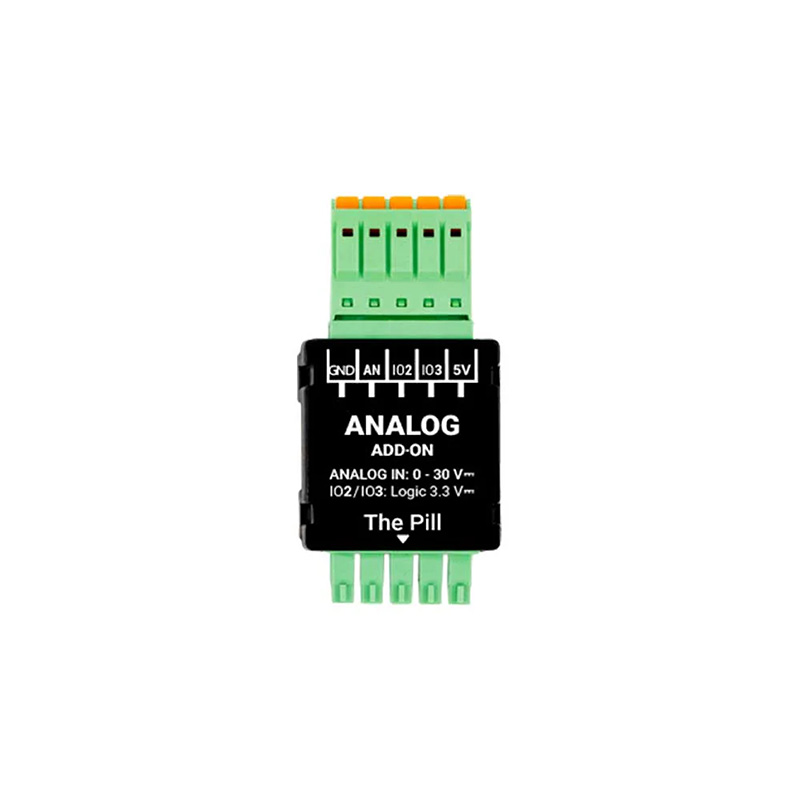

- 1 Analog Input (AN) + 2 configurable Digital IOs (3.3 V logic)
-
5 V power output for connected sensors
What’s Included:
- 1x ANALOG-0-30V-ADD-ON
- 1x Quick Start Guide
Product Specifications
Physical and Performance Attributes | |||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Weight | 8 grams | ||||||||||||||||||||||||||||||||||||
| Dimensions (L x W x H) | 36.5 × 26.5 × 11.5 mm | ||||||||||||||||||||||||||||||||||||
