Comelit Ciao-Mini One-Family Audio Intercom Kit

The Comelit Ciao-Mini Audio Intercom Kit is a single entrance essential and minimal hard wired audio intercom system, the kit comes with the Comelit 2-Button Door-entry Phone.

£267.80 inc VAT

Free Shipping for Mainland UK orders ** (excluding Scottish Highlands)

EAN / Barcode: 8023903410112

product-page-callout-v2-_support-full-width

Any Questions?

Our technical team is on hand to solve any problems or help you find the ideal solution.

    Description

    The Comelit Ciao-Mini Audio Intercom Kit is a single entrance essential and minimal hard wired audio intercom system, the kit comes with the Comelit 2-Button Door-entry Phone.

    Kit Contents & Features

    Ciao Wall-mount Entrance Panel1 x Ciao Entrance Panel


    Wall-mounted Ciao series hard-wired audio entry intercom unit with mechanical buttons. Die-cast aluminium facade with 1/2/4 call buttons, use provided button modifiers to choose your setup (smart button programming mode).  LED lighting for night use. Power is supplied from the bus line, and surface mounting included.

    Finish: Die-cast aluminium
    Mount: Wall-mounted
    Colour Grey
    Microphone: 4 (ø), omnidirectional
    Loudspeaker: 50mm (ø), 8 ohm, 0.2W
    Type of power supply: Power supply from video door entry bus
    Supply voltage: 27 ÷ 33 VDC (bus)
    Absorption in stand-by: 1.7 W
    Maximum absorption: 7.6 W
    Call type: Push button
    Button type: Mechanical
    Backlight Colour: White
    Terminals: L L COM DO RTE C NO NC SE+ SE (Removable)
    Number of inputs: 2
    Number of exits: 1
    Calibration control: Loudspeaker & backlight
    Protection rating (IP code): IP54
    Vandal resistant rating (IK code): IK08
    Operating temperature (°K): -13 ÷ 131
    Operating humidity (RH max – %): 25 ÷ 75
    Environmental class: III
    Compliance and Certifications: RoHS II – 2011/65/UE (EN 50581:2012)
    EMC 2014/30/UE (EN 61000-6-1:2007
    EN 61000-6-3:2007+A1:2011)
    Door opener: Yes
    Number of auxiliary relays: 1
    Input for local door release button: Yes
    Door opening singling input: Yes
    External unit dimensions (HWD): 170 x 98 x 28 mm



    1 x 2-Button Mini Door-entry Phone


    Door-entry phone for Simplebus 2 system with electronic call, key button and additional for other functions (actuator, switchboard call and other generic uses). 3-position selector allows for call volume and privacy adjustment, privacy activation indicated by red LED. Features 8-position dip-switch for user code selection.

    Mount: Wall / desk base mount
    Colour: White
    Number of buttons: Yes
    Actuator control function: Yes
    Switchboard call function: Yes
    Privacy function: Yes
    Floor door call function: Yes
    Electronic bell: Yes
    Key button function: Yes
    Ringtone volume control Yes
    Simplebus 2 audio system: Yes
    Simplebus 2 audio/video system: Yes
    Kit audio/video system: Yes
    Power supply voltage: 22 ÷ 35 VCD
    Absorption in stand-by: 0.7 mA
    Absorption during call: 30 mA
    Absorption during communication: 30 mA
    Microphone: 4mm, omnidirectional
    Loudspeaker: 0.50mm, 0.5W
    Operating temperature: -5 ÷ 40ºC
    Weight: 260g
    Clamps: L L CFP CFP
    External unit dimensions (HWD): 105 x 191 x 28 mm



    2-Wire Video Kit Power Supply Unit1 x 2-Wire Video Kit Power Supply Unit


    33 VDC power supply unit with overload and short circuit protections features, two separate continuous outputs: one for intercom panel and the other for monitor power supply. Input voltage = 110 – 240 VAC.

    Supply voltage: 110 ÷ 240 VAC
    Input connector: Terminal block
    Application: DIN rail
    Number of DIN modules: 6
    Maximum current delivered: 1.2 A
    Maximum power delivered: 37 W
    Unit dimensions (HWD): 62 x 106 x 89 mm (6 DIN modules)

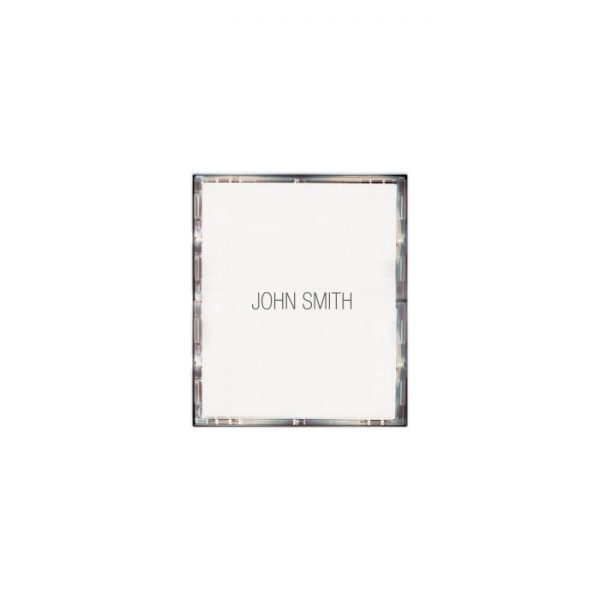

    Large Button for Ciao Entrance Panel1 x Large Button for Ciao Entrance Panel


    Colour: Transparent
    Material: Polycarbonate Makrolon 2407
    Mount: Flush
    Unit dimensions (HWD): 58 x 48 x 7 mm



    2 Single Buttons for Ciao Entrance Panel1 x 2 Double Height Buttons for Ciao Entrance Panel


    Colour: Transparent
    Material: Polycarbonate Makrolon 2407
    Mount: Flush
    Unit dimensions (HWD): 29 x 48 x 7 mm



    4 Single Buttons for Ciao Entrance Panel1 x 4 Single Buttons for Ciao Entrance Panel


    Colour: Transparent
    Material: Polycarbonate Makrolon 2407
    Mount: Flush
    Unit dimensions (HWD): 14 x 48 x 7 mm



    Product Specifications

    Physical and Performance Attributes

    Weight5 KG
    Dimensions

    Ciao Dimensions

    Protection Rating (IP)54
    Vandal Resistant?Yes
    Mounting TypeSurface Mounted
    Operating Temperature-13 ÷ 131

    Electronics Attributes

    Max Absorption7.6 W
    Max Power1.2 A
    Power Supply110 - 240 VAC

    Access Control Attributes

    Intercom TypeAudio
