HDANYWHERE – MHUB U (4×1+1)

Unified room-to-room entertainment with the latest video technology and convenient control via app or voice. The MHUB U (4×1+1) 40 is the MHUB made mini, for the many.

£684.00 inc VAT

Free Shipping for Mainland UK orders ** (excluding Scottish Highlands)

SKU: 2.50.817 Category: Tag:

EAN / Barcode: 5060147603798

product-page-callout-v2-_support-full-width

Any Questions?

Our technical team is on hand to solve any problems or help you find the ideal solution.

Contact Us
HDANYWHERE – MHUB U (4×1+1)
HDANYWHERE – MHUB U (4×1+1)
HDANYWHERE – MHUB U (4×1+1)
HDANYWHERE – MHUB U (4×1+1)
HDANYWHERE – MHUB U (4×1+1)
HDANYWHERE – MHUB U (4×1+1)
HDANYWHERE – MHUB U (4×1+1)
HDANYWHERE – MHUB U (4×1+1)
HDANYWHERE – MHUB U (4×1+1)
HDANYWHERE – MHUB U (4×1+1)
HDANYWHERE – MHUB U (4×1+1)
HDANYWHERE – MHUB U (4×1+1)
HDANYWHERE – MHUB U (4×1+1)
HDANYWHERE – MHUB U (4×1+1)

Description

Made for U

With the newest video technology and easy management by app or voice, you can enjoy unified room-to-room entertainment. For the many, the MHUB U (4x1+1) 40 is the MHUB made tiny.

Behind Better TV

It's preferable than simply having another set-top box in another room. MHUB offers multiroom TV and audio without compromise, allowing you to watch all of your favourite shows on many TVs across your home.

Best Picture

Best Picture

Dolby Vision and HDR formats supported

Downscaler

Downscaler

Mix and match 4K & 1080p displays

CEC ARC Support

Advanced

With advanced CEC and ARC support

MHUB-U-HERO
Manual
Datasheet

Unboxing the MHUB U (4x1+1) 40 HDANYWHERE system

Features

HDMI® 2.0 features supported up to 18Gbps

Display receiver powered via PoH

IR over HDMI injector dongle included

Web GUI for easy config and setup (MHUB-OS)

Remote system monitoring (HDA Cloud)

Advanced EDID management

Supports source content up to and inc. Ultra HD 4K 60 4:4:4 with High Dynamic Range (HDR) formats inc. Dolby Vision®

Supports all current audio formats up to and including Dolby Atmos® and DTS:X®

Multichannel audio or stereo extraction via optical, or via 3.5mm stereo jack

Sold as a complete install package, with Receiver, IR cables included.

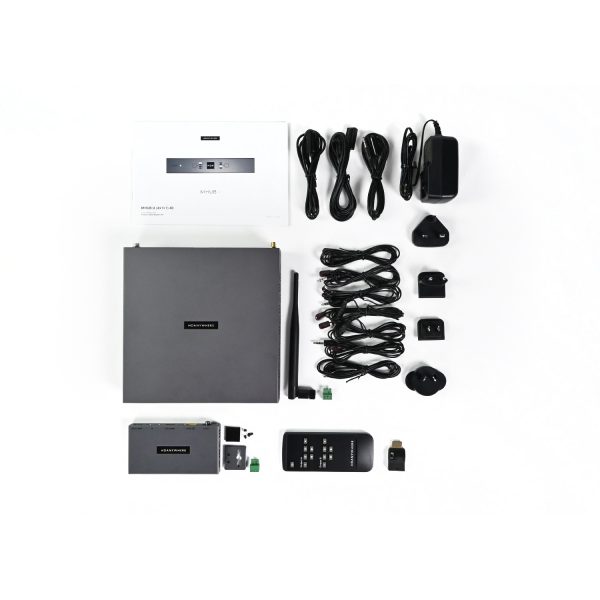

What's Included?

1x MHUB U (4x1+1) 40 Chassis/Hub

1x Display receiver

1x HDMI IR Dongle

1x Detachable WiFi aerial

7x Infrared Transmitter cable (1.5m) (IR TX)

3x Infrared (20-60Khz) Receiver cable (1.5m) (IR RX)

2x Three Pin Phoenix Connector

1x Display receiver mounting bracket

1x Master remote control

1x 24V 1A Power Supply with IEC lead & adapters (UK,EU,US,AU)

4x 3M Rubber Feet

1x User Guide

Technical Specs
Inputs x outputs
  • 4 HDMI x 1 RJ45 HDBaseT + 1 HDMI + 1 mirrored HDMI
Transmission tech.
  • HDBaseT (VS010) + TPC and HDMI
Video bandwidth
  • HDMI backplane 594MHz clock / 18Gbps data HDBT 340MHz clock / 10.2Gbps data
ESD protection
  • ± 8kV (air-gap discharge) ± 4kV (contact discharge)
Power consumption
  • AC Power Supply (US/EU standards, CE/FCC/UL certified)
Hub Control
  • Web GUI, IR, TCP/IP, RS232, App, Alexa)
App Control
  • Full control over sources, matrix hub & display functions.
General
Form factor
  • Compact unit. Mountable with optional mounting wings
Device / Package weight
  • Chassis: 1250g
  • Receiver: 125g
  • Package: 2000g
Dimensions (W x D x H)
  • Hub: 220 / 200 / 45mm (without feet)
  • RX: 140 / 65 / 17mm
Operating temperature
  • 0°C ~ 40°C
Storage temperature
  • -20°C ~ 60°C
Relative humidity
  • 20~90% RH (non-condensing)
Guarantee
  • 2/3-year guarantee (Cloud registration required)

Product Specifications

Physical and Performance Attributes

Weight2 KG
