HDANYWHERE – MHUB U (8×6+2) 18G

Cloud monitorable 8×6+2 HDMI/HDBT+HDMI matrix system with a 40m UHD 4K or 70m 1080p transmission range. An integrated IP>IR control processor enables property-wide control of all the connected sources and displays via the free uControl universal remote App or Alexa voice commands.

£2,999.00 inc VAT

Free Shipping for Mainland UK orders ** (excluding Scottish Highlands)

SKU: 2.50.841 Category: Tag:
product-page-callout-v2-_support-full-width

Any Questions?

Our technical team is on hand to solve any problems or help you find the ideal solution.

Contact Us
HDANYWHERE – MHUB U (8×6+2)
HDANYWHERE – MHUB U (8×6+2)
HDANYWHERE – MHUB U (8×6+2)
HDANYWHERE – MHUB U (8×6+2)
HDANYWHERE – MHUB U (8×6+2)
HDANYWHERE – MHUB U (4×3+1)
HDANYWHERE – MHUB U (4×3+1)
HDANYWHERE – MHUB U (8×6+2)
HDANYWHERE – MHUB U (8×6+2)
HDANYWHERE – MHUB U (8×6+2)
HDANYWHERE – MHUB U (8×6+2)
HDANYWHERE – MHUB U (8×6+2)
HDANYWHERE – MHUB U (8×6+2)
HDANYWHERE – MHUB U (8×6+2)
HDANYWHERE – MHUB U (8×6+2)
HDANYWHERE – MHUB U (4×3+1)
HDANYWHERE – MHUB U (4×3+1)
HDANYWHERE – MHUB U (8×6+2)
HDANYWHERE – MHUB U (8×6+2)
HDANYWHERE – MHUB U (8×6+2)

Description

MHUB U (8x6+2)

Cloud-monitored 8x6+2 HDMI/HDBT+HDMI matrix system with a transmission range of 40m UHD 4K or 70m 1080p. The free uControl universal remote App or Alexa voice commands allow property-wide management of all connected sources and displays thanks to an integrated IP>IR control processor.

Behind Better TV

It's preferable than simply having another set-top box in another room. MHUB offers multiroom TV and audio without compromise, allowing you to watch all of your favourite shows on many TVs across your home.

Best Picture

Best Picture

Dolby Vision and HDR formats supported

Downscaler

Downscaler

Mix and match 4K & 1080p displays

CEC ARC Support

Advanced

With advanced CEC and ARC support

Manual
Datasheet

Features

HDMI® 2.0 features supported up to 18Gbps

All display receivers powered via PoH

2x IR over HDMI injector dongle included

Web GUI for easy config and setup (MHUB-OS)

Remote system monitoring (HDA Cloud)

Advanced EDID management

Supports source content up to and inc. Ultra HD 4K 60 4:4:4 with High Dynamic Range (HDR) formats inc. Dolby Vision®

Supports all current audio formats up to and including Dolby Atmos® and DTS:X®

Multichannel audio or stereo extraction via optical, or via 3.5mm stereo jack

4K>1080 down/up-scaling receiver option available

Sold as a complete install package, with Receiver, IR cables included.

What's Included?

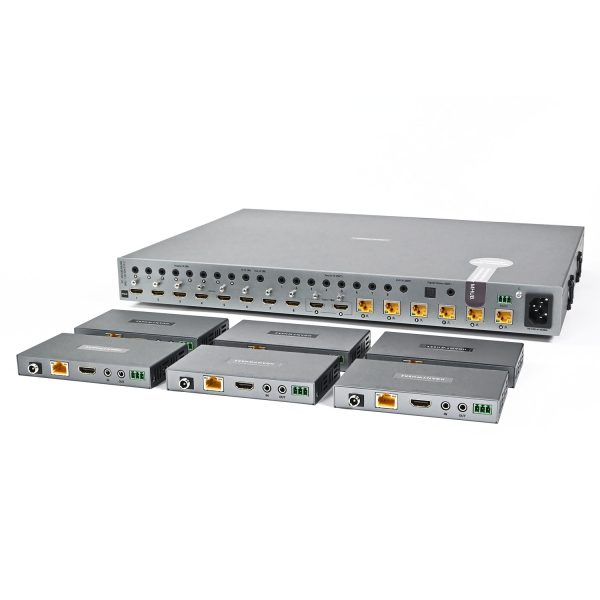

1x MHUB U (8x6+2) 40 Chassis/Hub

6x Display receiver

2x HDMI IR Dongle

15x Infrared Transmitter cable (1.5m) (IR TX)

9x Infrared (20-60Khz) Receiver cable (1.5m) (IR RX)

7x Three Pin Phoenix Connector

1x Serial to Three Pin Phoenix cable

4x Chassis rubber feet

1x Chassis rack mounting kit inc. screws

6x Display receiver mounting brackets inc. screws

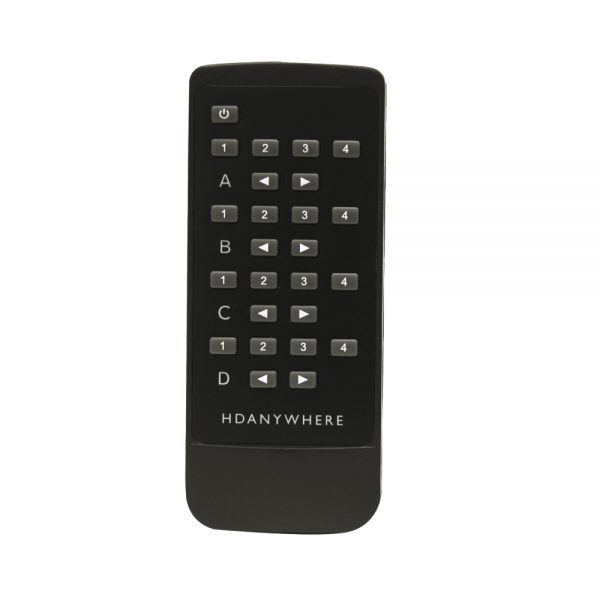

1x Master remote control

1x IEC Power lead

1x User Guide

Technical Specs
Inputs x outputs
  • 8 HDMI x 6 RJ45 HDBaseT + 2 HDMI
Transmission tech.
  • HDBaseT (VS010) + TPC and HDMI
Video bandwidth
  • HDMI backplane 594MHz clock / 18Gbps data HDBT 340MHz clock / 10.2Gbps data
ESD protection
  • ± 8kV (air-gap discharge) ± 4kV (contact discharge)
Power consumption
  • 30W (max) 0.5W (standby)
Hub Control
  • Web GUI, IR, TCP/IP, RS232, App, Alexa)
App Control
  • Full control over sources, matrix hub & display functions.
General
Form factor
  • 19”/1U aluminium rack-mountable unit
Device / Package weight
  • Hub: 2400g
  • RX: 125g
  • Package: 3500g
Dimensions (W x D x H)
  • Hub: 440 / 284 / 45mm (without feet)
  • RX: 140 / 65 / 17mm
Operating temperature
  • 0°C ~ 40°C
Storage temperature
  • -20°C ~ 60°C
Relative humidity
  • 20~90% RH (non-condensing)
Guarantee
  • 2/3-year guarantee (Cloud registration required)

Product Specifications

Physical and Performance Attributes

Weight2 KG
