HDANYWHERE – XTND 2K (150)

A long-range uncompressed HDMI extender set supporting all resolutions up to Full HD 1080p 60Hz content up to 150 metres over one twisted pair Cat cable. HDBaseT technology ensures ultra-reliable and robust transmission, even over challenging cable distances.

£169.00 inc VAT

Free Shipping for Mainland UK orders ** (excluding Scottish Highlands)

SKU: 2.50.767 Category: Tag:

EAN / Barcode: 5060147603538

product-page-callout-v2-_support-full-width

Any Questions?

Our technical team is on hand to solve any problems or help you find the ideal solution.

Contact Us

    HDANYWHERE - XTND 2K 150
    HDANYWHERE - XTND 2K 150
    HDANYWHERE - XTND 2K 150
    HDANYWHERE - XTND 2K 150
    HDANYWHERE - XTND 2K 150
    HDANYWHERE - XTND 2K 150
    HDANYWHERE - XTND 2K 150
    HDANYWHERE - XTND 2K 150
    HDANYWHERE - XTND 2K 150
    HDANYWHERE - XTND 2K 150
    HDANYWHERE - XTND 2K 150
    HDANYWHERE - XTND 2K 150
    HDANYWHERE - XTND 2K 150
    HDANYWHERE - XTND 2K 150
    HDANYWHERE - XTND 2K 150
    HDANYWHERE - XTND 2K 150
    HDANYWHERE - XTND 2K 150
    HDANYWHERE - XTND 2K 150

    Description

    XTND 2K (150)

    A long-range uncompressed HDMI extender kit that supports all resolutions up to Full HD 1080p 60Hz content over one twisted pair Cat cable for a distance of up to 150 metres. Even across long cable distances, HDBaseT technology offers ultra-reliable and robust transmission.

    Unboxing the XTND 2K (150) HDMI extender

    Manual
    Datasheet

    Features

    Supports all resolutions up to and inc. Full HD 1080p 60Hz up to 150m

    Supports LPCM 7.1ch, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio

    4Gbps data rate

    HDMI loop port on TX

    Two-way IR and bi-directional RS232 control.

    Bi-directional PoH - can be powered from either RX or TX

    Sold as a complete install package, with all IR cabling and mounting kit included

    UK / EU / AU / US multi-territory adapters included

    What's Included?

    1x XTND2K150 Transmitter

    1x XTND2K150 Receiver

    2x IR RX

    2x IR TX

    1x 24V/1A DC PSU

    4x Wall mounting brackets

    Technical Specs
    Inputs x outputs

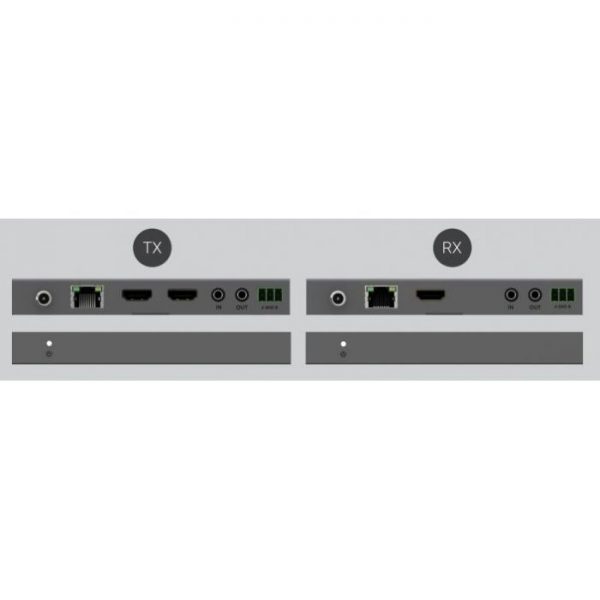

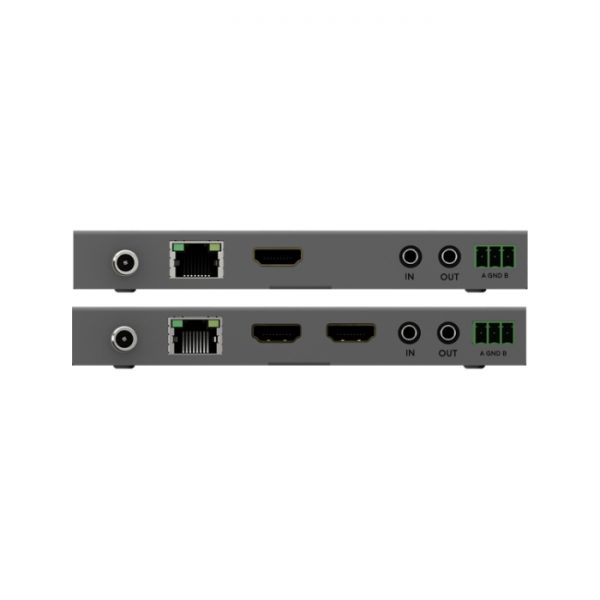

    • TX: HDMI in / RJ45 HDBaseT out / RS232 / 2x IR 3.5mm jack (in = to RX / out = from RX)HDMI
    • RX: RJ45 HDBaseT in / HDMI out / RS232 / 2x IR 3.5mm jack (in = to TX / out = from TX)
    Transmission tech.
    • HDBaseT
    Video bandwidth
    • 148.5MHz clock / 4Gbps data
    ESD protection
    • ± 8kV (air-gap discharge) ± 4kV (contact discharge)
    Control
    • Bi-directional IR and RS232 + HDMI-CEC pass through.
    Power
    • 24V/1A DC screw type connector (US/EU standards, CE/FCC/UL certified)
    Power consumption
    • 9.5W (max)
    General
    Form factor
    • Lightweight slender aluminium enclosure
    Device / Package weight
    • TX / RX: 125g each
    • Package: 1100g
    Dimensions (W x D x H)
    • TX / RX: 140 / 65 / 17 mm
    Operating temperature
    • 0°C ~ 40°C
    Storage temperature
    • -20°C ~ 60°C
    Relative humidity
    • 20~90% RH (non-condensing)
    Guarantee
    • 2 year guarantee

    Product Specifications

    Physical and Performance Attributes

    Weight900 grams
