LiftMaster 780EV Standalone Wireless Keypad

Modern, stylish design. Installation is simple and wireless. Performs consistently over time.

LiftMaster’s 780EV wireless security keypad is the perfect addition to any LiftMaster garage door or gate operator.

£89.23 inc VAT

SKU: 780EV Category: Tags: ,
product-page-callout-v2-_support-full-width

Any Questions?

Our technical team is on hand to solve any problems or help you find the ideal solution.

    Description

    Modern, stylish design. Installation is simple and wireless. Performs consistently over time.

    LiftMaster’s 780EV wireless security keypad is the perfect addition to any LiftMaster garage door or gate operator.

    Key Features

    • Use with multiple gate or garage door openers at once
    • Temporary PIN, ideal for visitors
    • Standalone keypad
    • Wireless communication, no need for wiring
    • Rolling code security
    • Tri-band frequency 433 MHz
    • Illuminated keyboard with white backlight, which activates when any key is pressed
    • Easy to use in the dark
    • Weather-resistant IP55 rated for outdoor use

    Popular Features

    4-digit PIN

    • Control several operators, each with its own PIN code
    • Up to 10,000 possible combinations
    • Easily change current PIN codes

    Temporary PIN

    Visitors and employees can be given a temporary access code that is limited to a set of hours or openings (up to 255 uses or up to 255 hours)

    Close With Just One Button

    By hitting the enter button without inputting the PIN, the operator can be closed from the open position. Manually deactivating this feature is possible.

    Quick and Easy Wireless Installation

    No need for time-consuming and costly wiring thanks to wireless communication

    Security+ 2.0® Technology

    Operates using LiftMaster Security+ 2.0® Tri-band frequency 433 MHz (433.30MHz, 433.92MHz, 434.54MHz).

    When the keypad is used to engage with LiftMaster Garage Door and Gate Operators, it practically eliminates interference and provides a longer range.

    Easily Portable

    The keypad is effortlessly detachable from the mounting bracket. The programming will still be in operation. It’s especially useful for holiday travel.

    Manual & Datasheet

    Product Specifications

    Physical Attributes

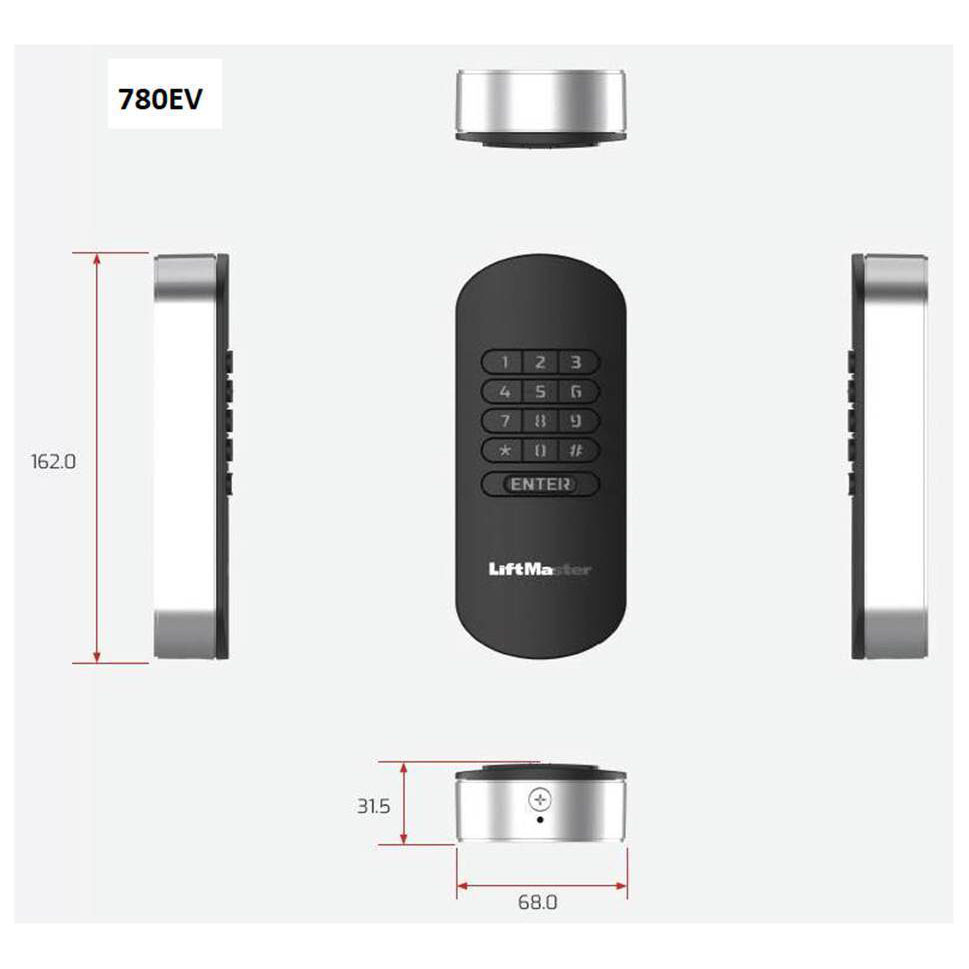

    Dimensions
    LiftMaster 780EV Keypad

    LiftMaster 780EV Keypad

    Protection Rating (IP)55
    Mounting TypeSurface Mounted
    Vandal Resistant?No

    Electronics Attributes

    Max Power< 10 mW
    Battery TypePP3 / 6LR61 (9V Alkaline)
    Number of Batteries1
    Battery Life (Estimated)5 years

    Performance Attributes

    Operating Temperature-20°C to 55°C

    Radio Attributes

    Coding TypeRolling / Hopping Code
    Radio Frequency433.92 MHz

    Keypad Attributes

    Backlit KeysYes
    Wireless?Yes
