Monitor Audio – Creator Series – W1M-E In-Wall Speaker
The W1M-E medium-sized Tier 1 in-wall loudspeaker is a two-way model designed for cost-effective installations, where product simplicity and solid acoustic performance is required.
Please contact us for pricing and purchase enquiries.
Any Questions?
Our technical team is on hand to solve any problems or help you find the ideal solution.
Description

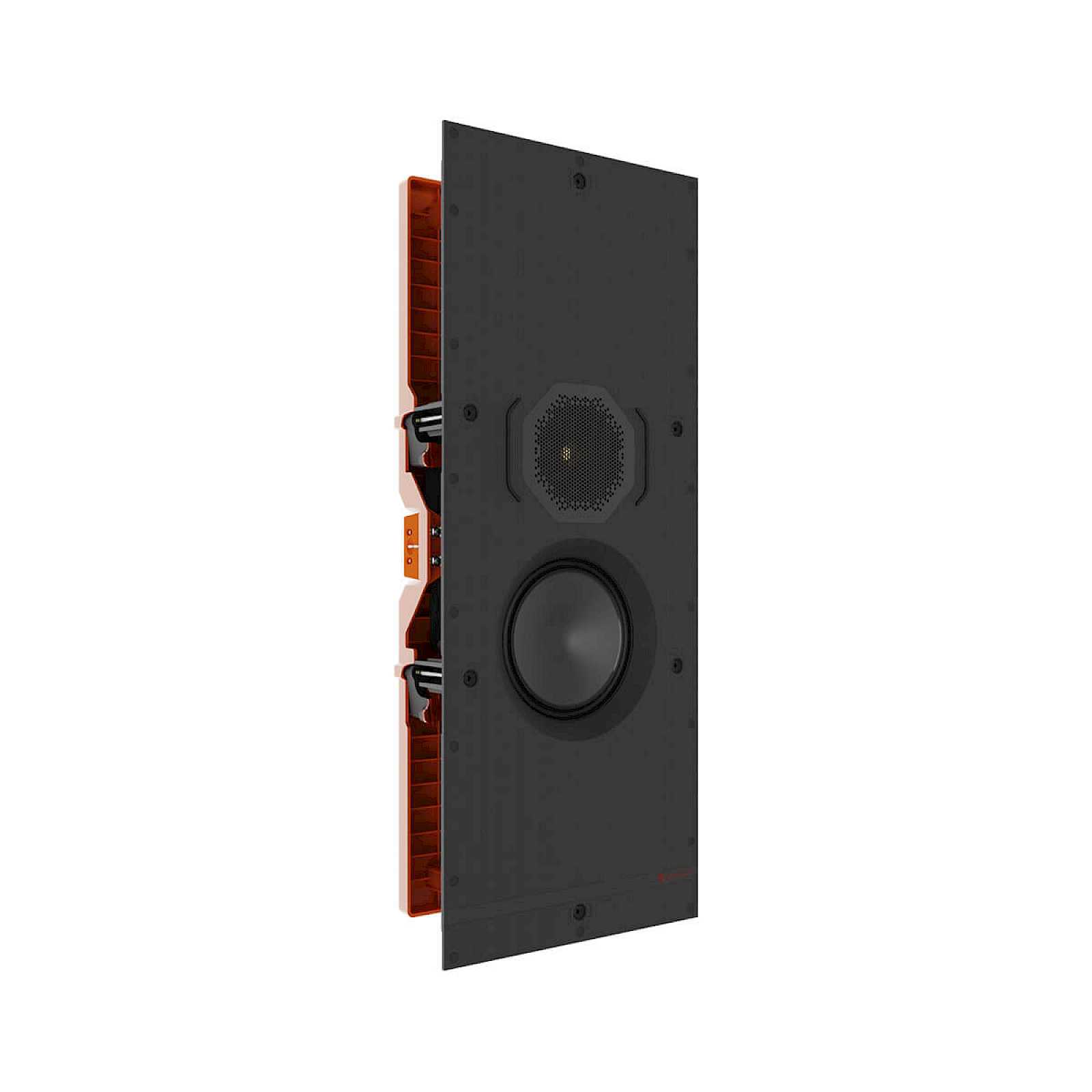

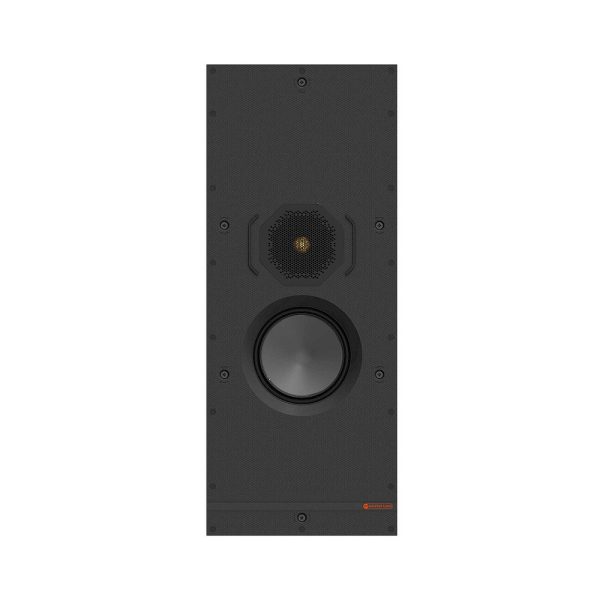

The W1M-E medium-sized Tier 1 in-wall loudspeaker is a two-way model featuring a C-CAM (Ceramic-Coated Aluminium/Magnesium) mid-bass driver and C-CAM tweeter. It has a cut-out dimension of 527 x 198 mm and a revolutionary Quik-Link speaker cable connector and Tri-Grip II for quick, simple, reliable, and strong installation and fitting.
This loudspeaker is designed for cost-effective installations, where product simplicity and solid acoustic performance is required. The performance benefit of having both a mid-bass driver and tweeter within a single design means greatly improved clarity, wider dispersion into the listening environment, and clear lifelike high-fidelity sound – of the quality you’d expect from any Monitor Audio passive box loudspeaker.
Key Features:
- Ideal for cost-effective installations
- Two-way design
- 1 x 1″ C-CAM tweeter with UD Waveguide
- 1 x 5″ C-CAM mid-bass driver
- Quik-Link speaker cable connector for quicker installation
- Tri-Grip II for easy and secure fitment
What’s Included:
1 x W1M-E In-Wall Speaker
1 x Quick Start Guide
1 x Cutout Template
1 x Quik-Link Connector
1 x Safety Instructions
Product Specifications
Physical and Performance Attributes | |
|---|---|
| Weight | 2.6 KG |
| Dimensions (L x W x H) | 560 × 231 × 90 mm |
Misc Product Attributes | |
SpecificationsSystem Format 2-Way Channels 1 Frequency Response, Installed (-6dB) 40Hz – 30kHz Nominal Impedance 8 Ohm Minimum Impedance (20Hz to 20kHz) 6.5 Ohm @ 200 Hz 6.2 Ohm @ 20kHz Sensitivity (2.83Vrms@1m, Installed) 84dB Maximum Peak SPL* (single speaker @ 1m Z-Weighted) 110dB Continuous Power Handling (RMS into Nominal Impedance, Pink Noise with 6dB Crest Factor) 50W Recommended Amplifier Power (RMS into 8 Ohm, Music Signal) 25 – 100W Drive Unit Complement 1 x 5″ (127mm) C-CAM bass driver 1 x 1″ (25mm) C-CAM tweeter Crossover Frequency LF/HF: 2.5kHz Mounting Depth 85mm (3-3/8″) Cut-out L x W 527 x 198mm (20-3/4″ x 7-13/16″) External Dimensions (Including Grille (H x W x D)) 560 x 231 x 90mm (22-1/16 x 9-1/8 x 3-9/16″) Weight (each) 2.6kg (5lb 11oz) Pre-Construction Bracket WM-B Cabinet Finish Matte Black & Orange Sold As Single Unit Warranty Lifetime | |
