Monitor Audio – Creator Series – W1M In-Wall Speaker
The W1M-E medium-sized Tier 1 in-wall loudspeaker is a two-way model designed for cost-effective installations, where product simplicity and solid acoustic performance is required.
Please contact us for pricing and purchase enquiries.
Any Questions?
Our technical team is on hand to solve any problems or help you find the ideal solution.
Description

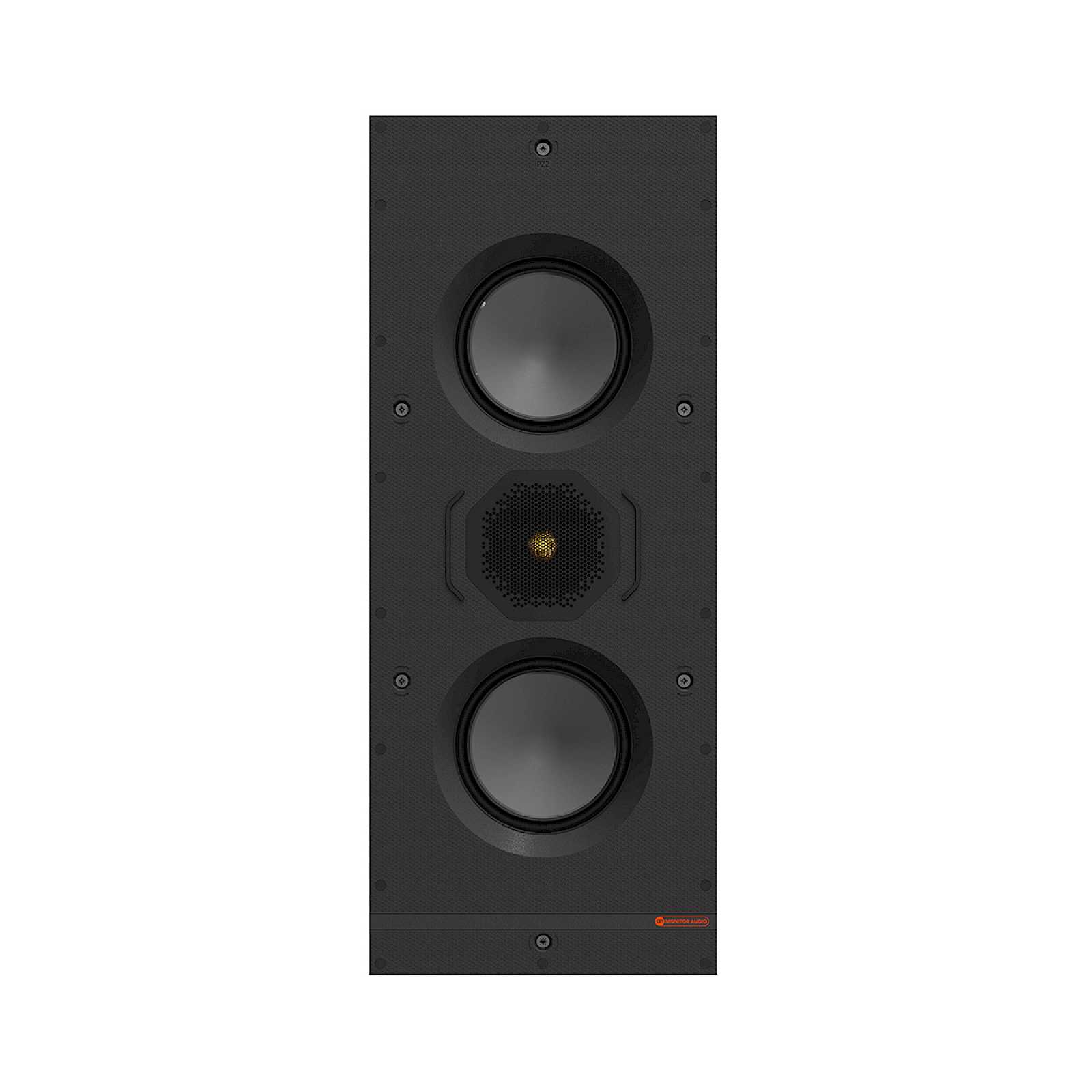

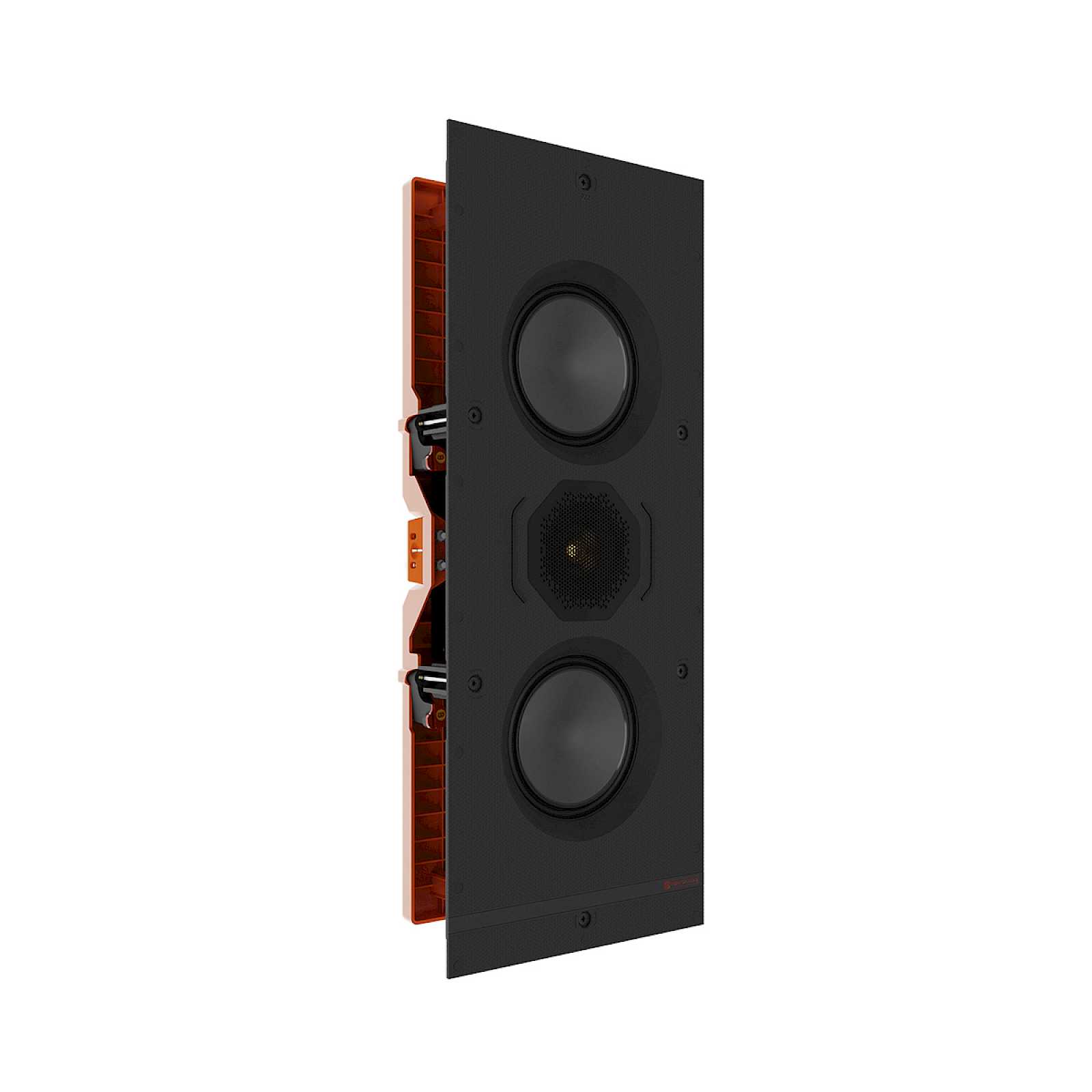

The W1M medium-sized Tier 1 in-wall loudspeaker is a two-way model featuring two C-CAM (Ceramic-Coated Aluminium/Magnesium) mid-bass drivers and a C-CAM tweeter. It is designed for cost-effective installations, where product simplicity and solid acoustic performance are required. The performance benefit of having both a C-CAM mid-bass drivers and a C-CAM tweeter within a single design means greatly improved clarity, wider dispersion into the listening environment, and clear, lifelike, high-fidelity sound—of the quality you’d expect from any Monitor Audio passive box loudspeaker.

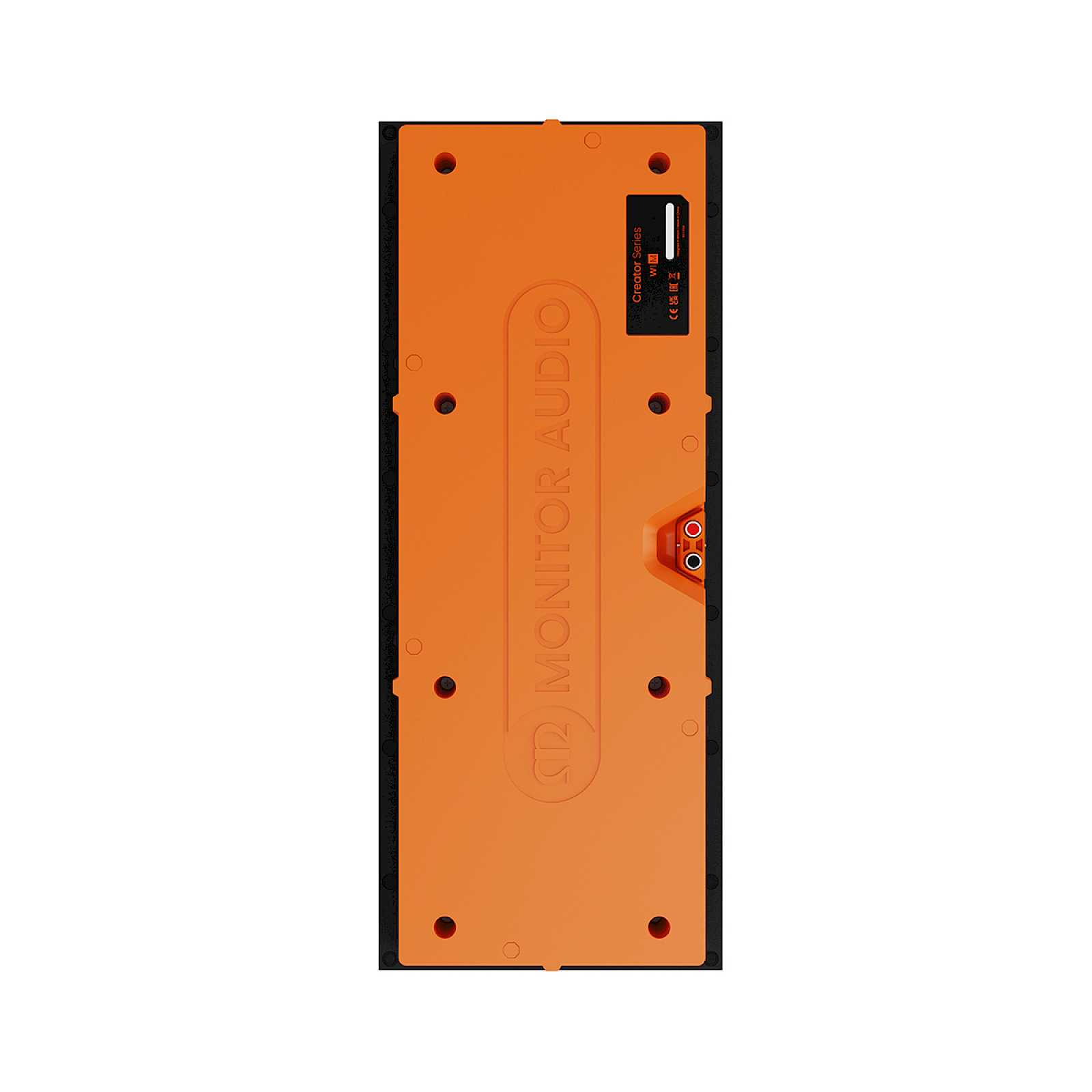

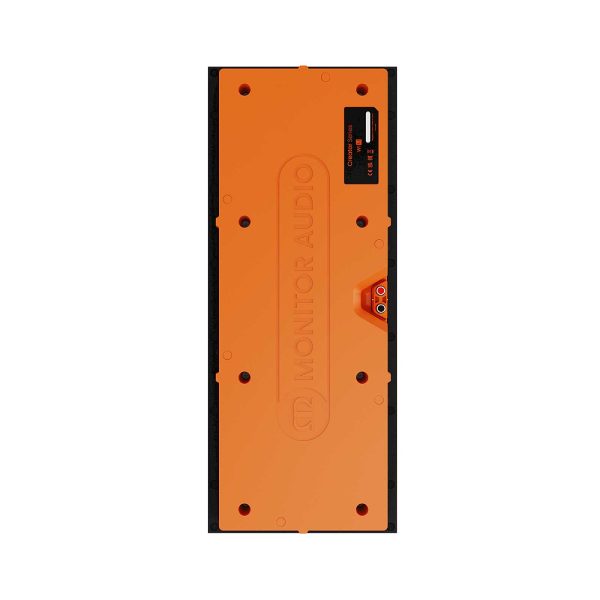

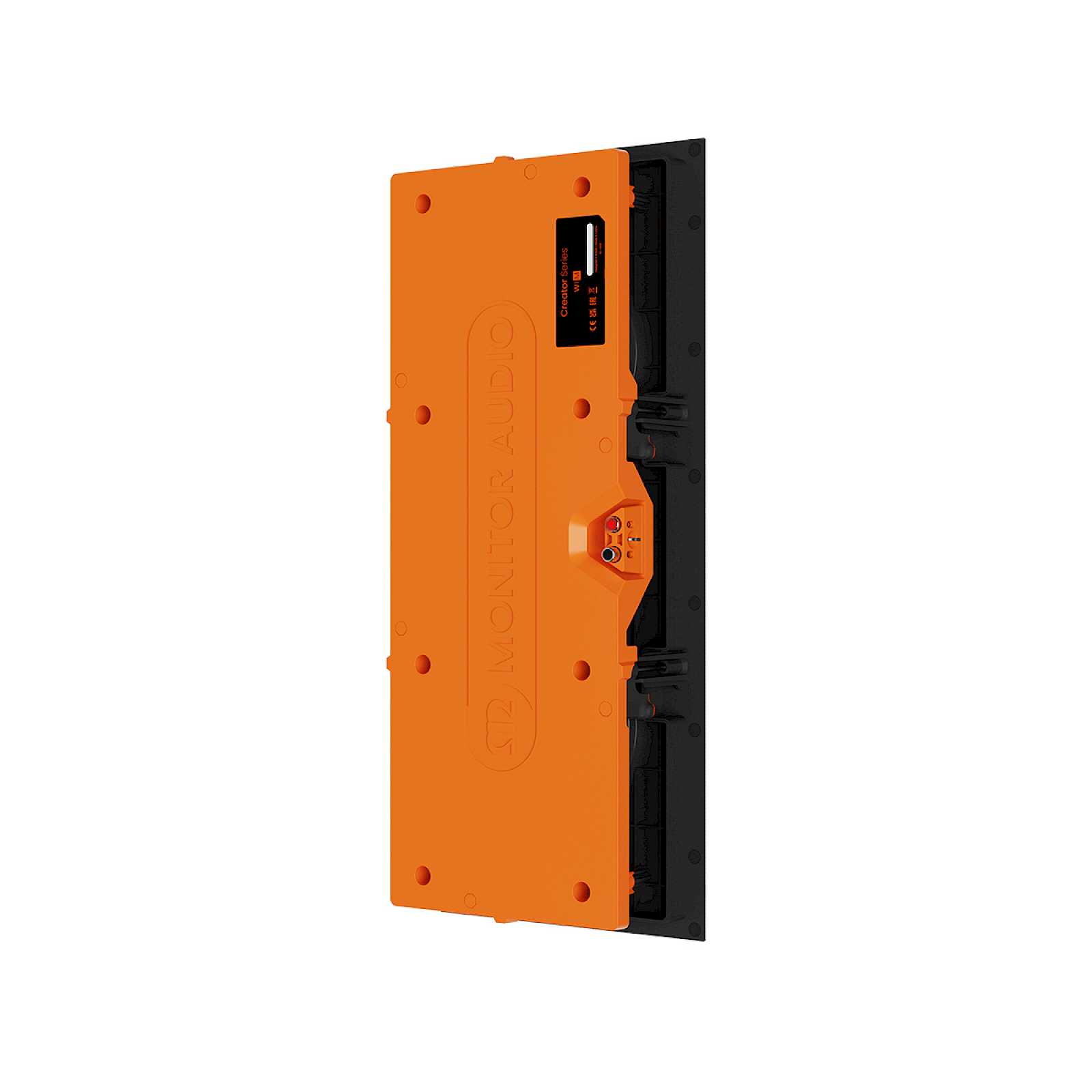

It has a cut-out dimension of 527 x 198 mm and uses the Quik-Link speaker cable connector, which revolutionises the ease and speed of speaker installation. Tri-Grip has also been evolved for simple, reliable, and strong fitment.
Key Features:
- Ideal for cost-effective installations
- Two-way design
- 1 x 1″ C-CAM tweeter with UD Waveguide
- 2 x 5″ C-CAM mid-bass driver
- Quik-Link speaker cable connector for quicker installation
- Tri-Grip II for easy and secure fitting
What’s Included:
1 x W1M In-Wall Speaker
1 x Quick Start Guide
1 x Cutout Template
1 x Quik-Link Connector
1 x Safety Instructions
Product Specifications
Physical and Performance Attributes | |
|---|---|
| Weight | 3.4 KG |
| Dimensions (L x W x H) | 560 × 231 × 90 mm |
Misc Product Attributes | |
SpecificationsSystem Format 2-Way Channels 1 Frequency Response, Installed (-6dB) 40Hz – 30kHz Nominal Impedance 6 Ohm Minimum Impedance (20Hz to 20kHz) 4.8 Ohm @ 15kHz Sensitivity (2.83Vrms@1m, Installed) 87dB Maximum Peak SPL* (single speaker @ 1m Z-Weighted) 113dB Continuous Power Handling (RMS into Nominal Impedance, Pink Noise with 6dB Crest Factor) 75W Recommended Amplifier Power (RMS into 8 Ohm, Music Signal) 30 – 110W Drive Unit Complement 2 x 5″ (127mm) C-CAM bass driver 1 x 1″ (25mm) C-CAM tweeter Crossover Frequency LF/HF: 2.75kHz Mounting Depth 85mm (3-3/8″) Cut-out L x W 527 x 198mm (20-3/4″ x 7-13/16″) External Dimensions (Including Grille (H x W x D)) 560x 231 x 90mm (22-1/16 x 9-1/8 x 3-9/16″) Weight (each) 3.4kg (7lb 8oz) Pre-Construction Bracket WM-B Cabinet Finish Matte Black & Orange Sold As Single Unit Warranty Lifetime | |
