Monitor Audio – IA125-4 Installation Amplifier
The IA125-4 is a compact, ultra-high power density DSP amplifier delivers four channels of 125 W or two channels of 250 W. All from a convenient 1U half-size design.
Please contact us for pricing and purchase enquiries.
Any Questions?
Our technical team is on hand to solve any problems or help you find the ideal solution.
Description

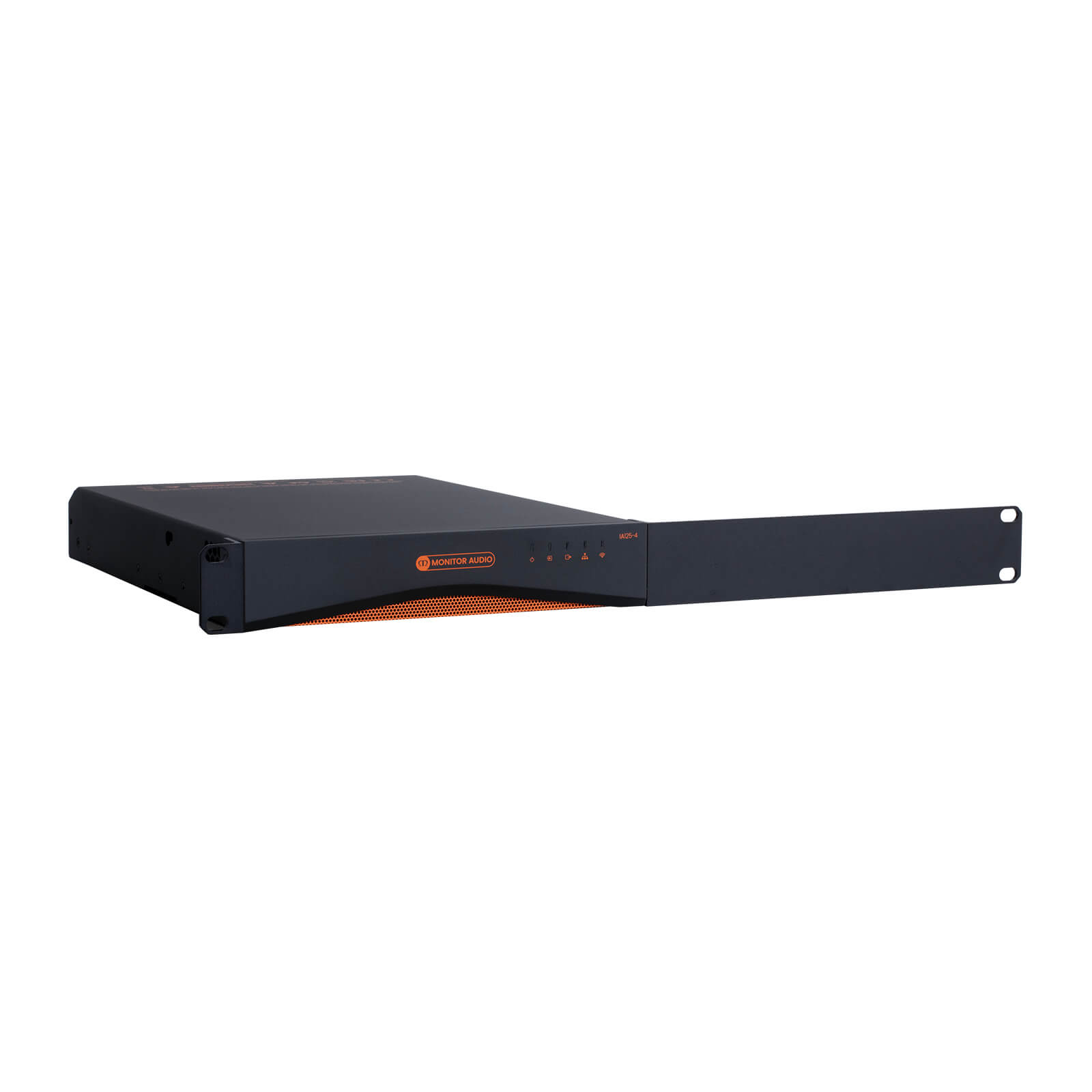

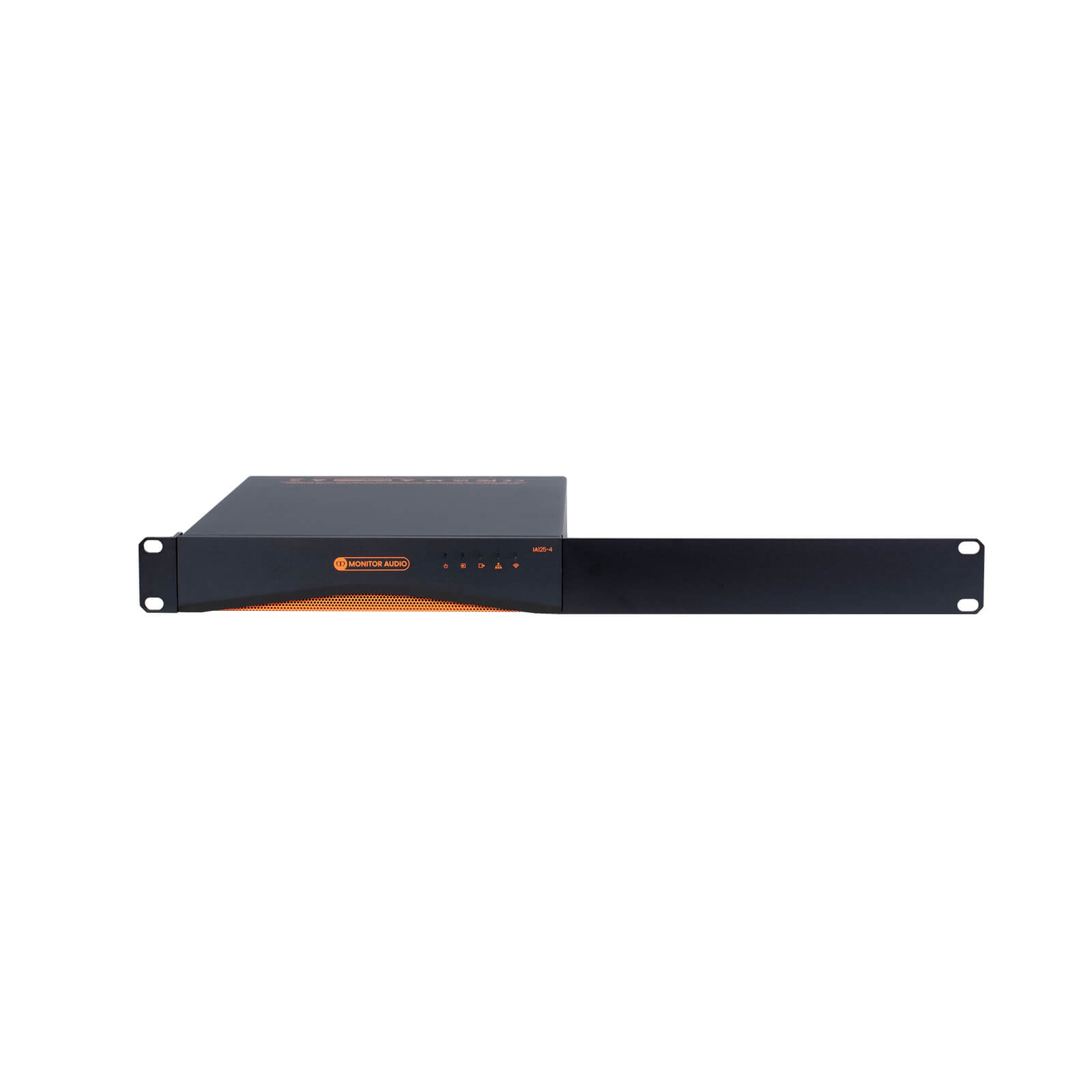

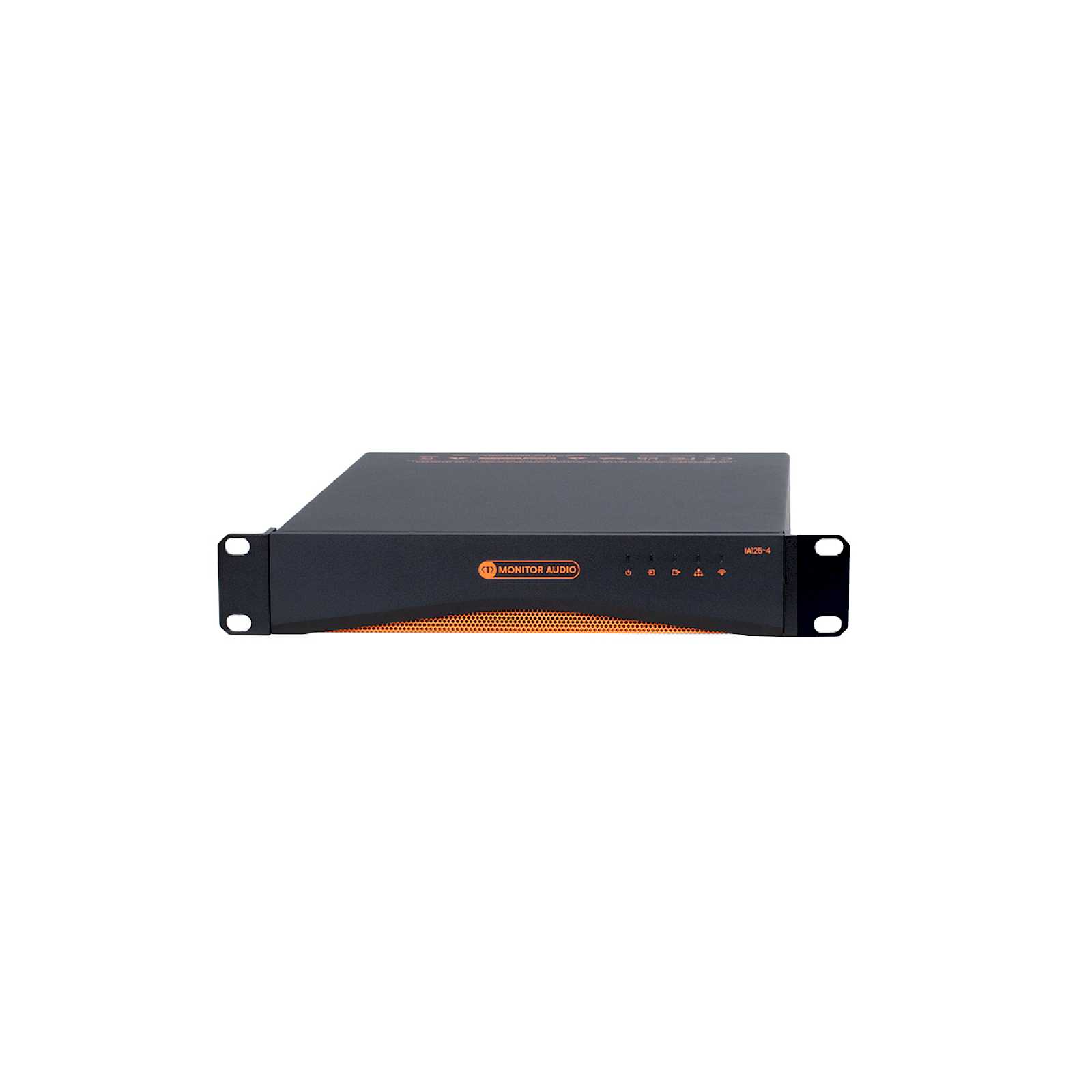

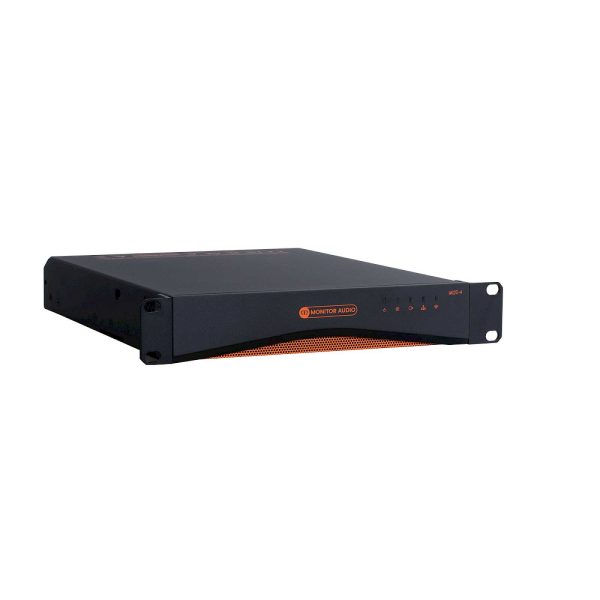

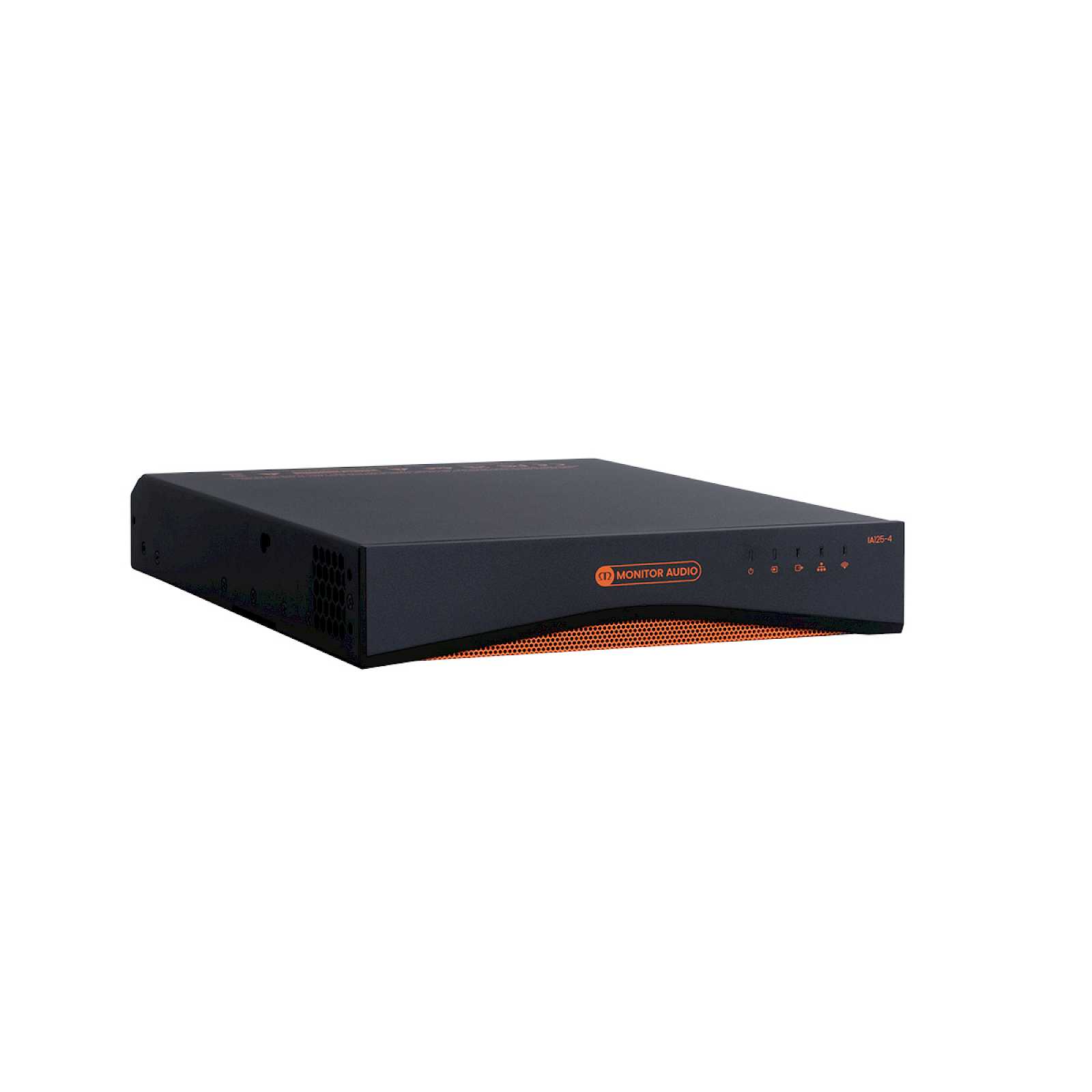

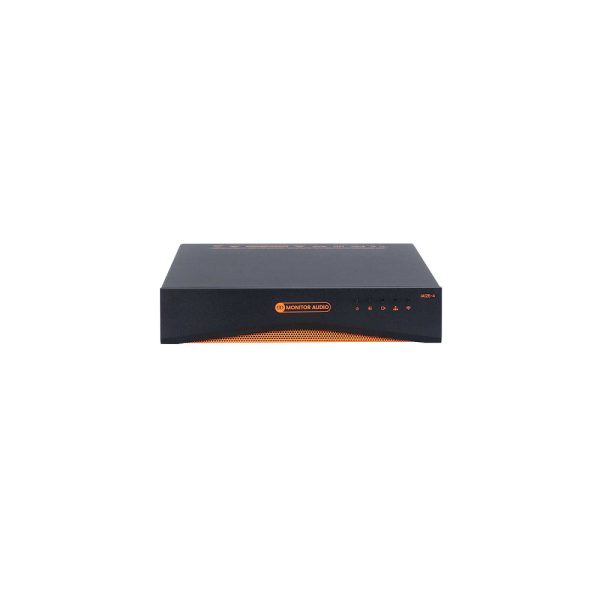

The IA125-4 is a compact, ultra-high power density DSP amplifier delivers four channels of 125 W or two channels of 250 W. All from a convenient 1U half-size design.
This is a deceptively powerful amplifier that packs ultra-high-density amplification into its compact 1U half-rack form. It delivers 4 channels of 125 W or 2 channels of 250 W, all from a convenient 1U half-size design. Furthermore, it can be used in power sharing mode to support Monitor Audio’s THX Ultra certified Cinergy 100 speakers within a home theatre system or medium-sized garden. It’s the ideal amplifier for two-zone stereo applications and height channels within home theatre systems.
Note: Rack and wall/desk installation kits sold separately.
Product Specifications
Physical and Performance Attributes | |
|---|---|
| Weight | 2.82 KG |
| Dimensions (L x W x H) | 325 × 220 × 44 mm |
Misc Product Attributes | |
Channels 4 Output Power @ 4 Ohms/8 Ohms 4 x 125W SE(Single Ended) Output Power @ 70/100V 2 x 250W BTL(Bridge Tied Load) PowerShare (up to) 2 x 250W Power Consumption 150W Thermal Output 512BTU (British Thermal unit) Polarity (Default) Non-inverting Dimensions 44 x 220 x 325mm (1-3/4 x 8-11/16 x 11-5/8″) Output Voltage 70Vp / 140Vpp (SE unloaded), 140Vp / 280Vpp (BTL unloaded) Signal to Noise Ratio >106dB (A-weighted, 20Hz – 20kHz, 8 Ohm load) THD+N (typical) <0.05% (20Hz – 20kHz, 8 Ohm load, 3dB below rated power) Frequency Response +0/-0.25dB 20Hz – 20kHz (8 Ohm load, 3dB below rated power) Protection Circuits Short circuit -, DC, Undervoltage -, Temperature – and Overload protection Power Supply Switch mode power supply with Power Factor Correction (PFC) and standby converter Operating Voltage/Frequency Universal Mains, 100V – 240V, 50Hz – 60Hz Standby Consumption <0.5W Accessories Rack Mounting Kit, Wall/desktop mount kit (sold separately) Power Ratings 1% THD @ 120Vac and 230Vac Cabinet Finish Black Anodised Warranty 5 years
| |
