Monitor Audio – IA60-4 Installation Amplifier
The IA60-4A is a highly compact, incredibly versatile four-channel custom installation amplifier which can be configured to deliver four channels of 60 W or 2 channels at 125 W.
Please contact us for pricing and purchase enquiries.
Any Questions?
Our technical team is on hand to solve any problems or help you find the ideal solution.
Description
The IA60-4A is a highly compact, incredibly versatile four-channel custom installation amplifier which can be configured to deliver four channels of 60 W or 2 channels at 125 W.
Monitor Audio Installation Amplifiers are built to perform at the highest levels while taking up the least rack space. The IA60-4 may be entry-level, but it features full DSP matrix configuration and offers flexible power options: it can be configured to deliver four channels of 60W or 2 channels at 125W, or using power sharing, it can deliver a single channel of 250W with no loss of performance. All this from a rugged, 1U half-size, space-saving design. The IA60-4 is ideal for two-zone stereo applications, height channels within home theatre Atmos solutions, or small garden systems.

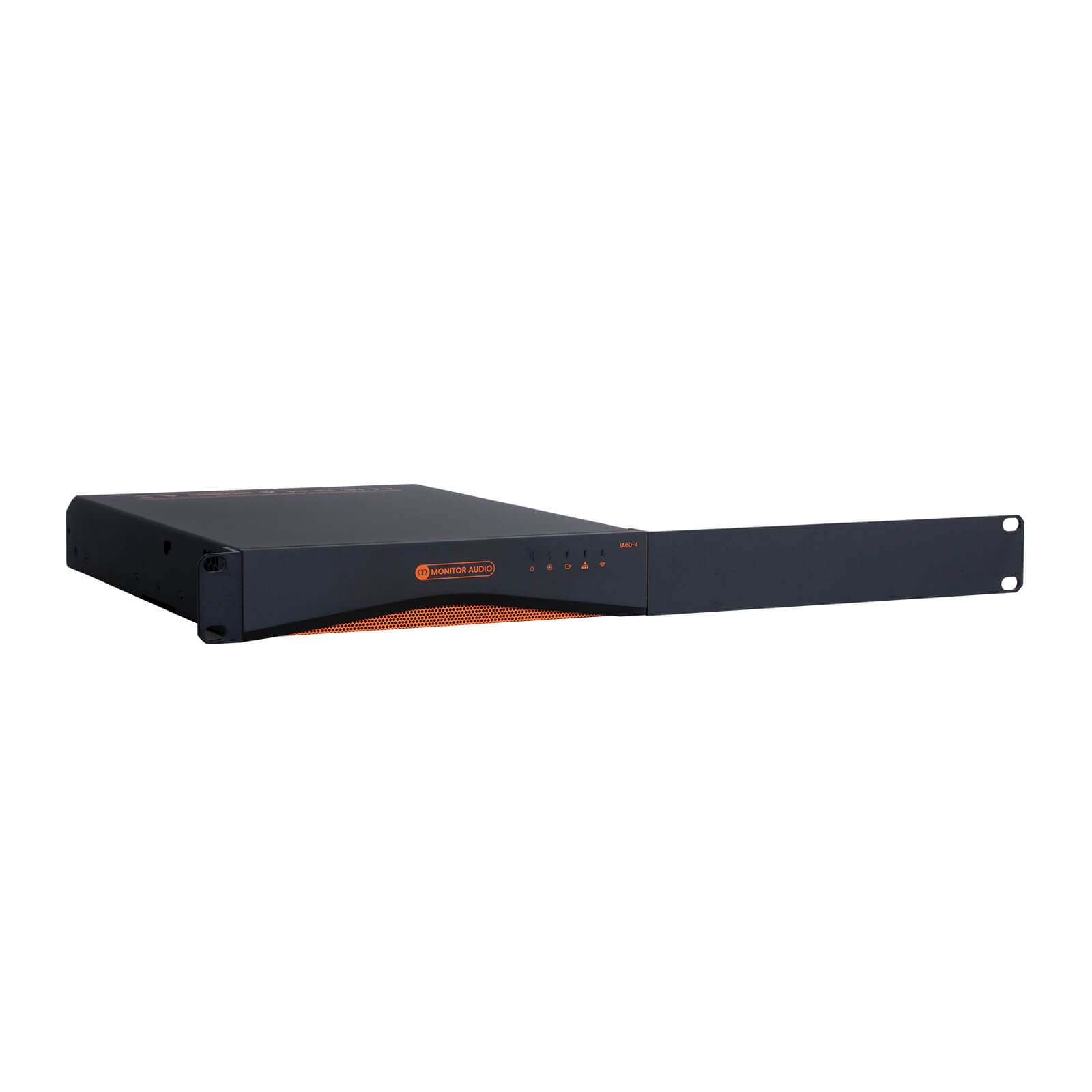

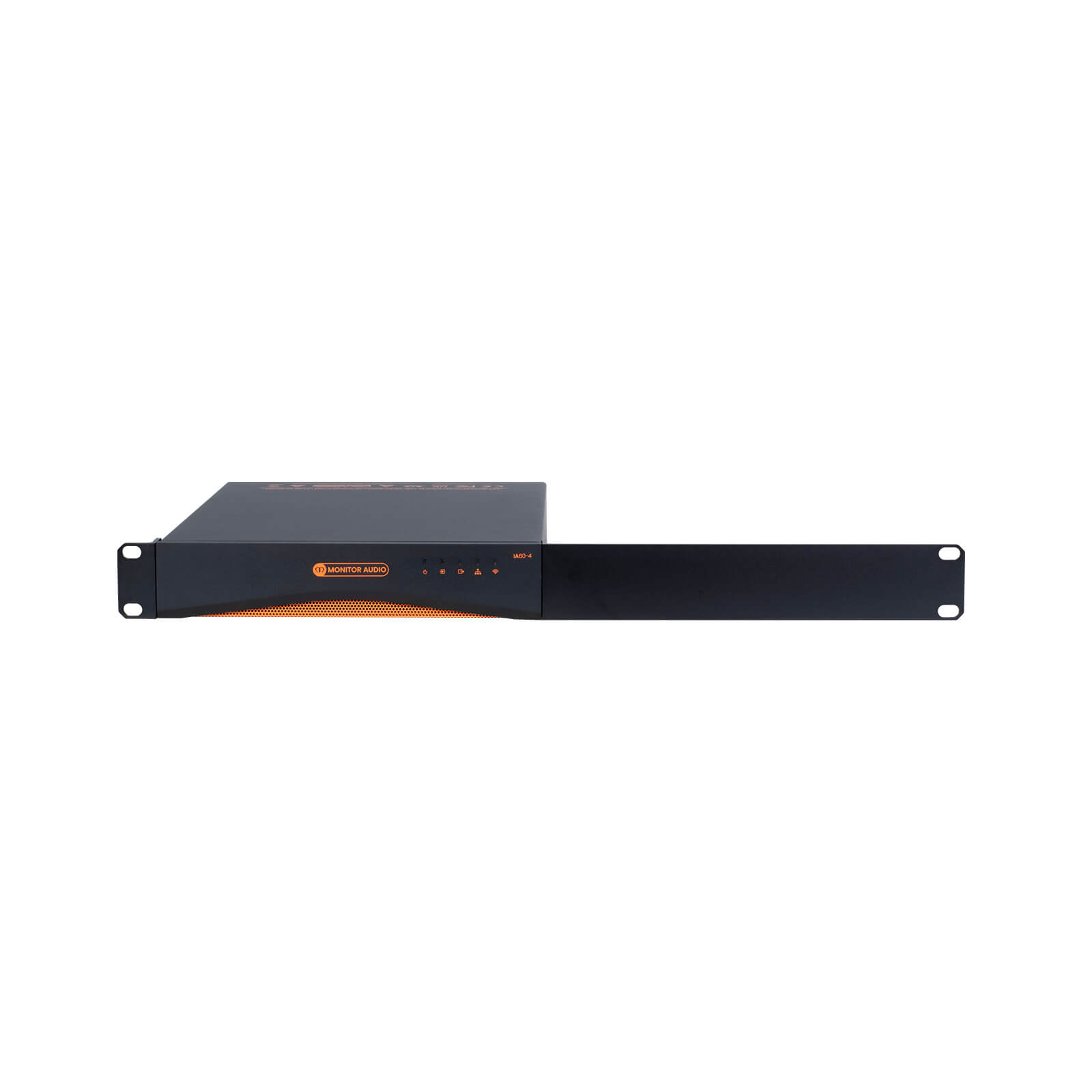

Note: Rack and wall/desk installation kits sold separately.
Product Specifications
Physical and Performance Attributes | |
|---|---|
| Weight | 2.82 KG |
| Dimensions (L x W x H) | 325 × 220 × 44 mm |
Misc Product Attributes | |
Channels 4 Output Power @ 4 Ohms/8 Ohms 4 x 60W SE(Single Ended) Output Power @ 70/100V 2 x 125W BTL(Bridge Tied Load) PowerShare (up to) 1 x 250W Power Consumption 75W Thermal Output 256BTU (British Thermal unit) Polarity (Default) Non-inverting Dimensions 44 x 220 x 325mm (1-3/4 x 8-11/16 x 11-5/8″) Output Voltage 70Vp / 140Vpp (SE unloaded), 140Vp / 280Vpp (BTL unloaded) Signal to Noise Ratio >106dB (A-weighted, 20Hz – 20kHz, 8 Ohm load) THD+N (typical) <0.05% (20Hz – 20kHz, 8 Ohm load, 3dB below rated power) Frequency Response +0/-0.25dB 20Hz – 20kHz (8 Ohm load, 3dB below rated power) Protection Circuits Short circuit -, DC, Undervoltage -, Temperature – and Overload protection Power Supply Switch mode power supply with Power Factor Correction (PFC) and standby converter Operating Voltage/Frequency Universal Mains, 100V – 240V, 50Hz – 60Hz Standby Consumption <0.5W Accessories Rack Mounting Kit, Wall/desktop mount kit (sold separately) Power Ratings 1% THD @ 120Vac and 230Vac Cabinet Finish Black Anodised Warranty 5 years
| |
