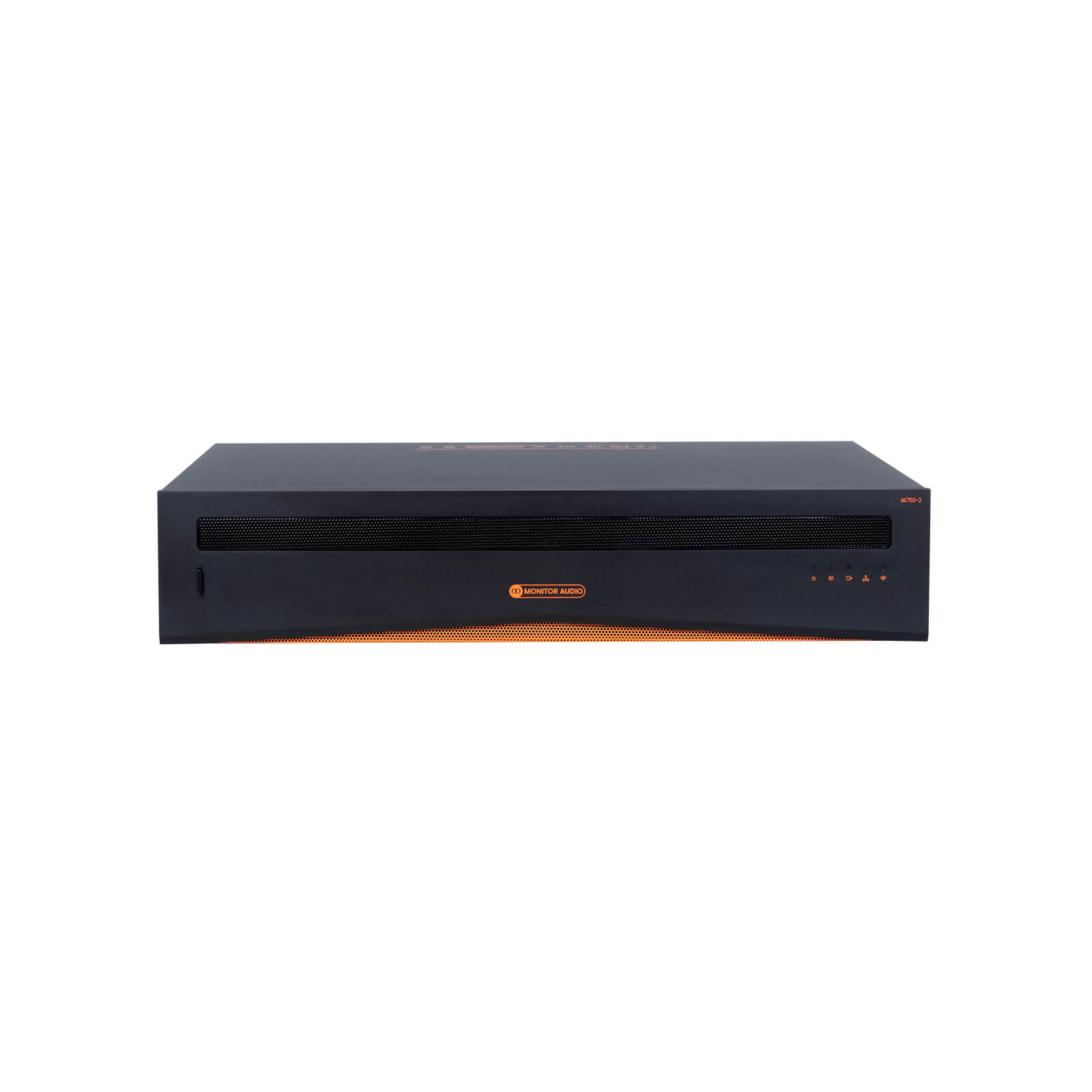

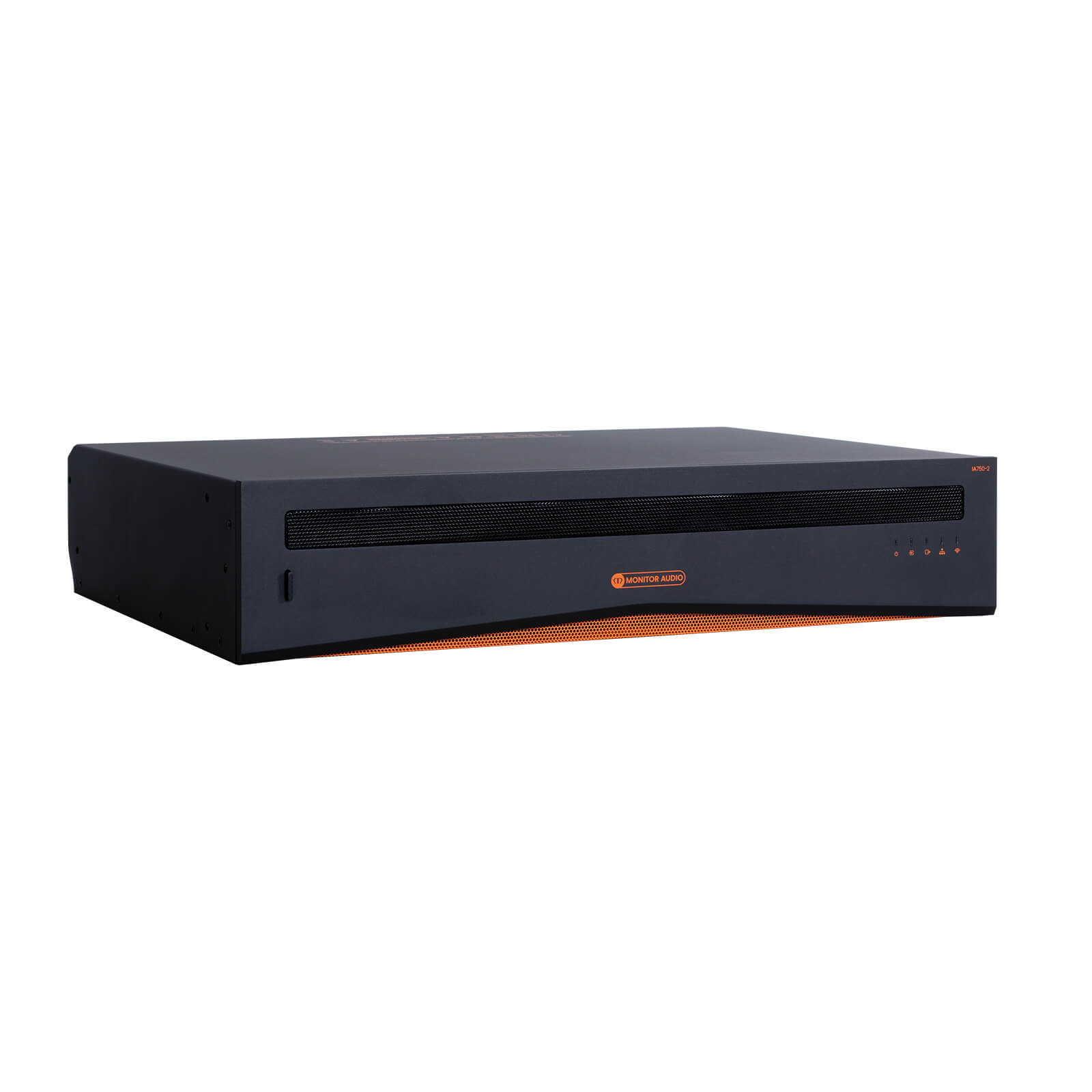

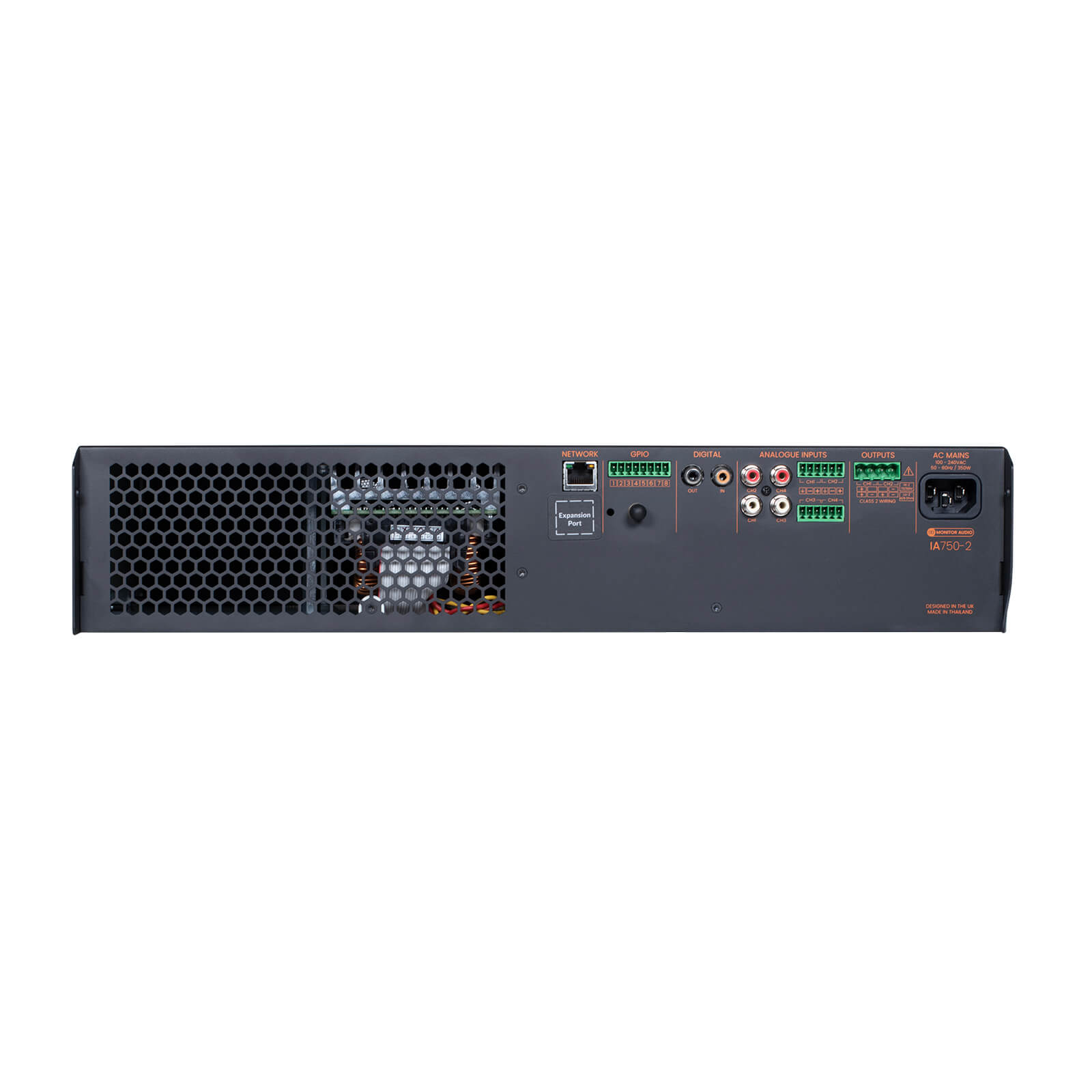

Monitor Audio – IA750-2 Installation Amplifier
The IA750-2 high-power amplifier with advanced DSP is easy to set up and control. It delivers two channels of 750 W of power from a robust 2U full width design.
Please contact us for pricing and purchase enquiries.
Any Questions?
Our technical team is on hand to solve any problems or help you find the ideal solution.
Description
The IA750-2 is perfect for larger installations and outdoor systems. It offers two channels of 750W each, plus it is ideal for subwoofer installations, where it can deliver 1500W to Monitor Audio’s Cinergy Sub15 Subwoofer. A 2U full-width high-power amplifier, it features a full DSP matrix configuration using a web app configurator and is a breeze to install and use.

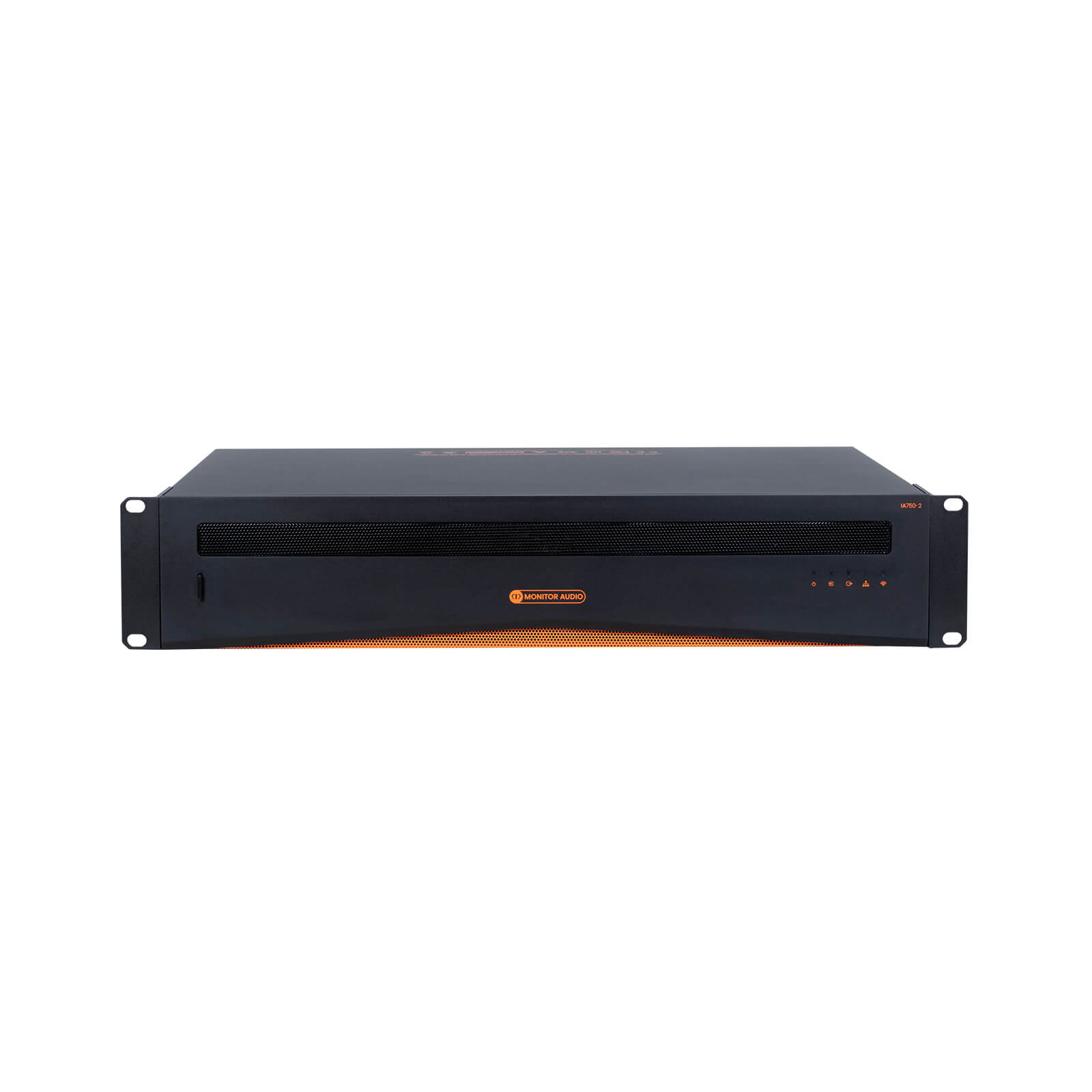

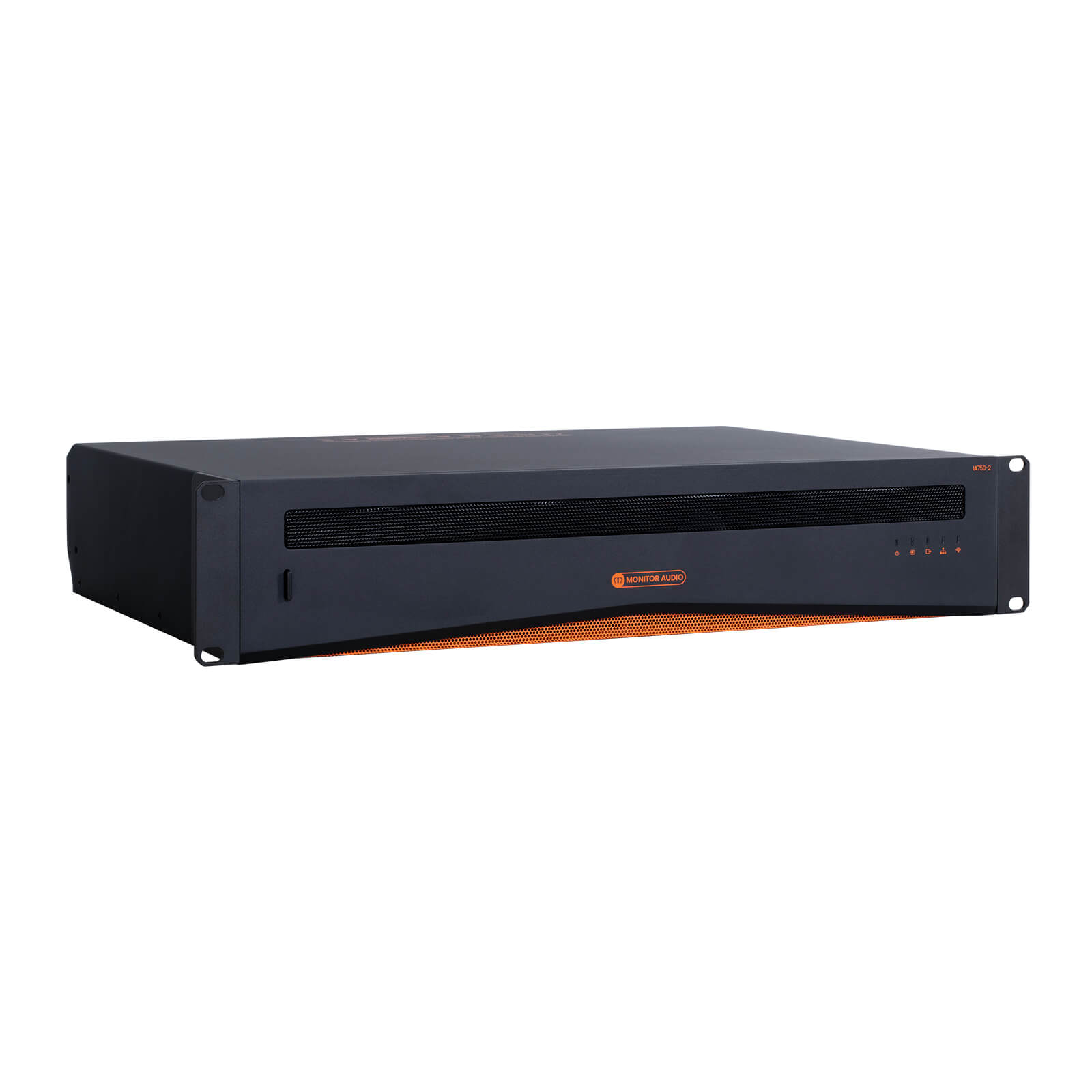

Note: Rack installation kit included.
Product Specifications
Physical and Performance Attributes | |
|---|---|
| Weight | 5.3 KG |
| Dimensions (L x W x H) | 440 × 329 × 88 mm |
Misc Product Attributes | |
Channels 2 Output Power @ 2 Ohm 2 x 750W SE (Single Ended) Output Power @ 4 Ohm 2 x 750W SE, 1 x 1500W BTL (Bridge Tied Load) Output Power @ 8 Ohm 2 x 400W SE, 1 x 1500W BTL Output Power @ 70V 1 x 1200W BTL Output Power @ 100V 1 x 1500W BTL Maximum Total Output Power, all channels driven 1500W Power Consumption 350W Thermal Output 1200BTU (British Thermal unit) Polarity (Default) Non-inverting Dimensions 88 x 440 x 329mm (3-6/16 x 17-5/16 x 12-15/16″) Output Voltage 80Vp / 160Vpp (SE unloaded), 160Vp / 320Vpp (BTL unloaded) Signal to Noise Ratio >108dB (A-weighted, 20Hz – 20kHz, 8 Ohm load) THD+N (typical) <0.05% (20Hz – 20kHz, 8 Ohm load, 3dB below rated power) Frequency Response +0/-0.25dB 20Hz – 20kHz (8 Ohm load, 3dB below rated power) Protection Circuits Short circuit -, DC, Undervoltage -, Temperature – and Overload protection Power Supply Switch mode power supply with Power Factor Correction (PFC) and standby converter Operating Voltage/Frequency Universal Mains, 100V – 240V, 50Hz – 60Hz Standby Consumption <0.5W Accessories Rack mount kit (pre-installed) Power Ratings 1% THD @ 120Vac and 230Vac Cabinet Finish Black Anodised Warranty 5 years
| |
