Monitor Audio – IA750-4 Installation Amplifier
IA750-4 delivers an incredible four channels of 750 W each and is the perfect amplifier for the most demanding of large home theatre installations.
Please contact us for pricing and purchase enquiries.
Any Questions?
Our technical team is on hand to solve any problems or help you find the ideal solution.
Description
In a larger installation where pure power is required, the Monitor Audio IA750-4 is the ideal choice. A 2U full-width high-power amplifier, it features a full DSP matrix configuration and is simple to install and use. But power is its trump card: four channels of 750W each deliver the most impressive home theatre sound imaginable. It’s capable of getting the very best out of any system and is the perfect partner for Monitor Audio’s THX Ultra certified Cinergy home theatre system.

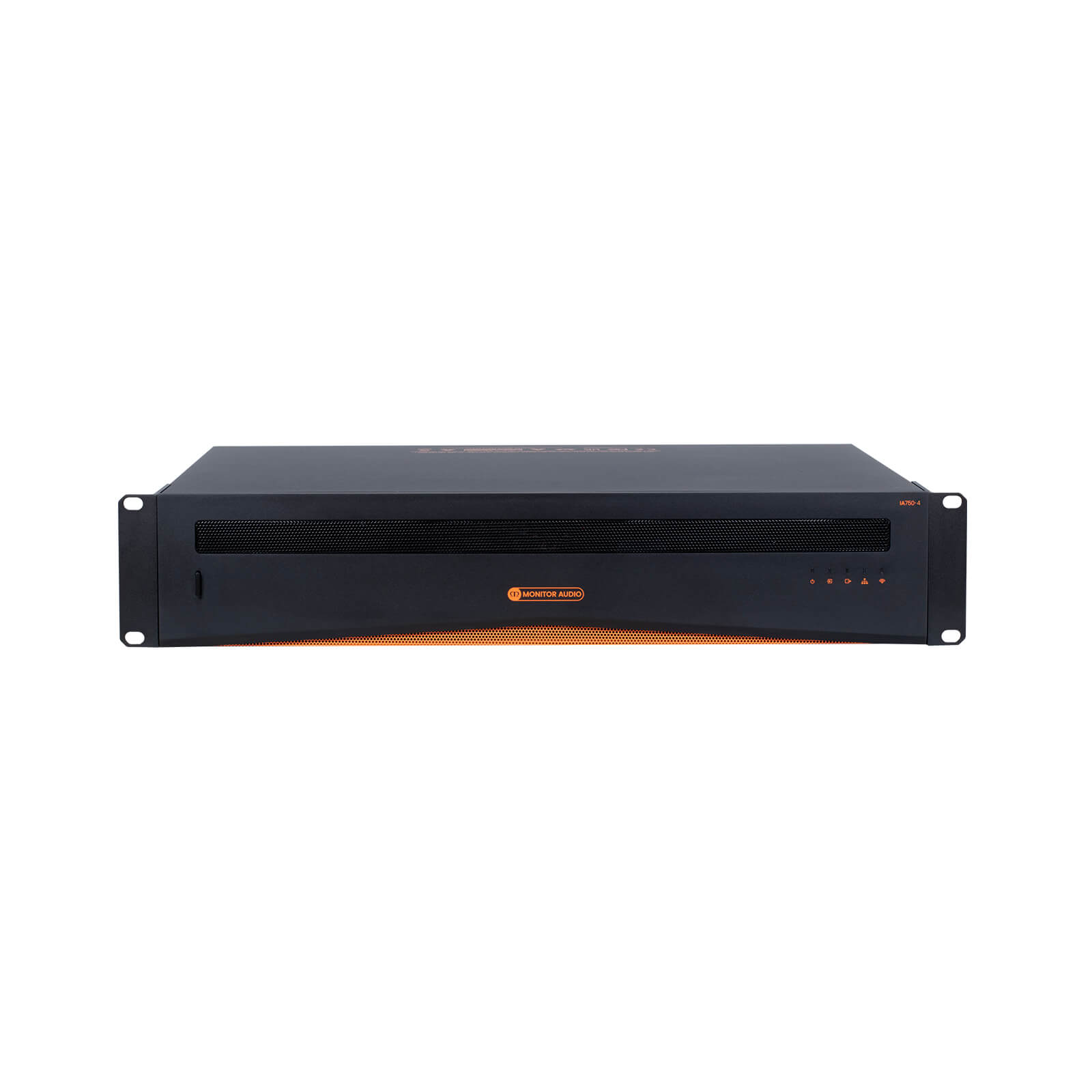

Note: Rack installation kit included.
Product Specifications
Physical and Performance Attributes | |
|---|---|
| Weight | 7.26 KG |
| Dimensions (L x W x H) | 440 × 329 × 88 mm |
Misc Product Attributes | |
Channels 4 Output Power @ 2 Ohm 4 x 750W SE (Single Ended) Output Power @ 4 Ohm 4 x 750W SE, 2 x 1500W BTL (Bridge Tied Load) Output Power @ 8 Ohm 2 x 400W SE, 2 x 1500W BTL Output Power @ 70V 2 x 1200W BTL Output Power @ 100V 2 x 1500W BTL Maximum Total Output Power, all channels driven 3000W Power Consumption 700W Thermal Output 2400BTU (British Thermal unit) Polarity (Default) Non-inverting Dimensions 88 x 440 x 329mm (3-6/16 x 17-5/16 x 12-15/16″) Output Voltage 80Vp / 160Vpp (SE unloaded), 160Vp / 320Vpp (BTL unloaded) Signal to Noise Ratio >108dB (A-weighted, 20Hz – 20kHz, 8 Ohm load) THD+N (typical) <0.05% (20Hz – 20kHz, 8 Ohm load, 3dB below rated power) Frequency Response +0/-0.25dB 20Hz – 20kHz (8 Ohm load, 3dB below rated power) Protection Circuits Short circuit -, DC, Undervoltage -, Temperature – and Overload protection Power Supply Switch mode power supply with Power Factor Correction (PFC) and standby converter Operating Voltage/Frequency Universal Mains, 100V – 240V, 50Hz – 60Hz Standby Consumption <0.5W Accessories Rack mount kit (pre-installed) Power Ratings 1% THD @ 120Vac and 230Vac Cabinet Finish Black Anodised Warranty 5 years
| |
