Monitor Audio – IMS-4 Music Streamer

The IMS-4 music streamer is the latest addition to our range of superior custom install solutions. Its BluOS™ technology and controller app allow easy access to music libraries, streaming services and voice control using Alexa, Google Assistant or Siri.

Please contact us for pricing and purchase enquiries.

Free Shipping for Mainland UK orders ** (excluding Scottish Highlands)

SKU: IMS4 Category: Tag:

EAN / Barcode: 5060565774421


Need an Installer?

Fill out our enquiry form and we’ll put you in contact with a trusted installer in your area.


Any Questions?

Our technical team is on hand to solve any problems or help you find the ideal solution.

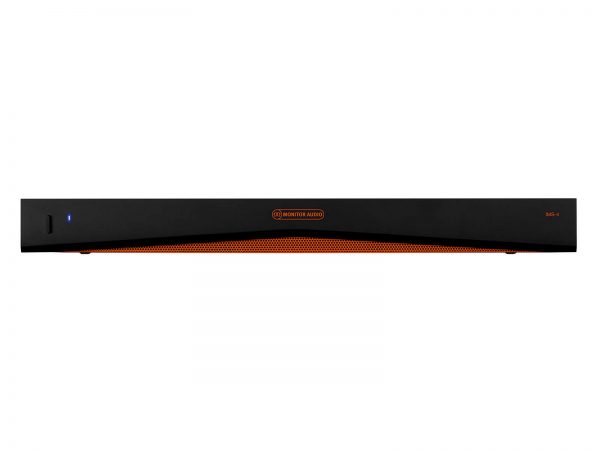

The IMS-4 music streamer’s discreet design allows it to be easily incorporated into any custom installation project. And, its slimline form ensures that it occupies just 1U of rack space.

BluOS allows the IMS-4 to stream lossless music at a quality of up to 24-bit/192khz to 4 zones in a home network. Accessed through the app, or one of the many supported integrated control systems, the multiple IMS-4 streamers can be combined to provide up to 64 zones, with each zone able to play together in perfect sync. It can also simultaneously play different streams to separate zones.

The IMS-4 can access millions of Master Quality Authenticated (MQA) recordings using BluOS technology to allow music to be heard exactly as the artist intended, anywhere in the home.

To power the music, the IMS-4 should be partnered with an installation amplifier such as our IA150-8C. The IMS-4 can be integrated with Crestron, Control4 and RTI and is compatible with other BluOS enabled devices.

Analogue and digital inputs allow the addition of a cable box or other non-network sources and to make them available in every zone. The IMS-4 even includes a system interrupt to let doorbells and fire alarms be heard.


  • Featuring BluOS™ multi-room streaming technology
  • With four separate zones, different music can be streamed to four different rooms or areas
  • Allows streaming of Lossless music with MQA authentication
  • Integration with home automation services such as Crestron, Control4, RTI and other BluOS™ devices
  • Controllable using the BluOS™ Controller app for iOS, Android, MacOS and Windows
  • Compatible with Apple AirPlay 2
  • TIDAL Connect casting technology

Technical Specs

  • Channel Number / Rooms: 4 Rooms
  • Maximum Input Voltage (RMS): 2.2 V
  • Mains Operating Voltage: 100 – 240 V 50/60 Hz
  • Standby Power Consumption: <1 W
  • Signal to Noise Ratio: 110 dBA
  • Sample Rate: Up to 24-bit/ 192 kHz
  • Supported Cloud Services: Spotify Connect, Amazon Music HD, TIDAL Connect, Deezer, Qobuz, Napster, KKBox, Bugs, Taihe Music Zone, SoundMachine, IDAGIO, Orastream
  • Input Connections: Analogue – RCA Stereo – Digital SPDIF – Optical (TOSLINK) – USB – Type A (FAT32 Formatted)
  • Output Connections: Analogue – 4 x RCA Stereo – Digital SPDIF – 4 x Optical (TOSLINK) – 4 x Coaxial
  • Rack Height: 1U
  • Dimensions (Without Feet (H x W x D): 43.1 x 438 x 236.1 mm (111/16 x 171/4 x 95/16“)
  • Height (with feet): 45.1 mm (113/16“)
  • Width (including rack brackets): 482 mm (19″)

Manuals & Datasheets

In-Wall Speaker | Installation Guide

Product Specifications

Physical and Performance Attributes

Weight2.8 KG
