Shelly 1 Gen3

The Shelly Plus 1 Gen3 is an upgraded version of the original Plus 1, keeping the same single‑channel 16A capability and simple installation while introducing a new processor with 8 MB of memory. This enhanced chip delivers noticeably faster performance, improved responsiveness and greater overall efficiency.

Price range: £16.49 through £61.99 inc VAT

SKU: 1-GEN3 Category:
product-page-callout-v2-_support-full-width

Any Questions?

Our technical team is on hand to solve any problems or help you find the ideal solution.

Contact Us

Description

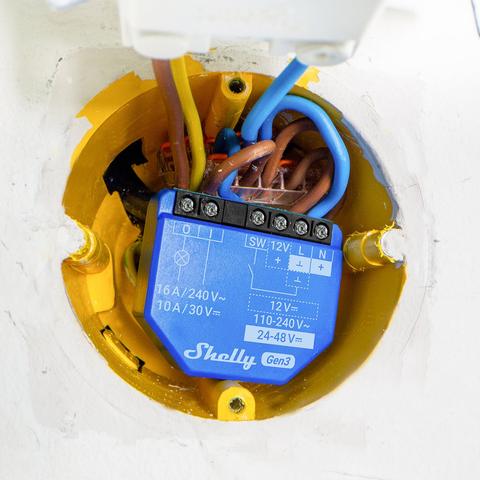

The Shelly Plus 1 Gen3 is designed to automate a wide variety of home and office appliances—from lighting and heating to blinds and other everyday devices. Its compact size and straightforward wiring make it easy to install directly inside existing electrical boxes, even in tight spaces. With a single 16A channel, it can be fitted behind switches, sockets, wall boxes and other standard fixtures for seamless retrofitting.

Building on the capabilities of the original Shelly Plus 1, the Gen3 version introduces a more powerful chipset that delivers faster responses and improved efficiency. It also brings several quality‑of‑life upgrades, including stronger terminals, support for virtual components and the option to upgrade to Matter, helping ensure long‑term compatibility within an evolving smart‑home ecosystem

Key Features

  • Built-in WiFi; no hub required
  • Bluetooth connectivity
  • Embedded web server for local management
  • Dry contact support
  • 1 channel switch, 16A
  • Smart schedules
  • Smart scenes
  • Automatic sunrise/sunset schedules
  • Automatic on/off timer
  • Enhanced security (MQTT, WSS and TLS certificate support)

What’s in the box?

  • 1 x SHELLY-PLUS-1-GEN3
  • 1 x Installation Manual

Manuals and Data Sheets



Product Specifications

Physical and Performance Attributes

Weight26 grams
Dimensions (L x W x H)37 × 42 × 16 mm

Misc Product Attributes

Category Specification
Physical Size (HxWxD): 37x42x16 mm / 1.46×1.65×0.63 in
Weight: 26 g / 0.92 oz
Screw terminals max torque: 0.4 Nm / 3.5 lbin
Conductor cross section: 0.2 to 2.5 mm² / 24 to 14 AWG (solid, stranded, and bootlace ferrules)
Conductor stripped length: 6 to 7 mm / 0.24 to 0.28 in
Mounting: wall console / in-wall box
Shell material: Plastic
Shell color: Blue
Environmental Ambient working temperature: -20C to 40C / -5F to 105F
Humidity: 30 percent to 70 percent RH
Max altitude: 2000 m / 6562 ft
Electrical Power supply: 110 to 240 V~, 24 to 48 V=, 12 V=
Power consumption: less than 1.2 W
Output circuits ratings Max switching voltage: 240 V~, 30 V=
Max switching current: 16 A (240 V~), 10 A (30 V=)
Sensors and meters Internal temperature sensor: Yes
Radio Wi-Fi Protocol: 802.11 b/g/n
RF band: 2401 to 2483 MHz
Max RF power: less than 20 dBm
Range: up to 50 m / 165 ft outdoors, up to 30 m / 99 ft indoors (depending on local conditions)
Bluetooth Protocol: 4.2
RF band: 2400 to 2483.5 MHz
Max RF power: less than 4 dBm
Range: up to 30 m / 100 ft outdoors, up to 10 m / 33 ft indoors (depending on local conditions)
Microcontroller unit CPU: ESP-Shelly-C38F
Flash: 8 MB
Firmware capabilities Schedules: 20
Webhooks (URL actions): 20 with 5 URLs per hook
Wi-Fi range extender: Yes
BLE Gateway: Yes
Scripting: Yes
MQTT: Yes
Encryption: Yes
