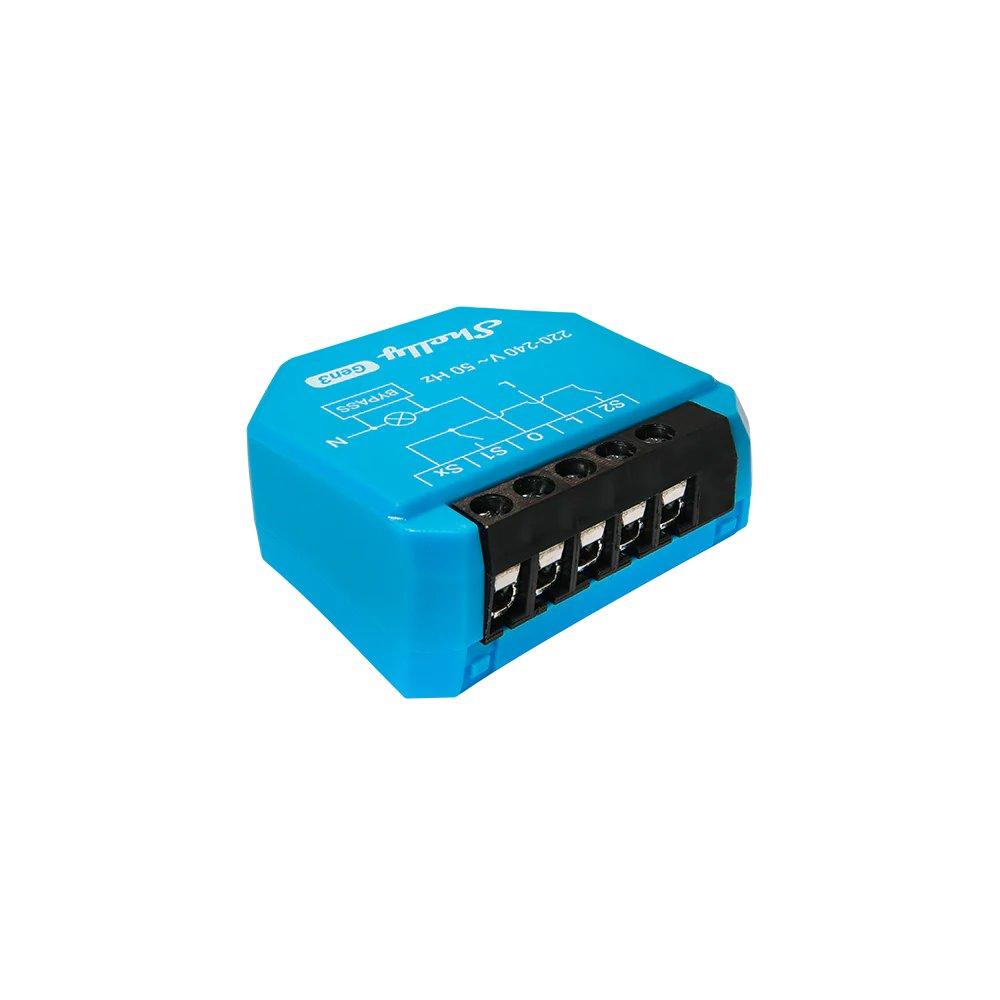

Shelly 1L Gen3

The Shelly 1L Gen3 is a compact single‑channel smart switch made for lighting circuits without a neutral wire. It fits behind standard wall switches and connects through the Shelly app, Bluetooth, or 2.4GHz WiFi, giving you quick and simple smart lighting control.

£25.99 inc VAT

SKU: 1L-GEN3 Category:

Compatibility

Shelly 1L Gen3 is compatible with the following systems:
Wi-Fi Compatible Device

product-page-callout-v2-_support-full-width

Any Questions?

Our technical team is on hand to solve any problems or help you find the ideal solution.

Contact Us

Description

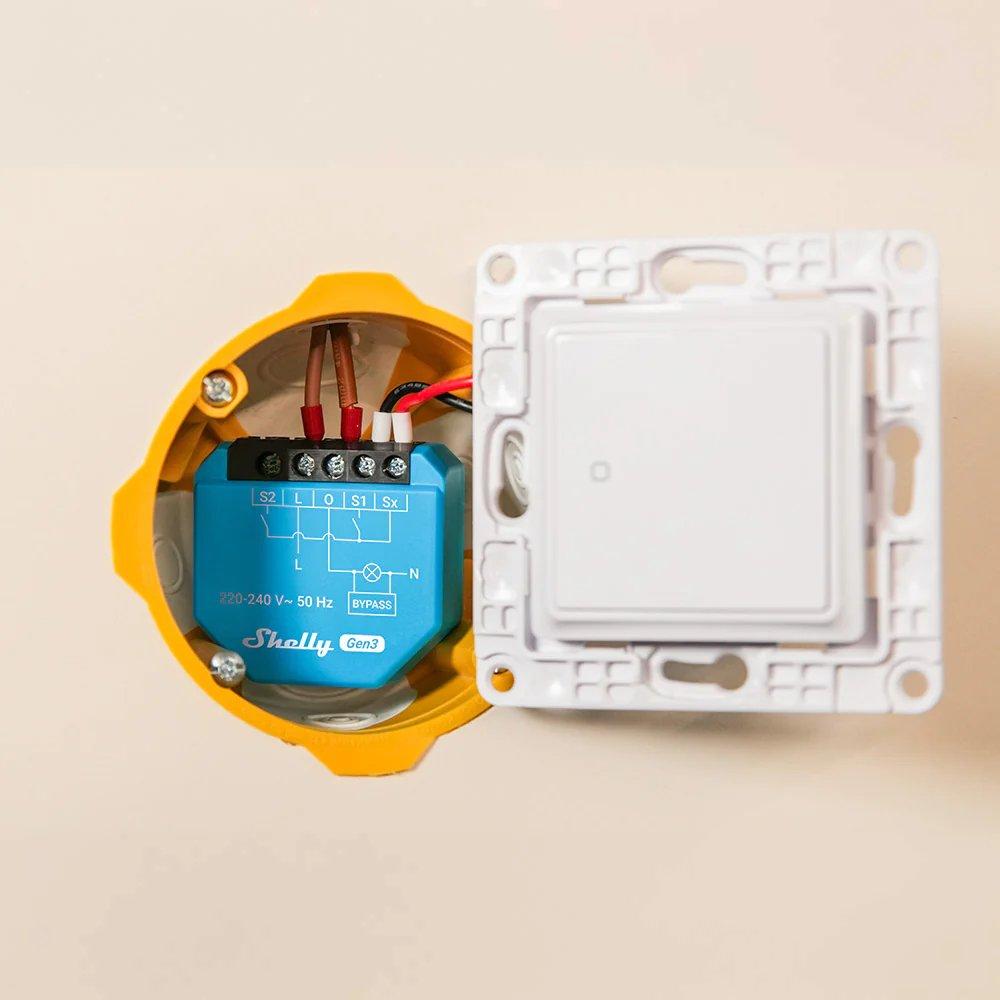

The Shelly 1L Gen3 is small enough to fit directly behind standard wall switches and works with a wide range of lighting types, including LED, CFL, incandescent, halogen, and luminescent fixtures. Once installed behind the switch, it allows these lights to be controlled easily and wirelessly.

Like the rest of Shelly’s retrofit relay lineup, the 1L Gen3 requires no special wiring and does not need a hub to operate. It connects using the existing WiFi network and, as part of the Gen3 series, also supports Bluetooth and the Matter protocol, making it simple to integrate into a broader Matter-based system with products from various manufacturers. Unlike other Shelly relays such as the Shelly 1PM Mini, the 1L Gen3 is designed specifically for lighting circuits that have only a live wire and can be installed in no-neutral configurations.

Along with app-based remote control and configuration through its embedded web interface, the 1L Gen3 can be combined with other Shelly devices to create scenes and schedules. This can include automatically adjusting brightness based on the time of day or reacting to data from sensors such as the Door and Window Sensor.

Key features:

  • Built-in WiFi; no hub required
  • Bluetooth connectivity
  • Embedded web server for local management
  • Dry contact support
  • Flexible input control
  • Smart schedules
  • Smart scenes
  • Automatic sunrise/sunset schedules
  • Automatic on/off timer

What’s included:

  • 1 x 1L-GEN3
  • 1 x Installation guide



Product Specifications

Physical and Performance Attributes

Weight24 grams
Dimensions (L x W x H)37 × 42 × 16 mm

Misc Product Attributes

Physical
Size (H x W x D) 37x42x16 ±0.5 mm / 1.46×1.65×0.63 ±0.02 in
Weight 24 g / 0.85 oz
Screw terminals max torque 0.4 Nm / 3.5 lbin
Conductor cross section 0.5 to 4 mm² / 20 to 11 AWG (solid, stranded, bootlace ferrules)
Conductor stripped length 6 to 7 mm / 0.24 to 0.28 in
Mounting In-wall
Shell material Plastic
Shell color Cyan
Terminal color Black
Environmental
Ambient working temperature -20 °C to 40 °C / -5 °F to 105 °F
Storage temperature 10 °C to 40 °C
Humidity 30 percent to 70 percent RH
Max altitude 2000 m / 6562 ft
Electrical
Power supply 220-240 V~ 50 Hz (Shelly Bypass required)

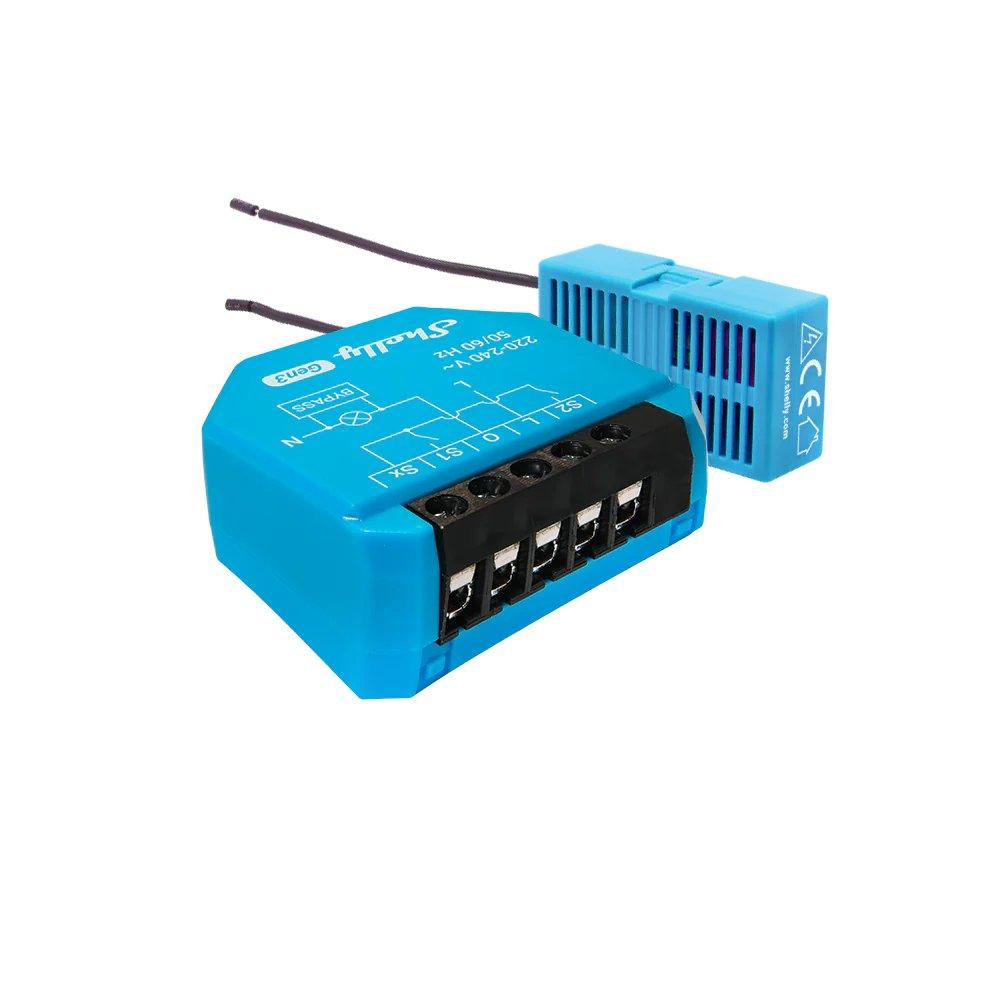

Shelly Bypass included Yes
Power consumption < 1.2 W
Neutral not needed Yes (Bypass required for load at O)
Minimum load without neutral and without Bypass No (Bypass required for LED loads). Not needed for incandescent lights.
External protection 10 A, tripping characteristic B or C; 6 kA interrupting rating; Energy limiting class 3
Output circuits ratings
Max switching voltage 240 V~ 50 Hz
Max switching power 200 W
Sensors and meters
Internal temperature sensor Yes
Radio – Wi-Fi
Protocol 802.11 b/g/n
RF band 2401 to 2495 MHz
Max RF power < 20 dBm
Range Up to 30 m / 100 ft indoors; 50 m / 160 ft outdoors (depends on local conditions)
Radio – Bluetooth
Protocol 4.2
RF band 2400 to 2483.5 MHz
Max RF power < 4 dBm
Range Up to 10 m / 33 ft indoors; 30 m / 100 ft outdoors (depends on local conditions)
Microcontroller unit
CPU ESP-Shelly-C38F
Clock frequency 160 MHz
RAM 512 KB
Flash 8 MB
Firmware capabilities
Schedules 20
Webhooks (URL actions) 20 with up to 5 URLs per hook
Scripting Yes
MQTT Yes
