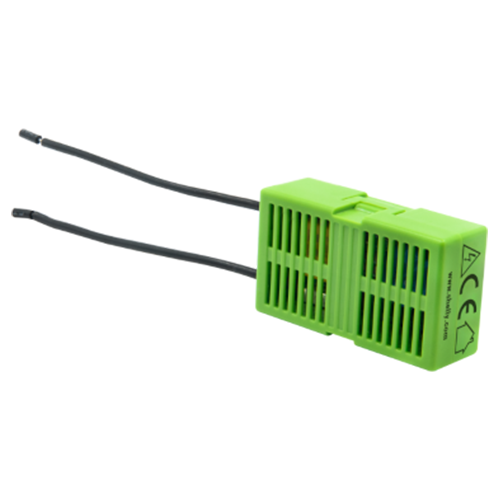

Shelly Bypass for Dimmer Gen3

The Shelly Bypass for Dimmer allows the Shelly Dimmer Gen3 and newer models to operate without a neutral wire when controlling loads under 20 W, ensuring stable and reliable performance in low load installations.

£4.45 inc VAT

SKU: DIMMER-BYPASS Categories: ,
product-page-callout-v2-_support-full-width

Any Questions?

Our technical team is on hand to solve any problems or help you find the ideal solution.

Contact Us

Description

Shelly Bypass for Dimmer Gen3 is a compact accessory that enables stable and reliable operation of the Shelly Dimmer Gen3 and newer models in installations without a Neutral wire, especially when controlling low‑power lighting loads under 20 W.

By supplying the minimum load required for correct dimmer operation, it helps prevent common problems such as flickering, lights that do not fully switch off, or inconsistent dimming with LED and other low‑wattage lighting. This makes it ideal for older properties and retrofit installations where a Neutral conductor is not present.

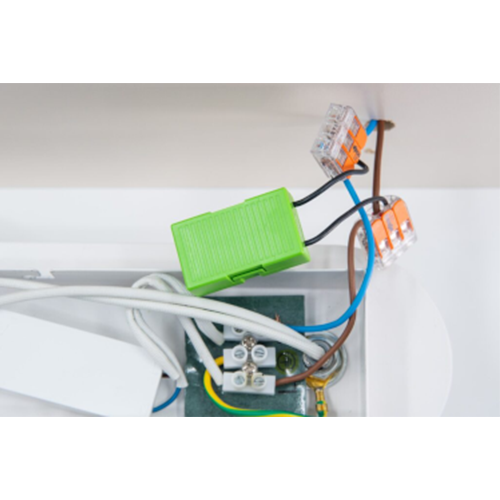

With its ultra‑compact dimensions, the Shelly Bypass for Dimmer Gen3 can be fitted directly inside the light fitting, with no need for rewiring or structural alterations. It has been tested with a wide range of light sources to ensure broad compatibility and long‑term dependable performance.

The device operates on 220–240 V AC and consumes less than 4 W. It is purpose‑built for use with Shelly Dimmer Gen3 and newer devices, delivering smooth, flicker‑free dimming even in low‑load, no‑neutral installations.



Key Features:

  • Can be mounted behind the light, requiring minimal space. It connects to both the Neutral and Live wires.
  • The device is a Bypass needed for the Shelly Dimmer Gen3 (and up) to work without a Neutral wire.
  • It is designed and tested to ensure compatibility with а wide range of lights.

What’s Included:

  • 1x Shelly Bypass for Dimmer Gen3
  • 1x Instruction Manual

Manuals and Data Sheets:

Product Specifications

Physical and Performance Attributes

Weight8 grams
Dimensions (L x W x H)39 × 23 × 13 mm

Misc Product Attributes

Physical
Size (H × W × D) 39 × 23 × 13 mm / 1.54 × 0.91 × 0.51 inch (without wires)
Weight 8 g / 0.28 oz
Conductor cross section 0.2 mm² / 24 AWG (stranded)
Conductor stripped length 0.5 mm / 0.02 in
Length of cables 65 ±5 mm / 2.56 ±0.2 in
Mounting Inside light fixture
Shell material Plastic
Shell colour Shell: Lime (same as Dimmer Gen3)
Print: Black
Cable colour Black
Environmental
Ambient temperature -20°C to 40°C / -5°F to 104°F
Humidity 30% to 70% RH
Max altitude 2000 m / 6562 ft
Electrical
Power supply 220–240 V~, 50 Hz
Power consumption < 4 W
