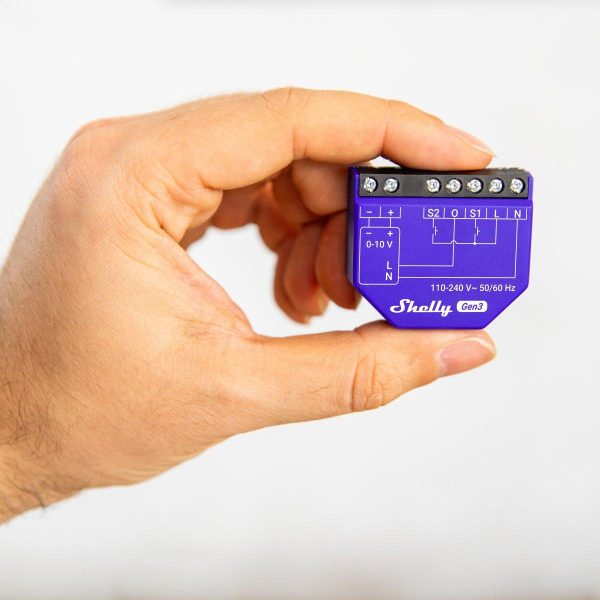

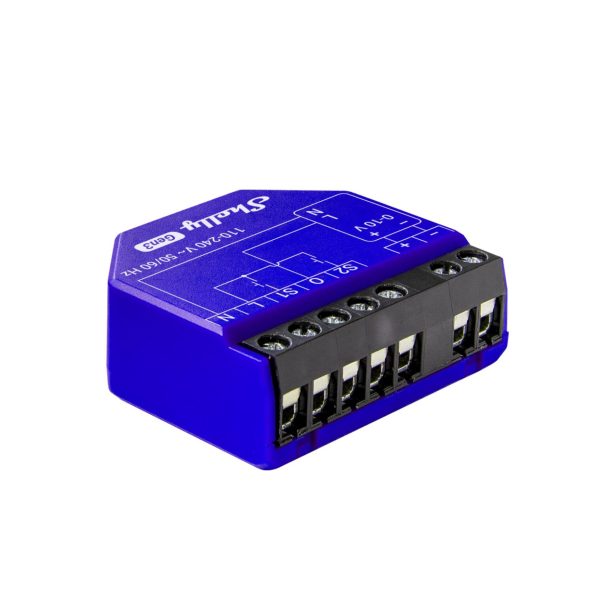

Shelly Dimmer 0-10V PM Gen3

The Shelly Plus Dimmer PM Gen3 is a smart 0–10V dimming switch that delivers precise light control. As an upgrade to the previous Shelly Dimmer, it features improved hardware for greater durability, more efficient performance, and accurate power monitoring.

£16.49 inc VAT

SKU: DIMMER-0-10V-PM-GEN3 Category:
product-page-callout-v2-_support-full-width

Any Questions?

Our technical team is on hand to solve any problems or help you find the ideal solution.

Contact Us

Description

Compact like its predecessor, the Shelly Dimmer, the Shelly Dimmer PM Gen3 is designed to fit easily into most existing electrical installations — whether inside appliances or behind tightly packed switch boxes — while delivering full 0–10V DC dimming control. It supports signal control for a wide range of drivers, including lighting, motors, and valves, and also offers a convenient one‑button dimming mode for physical switches.

The Gen3 upgrade introduces a more advanced chipset that enhances efficiency, boosts response times, and adds built‑in power metering for precise energy‑usage tracking of connected devices. It also supports Virtual Components and can be upgraded to Matter, helping ensure long‑term compatibility and future‑proofing for your smart home setup.

Key features:

  • Built-in WiFi; no hub required
  • Bluetooth connectivity
  • Embedded web server for local management
  • Flexible input control
  • Power metering
  • Dimming functionality
  • Smart schedules
  • Smart scenes
  • Automatic sunrise/sunset schedules
  • Automatic on/off timer
  • Multi-click action trigger
  • Enhanced security (MQTT, WSS and TLS certificate support)

What’s included:

  • 1 x DIMMER-0-10V-PM-GEN3
  • 1 x Installation guide

Manuals & Data sheets:

Product Specifications

Physical and Performance Attributes

Weight29 grams
Dimensions (L x W x H)38.5 × 43.5 × 17 mm

Misc Product Attributes

Specification Details
Size (H × W × D) 38.5 × 43.5 × 17 mm / 1.52 × 1.71 × 0.67 in
Weight 28.5 g / 0.99 oz
Screw terminals max torque 0.4 Nm / 3.5 lbin
Conductor cross section 0.2–2.5 mm² / 24–14 AWG (solid, stranded, ferrules)
Conductor stripped length 5–6 mm / 0.20–0.24 in
Mounting Wall console / behind wall / ceiling construction
Shell material Plastic
Ambient working temperature -20°C to 40°C / -5°F to 105°F
Humidity 30% to 70% RH
Max. altitude 2000 m / 6562 ft
Power supply 110–240 V~ 50/60 Hz
Power consumption < 1.5 W
External protection 16A, characteristic B or C, 6 kA interrupting, class 3
Max. switching voltage 240 V~
Max. switching current 13 A
Max. control current 35 mA
Voltmeter (AC) 110–240 V
Ammeter (AC) 50 mA – 16 A
Meters accuracy ±10%
Power & energy meters Active & apparent power
Active & apparent energy
Power factor
Measurement data storage No
Internal temperature sensor Yes
Wi‑Fi protocol 802.11 b/g/n
Wi‑Fi RF band 2401–2495 MHz
Wi‑Fi max RF power < 20 dBm
Wi‑Fi range Up to 30 m / 100 ft indoors; up to 50 m / 160 ft outdoors
Bluetooth protocol 4.2
Bluetooth RF band 2400–2483.5 MHz
Bluetooth max RF power < 4 dBm
Bluetooth range Up to 30 m / 100 ft outdoors; up to 10 m / 33 ft indoors
CPU ESP‑Shelly‑C38F
Clock frequency 40 MHz
Flash 8 MB
Schedules 20
Webhooks (URL actions) 20 hooks, 5 URLs each
Scripting Yes
MQTT Yes
Advanced schedules Yes
KVS (Key‑Value Store) Yes
