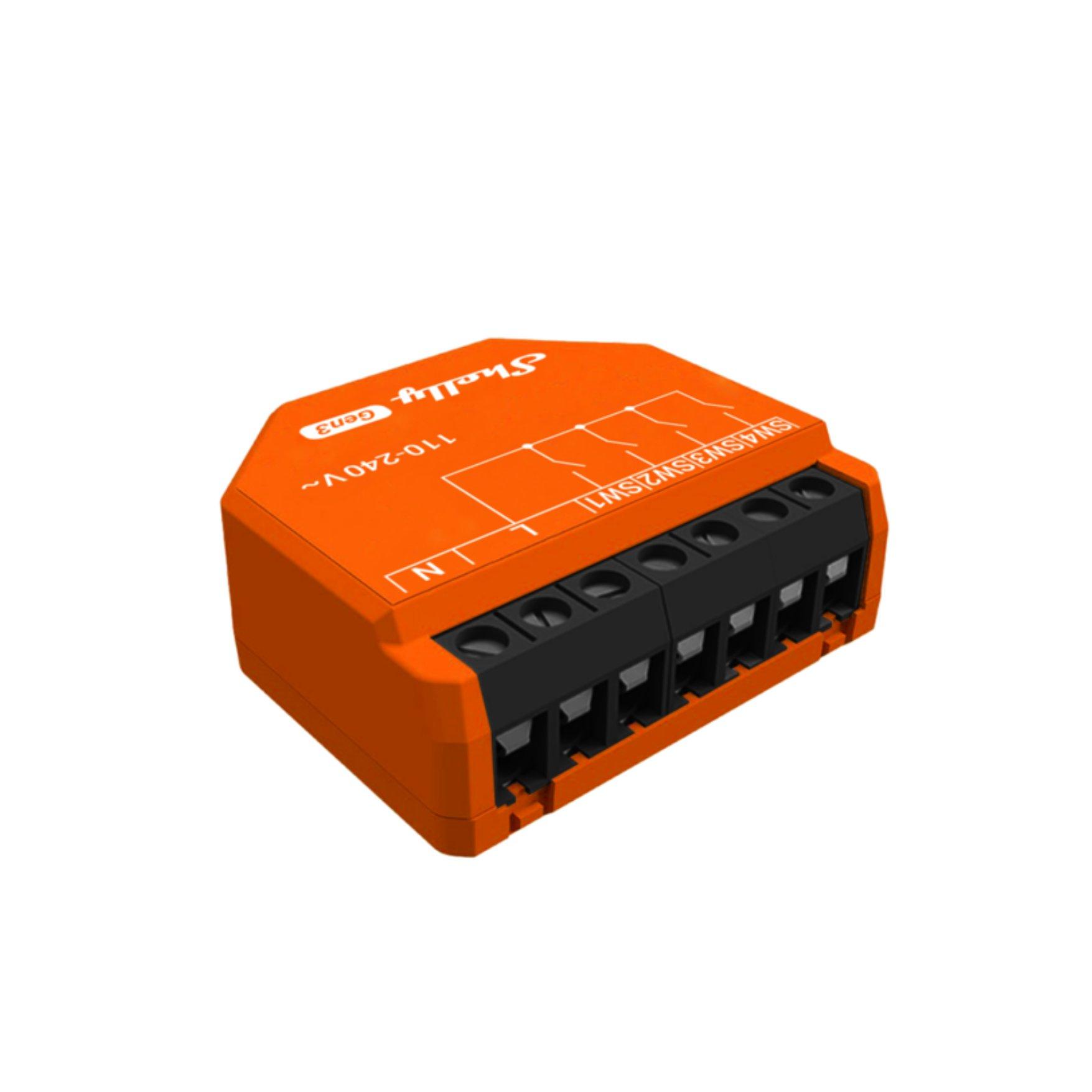

Shelly i4 Gen3

The Shelly i4 Gen3 is a compact, 16‑input controller that works within a Shelly smart home system to trigger scenes, coordinate multiple devices, and manage complex automations. Designed to fit behind most wall switches and powered by 110–240V AC, it connects directly to WiFi without the need for a hub. It also supports multi‑click functions, offering up to 16 different actions.

£12.94 inc VAT

SKU: I4-GEN3 Category:

Compatibility

Shelly i4 Gen3 is compatible with the following systems:
Wi-Fi Compatible Device

product-page-callout-v2-_support-full-width

Any Questions?

Our technical team is on hand to solve any problems or help you find the ideal solution.

Contact Us

Description

The Shelly i4 Gen3 is the latest evolution of Shelly’s scene‑activation controllers, improving on the Shelly Plus i4 with support for up to 16 actions (previously 12) and a new, faster processor equipped with 8MB of RAM for enhanced speed and responsiveness.

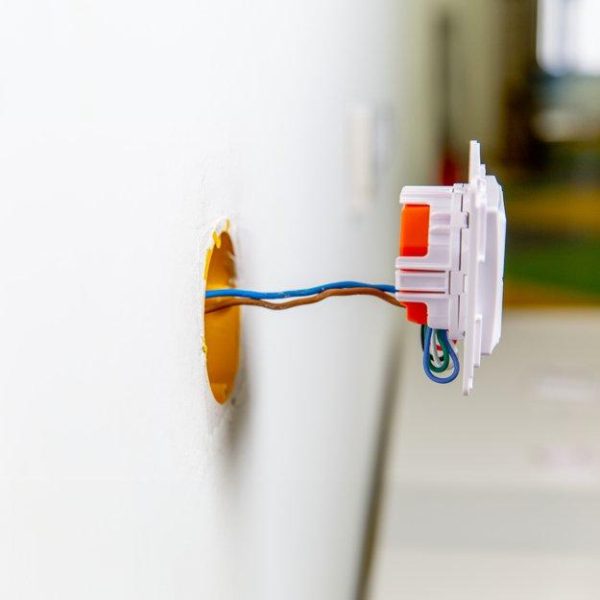

Designed for installation behind any standard 4‑button wall switch, the i4 Gen3 offers a communication range of up to 50m (165 ft) outdoors and 30m (99 ft) indoors. It can be configured to control anything from a single Shelly‑compatible device to advanced multi‑device scenes. With support for single, double, triple, and long‑press inputs, it provides flexible control options. Its compact form factor also makes it easy to retrofit, even in tight electrical boxes.

For users wanting a dedicated physical switch, the i4 Gen3 works perfectly with Shelly Wall Switches, available in both black and white.

Note: The Shelly Plus i4 Gen3 functions solely as an input reader and does not include a relay.

Key features:

  • Built-in WiFi; no hub required
  • LAN connectivity
  • Bluetooth connectivity
  • Embedded web server for local management
  • Flexible input control
  • Two-directional roller control
  • Dimming functionality
  • Smart schedules
  • Smart scenes
  • Multi-click action trigger
  • Enhanced security (MQTT, WSS and TLS certificate support)

What’s included:

  • 1 x I4-GEN3
  • 1 x Installation guide

Product Specifications

Physical and Performance Attributes

Weight19 grams
Dimensions (L x W x H)37 × 42 × 16 mm

Misc Product Attributes

Quantity Value
Physical
Size (H×W×D) 37×42×16 mm / 1.46×1.65×0.63 in
Weight 19 g / 0.67 oz
Screw terminals max torque 0.4 Nm / 3.5 lbf·in
Conductor cross section 0.5 to 4 mm² / 20 to 11 AWG (solid, stranded, and bootlace ferrules)
Conductor stripped length 6 to 7 mm / 0.24 to 0.28 in
Mounting Wall box
Shell material Plastic
Shell color Orange
Terminal color Black
Environmental
Ambient working temperature −20 °C to 40 °C / −5 °F to 105 °F
Humidity 30 % to 70 % RH
Max. altitude 2000 m / 6562 ft
Electrical
Power supply 110–240 V~ 50/60 Hz
Power consumption < 1 W
Sensors, meters
Internal-temperature sensor Yes
Radio — Wi‑Fi
Protocol 802.11 b/g/n
RF band 2401–2483 MHz
Max. RF power < 20 dBm
Range Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors
(Depends on local conditions)
Radio — Bluetooth
Protocol 4.2 with BLE
RF band 2400–2483.5 MHz
Max. RF power < 4 dBm
Range Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors
(Depends on local conditions)
Microcontroller unit
CPU ESP‑Shelly‑C38F
Flash 8 MB
Firmware capabilities
Webhooks (URL actions) 20 with 5 URLs per hook
Scripting Yes
MQTT Yes
