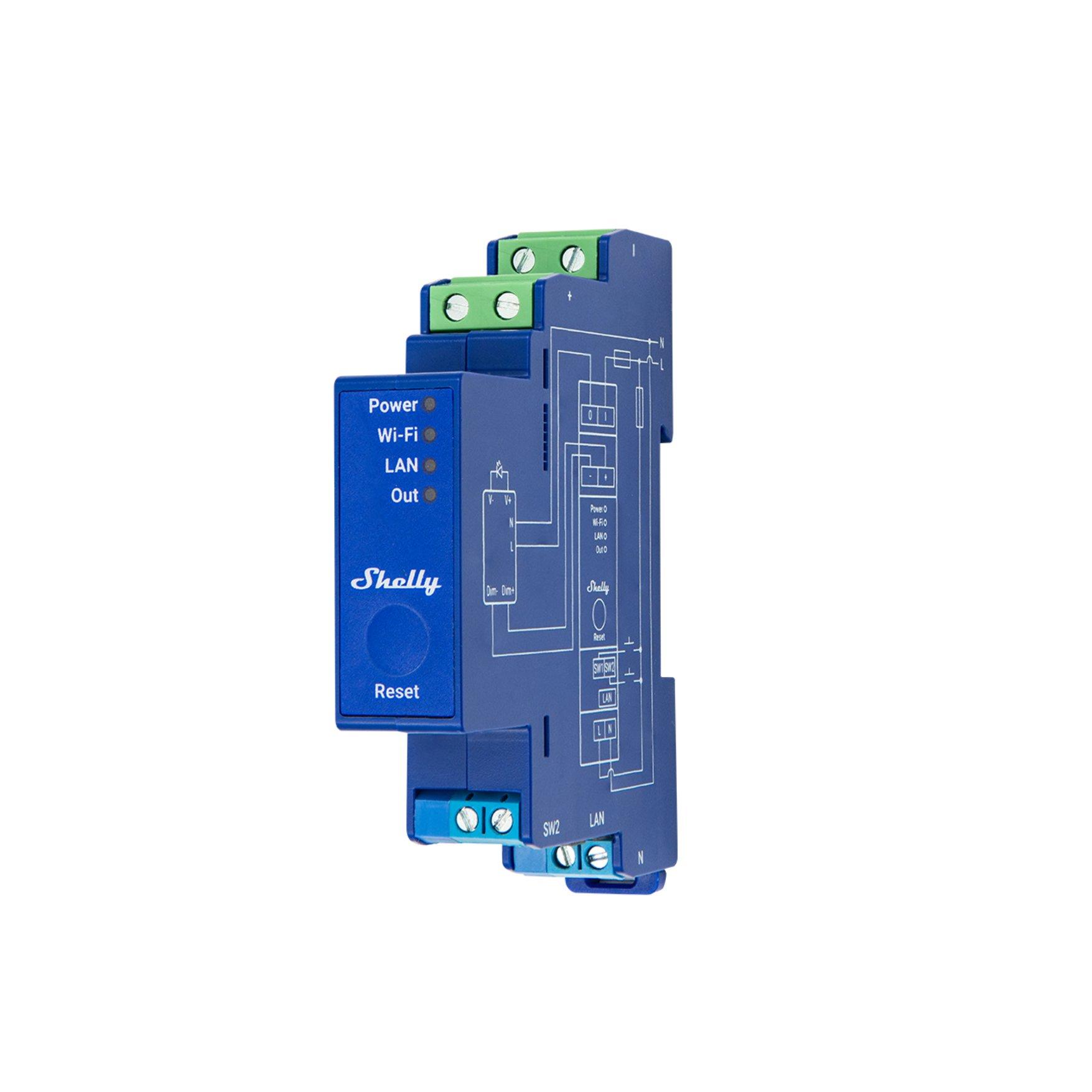

Shelly Pro Dimmer 0-10V PM

The Shelly Pro Dimmer 0/1‑10V PM is a precision dimming controller for 0/1‑10V appliances and drivers. It also includes advanced power‑monitoring features, measuring energy use and storing the data in the cloud for later review.

£52.00 inc VAT

SKU: PRO-DIMMER-0-10V-PM Category:

Compatibility

Shelly Pro Dimmer 0-10V PM is compatible with the following systems:
Wi-Fi Compatible Device

product-page-callout-v2-_support-full-width

Any Questions?

Our technical team is on hand to solve any problems or help you find the ideal solution.

Contact Us

Description

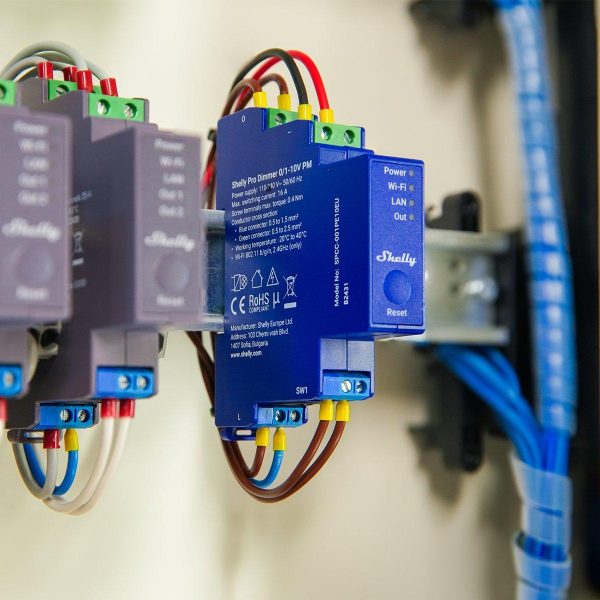

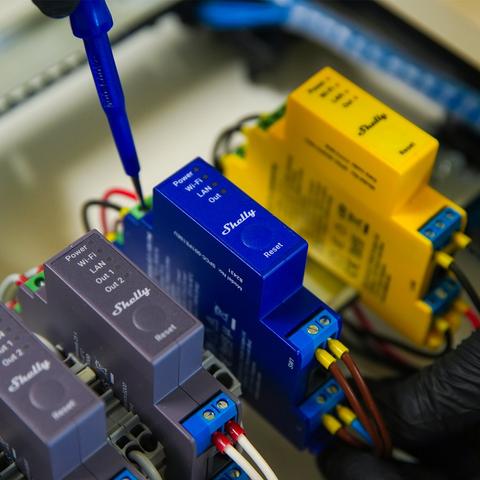

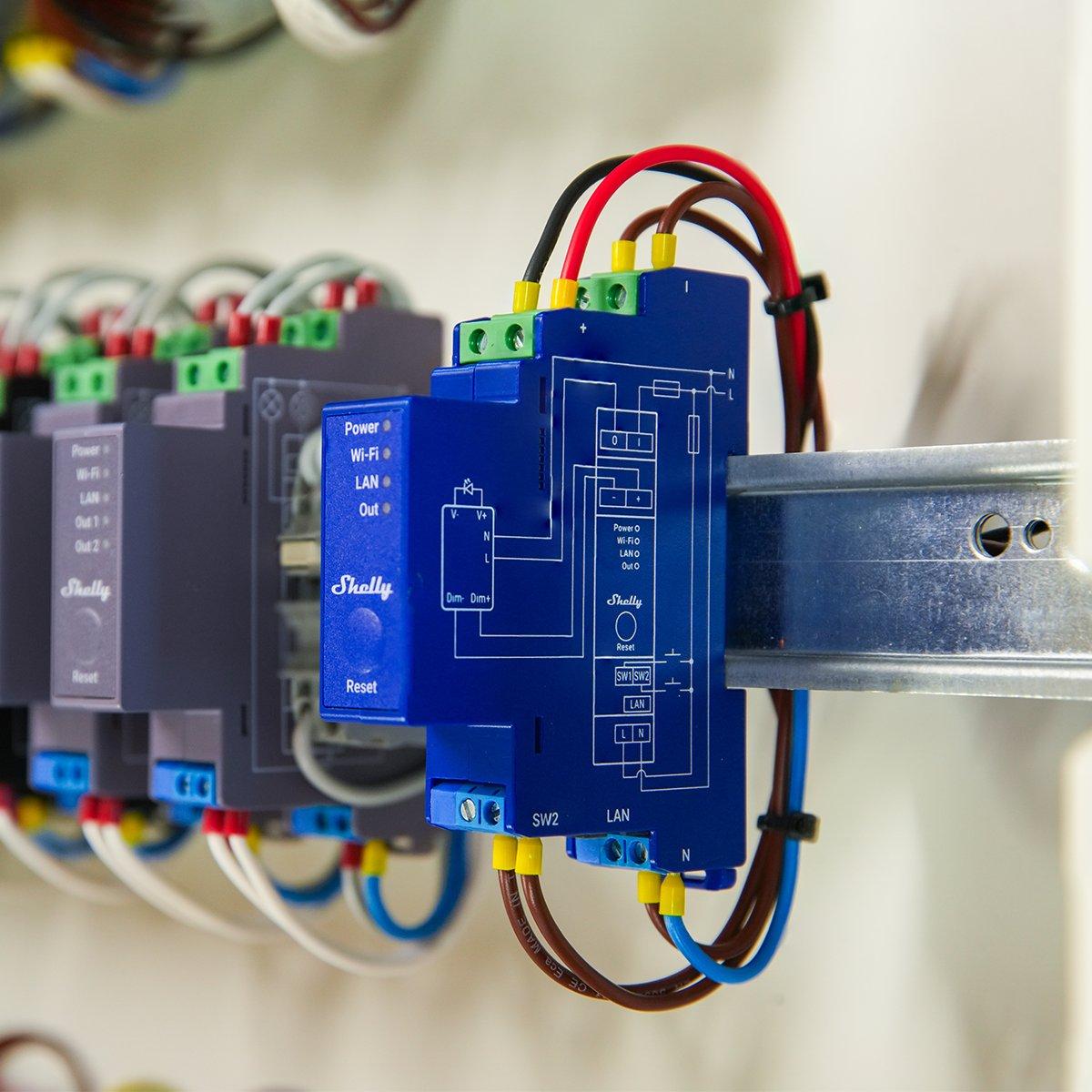

The Shelly Pro Dimmer 0/1–10V PM is a smart-home dimming module designed for direct DIN‑rail installation inside a breaker box, providing precise and granular control of 0/1–10V lighting fixtures and dimming drivers. It supports the continued use of existing light fittings and wall switches, while also enabling remote operation; either through a physical switch or via the Shelly app from anywhere in the world. Connectivity is handled through Wi-Fi, with additional LAN and Bluetooth communication for coordinated automation and custom smart scenes with other Shelly devices.

As part of the Pro series, the Shelly Pro Dimmer 0/1–10V PM includes built‑in protections for temperature, overpower and overvoltage, and does not require any extra wiring to deliver full smart‑automation functionality. It also supports HTTP webhooks for quick integrations, custom scripts using mJs, as well as advanced schedules and smart actions.

The device features integrated power‑monitoring capabilities, capturing detailed energy‑usage data from any connected system. This information is securely stored in the cloud, offering easy, at‑a‑glance insights into the power consumption of your lighting setup.

Key Features:

  • Built-in Wi-Fi; no hub required
  • LAN connectivity
  • Bluetooth connectivity
  • Embedded web server for local management
  • Power metering
  • Dimming functionality
  • Smart schedules
  • Smart scenes
  • Automatic sunrise/sunset schedules
  • Automatic on/off timer
  • Enhanced fire safety
  • Enhanced security (MQTT, WSS and TLS certificate support)
  • DIN rail mountable

What’s Included:

  • 1 x PRO-DIMMER-0-10V-PM
  • 1 x Installation Guide

Manuals & Data sheets:

Product Specifications

Physical and Performance Attributes

Weight70 grams
Dimensions (L x W x H)94 × 19 × 69 mm

Misc Product Attributes

Specification Value
Size (H × W × D) 94 × 19 × 69 ±0.5 mm / 3.70 × 0.75 × 2.71 ±0.02 in
Weight 70 g / 2.5 oz
Screw terminals max torque 0.4 Nm / 3.54 lbf·in
Conductor cross section 0.5–2.5 mm² / 20–14 AWG (green connectors)
0.5–1.5 mm² / 20–16 AWG (blue connectors)
Conductor stripped length 6–7 mm / 0.24–0.28 in (green connector)
5–6 mm / 0.20–0.24 in (blue connectors)
Mounting DIN
Shell material Plastic
Shell color Pantone 2736C (blue)
Print color White
Connectors color Green, blue
Ambient working temperature -20°C to 40°C / -5°F to 105°F
Humidity 30%
Max. altitude 2000 m / 6562 ft
Power supply 110–240 V
Power consumption < 3 W
Neutral not needed No
0–10V / 1–10V voltage control type Current sourcing
External protection 16 A, tripping characteristic B or C,
6 kA interrupting rating,
Energy limiting class 3
Max. switching voltage 240 V
Max. switching current 16 A
Voltmeter (AC) Yes
Ammeter (AC) Yes
Power and energy meters Active and apparent power
Active and apparent energy
Power factor
Fundamental active & fundamental reactive energy
Measurement data storage No
Internal temperature sensor Yes
Wi‑Fi Protocol 802.11 b/g/n
Wi‑Fi RF band –
Wi‑Fi max RF power < 20 dBm
Wi‑Fi range Up to 30 m / 100 ft indoors
Up to 50 m / 160 ft outdoors (depending on conditions)
Bluetooth Protocol 4.2
Bluetooth RF band 2402–2480 MHz
Bluetooth max RF power < 4 dBm
Bluetooth range Up to 30 m / 98 ft outdoors
Up to 10 m / 33 ft indoors
CPU ESP32‑D0WDQ6
Clock frequency 40 MHz
Flash 8 MB
Schedules 20
Webhooks (URL actions) 20 hooks, 5 URLs per hook
Scripting Yes
MQTT Yes
Advanced schedules Yes
KVS (Key‑Value Store) Yes
