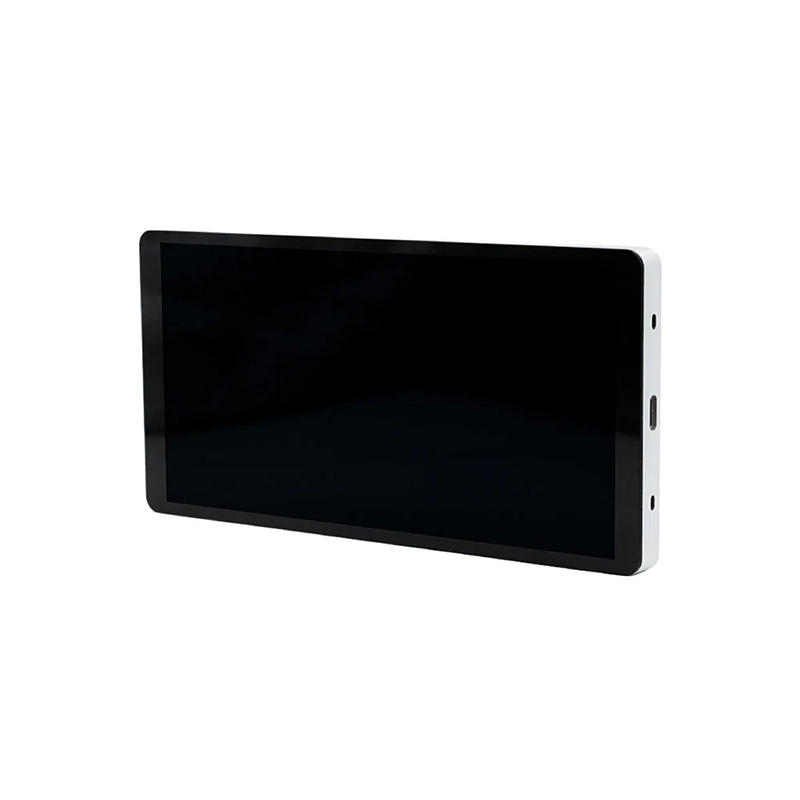

Shelly Wall Display X2i

Shelly Wall Display X2i is a smart home control panel with a 6.9” colour display and interchangeable power base. It comes with power base that provides switching functionality for one output load circuit.

£172.49 inc VAT

SKU: WALL-DISPLAY-X2I-BLACK | WALL-DISPLAY-X2I-SILVER Categories: , ,

Compatibility

Shelly Wall Display X2i is compatible with the following systems:
Wi-Fi Compatible Device

product-page-callout-v2-_support-full-width

Any Questions?

Our technical team is on hand to solve any problems or help you find the ideal solution.

Contact Us

Description

The Shelly Wall Display X2i is a smart home control panel with a 6.95” colour touchscreen, ultra-fast quad-core processor, and an interchangeable power base. The included power base has a single output for one-circuit control.



Key Features:

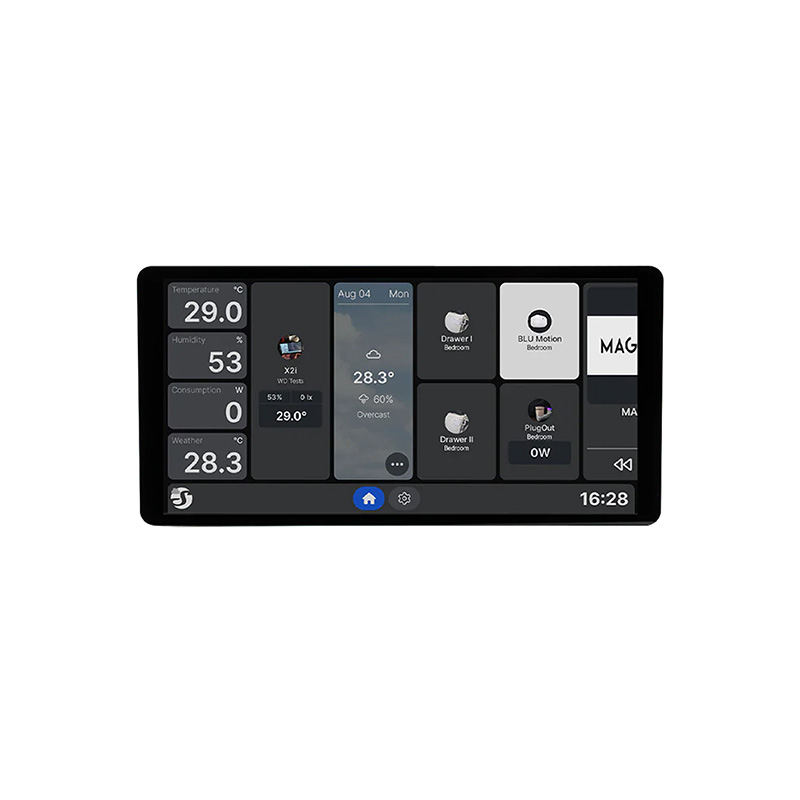

  • Touch-sensitive 6.95” colour display (panoramic or portrait view)
  • Bluetooth 5.0 and Wi-Fi 6 Dual Band (2.4 GHz & 5 GHz) connectivity
  • Ultra-fast quad-core CPU for instant response
  • Interchangeable power base
  • Power monitoring for connected Shelly PM devices
  • Integrated 5 A relay for light control
  • Integrated 0.8 W speaker
  • Bluetooth and SONOS speakers support
  • Built-in LUX sensor, proximity sensor, and G-sensor (for gestures)
  • Supports both 100–240 V~ and USB-C (5 V⎓) power for flexible installation
  • Simple navigation and customisable home screen
  • Compatible with Shelly Smart Control App, and Home Assistant

What’s Included:

  • 1x Shelly Wall Display X2i Black OR 1x Shelly Wall Display X2i Silver
  • 1x Quick Start Guide

Manuals & Data Sheets:



Product Specifications

Physical and Performance Attributes

Weight292 grams
Dimensions (L x W x H)87 × 178 × 36 mm

Misc Product Attributes

Physical

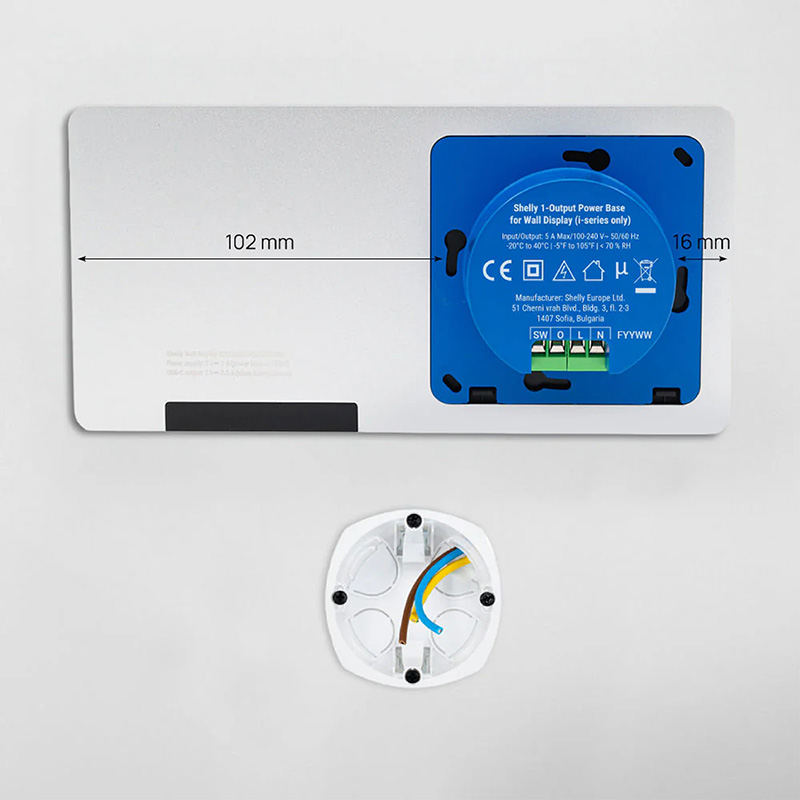

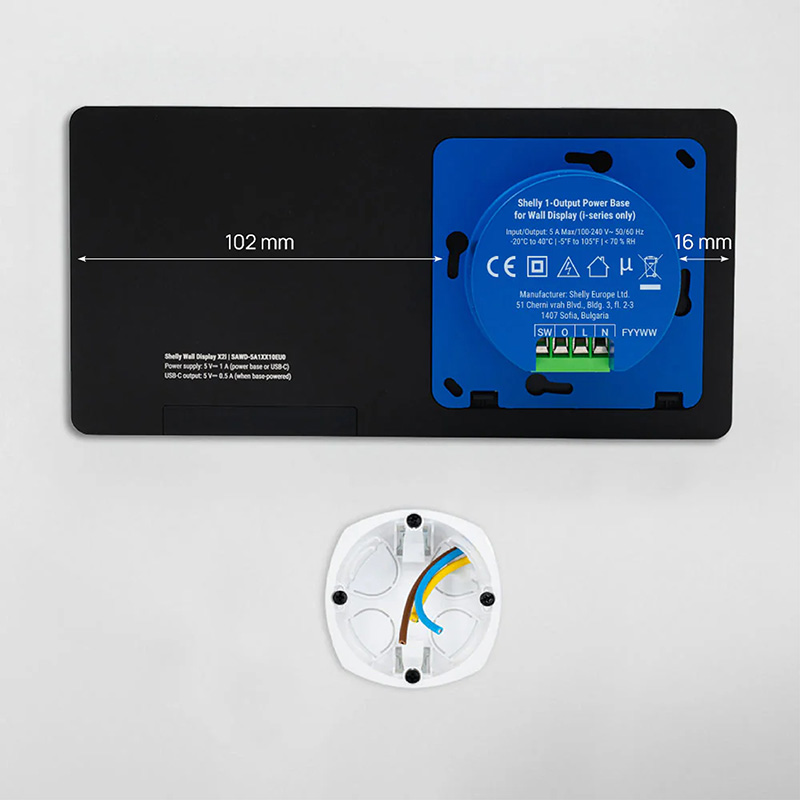

Size (H × W × D) With power base: 87 × 178 × 36 mm / 3.43 × 7 × 1.42 inch
Without power base: 87 × 178 × 11 mm / 3.43 × 7 × 0.43 inch
Weight With power base: 292 g / 10.3 oz
Without power base: 246 g / 8.68 oz
Touch screen 5‑point capacitive
Screen resolution 1440 × 720 px
Screw terminals max torque 0.4 Nm / 3.5 lbf·in
Conductor cross section 0.75 to 2.5 mm² / 18 to 14 AWG (solid, stranded, and bootlace ferrules)
Conductor stripped length 6 to 7 mm / 0.24 to 0.28 inch
Mounting Wall box
Shell material Plastic, aluminium, glass
Shell colour Display: Black, Silver
1‑Output power base: Blue (CMYK: C‑95%, M‑53%, Y‑0%, K‑0%)
Speaker 0.8 W × 1
Environmental
Ambient working temperature -20°C to 40°C / -5°F to 105°F
Humidity 30% to 70% RH
Max altitude 2000 m / 6562 ft
Electrical
Power supply 100–240 V~, 50/60 Hz
Power consumption < 5 W
USB Type‑C power supply 5 V ⎓, 1 A
Max switching voltage 240 V~
Max switching current 5 A
USB Type‑C output 5 V ⎓, 0.5 A
Sensors, meters
Light sensor Yes
Microphone Yes
G‑sensor Yes
Proximity sensor Yes
Radio
Wi‑Fi protocol Wi‑Fi 6, dual band
Wi‑Fi RF band 2412 – 2472 MHz
5150 – 5850 MHz
Wi‑Fi max RF power < 20 dBm
Wi‑Fi range Up to 30 m / 100 ft indoors
Up to 50 m / 160 ft outdoors
Depends on local conditions
Bluetooth protocol 5.0
Bluetooth RF band 2402 – 2480 MHz
Bluetooth max RF power < 4 dBm
Bluetooth range Up to 10 m / 33 ft indoors
Up to 30 m / 100 ft outdoors
Depends on local conditions
Microcontroller unit
CPU Rockchip RK3326‑S, quad‑core Cortex‑A35, 1.5 GHz
RAM 2 GB
Flash 8 GB
System Android 11
Firmware capabilities
Schedules 20
Webhooks (URL actions) 20 with 2 URLs per hook
Scripting No
MQTT Yes
