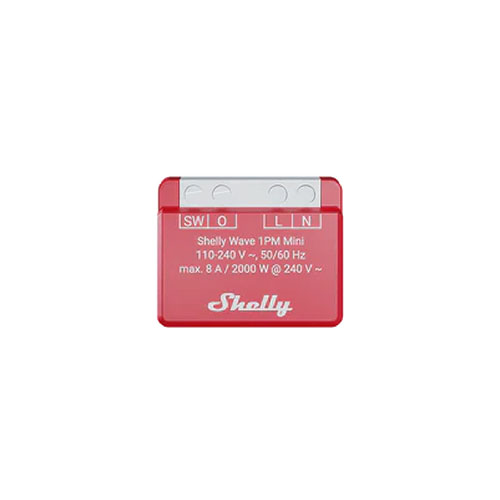

Shelly Wave 1PM Mini LR

The Shelly Wave 1PM Mini LR is a compact smart switch with built‑in power monitoring. It can control the on and off function of a single electrical appliance with a load of up to 8 A AC, such as a light bulb, ceiling fan, or infrared heater. It works with standard switches by default and is also compatible with push buttons.

£37.62 inc VAT

SKU: WAVE-MINI-1PM-LR Category:
product-page-callout-v2-_support-full-width

Any Questions?

Our technical team is on hand to solve any problems or help you find the ideal solution.

Contact Us

Description

The Shelly Wave 1PM Mini LR is a compact Z-Wave smart relay that includes built-in power monitoring and support for Z-Wave Long Range. It can switch and measure AC loads up to 8 A, equal to 2000 W at 240 V, and is designed to fit inside small wall boxes or crowded electrical enclosures.

It works with both standard Z-Wave mesh networks and Z-Wave Long Range (ZWLR). This allows it to function either as a mesh repeater or as a direct long-range connection to a compatible hub. Powered by the Z-Wave 800 Series chipset, it offers improved reliability, strong security, and accurate energy monitoring for controlling smart lighting and household appliances.

Key Features:

  • Single-channel relay with power and energy monitoring
  • Switches AC loads up to 8 A (2000 W at 240 V)
  • Supports Z-Wave mesh and Z-Wave Long Range (ZWLR)
  • Direct-to-hub ZWLR connection for extended wireless range
  • Z-Wave 800 Series (S800) chipset
  • SmartStart support for fast device inclusion
  • Supports Z-Wave associations in mesh mode
  • Extremely low standby power consumption (< 0.3 W)
  • OTA firmware updates via compatible Z-Wave hubs
  • Security 2 (S2) authenticated encryption

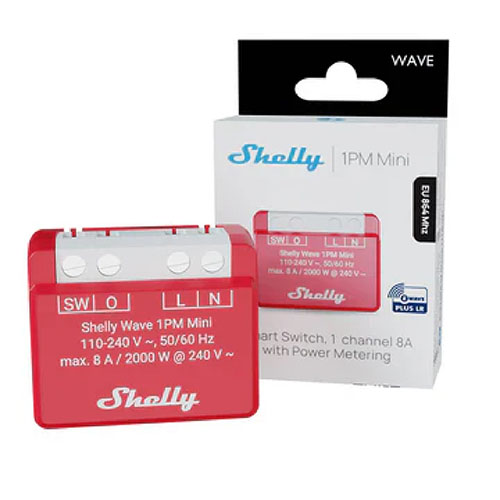

What’s Included:

  • 1x Shelly Wave 1PM Mini LR
  • 1x User Guide

*A gateway (smart hub) is not included. You will need one to set up any Z-Wave Plus devices, and a ZWLR-compatible gateway is required for a device to function in a ZWLR environment.

Manuals & Data Sheets:



Product Specifications

Physical and Performance Attributes

Weight18 grams
Dimensions (L x W x H)29 × 35 × 16 mm

Misc Product Attributes

Power supply 110 – 240 V ~ 50/60 Hz
Power consumption < 0.3 W
Power measurement [W] Yes
External protection 10 A, tripping characteristic B or C, 6 kA interrupting rating, Energy limiting class 3
Max. switching voltage AC 240 V
Max. switching current AC 8 A
Max. switching power AC 2000 W
Max. switching voltage DC N/A
Max. switching current DC N/A
Overheating protection Yes
Overcurrent protection Yes
Overvoltage protection Yes
Long range network distance Up to 80 m indoors (262 ft.) or up to 1000 m outdoors (3281 ft.)
Long range Z-Wave repeater No
Long range Z-Wave frequency bands 864 MHz
Mesh network distance Up to 40 m indoors (131 ft.)
Mesh Z-Wave repeater Yes
Mesh Z-Wave frequency bands 868.4 MHz
CPU Z-Wave S800
Maximum radio frequency power < 25 mW

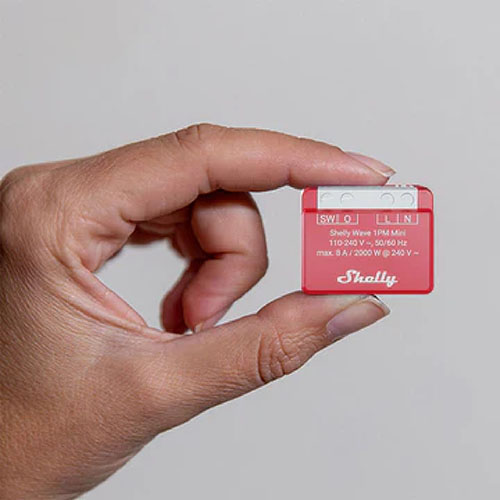

Size (H x W x D) 29x35x16 ± 0.5 mm / 1.11×1.35×0.63 ± 0.02 in
Weight 18 ± 1 g / 0.63 ± 0.04 oz

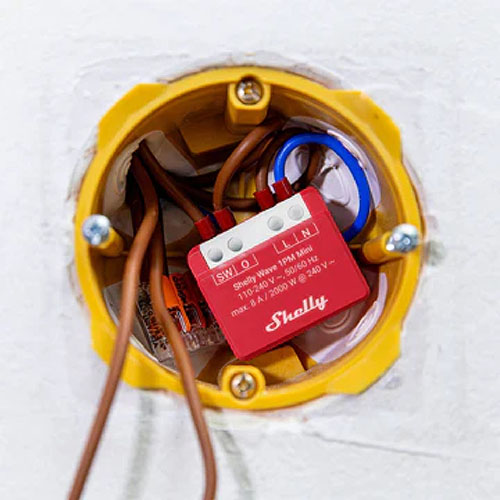

Mounting In-wall box
Screw terminals max. torque 0.4 Nm / 3.54 lbin
Conductor cross section 0.2 to 2.5 mm² / 24 to 14 AWG (solid, stranded, bootlace ferrules)
Conductor stripped length 6 to 7 mm / 0.24 to 0.28 in
Shell material Plastic
Color Red
Ambient temperature -20°C to 40°C / -5°F to 105°F
Humidity 30% to 70% RH
Max. altitude 2000 m / 6562 ft.
