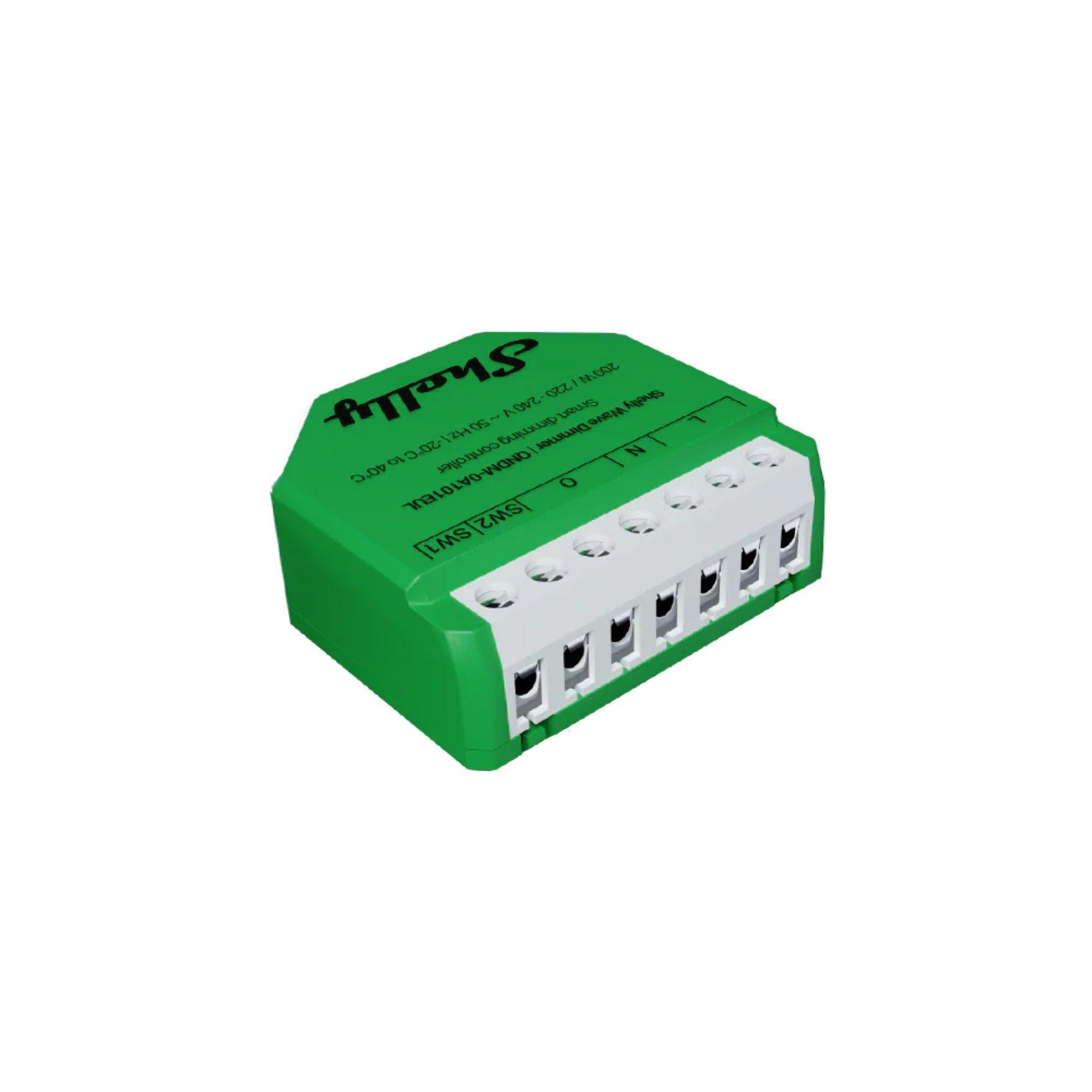

Shelly Wave Dimmer Z-Wave Dimming Relay

The Shelly Wave Dimmer is a Z‑Wave smart controller that lets you easily adjust dimmable lights. It integrates smoothly into any Z‑Wave network and can be operated manually through the free Shelly app or used within automated scenes alongside other Shelly Wave devices.

£52.99 inc VAT

SKU: WAVE-DIMMER Category:
product-page-callout-v2-_support-full-width

Any Questions?

Our technical team is on hand to solve any problems or help you find the ideal solution.

Contact Us

Description

The Shelly Wave Dimmer uses trailing‑edge dimming and can be installed with or without a neutral wire. It supports loads up to 200W and provides smooth, precise dimming for a wide range of LED and other dimmable lights, whether triggered by a single button press or an automated schedule.
Unlike Shelly’s retrofit series, the Wave Dimmer requires a separate Z‑Wave hub and can be integrated into a Z‑Wave network alongside compatible devices from different brands. It offers quick setup with SmartStart and supports Z‑Wave Long Range for strong, reliable connectivity over distances of more than 1 km.
The Wave Dimmer works with all certified Z‑Wave devices and gateways, using sub‑GHz communication for stable, interference‑free wireless performance.

Key Features:

  • Z-Wave operated
  • Power metering
  • Dimming functionality
  • Smart schedules
  • Smart scenes
  • Automatic sunrise/sunset schedules
  • Automatic on/off trigger
  • Multi-click action trigger
  • Enhanced security (MQTT, WSS and TLS certificate support)

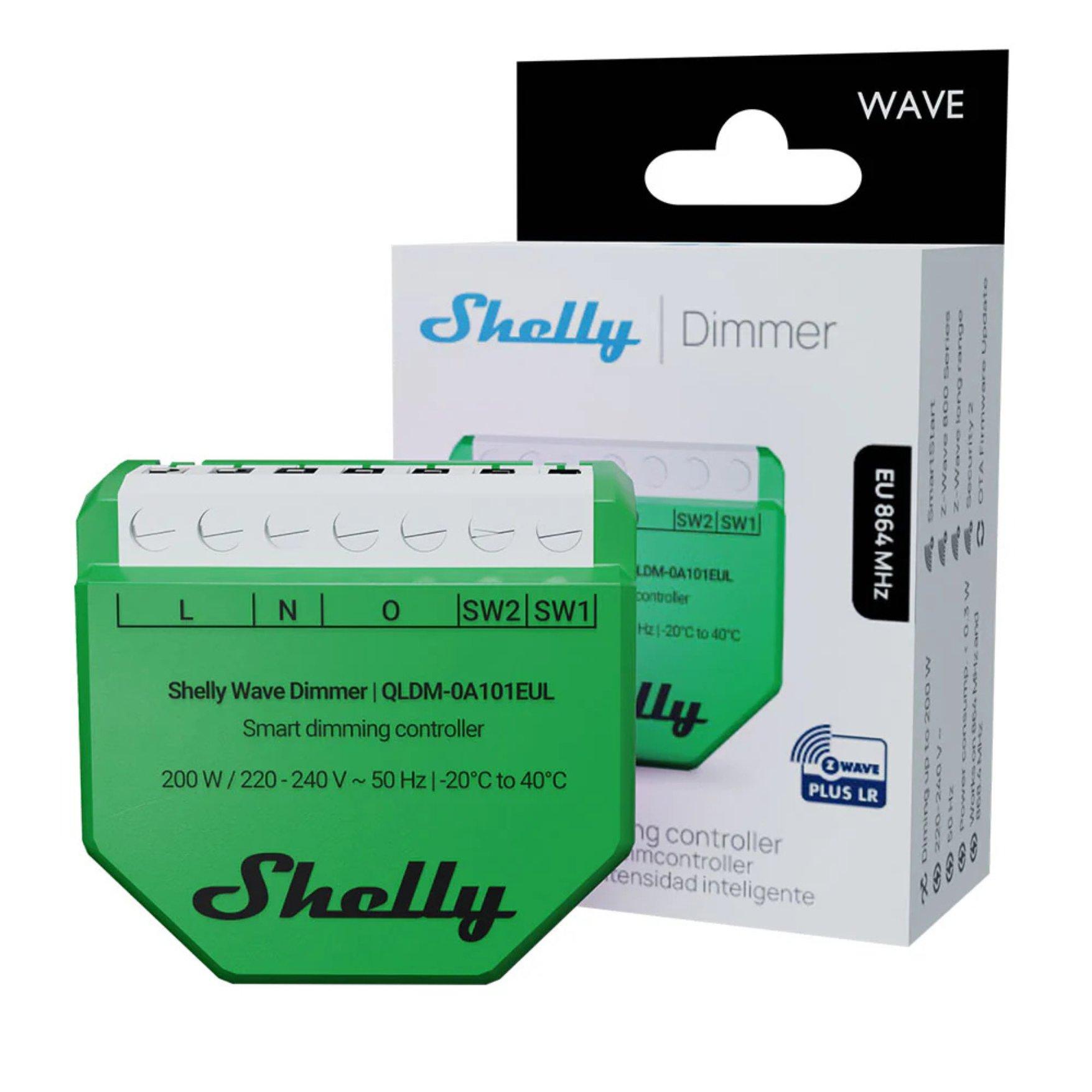

What’s included:

  • 1 x WAVE-DIMMER
  • 1 x Installation guide

Manuals & Data sheets:

Product Specifications

Physical and Performance Attributes

Weight25 grams
Dimensions (L x W x H)38.5 × 43.5 × 17 mm

Misc Product Attributes

Specification Value
Power supply 220-240 V ~, 50 Hz
Power consumption < 0.3 W
Neutral not needed Yes
Min. load (no neutral / no bypass) 5 W
Dimming type Trailing edge
External protection 10 A, tripping characteristic B or C, 6 kA interrupting rating, energy limiting class 3
Power measurement Yes
Max. output power 200 W
Internal-temperature sensor Yes
Overheating protection Yes
Overcurrent protection Yes
Overvoltage protection Yes
Wireless protocol Z-Wave
CPU S800
Z-Wave frequency band 919.8 MHz
Max radio frequency power < 25 mW
Range Up to 40 m indoors (131 ft.), depends on local conditions

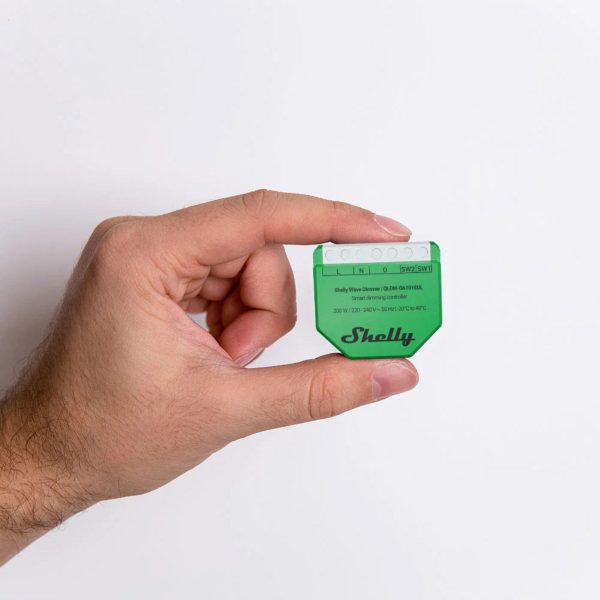

Size (H × W × D) 38.5 × 43.5 × 17 mm / 1.52 × 1.71 × 0.67 in
Weight 25 g / 0.88 oz
Screw terminals max torque 0.4 Nm / 3.5 lbin
Conductor cross section 0.2–2.5 mm² / 24–14 AWG (solid, stranded, ferrules)
Conductor stripped length 5–6 mm / 0.20–0.24 in
Mounting In-wall
Shell material Plastic
Color Lime
Ambient working temperature -20°C to 40°C / -5°F to 105°F
Humidity 30% to 70% RH
Max. altitude 2000 m / 6562 ft
