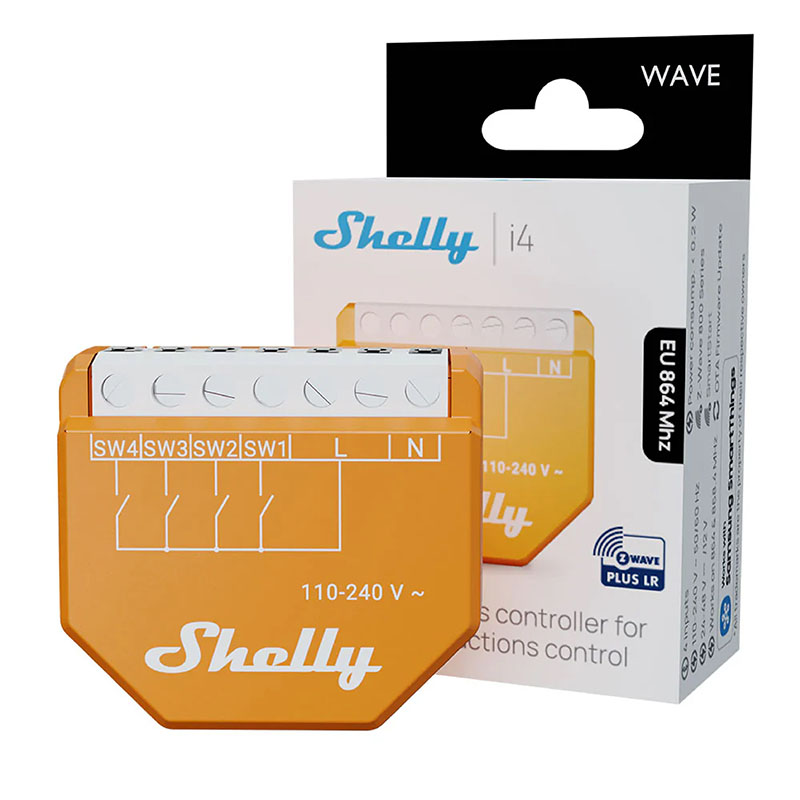

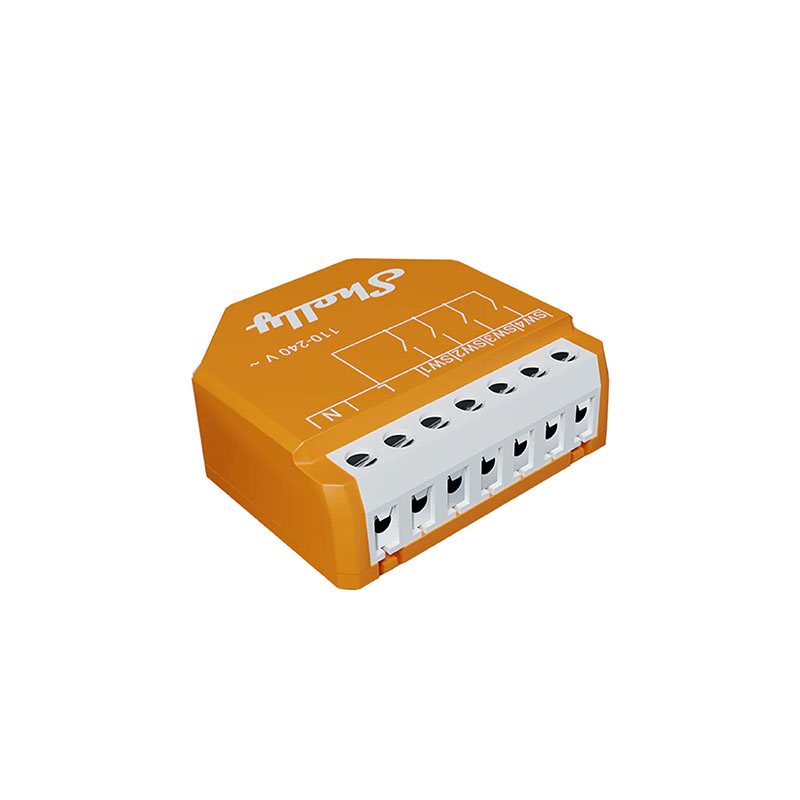

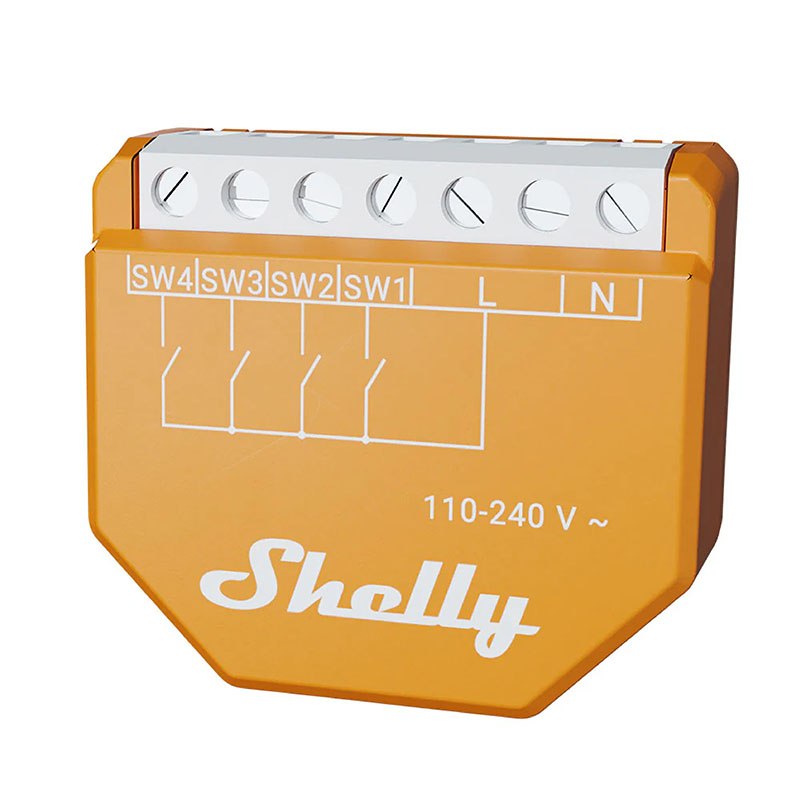

Shelly Wave i4 LR

The Shelly Wave i4 LR is a 4-digital inputs module (110-240 V AC) that controls other devices within the Z-Wave network. It enables manual activation or deactivation of scenes via a push-buttons (default) or switches.

£35.34 inc VAT

SKU: WAVE-I4-LR Category:
product-page-callout-v2-_support-full-width

Any Questions?

Our technical team is on hand to solve any problems or help you find the ideal solution.

Contact Us

Description

Control scenes, run synchronised actions, or trigger advanced automations with just one button. Now featuring Z‑Wave Long Range for improved coverage and dependable performance.

*A gateway smart hub is not included. A hub is required to set up Z‑Wave Plus devices, and a ZWLR‑compatible gateway is essential for operation in a Z‑Wave Long Range environment.

Key Features:

  • Shelly Wave i4 is an input reader device (it does not contain relays)
  • Manually control other Z-Wave devices (e.g. with a multi-button switch)
  • Multi-click support allowing activation of up to 16 actions
  • Supports Z-Wave Long Range, maintaining a strong connection over distances exceeding 1 km (line of sight)
  • Energy efficient design using up to 0.2 W of power
  • Dual Z-Wave frequency options: 864 MHz (ZWLR) or 868.4 MHz (Z-Wave Plus)
  • Powered by the latest Z-Wave 800 Series technology
  • Easy setup with SmartStart, simply scan and go
  • Security 2 Authenticated for the highest level of security
  • Supports over-the-air firmware updates

What’s Included:

  • 1x Shelly Wave i4 LR
  • 1x Quick Start Guide

Manuals & Datasheets:

Product Specifications

Physical and Performance Attributes

Weight17 grams

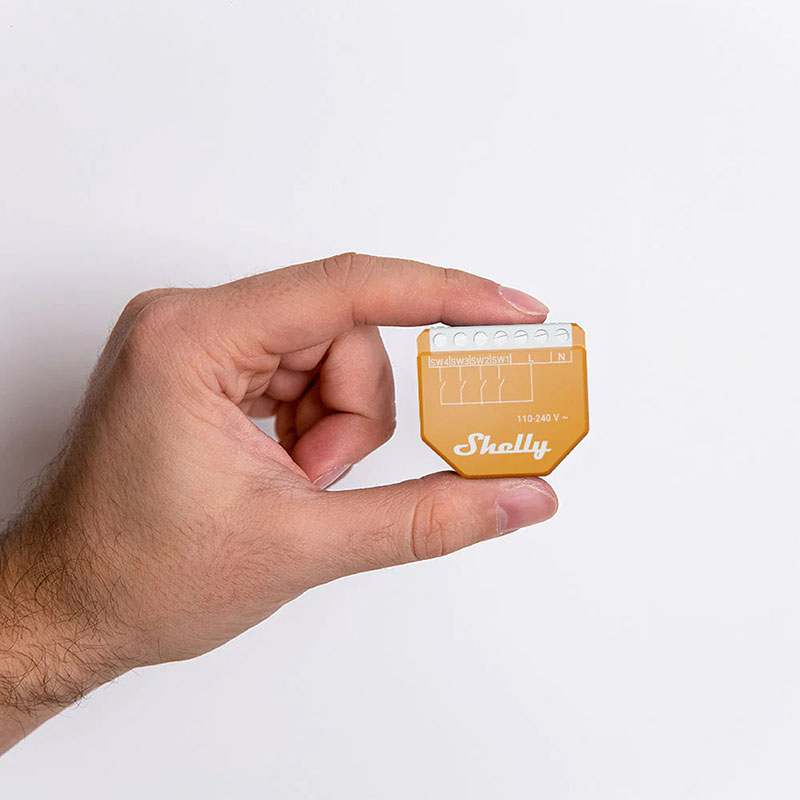

Dimensions (L x W x H)37 × 42 × 16 mm

Misc Product Attributes

Power Supply (AC) 110–240 V ~ 50/60 Hz
Power Supply (DC) No
Power Consumption < 0.2 W
Overcurrent Protection No
Power Measurement No
Number of Inputs 4
Long Range Network Distance Up to 80 m indoors (262 ft.) or up to 1000 m outdoors (3281 ft.) depending on local conditions
Z-Wave® Repeater (Long Range) No
Z-Wave® Frequency Bands (Long Range) 864 MHz
Mesh Network Distance Up to 40 m indoors (131 ft.) depending on local conditions
Z-Wave® Repeater (Mesh) Yes
Z-Wave® Frequency Bands (Mesh) 868.4 MHz
CPU Z-Wave® S800
Maximum RF Transmit Power < 25 mW
Size (H × W × D) 37 × 42 × 16 ± 0.5 mm (1.46 × 1.65 × 0.63 ± 0.02 in)
Weight 17 g / 0.6 oz
Mounting In-wall box
Screw Terminals Max. Torque 0.4 Nm / 3.5 lbin
Conductor Cross Section 0.5 to 1.5 mm² / 20 to 16 AWG
Conductor Stripped Length 5 to 6 mm / 0.20 to 0.24 in
Shell Material Plastic
Colour Orange
Ambient Temperature -20 °C to 40 °C / -5 °F to 105 °F
Humidity 30% to 70% RH
Max. Altitude 2000 m / 6562 ft.
