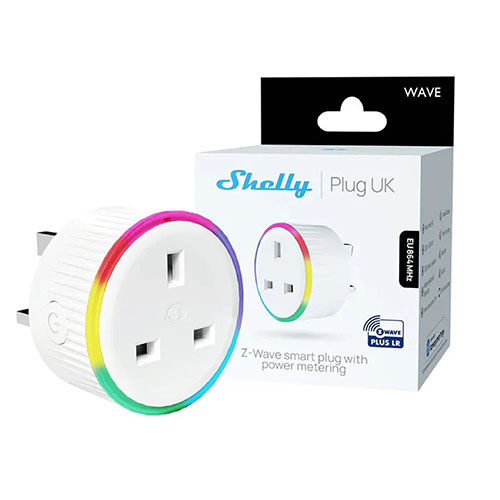

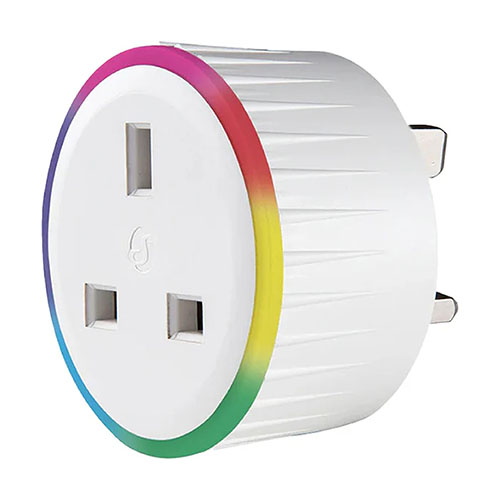

Shelly Wave Plug UK LR

The Shelly Wave Plug UK LR is a smart plug/outlet with power measurement and overheating protection, which allows remote control of electrical appliances through a mobile phone, tablet, PC, or home automation system.

£45.60 inc VAT

SKU: WAVE-PLUG-LONG-RANGE Category:
product-page-callout-v2-_support-full-width

Any Questions?

Our technical team is on hand to solve any problems or help you find the ideal solution.

Contact Us

Description

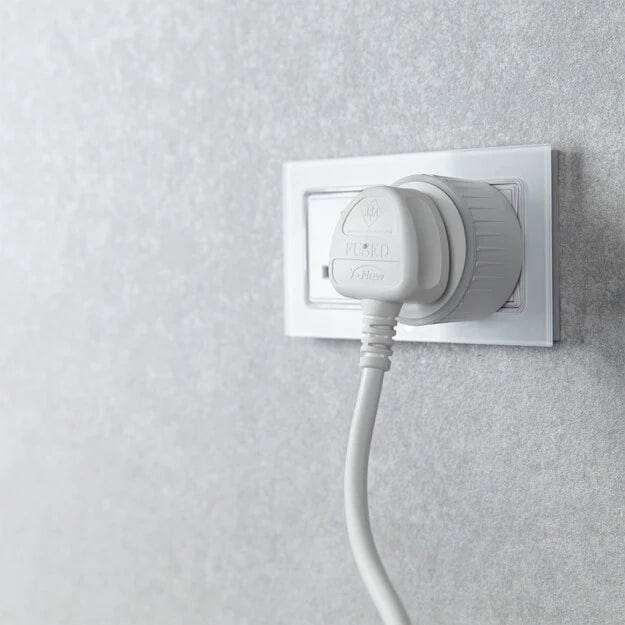

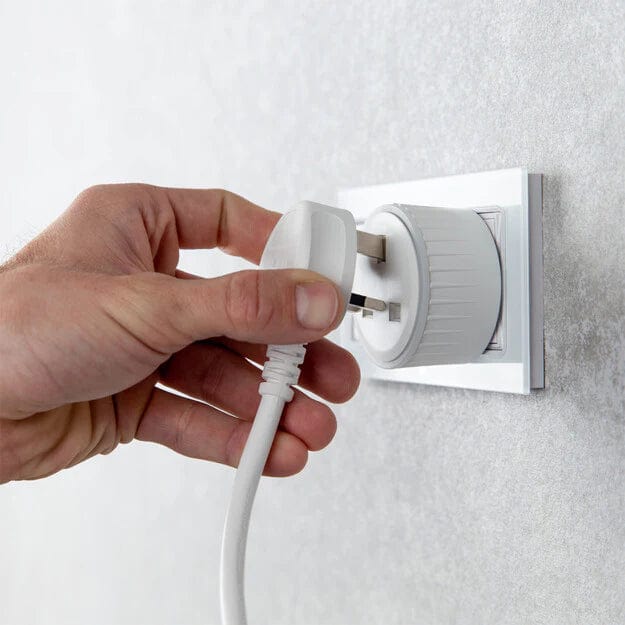

The Shelly Wave Plug UK LR is built for simple plug-and-play use. Once the plug is added to your system, you only need to connect a standard electrical appliance and it can then be controlled remotely or included in custom schedules and scenes.

Shelly’s Long-Range Wave Plug supports power loads up to 3000W at 13A, which makes it suitable for a wide variety of common electrical devices such as lights, heaters, security cameras, and many other household appliances. Since it is Z-Wave compatible, the Shelly Wave Plug LR can be quickly detected by any Z-Wave hub and added to an existing network through SmartStart.

The plug also includes advanced power monitoring features and can provide real-time energy consumption data for any device that is connected, with an accuracy of up to 1 percent.

Key Features:

  • Z-Wave operated
  • Power metering
  • Smart schedules
  • Smart scenes
  • Automatic sunrise/sunset schedules
  • Automatic on/off timer
  • Enhanced fire safety
  • Enhanced security (MQTT, WSS and TLS certificate support)

What’s Included:

  • 1x Shelly Wave Plug UK LR
  • 1x User Guide

*A gateway (smart hub) is not included, but is required for the configuration of this device.​

Manuals & Data sheets:

Product Specifications

Physical and Performance Attributes

Weight74 grams
Dimensions (L x W x H)60 × 60 × 56 mm

Misc Product Attributes

Power
Power supply 230 V AC ±10 % 50/60 Hz
Power consumption < 0.7 W
Power measurement Yes
Max switching voltage AC 260 V
Max switching current AC 13 A
Overheating protection Yes
Overcurrent protection Yes
Overvoltage protection Yes
Long range network
Distance Up to 80 m indoors (262 ft.) or up to 1000 m outdoors (3281 ft.)
Z-Wave repeater No
Z-Wave frequency bands 864 MHz
Mesh network
Distance Up to 40 m indoors (131 ft.)
Z-Wave repeater Yes
Z-Wave frequency bands 868.4 MHz
Connectivity
CPU Z-Wave S800
Maximum radio frequency power < 25 mW
Dimensions
Size (H x W x D) 60 x 60 x 56 ±0.5 mm / 2.36 x 2.36 x 2.20 ±0.02 in
Weight 74 ±1 g / 2.6 ±0.04 oz
Compatibility
Compatible sockets BS 1363 (Type-G)
Compatible plugs BS 1363 (Type-G)
Physical
Shell material Plastic
Color White
Environmental
Ambient temperature -20°C to 40°C / -5°F to 105°F
Humidity 30% to 70% RH
Max altitude 2000 m / 6562 ft.
