TP-Link TL-SG1008MP 8-Port Gigabit Desktop/Rack-mount Network Switch with 8-Port PoE+

The TL-SG1008MP is an 8-Port Gigabit Desktop/Rack mountable Switch with all 8 ports supporting the PoE+ standard.

£94.80 inc VAT

SKU: TL-SG1008MP Categories: ,

EAN / Barcode: 6935364086770

product-page-callout-v2-_support-full-width

Any Questions?

Our technical team is on hand to solve any problems or help you find the ideal solution.

Contact Us

    Network switch
    Network switch
    Network switch
    Network switch
    Network switch
    Network switch
    Network switch
    Network switch
    Network switch
    Network switch

    Description

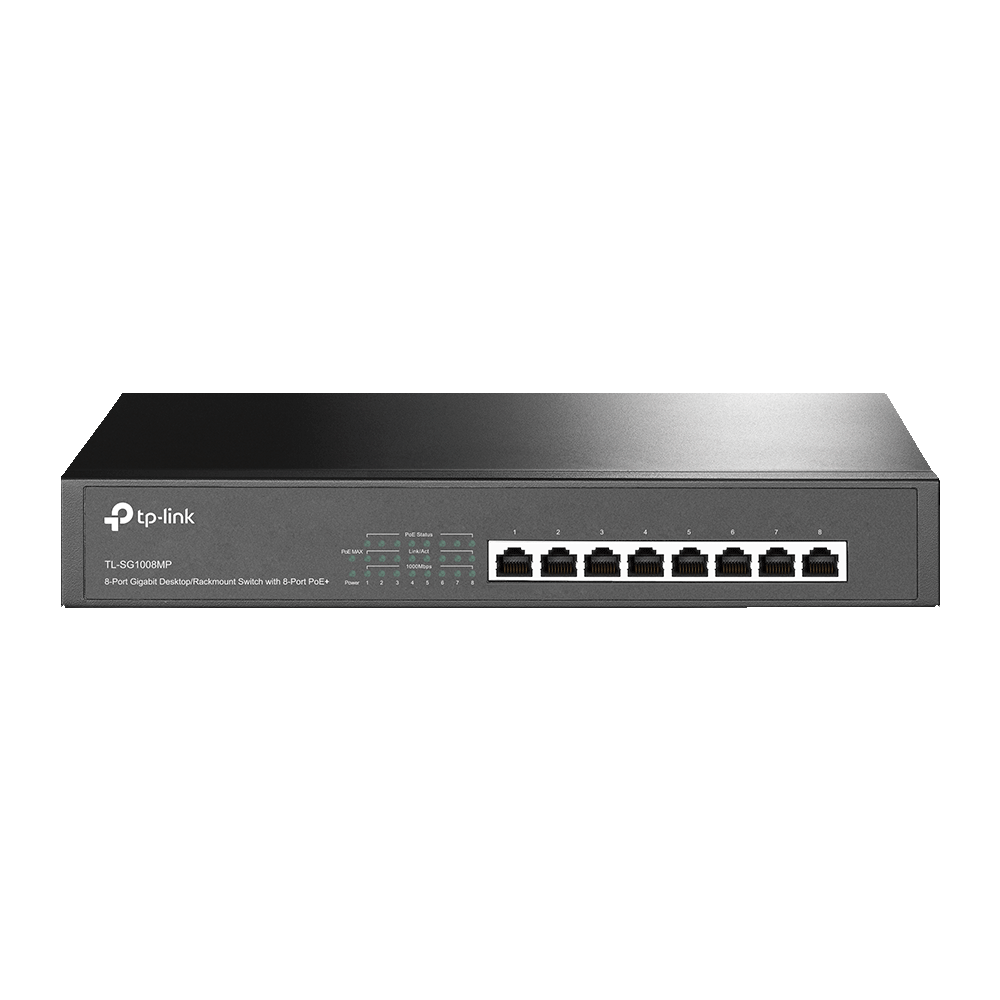

    TP-Link TL-SG1008MP Main Image

    What Does This Product Do?

    The TL-SG1008MP is an 8-Port Gigabit Desktop/Rackmountable Switch that supports the PoE+ standard on all eight ports. It allows you to expand a wired network easily by transmitting power and data over a single Ethernet cable. With a total power budget of 153W and up to 30W per port, the TL-SG1008MP can power more powerful devices like WLAN Access Points (APs), IP Cameras, or IP Phones. Furthermore, the TL-SG1008MP can conserve power with revolutionary energy-efficient technology, making it an eco-friendly choice for your corporate network.

    How Does it Work?

    The 8 SG1008MP's ports all support the Power over Ethernet Plus (PoE+) protocol, which can automatically identify and deliver power to any IEEE 802.3af/at compatible device (s). In this case, electrical power is sent together with data in a single cable, allowing you to expand your network where there are no electrical connections or outlets, allowing you to fix devices such as APs, IP Cameras, or IP Phones

    Overload Arrangement

    The TL-SG1008MP features a priority function that aids in the protection of the system when its power is overwhelmed. If the total power usage of all PoE+ devices exceeds 153W, a priority will be assigned to the 8 PoE+ ports, and the system will turn off the power to the lowest-priority port.

    Easy To Use

    The TL-SG1008MP is simple to set up and operate. It does not require any configuration or installation. The TP-Link TL-SG1008MP 8-Port Gigabit Desktop/Rack mountable Switch with 8-Port PoE+ is an excellent choice for extending your home or office network thanks to its Desktop/Rack mountable design, amazing performance, and quality.

    TP-Link TL-SG1008Mp Package Image

    Port Priority Function

    Priority (port one > port two > port three > port four > port five > port six > port seven > port eight): This function protects the system in the event that the power is overwhelmed. For example, if ports 1, 2, 4, 5, and 7 are consuming 30W (maximum power per port is 30W, total system power is 153W), and an extra device is put into Port 3 at 25W, the system will turn off Port 7 in reaction to the power surpassing the 153W limit. This implies that Ports 1, 2, 4, and 5 will use 30W, while Port 3 will use 25W, and Port 7 will get no power because it has the lowest specified priority among the ports in use.

    TP-Link TL-SG1008MP Switch Priority

    Features

    • 8 RJ45 10/100/1000Mbps ports
    • With 8 PoE+ capable ports, you can transport data and power via a single cable
    • Expands home and business networks by working with IEEE 802.3af/at compatible devices.
    • Innovative energy-saving technology lowers power usage.
    • PoE+ standard is supported, with a total power budget of 153W* and up to 30W per port.
    • There is no need for configuration because the design is plug and play.

    *Laboratory testing is used to calculate PoE budgets. Actual PoE power budgets are not guaranteed and will vary due to client constraints and environmental variables.

    What's Included

    • TL-SG1008MP
    • Power Cord
    • Installation Guide
    • Rack mount Kit
    • Rubber Feet

    Manuals & Datasheets

    TP-Link TL-SG1008MP 8-Port Gigabit Switch Datasheet
    TP-Link TL-SG1008MP 8-Port Gigabit Switch Installation Guide

    Hardware Features
    Interface
    • 8 10/100/1000Mbps RJ45 Ports
    • AUTO Negotiation/AUTO MDI/MDIX
    ANetwork Media
    • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
    • EIA/TIA-568 100Ω STP (maximum 100m)
    • 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
    • EIA/TIA-568 100Ω STP (maximum 100m)
    • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
    • EIA/TIA-568 100Ω STP (maximum 100m)
    Fan Quantity
    • 1
    Physical Security Lock
    • No
    Power Supply
    • 100-240VAC, 50/60Hz
    Packet Forwarding Rate
    • 11.904 Mpps
    PoE+ Ports(RJ45)
    • Standard: 802.3af/at compliant
    • PoE+ Ports: 8 Ports
    • Power Supply: 153W
    Mac Address Table
    • 4K
    Buffer Size
    • 1.5Mbits
    Jumbo Frame
    • 16 KB
    Switching Capacity
    • 16Gbps
    Dimensions ( W x D x H )
    • 294 x 180 x 44 mm
    Mounting
    • Desktop, Rack Mountable
    Max Power Consumption
    • 8.57W(220V/50Hz. no PD connected)
    • 173.65W(110V/60Hz. with 153W PD connected)
    Max Heat Dissipation
    • 29.22BTU/h(no PD connected)
    • 592.15BTU/h(with 153W PD connected)
    Software Features
    Advanced Features
    • Compatible With IEEE 802.3af/at Compliant PDs
    • Priority Function
    • Mac Address Auto-Learning And Auto-Aging
    • IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode
    Transfer Method
    • Store-And-Forward
    Others
    Certification
    • FCC, CE, RoHS
    Operating Temperature
    • 0℃~50℃
    Storage Temperature
    • -40℃~70℃
    Operating Humidity
    • 10%~90% non-condensing
    Storage Humidity
    • 5%~90% non-condensing

    Product Specifications

    Physical and Performance Attributes

    Weight1.000 KG
