VIGI NVR1004H-4P 4 Channel PoE+ Network Video Recorder

Secure your properties with professional, powerful video surveillance with the VIGI NVR1004H-4P.

Designed by VIGI, TP-Links range has been specially developed for professional surveillance, an ideal solution for both businesses or large residential properties. The NVR1004H-4P has been designed with accuracy and intelligence in mind, suitable for busy environments with high vehicle and foot traffic.

£234.00 inc VAT

SKU: 608-1474 Category:
product-page-callout-v2-_support-full-width

Any Questions?

Our technical team is on hand to solve any problems or help you find the ideal solution.

Contact Us

Description

Secure your properties with professional, powerful video surveillance with the VIGI NVR1004H-4P.

Designed by VIGI, TP-Links range has been specially developed for professional surveillance, an ideal solution for both businesses or large residential properties. The NVR1004H-4P has been designed with accuracy and intelligence in mind, suitable for busy environments with high vehicle and foot traffic.



Features

  • 4-Channel Live View
  • 4K HDMI Video Output
  • 4× 10/100 Mbps PoE+ Ports with 53 W PoE Budget
  • Up to 8-ch @ 2MP (25fps) / 4-ch @ 4MP (25fps) Decoding Capability
  • 4-Channel Synchronous Playback
  • 80 Mbps Incoming Bandwidth and 60 Mbps Outgoing Bandwidth
  • 1× SATA Interface and 1 Up to 10 TB*
  • H.265+ Compression Technology
  • HDMI and VGA Simultaneous Output
  • Remote Monitoring

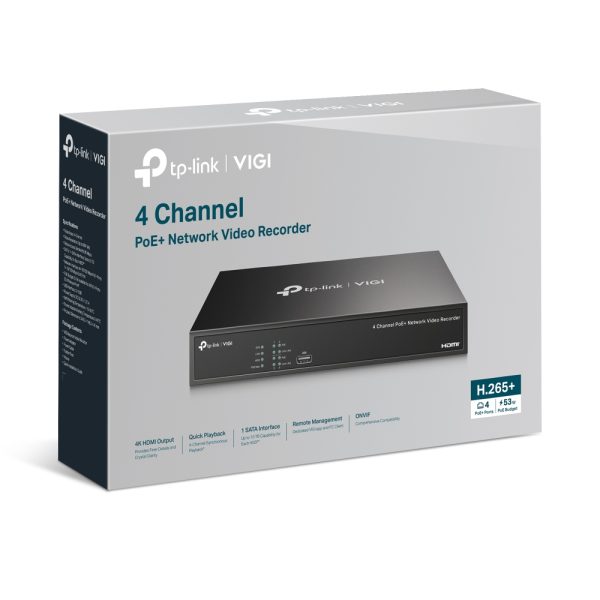

What’s in the Box

  • VIGI 4 Channel Network Video Recorder
  • Power Adaptor
  • Power Cables
  • Rubber Feet
  • Mouse
  • Quick Installation Guide

Product Specifications

Physical and Performance Attributes

Weight2.2 KG
Dimensions (L x W x H)246.2 × 148.2 × 45 mm
Operating TemperatureNVR = -10–55 °C Power Adaptor = 0–40 °C
Operating Humidity10%~90% RH Non-Condensing

Electronics Attributes

Max Consumption4.25W (Without Disk) or 13.10W (With Disk)
Power Supply53.5V DC/1.31A

Misc Product Attributes

Audio & Video

IP Video Input: 4-Channel

Incoming Bandwidth: 80Mbps

Outgoing Bandwidth: 60Mbps

HDMI Output Resolution: 1 Channel, Resolution: 3840×2160/30Hz, 1920×1080/60Hz, 1680×1050/60Hz, 1440×900/60Hz, 1280×1024/60Hz, 1280×720/60Hz

VGA Output Resolution: 1 Channel, Resolution: 1920×1080/60Hz, 1680×1050/60Hz, 1440×900/60Hz, 1280×1024/60Hz, 1280×720/60Hz

Video Output Mode: HDMI/VGA Simultaneous Output

Multi-View Display: 1/4



Decoding

Audio Compression: G.711A/G.711U/G.726

Video Compression: H.265+/H.265/ H.264+/H.264

Record Resolution: 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

Synchronous Playback: 4-Channel*

Capability: 25fps = 2-ch @ 8MP, 4-ch @ 4MP       30fps = 4-ch @ 4MP, 3-ch @ 5MP



Record Management

Record Mode: Manual Recording, Scheduled Recording, Motion Detection Recording

Playback Mode: Instant Playback, Regular Playback, Tag Playback, Event Playback

Backup Mode: Regular Backup, Video Clip Backup

Playback Function: Play, Pause, Stop, Fast Forward, Fast Rewind, Play by Frame, Full Screen, Video Clip, Export Clip, Digital Zoom, Lock Recording, Audio On/Off



Network

Protocol: UPnP (Plug and Play), NTP (Network Timing), SMTP, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP

Mobile Phone Access: Android, iOS

Web Browser: Chrome (57+), Firefox (52+), Edge (91+)

Interoperability: ONVIF Profile S/T/G, CGI



External Interface

Network Interface: 1, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface

USB Interface: 1 Front USB 2.0 Port, 1 Rear USB 2.0 Port

Audio Interface: 1-ch RCA Input; 1-ch RCA Output

Alarm In/Out: N/A

Serial Interface: N/A

Power: 1x DC Jack

Reset Button: 1

Speaker: N/A

eSATA: N/A

HDMI: 1

VGA: 1



Hard Disk

SATA: 1 SATA Interface

Capacity: Up to 10 TB Capacity for Each HDD*



PoE

Standard: 802.3at/af Compliant

Interface: 1- 4, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface

PoE Budget: 53 W*** Available for All PoE+ Ports, 30 W Max per Port



Alarm

General Alarm: Alert can be set on the following detections – Motion, Video Tampering, Scene Change, Line-Crossing, Intrusion, Region Entering, Region Exiting, Loitering, Object Abandoned, Object Removed, Vehicle, Human, Abnormal Sound, Smart Frame

Anomaly Alarm: Video Loss, Office and IP Conflict, Disk Exception, Login Exception

Alarm Linkage: Recording, White Light Alarm, Buzzer, Log, Audible Alarm

(Note: The alarm function requires the use of a camera)



Certifications

CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI



*The number of simultaneously playable channels may be fewer than 4, or none, if the total resolution exceed 16MP

**HDD is not included

***PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.

This model currently supports ONVIF Profile S/T/G
