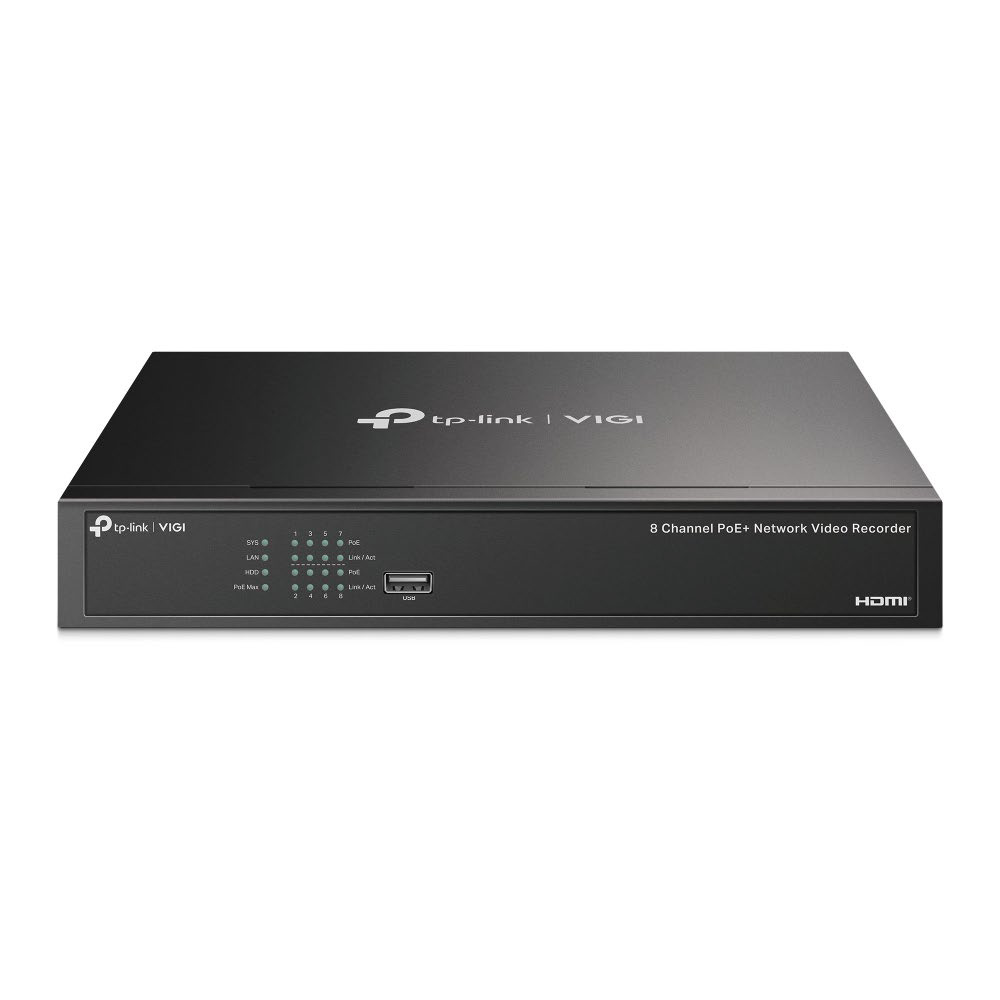

VIGI NVR1008H – 8MP 8 Channel PoE+ Network Video Recorder

Secure your properties with professional, powerful video surveillance with the NVR1008H – 8MP.

Designed by VIGI, TP-Links new range has been specially developed for professional surveillance, an ideal solution for large residential properties, businesses, warehouses, schools and much more.

The NVR1008H – 8MP has been designed with intelligence and accuracy in mind and is suitable for busy environments with both high vehicle and foot traffic. Feel safe in the knowledge that your buildings and people are protected at all times.

£300.00 inc VAT

SKU: 608-1567 Category:
product-page-callout-v2-_support-full-width

Any Questions?

Our technical team is on hand to solve any problems or help you find the ideal solution.

Contact Us

Description

Upgrade your property’s security with professional, powerful video surveillance.

Designed by VIGI, TP-Links new range has been specially developed for professional surveillance and is an ideal security solution for large residential properties, businesses, warehouses, schools and much more.

The NVR1008H – 8MP has been designed with intelligence and accuracy in mind and is suitable for busy environments with both high vehicle and foot traffic. Feel safe in the knowledge that your buildings and people are protected at all times.

Features

  • 4K HDMI Video Output
  • 16MP Decoding Capacity
  • Simple to Install with PoE+
  • 8-Channel Simultaneous Playback*
  • Save Space with H.265+
  • ONVIF Ensures Compatibility
  • Plug & Play with VG IP Cameras
  • 24/7 Continuous Recording
  • Remote Monitoring
  • Flexible Installation
  • Two-Way Audio

Dedicated 8 PoE+ Ports (113W budget) for simplified IP camera deployments.

Featuring 8x 10/100Mbps PoE+ ports, this NVR supports up to 30W on each PoE+ port. Thoughtfully designed to use a single Ethernet cable for both power and data transmission, the VIGI NVR1008H offers flexible installation suitable for a variety of surveillance scenarios for small businesses or residential homes.

Every angle all on one screen.

4K HDMI video output and 16MP decoding capacity, the VIGI NVR1008H has sharp image definition up to 8MP and an 8-channel display will ensure that you capture every detail, from every angle.

Flexible installation methods for your convenience.

Choose a suitable installation method, you can install at or underneath a desk, or even house your NVR on suitable rack.

Welcome visitors and deliveries before they enter.

With integrated voice intercom support and Two-Way audio, you can see who is arriving and speak to them whilst watching your feed from anywhere in the world. Perfect for entry management and deliveries.

Plug and play with speedy installation.

Plug and play allows new and unused cameras to be added automatically to the new NVR and can be activated instantly making installation and alterations faster than ever before.

Review your footage more quickly than ever.

The VIGI NVR1008H provides 8 channels of simultaneous playback, allowing you to replay the feed from up to 8 separate cameras at one time, find events, increase the playback speed and review all footage easily. With 8 channels available on screen, you can get a snapshot of all corners of a business with just a quick glance.

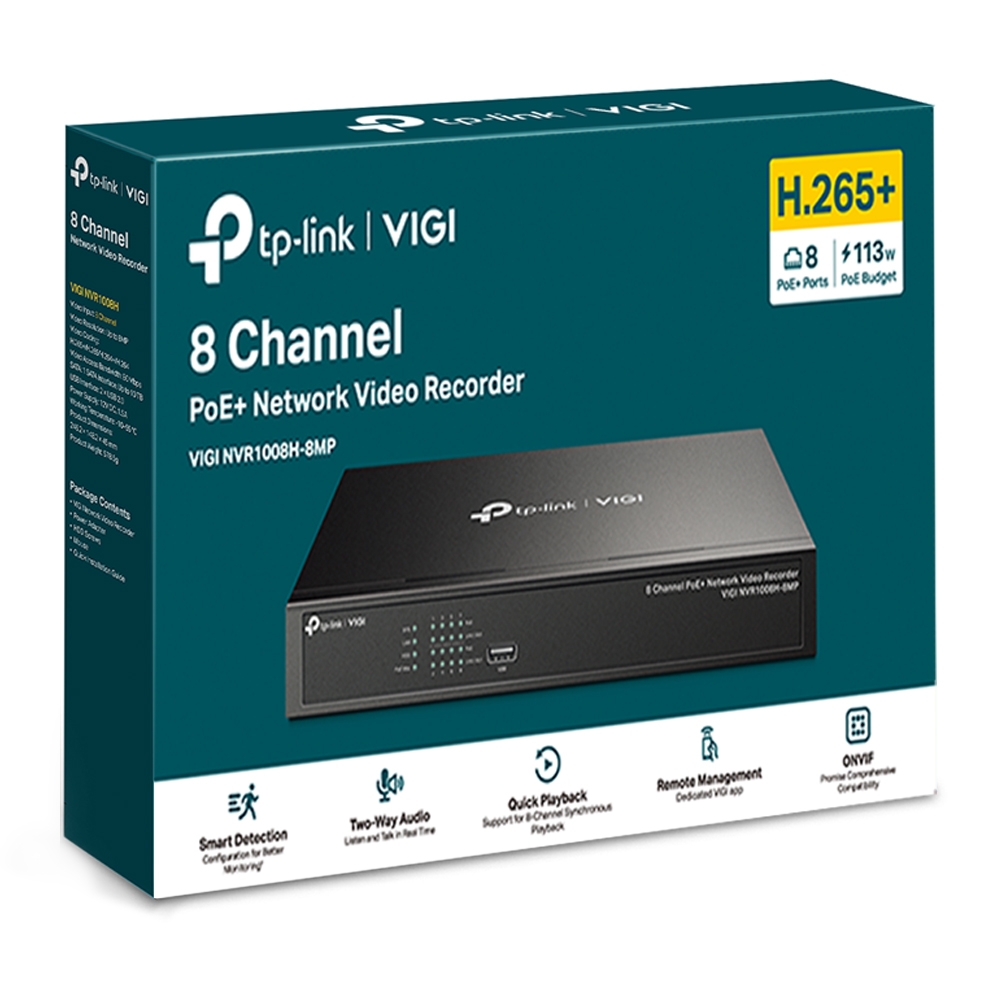

What’s in the Box

  • VIGI 8 Channel Network Video Recorder
  • Power Adapter
  • Mouse
  • HDD Screws
  • Quick Installation Guide

Product Specifications

Physical and Performance Attributes

Weight2.2 KG
Dimensions (L x W x H)294 × 180 × 44 mm
Operating TemperatureNVR = -10–55°C / Power Adapter 0-40°C
Operating Humidity10%~90% RH Non-Condensing

Electronics Attributes

Max Consumption4.82W (Without Disk)
Power Supply53.5V DC/2.43 A

Misc Product Attributes

Audio & Video

IP Video Input: 8-Channel IP Video Input, up to 8MP Resolution

Incoming Bandwidth: 80Mbps

Outgoing Bandwidth: 60Mbps

HDMI Output Resolution: 1 Channel, Resolution: 3840×2160/30Hz, 1920×1080/60Hz, 1680×1050/60Hz, 1440×900/60Hz, 1280×1024/60Hz, 1280×720/60Hz

VGA Output Resolution: 1 Channel, Resolution: 1920×1080/60Hz, 1680×1050/60Hz, 1440×900/60Hz, 1280×1024/60Hz, 1280×720/60Hz

Video Output Mode: HDMI/VGA Simultaneous Output

Multi-View Display: 1/4/6/8



Decoding

Audio Compression: G.711A/G.711U/G.726

Decoding Format: H.265+/H.265/ H.264+/H.264

Video Compression: H.265+/H.265/ H.264+/H.264

Record Resolution: 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

Live View / Playback Resolution: 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

Synchronous Playback: 8 Channel*

Capability: 2-ch @ 8MP, 4-ch @ 4MP, 8-ch @ 2MP



Record Management

Record Mode: Manual Recording, Scheduling Recording, Motion Detection Recording

Playback Mode: Instant Playback, Regular Playback, Tag Playback, Event Playback

Backup Mode: Regular Backup, Video Clip Backup

Playback Function: Play, Pause, Stop, Fast Forward, Fast Rewind, Play by Frame, Full Screen, Video Clip, Export Clip, Digital Zoom, Lock Recording, Audio On/Off



Network

Protocol: TCP/IP, DHCP, DNS, NTP, UPnP

Mobile Phone Access: Android, iOS

Web Browser: Chrome (57+), Firefox (52+), Edge (91+)

Interoperability: ONVIF, CGI

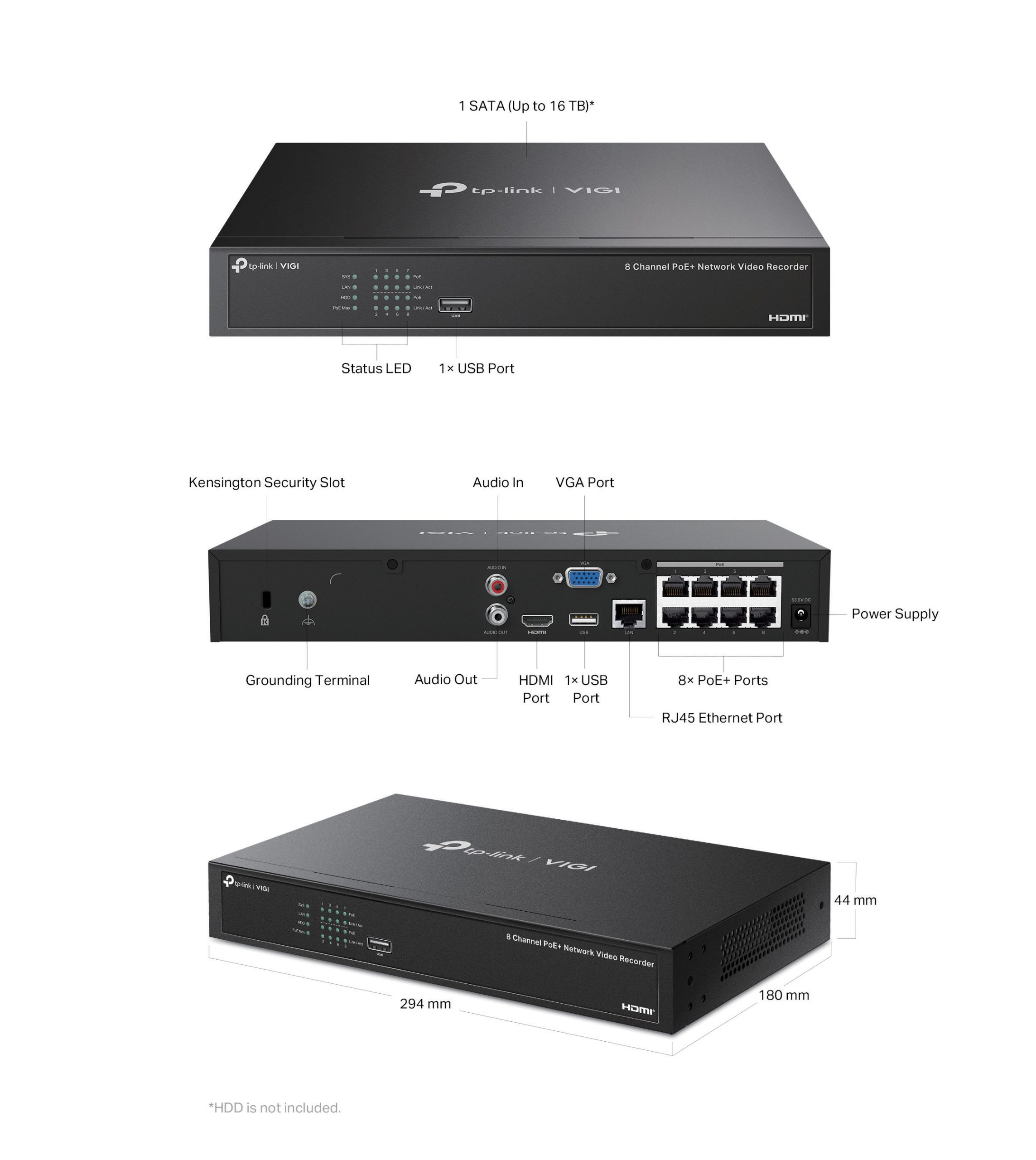

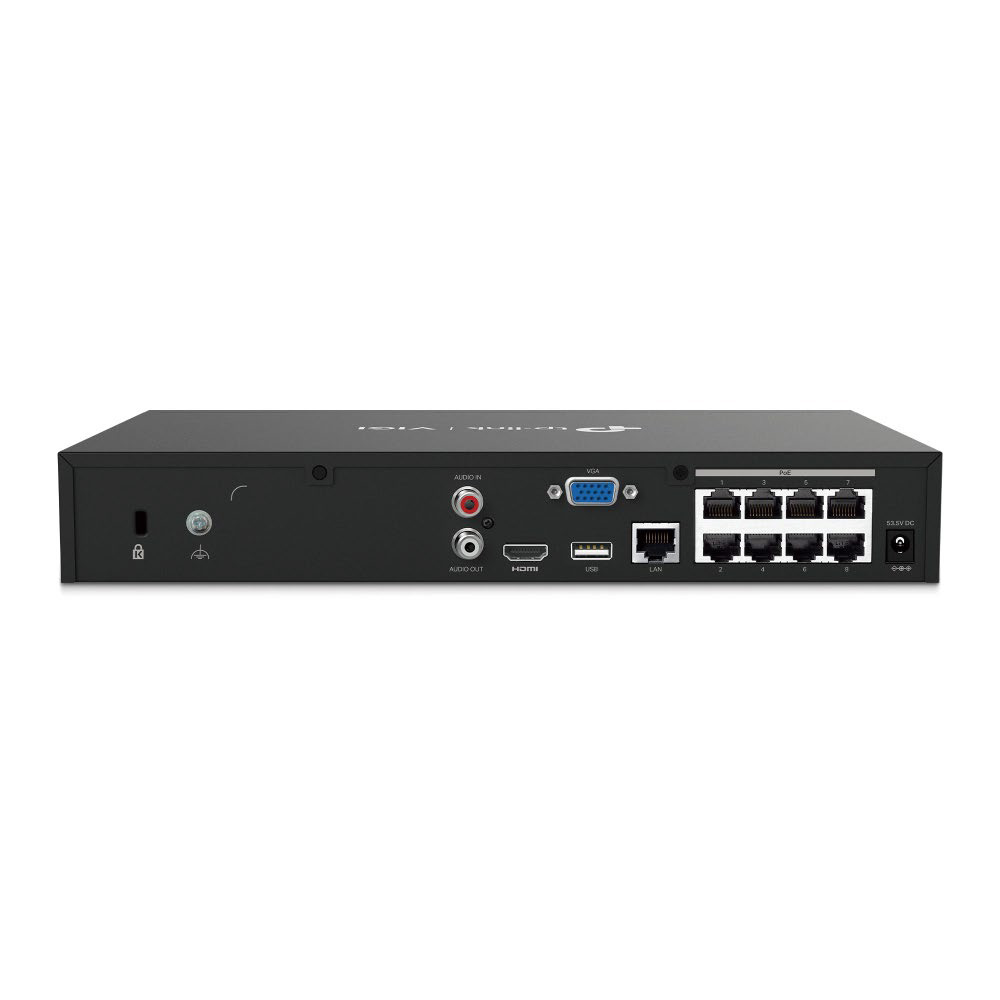

External Interface

Network Interface: 1 RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface

USB Interface: 2x USB 2.0

Audio Interface: 1, Audio In; 1, Audio Out

Alarm In/Out: N/A

Serial Interface: N/A

Power: 1x DC Jack

Reset Button: 1

Speaker: N/A

eSATA: N/A

HDMI: 1

VGA: 1



Hard Disk

SATA: 1 x SATA Interface

Capacity: Up to 10TB



PoE

Standard: 802.3at/af Compliant

PoE Budget: 113 W Available for All PoE+ Ports, 30 W Max per Port**

Capacity: 1- 8, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface



Alarm

General Alarm: Alert can be set on the following detections – Motion, Video Tampering, Line-Crossing, Intrusion, Region Entering, Region Exiting, Object Abandoned, Object Removed, Vehicle, Human, Smart Frame

Anomaly Alarm: Video Loss, Offline & IP Conflict, Disk Exception, Login Exception

Alarm Linkage: Recording, White Light Alarm, Buzzer, Log, Audible Alarm

(Note: The alarm function requires the use of a camera)



Certifications

CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI



*Fewer or no channels may be available for playback if the total resolution is 16MP.

**Calculations are based on laboratory testing, actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors. All specifications are tested using VIGI cameras and performance may vary according to amount of activity recorded, resolution and other variables.

***Rack-mounting accessories are not included.

For best performance, we recommend using VIGI NVR with VIGI cameras.
