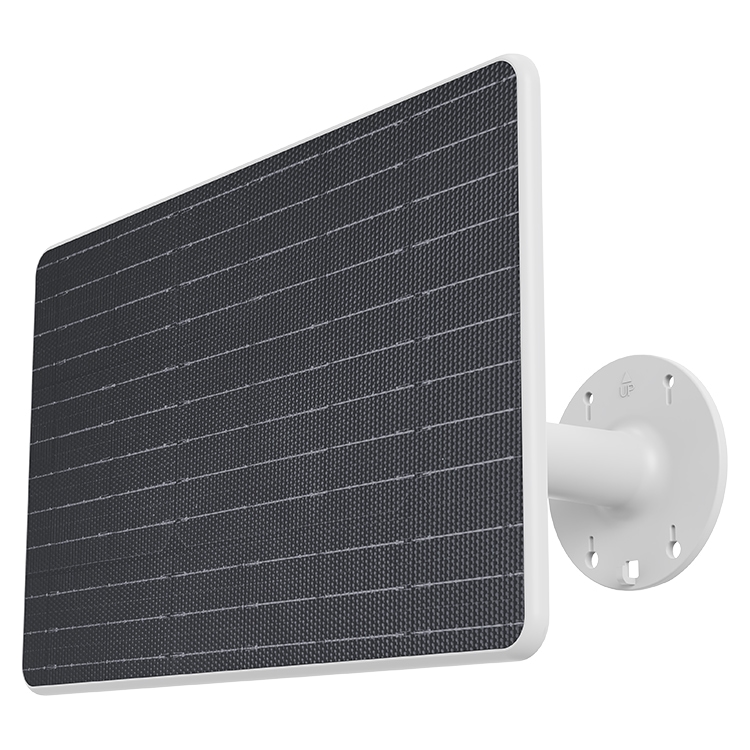

EZVIZ 12w Solar Panel With Battery Storage

The 12w solar panel with battery storage efficiently converts, stores, and utilizes solar energy, ensuring the safety of all EZVIZ outdoor battery cameras. It features double charging ports, high efficiency conversion rate, and weatherproof construction.


Please contact us for pricing and purchase enquiries.

Free Shipping for Mainland UK orders over £15 incl. VAT ** (excluding Scottish Highlands)

SKU: CS-PBC12-R100-10AH Category: Tags: ,

Description

12w Solar Panel With Battery Storage – Efficiently Converts, Stores, And Utilises Solar Energy

All EZVIZ outdoor battery cameras are compatible with this solar panel.

Key Features

  • Large Built-in Battery Capacity: Even if you live in a cloudy area, this 37Wh power bank eliminates your battery concern by using solar energy to charge security cameras.
  • Double Charging Ports: To provide comprehensive protection, it simultaneously charges two battery-operated cameras.
  • Excellent Performance Mono-crystalline Silicon: With a high efficiency conversion rate of up to 23%, the solar panel charges your battery by using mono-crystalline silicon solar cells.1
  • Battery Status Monitoring: The solar panel guarantees proper power management through the EZVIZ App when linked to EZVIZ battery cameras that allow Bluetooth connection.2
  • Weatherproof Construction: The solar panel is weatherproof thanks to its sturdy frame and stainless steel fasteners, which allow it to endure rain, dust, snow, and sunlight.
  • Designed to Provide Versatile Protection: EZVIZ battery cameras are useful for lowering restrictions and minimising human labour in building projects, farms, huge gardens, and camping locations.

Green energy-powered defence around-the-clock

Since the solar panel offers continuous green power, eliminating the need for device recharging, it may greatly simplify the usage of an EZVIZ outdoor battery camera. In contrast to your typical solar panel, which shuts off on overcast days, this one can store up to 37Wh of electricity to extend the life of your camera.

  • Conversion Efficiency = 23%
  • Charging Power = 12W

Two charging ports, two security cameras, zero worries!

Two battery-operated cameras can be attached to the solar panel and charged at the same time. After mounting your security camera where you need it, use the 3-meter-long wires that come with the kit to choose a sunny area and attach the solar panel.

Flexible mounting, easy installation

Selecting the ideal spot to maximise solar exposure is made easier by the mounting bracket’s versatility and adjustability.

  • Pole mount
  • Wall mount

A vital accessory for the great outdoors

The solar panel significantly lowers energy costs and human labour, making it the ideal addition to the EZVIZ battery cameras that cover bigger regions.


  1. Depending on the amount of sunshine and other environmental conditions, actual charging efficiency may be somewhat greater or lower.
  2. The only models that allow Bluetooth connectivity at the moment are the EB3-R200, BC1c-R100, CB5-R100, and EB5-R100. As EZVIZ introduces further items in the future, the list can expand. Before making a purchase, please confirm compatibility.
  3. If no power-consuming camera operations (such as detection, video recording, pan and tilt actions, etc.) take place during the charging period, the data is computed when the solar panel charges an EB8 outdoor pan and tilt battery camera as well as itself from zero battery to full battery status. The following STC (Standard Tested Conditions) apply to the data collection process: AM=1.5, 25°C, 1000W/2, SMQ.
  4. When the solar panel’s onboard battery is fully charged, it powers a fully charged EB8 outdoor pan and tilt battery camera, provided that the EB8 is in the always-recording mode. This is when the data is computed. The estimated number of hours of power use may change depending on the camera’s use or other battery-operated camera types.

Product Specifications

Physical and Performance Attributes

Weight2.07 KG

Misc Product Attributes

Specifications
Model CS-PBC12-R100-10AH
Performance Parameter
Open Circuit Voltage 6.7V (-5%, +10%)
Short Circuit Current 2.3A (-5%, +20%)
Power Voltage 5.7V (-5%, +10%)
Max Power Current 2.1A (-5%, +20%)
Max. Power 12W
Battery Capacity 37.23Wh rechargeable battery (battery life varies based on settings, usage & temperature)
Interface One Type C Port for Input Double USB-A Ports for Output
Transformation Efficiency 0.23
Operating Conditions -20°C to 60°C (-4°F to 140 °F ), Humidity 90% or less (non-condensing) (The working environment temperature range for battery camera charging should be maintained at 0-45°C )
IP Grade IP65
General
Material High efficiency monocrystalline silicon cell

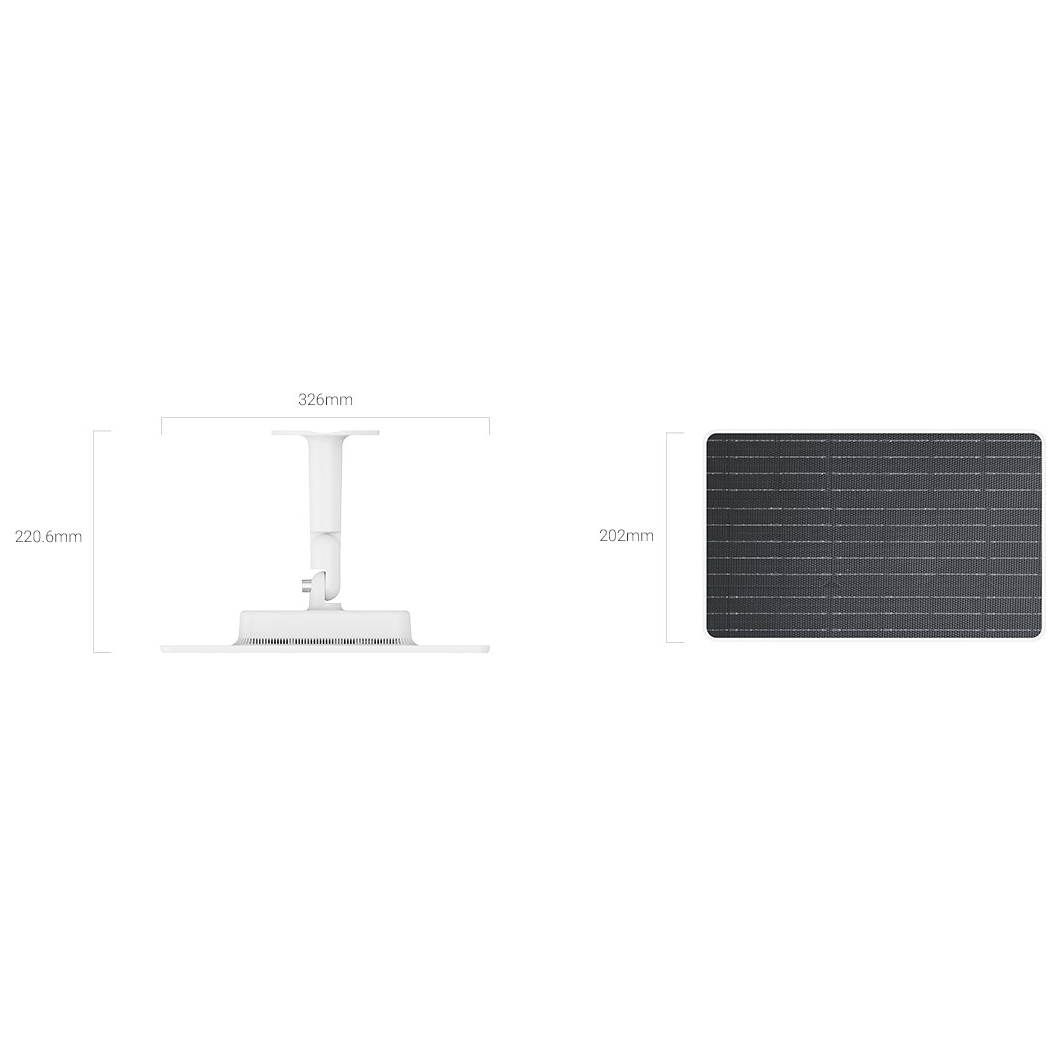

Product Dimension 202x221x326mm
Packaging Dimensions 370x115x260mm
Weight Net Weight: 1.45KG With Package: 2.07KG
In the box
In the box – Solar Panel with Battery Storage
– Adjustable Mounting Bracket
– Hex Socket Head Cap Screw
– Drill Template
– Type-C to Micro USB Transformer (×2)
– Mount Bracket (×2)
– Power Cable (×2)
– L-Shaped Wrench
– Screw Kit
– Regulatory Information (×2)
– Quick Start Guide
Certifications
Certifications CE / REACH / WEEE / RoHS
