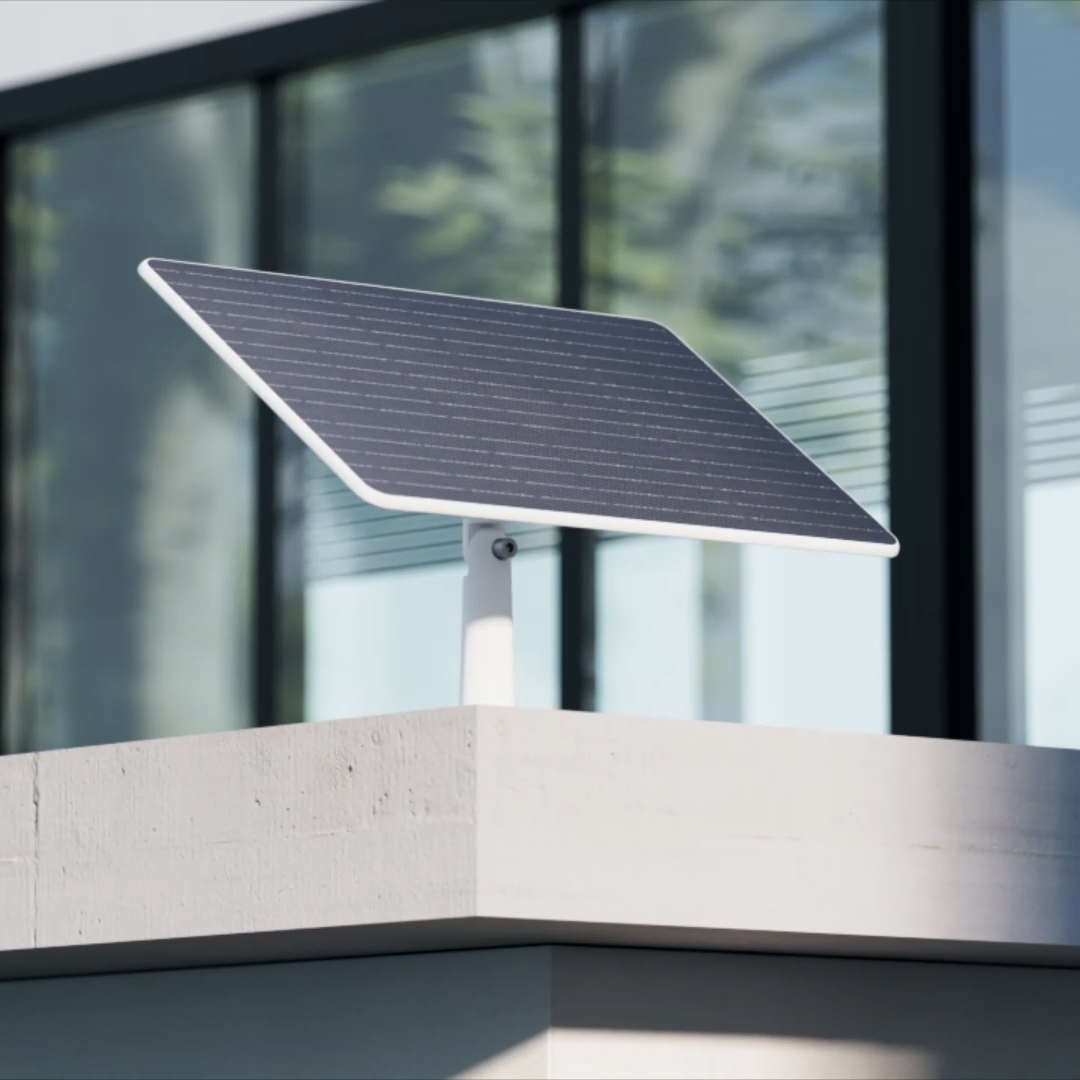

EZVIZ 24w Solar Panel With Battery Storage

Name: EZVIZ 24w Solar Panel With Battery Storage
Brand: EZVIZ
SKU: CS-PBC24-R100-20AH
Availability: InStock

Description

24w Solar Panel With Battery Storage – Efficiently Converts, Stores, And Utilises Solar Energy

All EZVIZ outdoor battery cameras are compatible with this solar panel.

Key Features

Built-In 75Wh Battery for Backup Power: Even if you live in a cloudy area, the high-capacity internal battery stores energy, so your cameras stay charged even when the sun isn’t shining.
Dual Charging Ports: To provide comprehensive protection, it simultaneously charges two battery-operated cameras.
High-Efficiency Mono-Crystalline Silicon Cells: Enjoy up to 23% energy conversion efficiency, thanks to premium mono-crystalline solar technology.¹
App-Connected Power Monitoring: Track power levels and manage energy usage easily via the EZVIZ app when connected to compatible Bluetooth-enabled EZVIZ cameras.²
Built for Any Weather: The solar panel is weatherproof thanks to its sturdy frame and stainless steel fasteners, which allow it to endure rain, dust, snow, and sunlight.
Versatile Outdoor Protection: Ideal for construction sites, farms, large gardens, and remote campsites—this panel supports EZVIZ cameras where power access is limited.

Green energy-powered defence around-the-clock

Since the solar panel offers continuous green power, eliminating the need for device recharging, it may greatly simplify the usage of an EZVIZ outdoor battery camera. In contrast to your typical solar panel, which shuts off on overcast days, this one can store up to 75Wh of electricity to extend the life of your camera.

Conversion Efficiency = 23%
Charging Power = 24W

Two charging ports, two security cameras, zero worries!

Two battery-operated cameras can be attached to the solar panel and charged at the same time. After mounting your security camera where you need it, use the 3-meter-long wires that come with the kit to choose a sunny area and attach the solar panel.

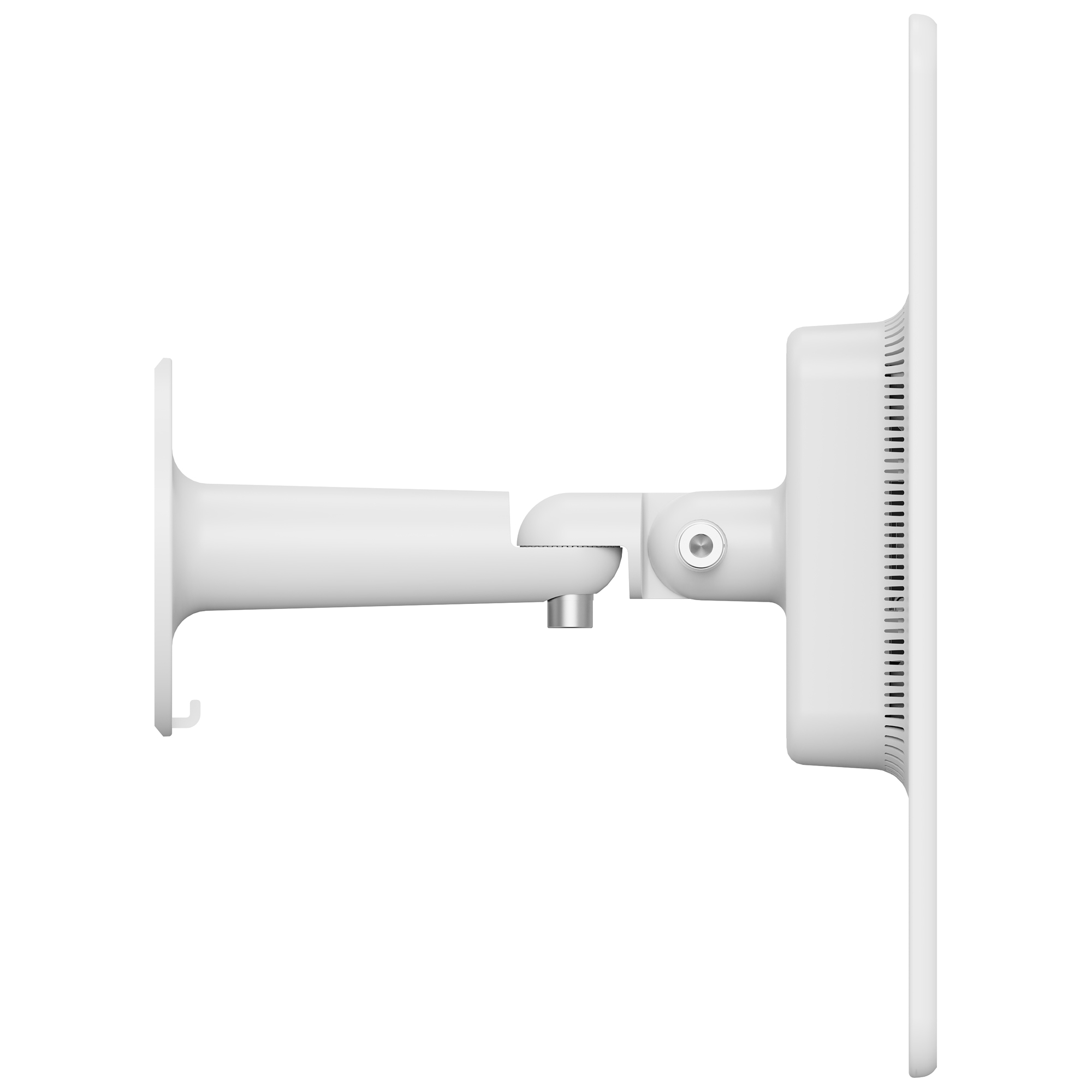

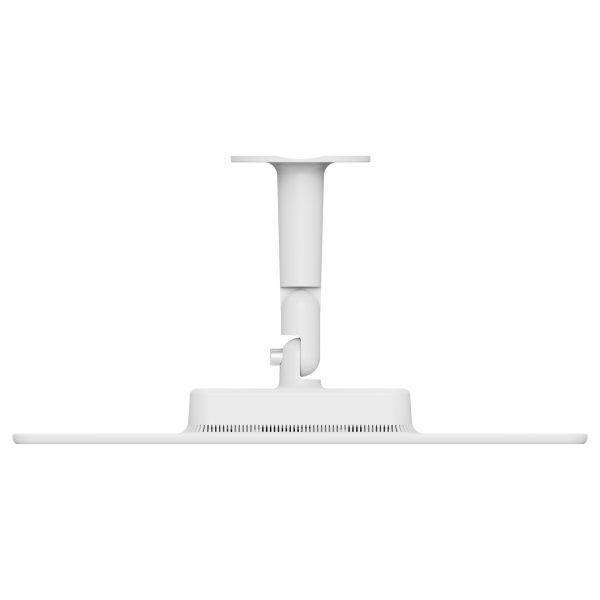

Flexible mounting, easy installation

Selecting the ideal spot to maximise solar exposure is made easier by the mounting bracket’s versatility and adjustability.

Pole mount
Wall mount

A vital accessory for the great outdoors

The solar panel significantly lowers energy costs and human labour, making it the ideal addition to the EZVIZ battery cameras that cover bigger regions.

Depending on the amount of sunshine and other environmental conditions, actual charging efficiency may be somewhat greater or lower.
The only models that allow Bluetooth connectivity at the moment are the EB3-R200, BC1c-R100, CB5-R100, and EB5-R100. As EZVIZ introduces further items in the future, the list can expand. Before making a purchase, please confirm compatibility.
If no power-consuming camera operations (such as detection, video recording, pan and tilt actions, etc.) take place during the charging period, the data is computed when the solar panel charges an EB8 outdoor pan and tilt battery camera as well as itself from zero battery to full battery status. The following STC (Standard Tested Conditions) apply to the data collection process: AM=1.5, 25°C, 1000W/⋡, SMQ.
When the solar panel’s onboard battery is fully charged, it powers a fully charged EB8 outdoor pan and tilt battery camera, provided that the EB8 is in the always-recording mode. This is when the data is computed. The estimated number of hours of power use may change depending on the camera’s use or other battery-operated camera types.

Manuals and Guides

EZVIZ 24w Solar Panel With Battery Storage Manual

EZVIZ 24w Solar Panel With Battery Storage Datasheet

Frequently Asked Questions

What are the key functional benefits?

Reliable power supply: The built-in battery stores energy, ensuring camera operation even without sunlight.
Dual charging: Supports powering two battery cameras simultaneously—for enhanced coverage or multiple installation points.
Smart monitoring: When paired with compatible EZVIZ cameras via Bluetooth, camera battery status and management can be monitored and controlled through the EZVIZ app.
Durable build: Constructed with high-quality, weather-resistant materials and stainless steel hardware.
Versatile mounting: Adjustable brackets allow flexible placement on walls or poles to maximize sunlight exposure.

What real-world performance data is available?

In controlled tests, charging both the panel itself and an EB8 camera from zero to full battery required about 4.7 hours of direct sunlight, yielding approximately 60 hours of camera operation from the stored energy.

Product Specifications

Physical and Performance Attributes

Weight

3.060 KG

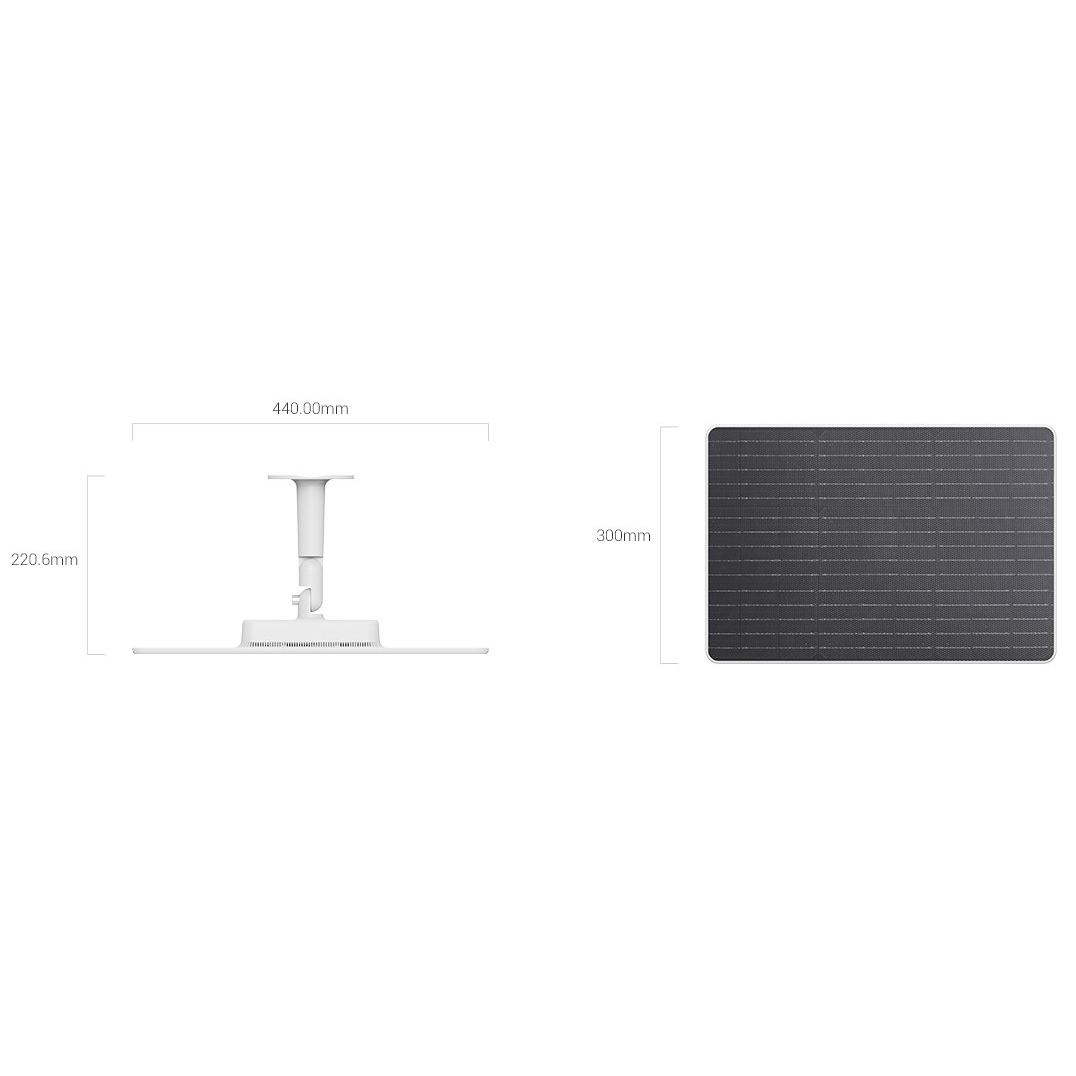

Dimensions

Click diagram to enlarge

Misc Product Attributes

Specifications
Model	CS-PBC24-R100-20AH
Performance Parameter
Open Circuit Voltage	18.4V (-5%, +10%)
Short Circuit Current	1.65A (-5%, +10%)
Power Voltage	15.3V (-5%, +10%)
Max Power Current	1.57A (-5%, +10%)
Max. Power	24W
Battery Capacity	75Wh (14.6V 5000mAh) rechargeable battery, battery life varies based on settings, usage & temperature
Interface	One Type-C input port, two USB-A output ports
Transformation Efficiency	0.23
IP Grade	IP65
General
Operating Conditions	-20°C to 60°C (-4°F to 140 °F ), Humidity 90% or less (non-condensing) (The working environment temperature range for battery camera charging should be maintained at 0-45°C )
Power Supply	DC 5V/2A
Material	High efficiency monocrystalline silicon cell
Product Dimension	220.6 × 300 × 440 mm (8.69 × 11.81 × 17.32 inch)
Packaging Dimensions	480 x 115 x 340 mm (18.90” x 4.53” x 13.38”)
Weight	Net weight: 2.1 kg (74.07 oz) With package: 3.06 kg (107.94 oz)
In the box
In the box	– Solar Panel with Battery Storage
	– Adjustable Mounting Bracket
	– Hex Socket Head Cap Screw
	– Drill Template
	– Type-C to Micro USB Transformer (×2)
	– Mount Bracket (×2)
	– Power Cable (×2)
	– L-Shaped Wrench
	– Screw Kit
	– Regulatory Information (×2)
	– Quick Start Guide
Certifications
Certifications	CE / REACH / WEEE / RoHS
