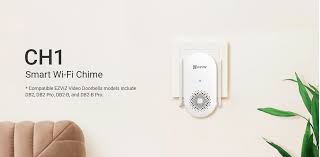

EZVIZ CH1 Smart Wi-Fi Chime

Name: EZVIZ CH1 Smart Wi-Fi Chime
Brand: EZVIZ
SKU: CS-CH1-R100-10AWFK
Availability: OutOfStock

With the CH1, your doorbell delivers steady performance with a stable network connection, even when it’s installed outdoors and far from your home router with thick walls in between.

Unfortunately, this product is temporarily out of stock. We are awaiting information regarding the availability of this product.

Please contact us for alternatives and assistance.

Description

As soon as someone presses your EZVIZ doorbell at your front door, you will get a real-time audio notification from the CH1, even if your phone is out of reach. The chime reaches up to 72 dB with in a 1-meter radius², so you can hear the ring loud and clear.

** Designed for Ezviz Battery-Powered Video Doorbell EP3X) **

Specifications:

Model: CS-CH1-R100-10AWFK

Audio: Ringtone – Supports up to 20 options with adjustable volume.
Audio Output – Built-In High-Power Speaker (Up to 72 dB in 1 meter)

Network:

Protocol: Ezviz Cloud Proprietary Protocol
Interface Protocol: Ezviz Cloud Proprietary Protocol
Wi-Fi Standard: IEEE802.11b, 802.11g, 802.11n
Frequency Range: 2.4 GHz – 2.4825 GHz
Chanel Bandwidth: Supports 20 MHz
Security: 64/ 128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK
Transmission Rate: 11b: 11 Mbps, 11g: 53 Mbps, 11n: 150 Mbps
Antennas: Dual External Antennas

General:

Operation Conditions: -10°C to 45°C (14°F to 113°F) , humidity 95% or less (non-condensing)
Dimensions: 101 x 64 x 32 mm (3.98 x 2.52 x 1.26 inch)
Packaging Dimensions: 113 x 85 x 95 mm (4.45 x 3.35 x 3.74 inch)
Power Consumption: Max. 5W
Power Supply: AC 100-240V
Net Weight: 87g (3.07oz)
Weight with Package: 178g (6.28 oz)
Reset Button: Yes

In the box:

CH1 Chime
Quick Start Guide
Regulatory Information

Certifications:

CE / WEEE / REACH / RoHS / UL

Frequently Asked Questions

What kind of alerts does it produce?

It plays elaborate chimes with 20 selectable ringtones, adjustable volume, and a handy mute option for when you don’t want disturbance.

How loud is the chime?

Equipped with a built-in high-power speaker, it outputs up to 72 dB within a 1-meter radius, ensuring you won’t miss a visitor even when away from your phone.

How does it improve Wi-Fi performance?

Thanks to dual external antennas, the CH1 extends Wi-Fi coverage to enhance connection stability for your outdoor doorbell—particularly useful in larger homes or where thick walls impede signal.
