EZVIZ DP2 Wire-Free Peephole Doorbell / Door Viewer

Know who’s knocking, from the indoor touchscreen monitor or via your EZVIZ App. With simple taps on the big or small screen, you can see every detail with clear video quality.

£149.99 inc VAT

SKU: CS-DP2-A0-6E2WPFBS Categories: ,


EZVIZ DP2 Wire-Free Peephole Doorbell / Door Viewer is compatible with the following systems:
Wi-Fi Compatible DeviceWorks with AlexaWorks with the Google Assistant


Any Questions?

Our technical team is on hand to solve any problems or help you find the ideal solution.


    EZVIZ Wire-Free Peephole Doorbell / Door Viewer

    Visible, reliable security at your fingertips

    Know who’s knocking, from the indoor touchscreen monitor or via your EZVIZ App. With simple taps on the big or small screen, you can see every detail with clear video quality. You can also set the ringtone as you like and talk to your visitors with ease. Protection is made simple with activity-triggered alerts, so you don’t miss a moment.

    A useful touch screen made for everyone – The large and colourful touchscreen monitor is extremely easy use, even for the elderly and children. No more need to lean against the door to look through the tiny peephole. You will know who’s outside by pressing the home button. The screen can also be set to automatically turn on upon detection of visitors.

    Get the whole picture in front of your door in Full HD – The DP2 helps reduce blind spots with a wide 166-degree visual coverage, and captures details in sharp 1080p.

    Greet every visitor with calm and ease – Working as a peephole camera and a doorbell, the DP2 ensures both security and convenience. Know instantly who is at your door, why and how to handle the situation even you are far away from home. There is even a voice changer if you’d prefer to remain unidentifiable to a stranger.

    Smarter detection tells you what you want to know – Integrating PIR motion detection with human shape detection, the DP2 is designed to reduce false alarms caused by trivial moving objects. Whether you live near a busy street or in a quiet neighborhood, you can customize the detection sensitivity to receive alerts that you care about.

    Wire-free protection with 3-month battery life – The DP2 features a 4,600 mAh rechargeable lithium battery. The standby time can reach up to 90 days* with the smart power-saving functionality

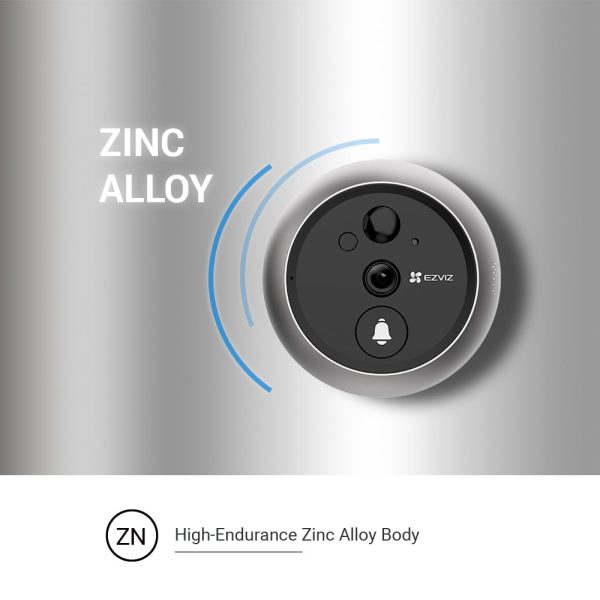

    Built to last – Made with high-endurance zinc alloy, the DP2 is both sturdy enough for the outdoors and stylish enough to fit your front-door style.

    Safe, flexible storage options – Save videos locally on a 256 GB storage card, which can be inserted onto the indoor monitor. This guarantees data security in case the outdoor camera is damaged. Or, if you prefer, subscribe to EZVIZ CloudPlay for fully encrypted cloud storage.

    * Data from EZVIZ’s lab results, based on the usage of 5 minutes per day under standard conditions.

    What’s in the box

    • DP2 Peephole Doorbell
    • Panel
    • Mounting Base
    • Buckle
    • Screws x 6
    • Power cable
    • Regulatory Information
    • Quick Start Guide

    General Specifications

    Screen: 4.3 inch Color Touch Screen

    Color: Silver

    Button: Doorbell button, power button, screen wake-up button

    Supported Peephole Diameter: 16.5 mm to 50 mm (0.65 inch to 1.97 inch)

    Supported Door Thickness: 35 mm to 105 mm (1.38 inch to 4.13 inch)

    Detection: Advanced PIR Motion Detection

    PIR Angle: 110°

    PIR Distance: Up to 20 ft / 6 m

    PIR Sensitivity: Adjustable

    Image distortion correction: Supports

    Local Storage: Supports microSD card (Up to 256 GB)

    Cloud Storage: Supports EZVIZ CloudPlay storage (Subscription required)

    General Function: Cloud video encryption and image encryption

    Network Specifications

    Protocol: EZVIZ Cloud Proprietary Protocol

    Video Intercom: Local and remote video intercom

    Wi-Fi Standard: IEEE802.11b, 802.11g, 802.11n

    Frequency Range: 2.4 GHz ~ 2.4835 GHz

    Channel Bandwidth: Supports 20 MHz

    Security: 64 / 128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK, WPS

    Transmission Rate: 11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbps

    Audio / Video

    Sensor: 1/2.7″ Progressive Scan CMOS

    Lens: 2.0mm @ F2.0

    Viewing angle: 166° (Diagonal), 136° (Horizontal), 80° (Vertical)

    Max. Resolution: 1080p / 2MP

    Day / Night Switch: ICR infrared filter

    IR Night Vision Distance: Up to 16.4 ft / 5 m

    Video Frame Rate: 15 fps


    Audio Input: Built-in high sensitivity microphone

    Audio Output: Built-in high-power speaker

    Ringtones: Supports up to 5 ringtones, and the volume is adjustable

    Product Specifications

    Physical Attributes

    Weight603 grams

    Screen and Base: 115.5 x 85.5 x 24.5 mm (4.55 x 3.37 x 0.96 inch)

    Camera: 71 x 71 x 48.3 mm (2.80 x 2.80 x 1.90 inch)

    Mounting TypeSurface Mounted

    Electronics Attributes

    Max ConsumptionMax. 2.2W
    Power SupplyDC 5V ± 10%

    Performance Attributes

    Operating Temperature-10°C to 45°C
    Operating HumidityHumidity 95% or less (non-condensing)
