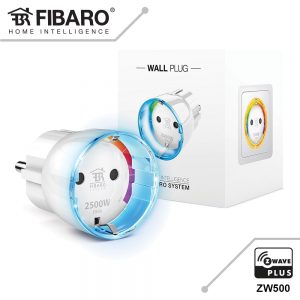

Fibaro Wall Plugs EU Type E/F (Z-Wave)

Name: Fibaro Wall Plugs EU Type E/F (Z-Wave)
Brand: Fibaro
SKU: FGWPE-102 ZW5 | FGWPF-102 ZW5
Availability: InStock

Question 1

Q

What is a FIBARO Wall Plug?

A

Answer

The FIBARO Wall Plug is a universal, Z-Wave compatible relay switch in the form of a socket adapter. The Wall Plug can support any device up to a maximum of 2,500W. The Wall Plug features power consumption measuring and utilises an LED ring to display the current load by colour changing illumination. The FIBARO Wall Plug may be operated using a button located on its casing, or via any Z-Wave compatible controller.

Question 2

Q

What is the maximum load that may be connected to the FIBARO Wall Plug?

A

Answer

The maximum load when connecting a load to the plug is 2,500W

Question 3

Q

Is the FIBARO Wall Plug compatible with sockets with and without an earth pin?

A

Answer

Yes – there are 2 available versions, they are designed to be used with either E or F socket types.

Question 4

Q

The Wall Plug can switch associated devices based on power consumption thresholds. Is it possible to use this to trigger a scene?

A

Answer

Yes – The wall plug can activate scenes in the same way as a switch. You simply have to put your whole scene in the “if” statement that triggers when the value reaches the given threshold.

Question 5

Q

Can I perform the inclusion process in one socket and then move the Wall Plug to another location? Would it work properly?

A

Answer

Yes, in fact it is recommended to perform inclusion of the device in direct range of the main controller. Ensure the final destination is within range of the Home Center controller. Press the B button three times in the final location in order to correct the network to the new position.

Question 6

Q

I have a Wall Plug that is working fine but the illumination does not work. What should I do?

A

Answer

Check advanced parameters. You can also trigger illumination by pressing and holding the B button until the LED ring starts pulsing white, then release the button and briefly press it again. If this doesn’t work then you need to reset the Plug.

Question 7

Q

How can I check how the Wall Plug communicates with the main controller (directly or via other devices)?

A

Answer

You can discover this by performing a Z-Wave range test:
1. Push the Wall Plug into a mains socket,
2. Press and hold the B button for 10-15 seconds until the LED ring glows violet,
3. Release the B button,
4. Click the B button briefly.
5. The LED ring visualises the Z-Wave network range (green = direct connection, yellow = routed connection)
6. To exit range testing mode press the B button briefly.

Question 8

Q

When a device’s data plate says that it consumes exactly 100W, why doesn’t the Wall Plug show precisely 100W consumption?

A

Answer

These specifications from producers are usually estimated or they are from measurements in perfect conditions. Real world power depends on the mains voltage, condition of the device and the ambient conditions. It is therefore possible for two identical devices to consume different amounts of energy.

Question 9

Q

Why is the power of the same device different depending on the socket it is connected to, in the same house?

A

Answer

This occurs due to fluctuations of mains voltage, length of wires and voltage drops between the sockets.

Question 10

Q

Why does the power of a device differ at various times of day?

A

Answer

Because of mains voltage fluctuations.

Question 11

Q

Why do we measure power and not other parameters instead?

A

Answer

Measurement of power is vital because this is the value that electricity suppliers base their charges for household on.

Question 12

Q

Why does the power of certain devices fluctuate instead of being constant?

A

Answer

Devices such as computers may have these characteristics. If the connected device frequently and significantly changes power consumption, e.g. plasma TVs, it is recommended to modify the configuration parameters to reduce the frequency that the Wall Plug reports power consumption. This will reduce Z-Wave network traffic. To reduce the number of power reports, value of the parameters must be modified– by how much will depend on your situation.

Question 13

Q

I wanted to reset the electricity consumption of my Wall Plug so I disconnected it from the socket, but it didn’t work. What should I do?

A

Answer

The FIBARO Wall Plug stores consumed electricity data in its non-volatile memory, which means disconnecting the Wall Plug from a socket does not erase the data. To reset the electricity consumption memory:
1. Insert the Wall Plug in a socket,
2. Press and hold the B button for 5-10 seconds until the LED ring glows green,
3. Release the B button,
4. Press the B button briefly. The reset will be signalled by double, green, LED ring blink.

Question 14

Q

Is it possible to turn off the LED ring light of the FIBARO Wall Plug?

A

Answer

The LED ring illumination may be turned off completely. To do so:
1. Insert the Wall Plug into a socket,
2. Press and hold the B button for 2-5 seconds, until the LED ring starts pulsing white,
3. Release the B button,
4. Press the B button briefly.
Once the LED ring has been turned off, it can be turned on again by repeating the above procedure.

Question 15

Q

Can I plug multiple Wall Plugs in the same power strip? Will they interfere with each other when they are close together?

A

Answer

It is fine to connect multiple Wall Plugs near each other, the close proximity will not alter their performance.

Question 16

Q

Is B-Button also a switch which can turn off/on the Wall Plug manually without removing the plug from the socket or logging to the FIBARO interface?

A

Yes.

Answer

Yes, you can create an association that will turn ON/OFF two Wall Plugs using a button on one of them.

Answer

Yes, it is possible by modifying advanced parameters.

Answer

No, it has been designed to measure energy consumption only.

Answer

No, only the FIBARO Dimmer provides dimming.

Answer

Yes, the Wall Plug’s LED ring illuminates with a pale blue or white light while it is connected to the power outlet and turned on. This can be used as a bedside lamp. The soft light can be turned on and off by pressing the button on the Wall Plug’s casing.

Answer

Yes, the time interval can be changed in advanced parameters. Remember that it should not be too low.

Answer

Yes, the Wall Plug automatically recognizes the connected load and is protected from overcurrent or short circuits. The overload safety function allows the controlled device to be turned off if it exceeds a set limit. This is signalled by the LED alternating between yellow and red.

Answer

No, this mode keeps the connected device constantly on and disables reacting to alarm frames and B-button pushes. Connected device will be turned off only if user-defined overload limit is exceeded. “Always on” mode is activated by parameter 1.

Question 17

Q

Can I associate two Wall Plugs?

A

Question 18

Q

Is it possible to trigger an LPD alarm on the Wall Plug’s LED ring?

A

Question 19

Q

Can I plug a solar panel into the FIBARO Wall Plug and measure the generated energy?

A

Question 20

Q

Is it possible to dim connected light sources using the Wall Plug?

A

Question 21

Q

Can the LED ring on the Wall Plug be used as a bedside lamp?

A

Question 22

Q

Can I change the frequency that power consumption is reported?

A

Question 23

Q

Is the Wall Plug protected from overcurrent or short circuit?

A

Question 24

Q

Can I turn off the Wall Plug in 'Always on' mode?

A

Physical and Performance Attributes
Weight	800 grams
Dimensions	43 x 65mm
Operating Temperature	0 - +40°C
Electronics Attributes
Max Consumption	up to 1.6W
Power Supply	230v AC, 50/60 hz
