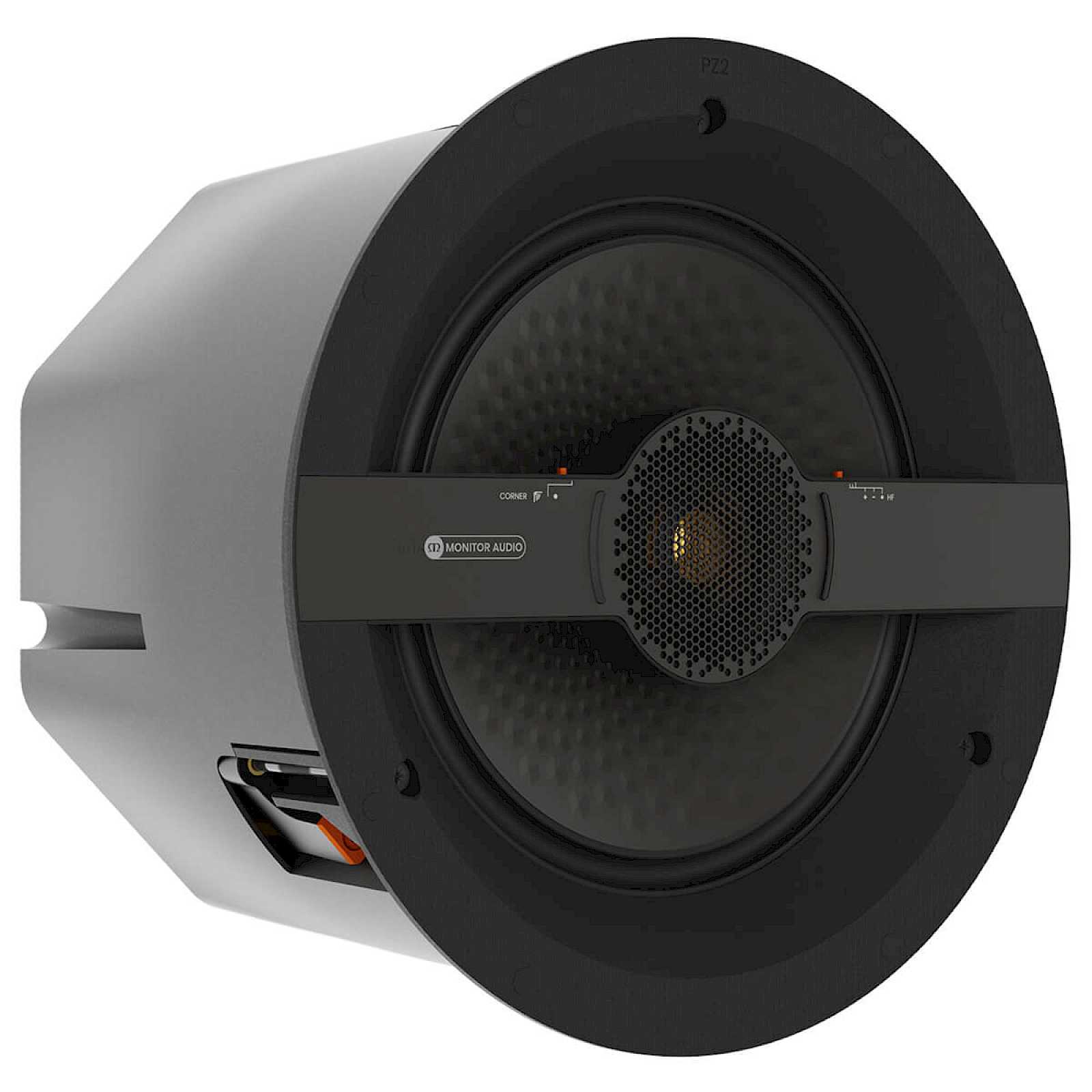

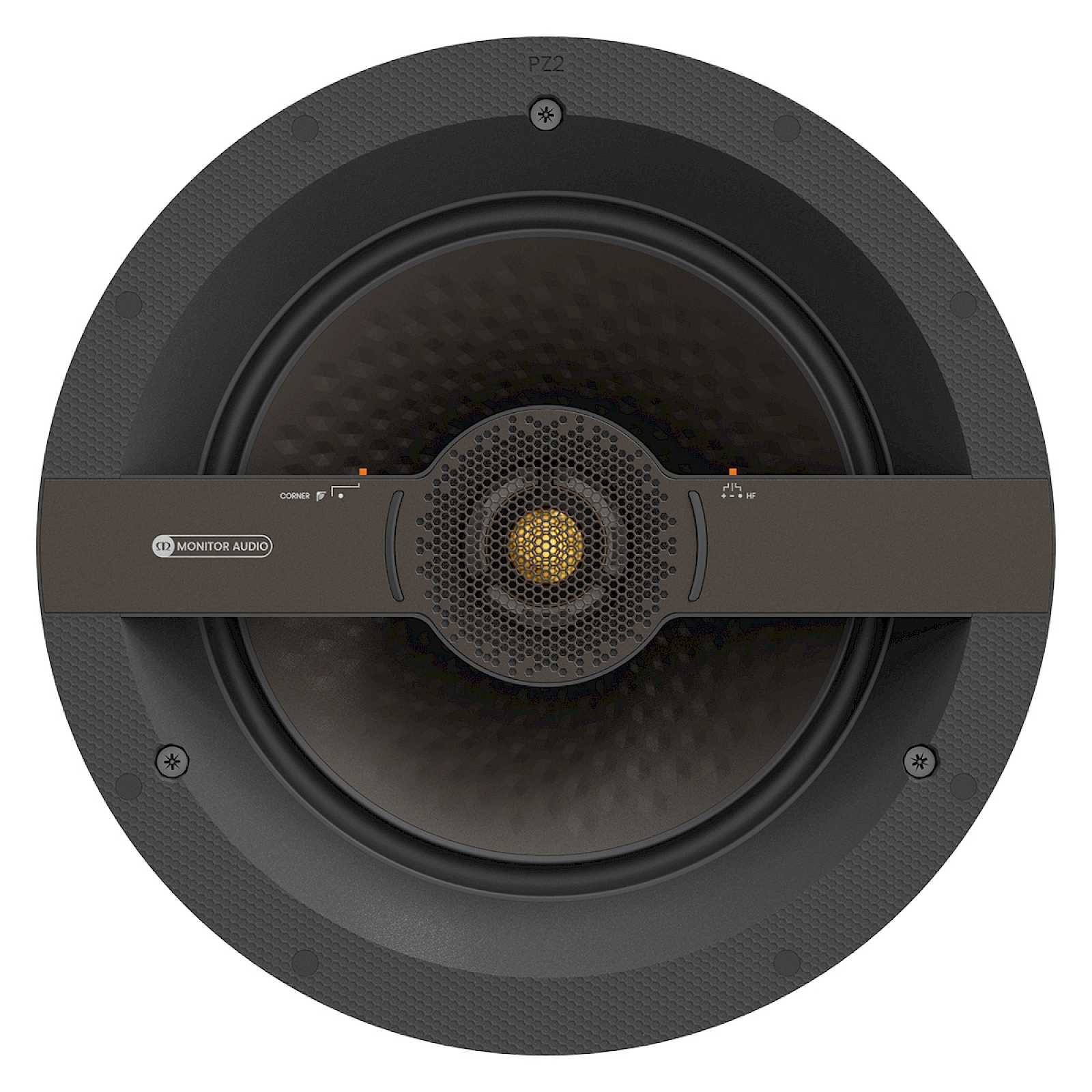

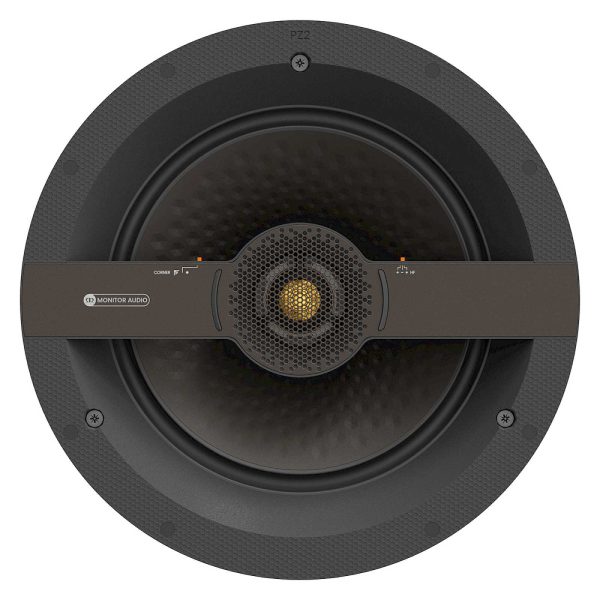

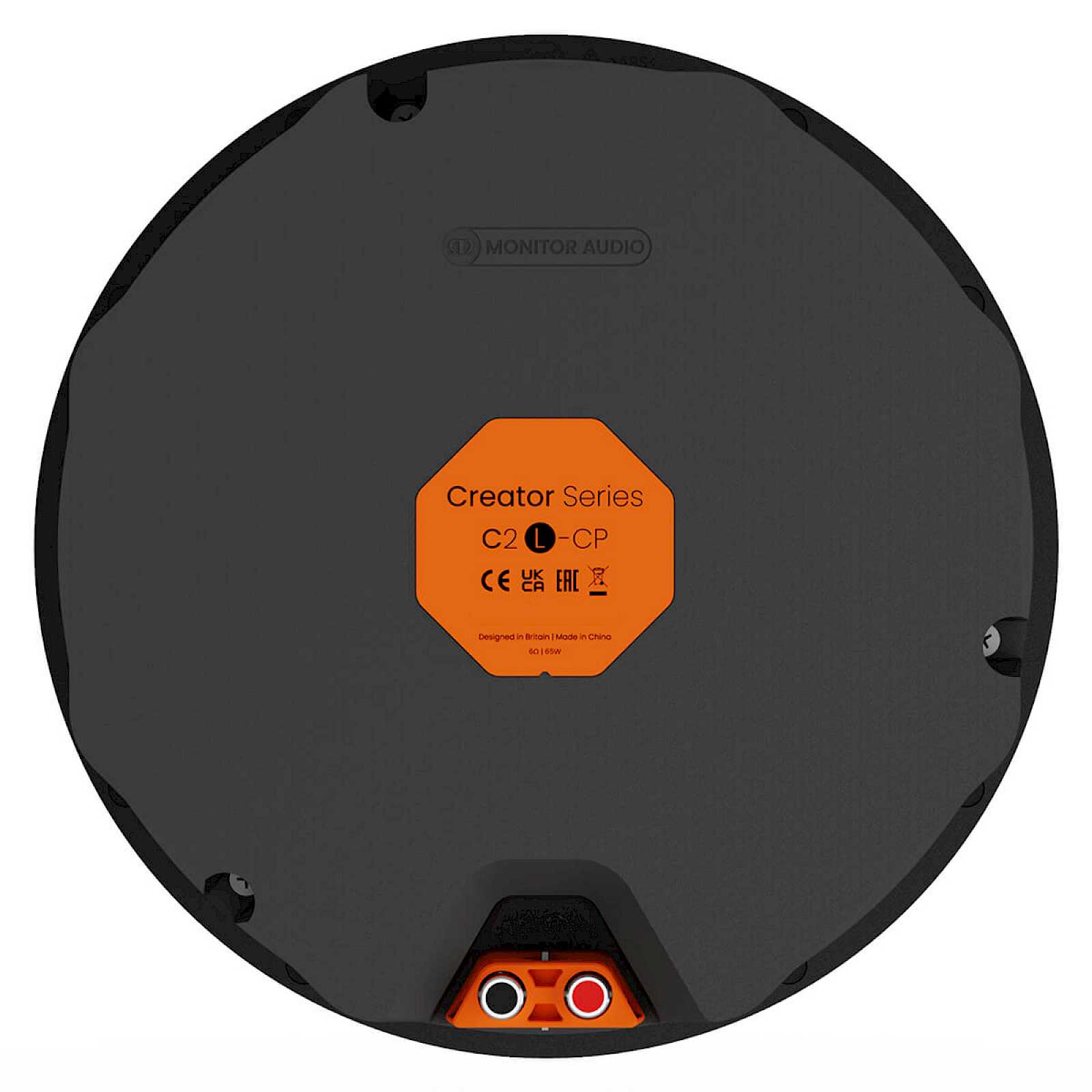

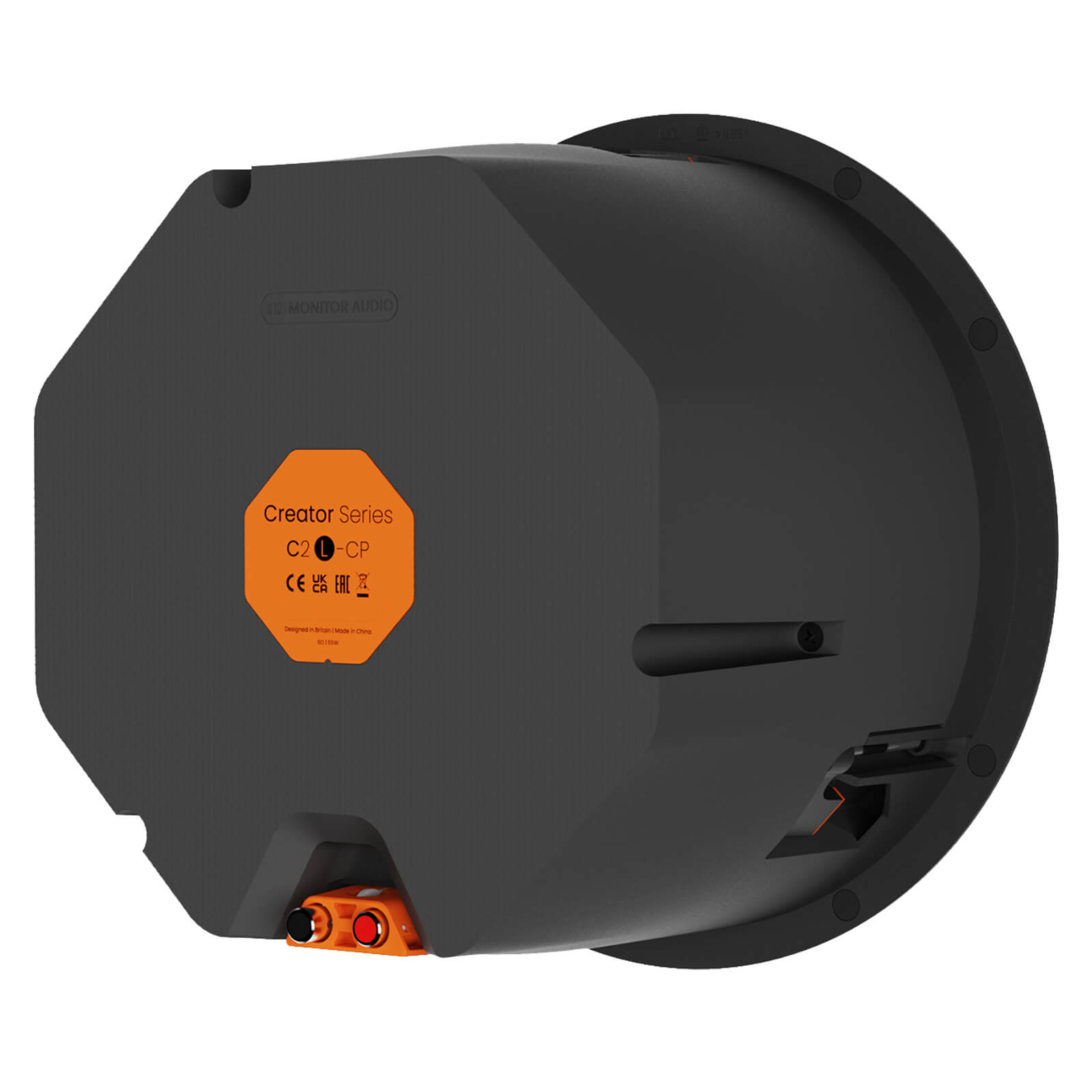

Monitor Audio – Creator Series – C2L-CP In-Ceiling Speaker

The C2L-CP is a large Tier 2 in-ceiling loudspeaker, fitted with fully sealed back boxes that guarantee excellent audio quality and versatility, for a superior level of sound isolation between rooms and floors.

Please contact us for pricing and purchase enquiries.

SKU: C2L-CP Categories: , Tags: ,
product-page-callout-v2-_support-full-width

Any Questions?

Our technical team is on hand to solve any problems or help you find the ideal solution.

Description

The C2L-CP is a large Tier 2 in-ceiling loudspeaker, featuring an RST II (rigid surface technology) mid-bass driver and C-CAM (Ceramic-Coated Aluminium/Magnesium) tweeter. Its fully sealed back box delivers consistency of performance, no matter where it is used. It has a cut-out dimension of 248 mm and revolutionary Quik-Link speaker cable connector and Tri-Grip II for quick, simple, reliable, and strong installation and fitting.

This large speaker is designed to deliver pristine, engaging acoustics where high-performance sound is a key requirement. It is a two-way model featuring an RST II mid-bass driver and C-CAM tweeter. The performance benefit of having both within a single design means greatly improved clarity, wider dispersion into the listening environment, and clear, lifelike, high-fidelity sound—of the quality you’d expect from any Monitor Audio passive box loudspeaker.

As a Controlled Performance (CP) model, it is fitted with fully sealed back boxes that provide an ideal air load for the drivers, optimising mid-range and bass performance while maintaining sonic consistency regardless of interior wall construction. These rigid, mineral-filled enclosures reduce the sound from the back of the cabinet by around 30 dB. This range guarantees excellent audio quality and versatility, for a superior level of sound isolation between rooms and floors.

Key Features:

  • Ideal for installations where pristine acoustic performance is required
  • Fitted back box
  • Two-way design
  • 1 x 1.25″ (32 mm) C-CAM tweeter with UD Waveguide II for lifelike sound
  • 1 x 9″ RST II mid-bass driver
  • Quik-Link speaker cable connector for quicker installation
  • Tri-Grip II for easy and secure fitment
  • Optional square grilles can be used with this model

What’s Included:

1 x C2L-CP In-ceiling speaker

1 x White Magnetic Grille

1 x Quick Start Guide

1 x Cutout Template

1 x Quik-Link Connector

1 x Safety Instructions

Product Specifications

Physical and Performance Attributes

Weight3.3 KG
Dimensions (L x W x H)278 × 278 × 181 mm

Misc Product Attributes

Specifications

System Format

2-Way

Channels

1

Frequency Response, Installed (-6dB)

75Hz – 25kHz

Nominal Impedance

8 Ohm

Minimum Impedance (20Hz to 20kHz)

6.6 Ohm @ 106kHz

Sensitivity (2.83Vrms@1m, Installed)

89dB

Maximum Peak SPL* (single speaker @ 1m Z-Weighted)

120dB

Continuous Power Handling (RMS into Nominal Impedance, Pink Noise with 6dB Crest Factor)

100W

Recommended Amplifier Power (RMS into 8 Ohm, Music Signal)

50 – 200W

Drive Unit Complement

1 x 9″ (229mm) RST II bass driver

1 x 1.25″ (32mm) C-CAM Tweeter

Crossover Frequency

LF/HF: 2.25kHz

Bass Alignment

Sealed

Mounting Depth

177.5mm (6-63/64″)

Cut-out Hole Diameter

248mm

External Dimensions (Including Grille (H x W x D))

278x 278 x 181mm (10-15/16 x 10-15/16 x 7-1/8″)

Weight (each)

3.3kg (7lb 5oz)

Pre-Construction Bracket

CL-B

Cabinet Finish

Matte Black & Orange & Bronze

Sold As

Single Unit with CL-Round Grille (white)

Corner Switch

On/Off

HF Switch

-/0/+
