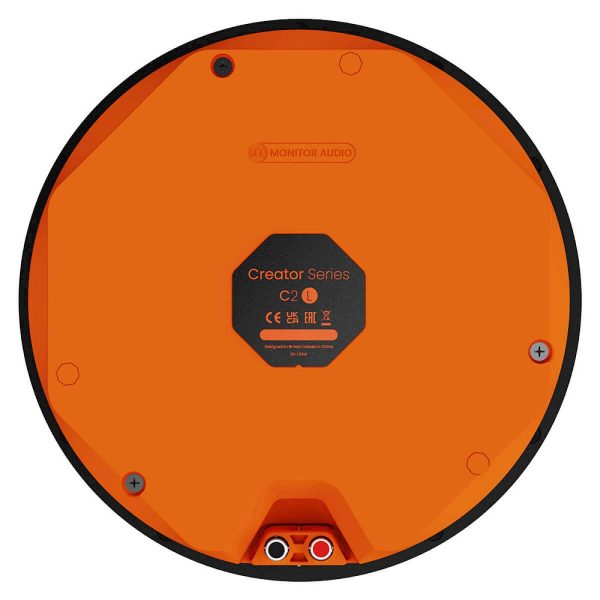

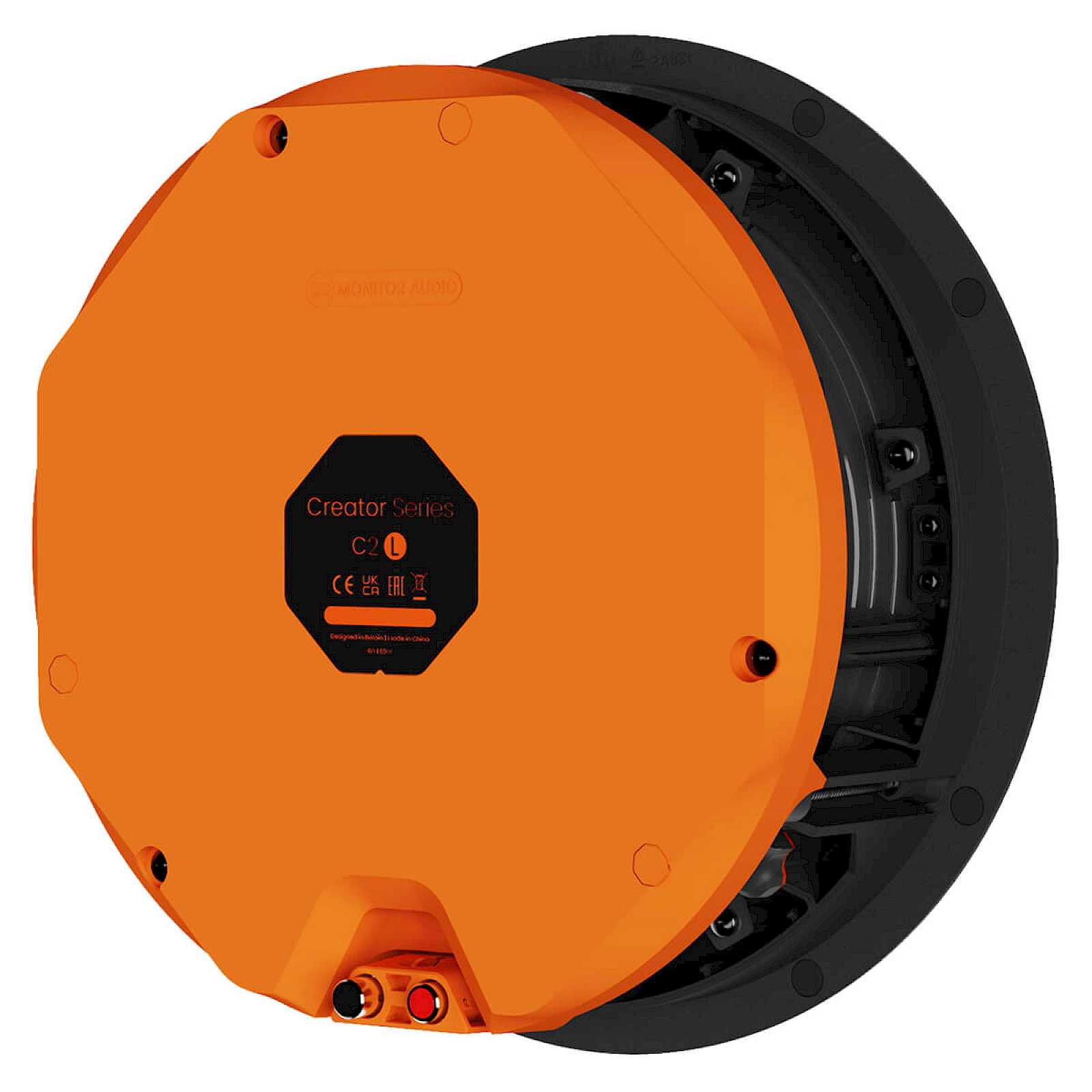

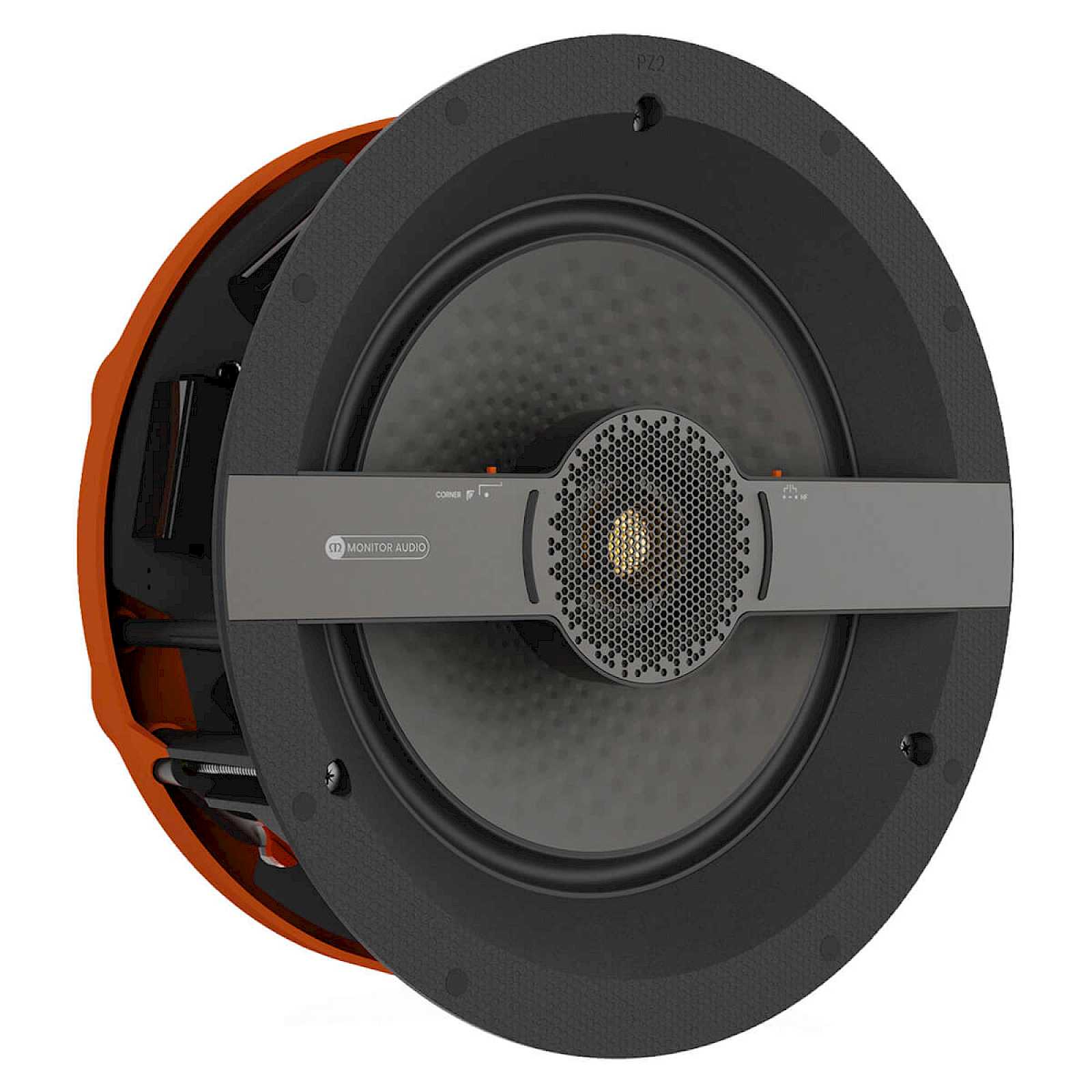

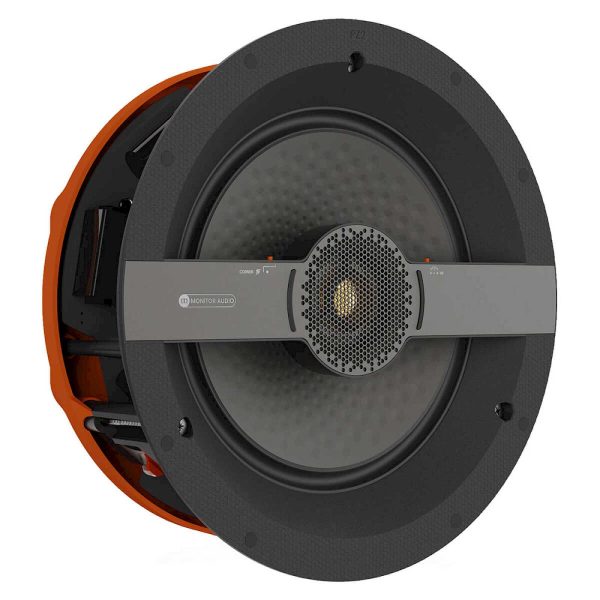

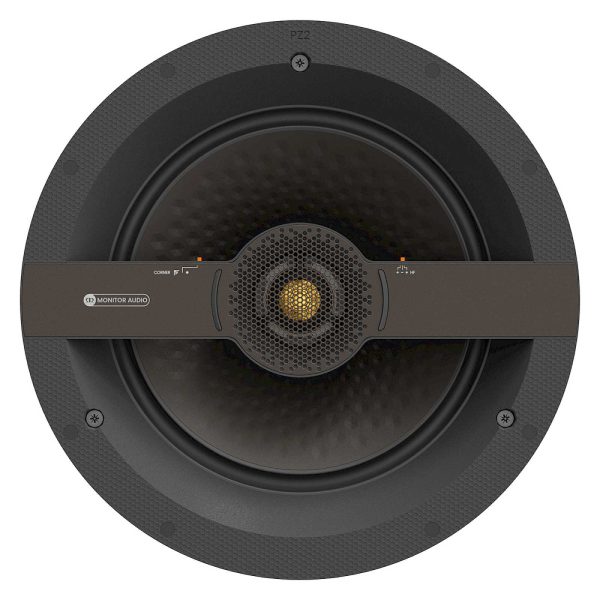

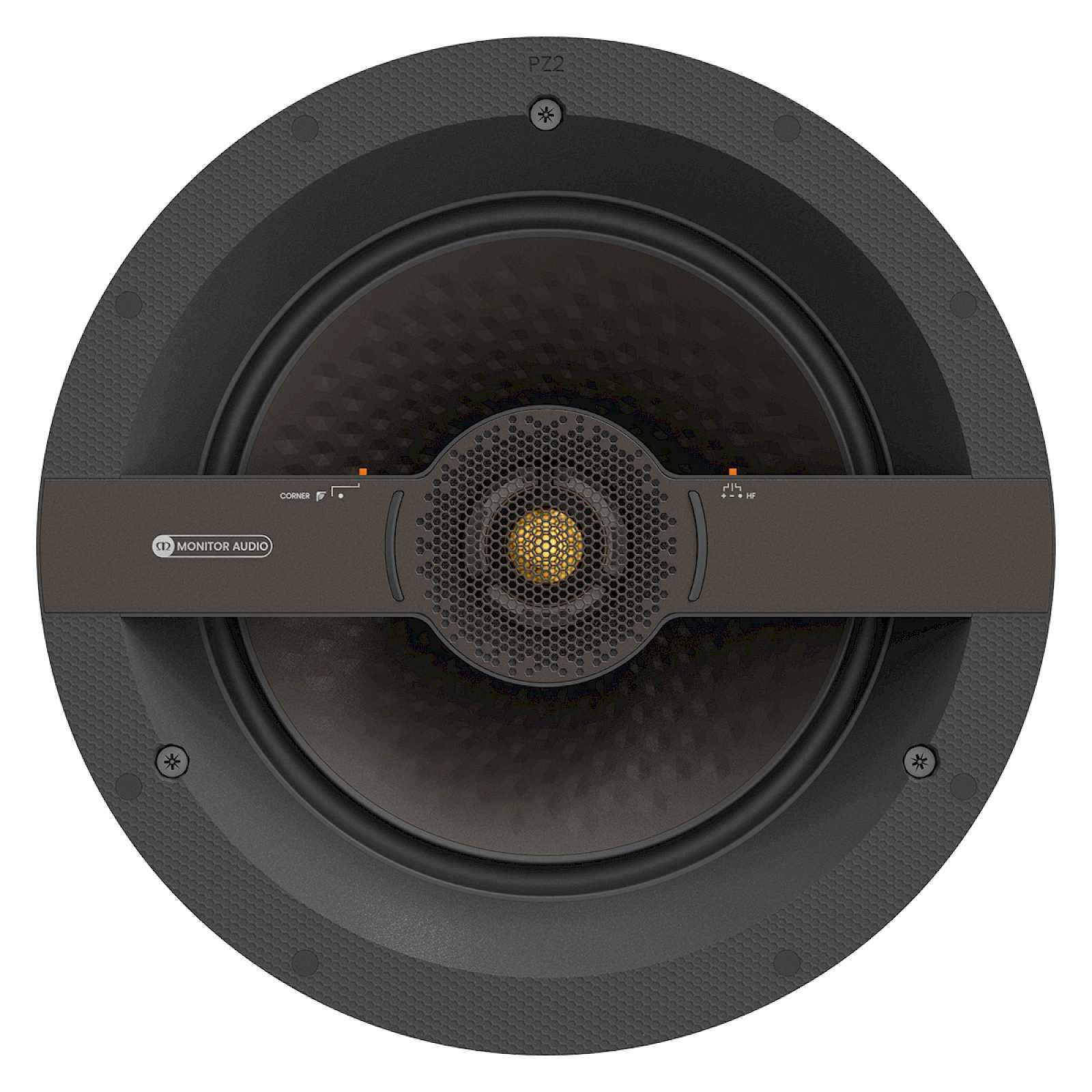

Monitor Audio – Creator Series – C2L In-Ceiling Speaker
The C2L is a large size Tier 2 in-ceiling loudspeaker which features an RST II (rigid surface technology) mid-bass driver and C-CAM (Ceramic-Coated Aluminium/Magnesium) tweeter for greatly improved clarity, wider dispersion into the listening environment, and clear lifelike high-fidelity sound.
Please contact us for pricing and purchase enquiries.
Any Questions?
Our technical team is on hand to solve any problems or help you find the ideal solution.
Description
The C2L is a large size Tier 2 in-ceiling loudspeaker which features an RST II (rigid surface technology) mid-bass driver and C-CAM (Ceramic-Coated Aluminium/Magnesium) tweeter. It has a cut-out dimension of 248 mm and utilises the revolutionary Quik-Link speaker cable connector and Tri-Grip II for quick, simple, reliable and strong installation and fitting.
This large speaker is designed to deliver pristine, engaging acoustics where high-performance sound is a key requirement. It is a two-way model featuring an RST II mid-bass driver and C-CAM tweeter. The performance benefit of having both within a single design means greatly improved clarity, wider dispersion into the listening environment, and clear lifelike high-fidelity sound – of the quality you’d expect from any Monitor Audio passive box loudspeaker.
Key Features:
- Ideal for installations where pristine acoustic performance is required
- Two-way design
- 1 x 1.25″ C-CAM tweeter with UD Waveguide
- 1 x 9″ RST II mid-bass driver
- Quik-Link speaker cable connector for quicker installation
- Tri-Grip II for easy and secure fitment
- Optional Black Grille in round and square designs
What’s Included:
1 x C2L In-ceiling speaker
1 x White Magnetic Grille
1 x Quick Start Guide
1 x Cutout Template
1 x Quik-Link Connector
1 x Safety Instructions
Product Specifications
Physical and Performance Attributes | |
|---|---|
| Weight | 2.7 KG |
| Dimensions (L x W x H) | 278 × 278 × 103 mm |
Misc Product Attributes | |
SpecificationsSystem Format 2-Way Channels 1 Frequency Response, Installed (-6dB) 30Hz – 25kHz Nominal Impedance 8 Ohm Minimum Impedance (20Hz to 20kHz) 6.4 Ohm @ 15kHz Sensitivity (2.83Vrms@1m, Installed) 88dB Maximum Peak SPL* (single speaker @ 1m Z-Weighted) 117dB Continuous Power Handling (RMS into Nominal Impedance, Pink Noise with 6dB Crest Factor) 120W Recommended Amplifier Power (RMS into 8 Ohm, Music Signal) 60 – 240W Drive Unit Complement 1 x 9″ (229mm) RST II bass driver 1 x 1.25″ (32mm) C-CAM Tweeter Crossover Frequency LF/HF: 2kHz Mounting Depth 99mm (3-7/8″) Cut-out Hole Diameter 248mm (9-3/4″) External Dimensions (Including Grille (H x W x D)) 278x 278 x 103mm (10-15/16 x 10-15/16 x 4-4/16″) Weight (each) 2.5kg (5lb 8oz) Pre-Construction Bracket CL-B Cabinet Finish Matte Black & Orange & Bronze Sold As Single Unit with CM-Round Grille (white) Corner Switch On/Off HF Switch -/0/+
| |
