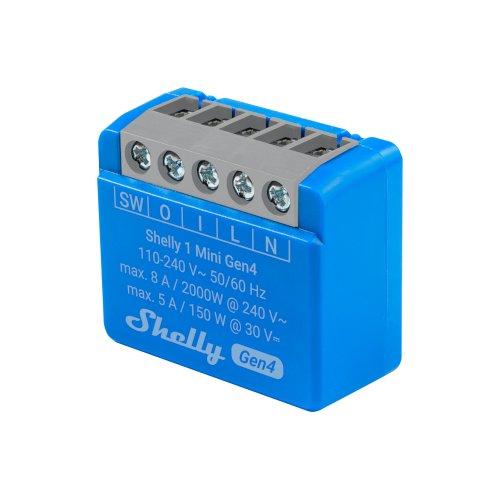

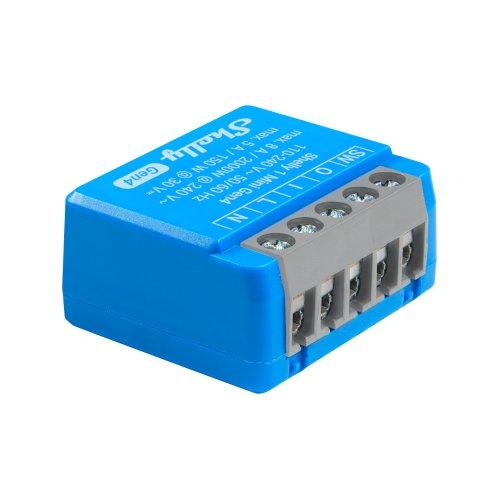

Shelly Mini 1 Gen4

The Shelly Mini 1 Gen4 is an ultra‑compact smart relay designed to automate any 8A device. As the smallest smart relay available, it fits easily into tight spaces like switches, sockets, or appliances, and installs in minutes. It provides built‑in support for Wi‑Fi, Bluetooth, Zigbee, and Matter for flexible smart‑home integration.

£16.49 inc VAT

SKU: MINI-1-GEN4 Category:

Compatibility

Shelly Mini 1 Gen4 is compatible with the following systems:
Zigbee CompatibleWi-Fi Compatible DeviceMatter Compatible

product-page-callout-v2-_support-full-width

Any Questions?

Our technical team is on hand to solve any problems or help you find the ideal solution.

Contact Us

Description

Despite its compact size, the Shelly Mini 1 Gen4 can control devices with loads up to 8A, making it ideal for lighting circuits and small household appliances. It installs and configures in minutes, offering a wide range of possible uses across different environments. You can operate it as a standalone device or integrate it into coordinated “Smart Scenes” alongside other Shelly products throughout your home or office.

This version is the Gen4 model of the Shelly Mini 1, building on the previous Gen3 generation. While it maintains all the capabilities of the Gen3, it introduces an upgraded chipset and expanded RAM for faster performance and more advanced scripting options. Unlike the Gen3 units, the Shelly Mini 1 Gen4 also includes out‑of‑the‑box compatibility with Zigbee and Matter, alongside its standard WiFi and Bluetooth connectivity. It can even maintain these connections at the same time, enabling it to work within a broader WiFi‑based Shelly system while being effortlessly integrated into an existing Zigbee or Matter network.

Key features:

  • Built-in WiFi; no hub required
  • Bluetooth connectivity
  • Embedded web server for local management
  • Dry contact support
  • Smart schedules
  • Smart scenes
  • Automatic sunrise/sunset schedules
  • Automatic on/off timer
  • 1 channel switch, 8A

What’s included:

  • 1 x MINI-1-GEN4
  • 1 x Installation guide

Manuals & Data sheets:

Product Specifications

Physical and Performance Attributes

Weight19 grams
Dimensions (L x W x H)29 × 34 × 16 mm

Misc Product Attributes

Category Specification Details
Physical Size (HxWxD) 29×34×16 ±0.5 mm / 1.34×1.11×0.63 ±0.02 in
Weight 19 ±1 g / 0.65 ±0.04 oz
Screw terminals max torque 0.4 Nm / 3.5 lbin
Conductor cross section 0.2–2.5 mm² / 24–14 AWG (solid, stranded, ferrules)
Conductor stripped length 6–7 mm / 0.24–0.28 in
Mounting Wall console / In‑wall box
Shell material Plastic
Shell color Blue
Environmental Ambient working temperature -20°C to 40°C / -5°F to 105°F
Humidity 30% to 70% RH
Max altitude 2000 m / 6562 ft
Electrical Power supply 110–240 V~
Power consumption < 1.2 W
Output circuits ratings Max switching voltage 240 V~ / 30 V⎓
Max switching current 8 A (240 V~)
5 A (30 V⎓)
Sensors / Meters Internal temperature sensor Yes
Wi‑Fi Protocol 802.11 b/g/n
RF band 2401–2483 MHz
Max RF power < 20 dBm
Range Up to 30 m / 100 ft indoors; 50 m / 160 ft outdoors
Note Depends on local conditions
Bluetooth Protocol 4.2
RF band 2402–2480 MHz
Max RF power < 4 dBm
Range Up to 30 m / 98 ft outdoors; up to 10 m / 33 ft indoors
Zigbee Protocol 802.15.4
RF band 2400–2483.5 MHz
Max RF power < 20 dBm
Range Up to 100 m / 328 ft indoors; 300 m / 984 ft outdoors
Microcontroller CPU ESP‑Shelly‑C68F
Flash 8 MB
Firmware capabilities Schedules 20
Webhooks (URL actions) 20 with 5 URLs per hook
Wi‑Fi range extender Yes
BLE Gateway Yes
Scripting Yes
MQTT Yes
Encryption Yes
