Shelly Mini 1PM Gen4

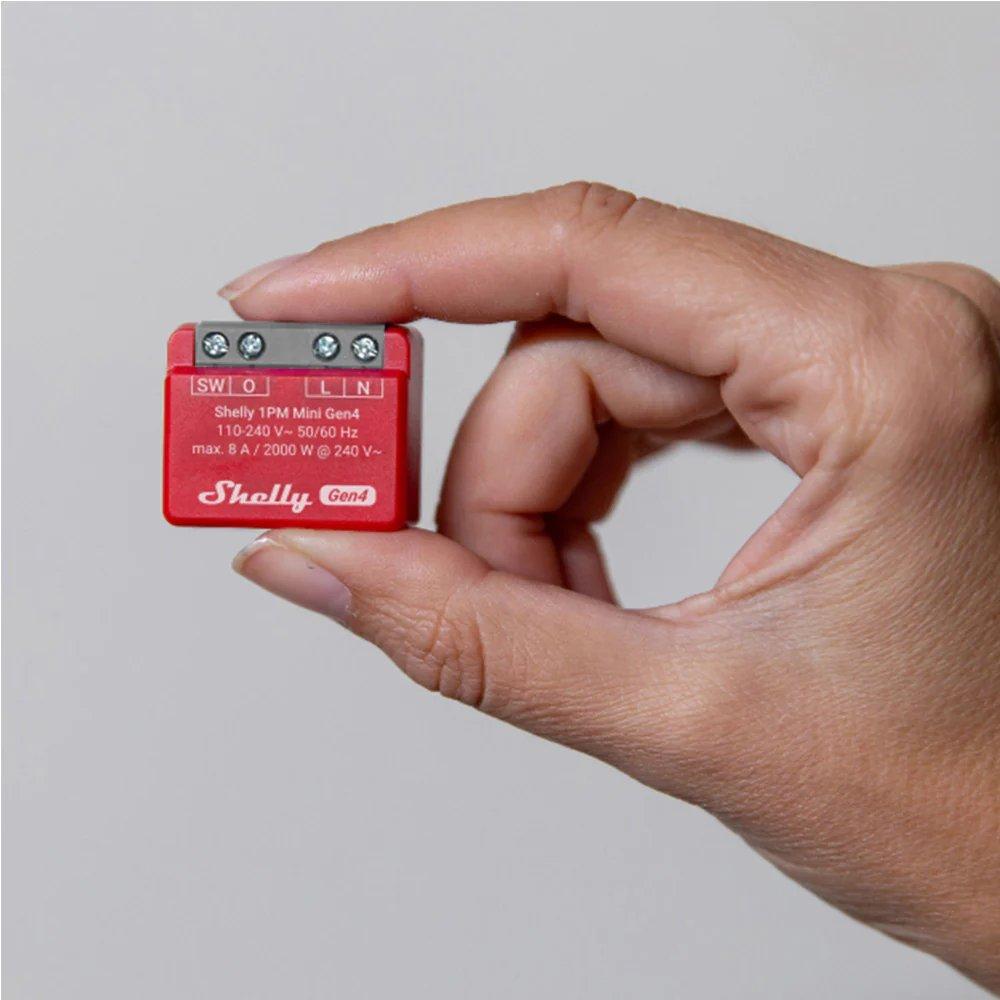

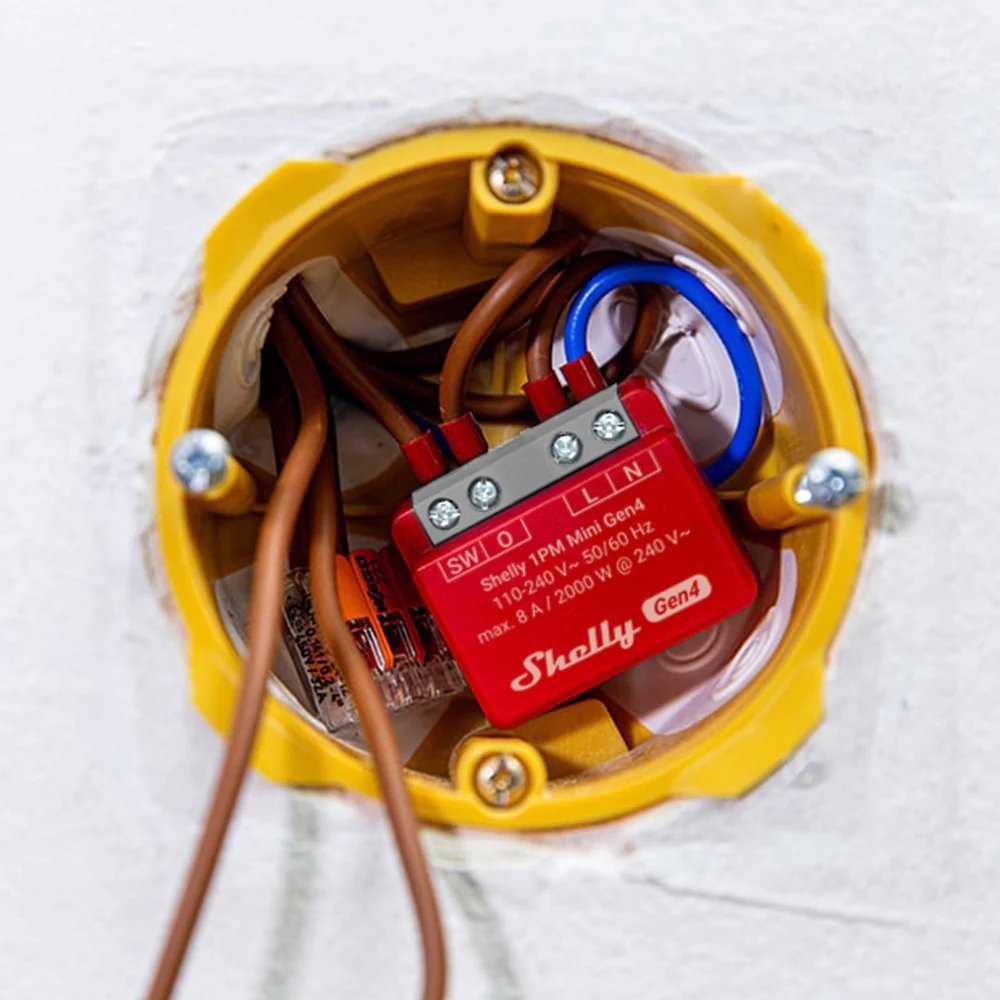

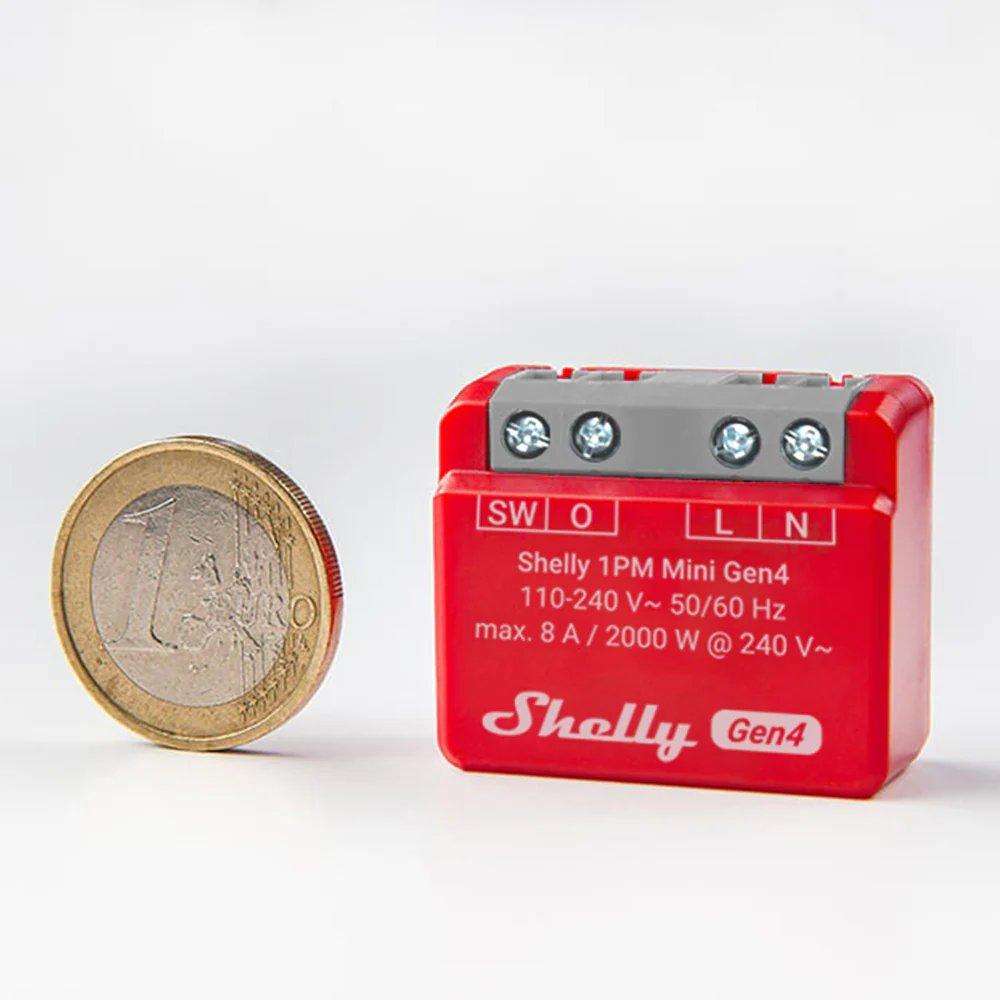

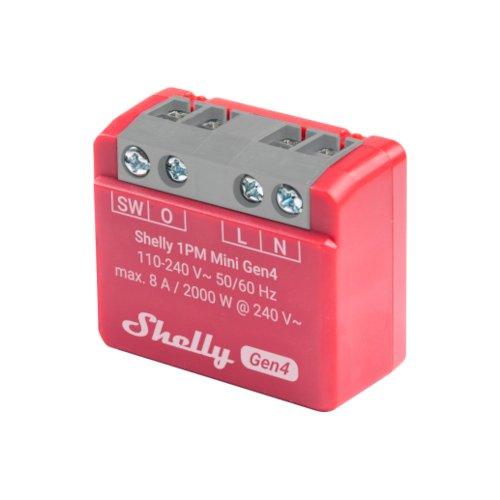

The Shelly Mini 1PM Gen4 is an ultra‑compact smart relay, designed to fit behind switches, sockets or inside appliances. It supports Wi‑Fi, Bluetooth, Zigbee and Matter, and offers accurate power monitoring with up to 1 percent precision, securely stored in the cloud.

Price range: £21.07 through £41.29 inc VAT

SKU: MINI-1PM-GEN4 Categories: ,

Compatibility

Shelly Mini 1PM Gen4 is compatible with the following systems:
Zigbee CompatibleWi-Fi Compatible DeviceMatter Compatible

product-page-callout-v2-_support-full-width

Any Questions?

Our technical team is on hand to solve any problems or help you find the ideal solution.

Contact Us

Description

The Shelly Mini 1PM Gen4 is a compact smart relay with built in power metering, designed to control a wide range of electrical appliances up to a maximum load of 8A. Despite its small size, it delivers full functionality and can be controlled individually via the free Shelly mobile app, through more than 200 integrations including Amazon Alexa and Home Assistant, or as part of a synchronised schedule or scene alongside other Shelly devices.

As the latest addition to Shelly’s Mini range, the Mini 1PM Gen4 features an upgraded chipset and increased RAM compared to the Gen3 model, allowing for faster response times and more advanced scripting. Like all Gen4 devices, it supports Matter and Zigbee straight out of the box, while retaining Bluetooth and WiFi compatibility from previous generations. These connections can operate at the same time, enabling the device to communicate over WiFi within a Shelly ecosystem while also integrating seamlessly with existing Matter or Zigbee systems.

Beyond smart switching, the Shelly Mini 1PM Gen4 offers precise energy monitoring, measuring the power consumption of connected devices with an accuracy of up to 1 percent. Energy data is stored both locally on the device and securely in the cloud, providing a clear, high level overview of energy usage across your smart home setup.



Key Features:

  • Built-in WiFi – no hub required
  • Bluetooth connectivity
  • Embedded web server for local management
  • Power metering
  • Smart schedules
  • Smart scenes
  • Automatic sunrise/sunset schedules
  • Automatic on/off timer
  • 1 channel switch, 8A

What’s Included:

  • 1x MINI-1PM-GEN4 OR 2x MINI-1PM-GEN4
  • 1x Installation Guide

Manuals & Data Sheets

Product Specifications

Physical and Performance Attributes

Weight18 grams
Dimensions (L x W x H)29 × 35 × 16 mm

Misc Product Attributes

Power
Power supply 110–240V ±10% 50/60Hz AC
Max switching voltage (AC) 240 V
Max switching voltage (DC) N/A
Max switching current (AC) 8 A
Max switching current (DC) N/A
Max switching power (AC) 2000 W
Max switching power (DC) N/A
Power consumption < 1.2 W
External protection 10 A, tripping characteristic B or C
6 kA interrupting rating
Energy limiting class 3
Features
Clean contact relay No
Power measurement Yes
Voltage protection / cutoff Yes
Current protection / cutoff Yes
Max power protection / cutoff Yes
Internal temperature sensor Yes
Ambient temperature -20°C to 40°C / -5°F to 105°F
Humidity 30% to 70% RH
Schedules 20
Webhooks (URL actions) 20, with up to 5 URLs per hook
MQTT Yes
UDP Yes
Scripting Yes
Connectivity
Wireless / WiFi protocol 802.11 b/g/n/ax (2.4 GHz)
Frequency 2402–2480 MHz
WiFi range Up to 50 m / 160 ft outdoors
Up to 30 m / 100 ft indoors
Zigbee protocol 802.15.4
Zigbee repeater Yes
Zigbee RF bands 2400–2483.5 MHz
Zigbee range Up to 300 m outdoors
Up to 100 m indoors
Bluetooth protocol 4.2
Bluetooth range Up to 30 m / 100 ft outdoors
Up to 10 m / 33 ft indoors
Dimensions
Size (H × W × L) 29 × 35 × 16 ±0.5 mm
1.11 × 1.35 × 0.63 ±0.02 in
