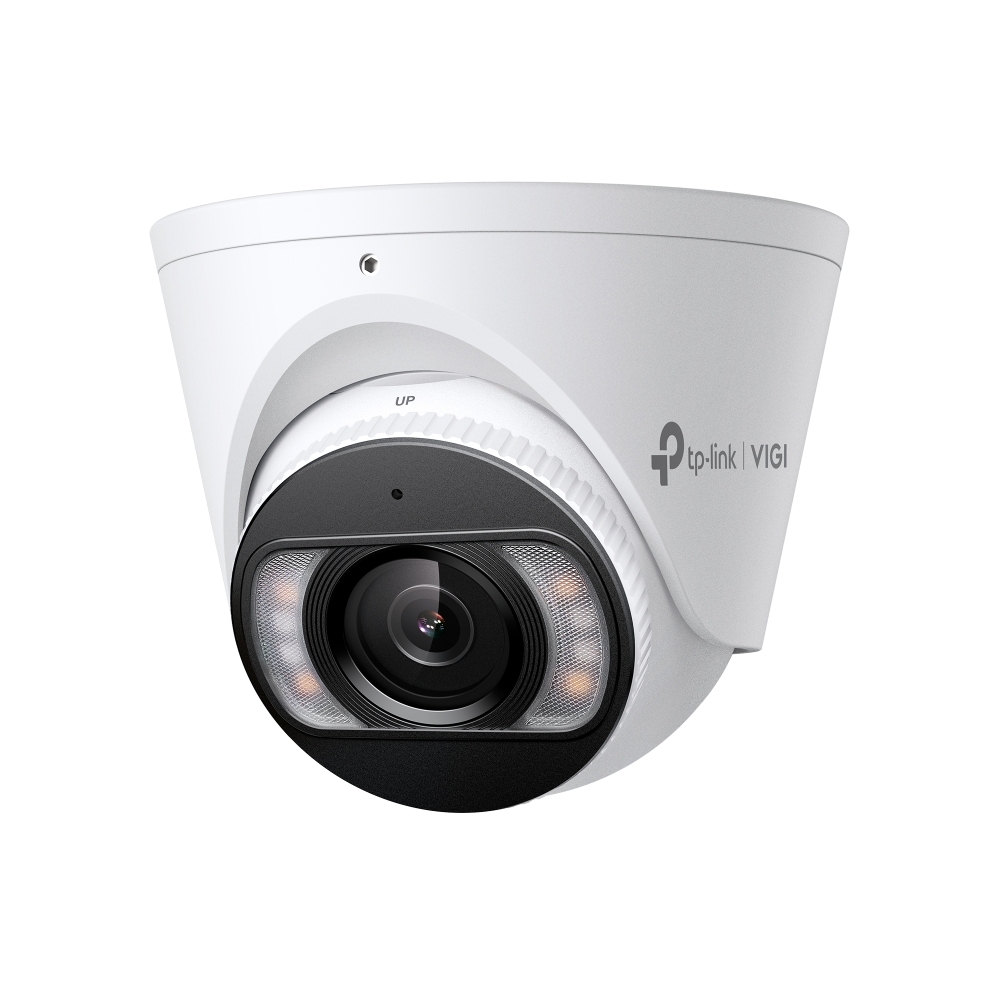

VIGI TP-Link Insight S455 5MP Full-Colour Turret Network Camera

Protect your business with this incredible Turret style, full colour network camera. It’s sturdy design and high resolution camera is perfect for a wide variety of properties such as shops, warehouses, schools, factories and more.

Designed by VIGI, TP-Links range has been specially developed for professional surveillance, the ideal solution for both businesses or large residential properties. The Insight S455 is designed with accuracy and intelligence in mind, suitable for busy environments with high foot and vehicle traffic.

£180.00 inc VAT

SKU: 608-1551 Categories: , , , , Tags: , , , , ,
product-page-callout-v2-_support-full-width

Any Questions?

Our technical team is on hand to solve any problems or help you find the ideal solution.

Contact Us

Description

Add a layer of protection to your business, with the full colour, 5MP, outdoor compatible Insight S455 network camera. It’s sturdy design and high resolution camera is the perfect security solution for a wide variety of commercial properties such as shops, warehouses, schools, factories and more. Rated IP67, the Insight S455’s turret design is ideal for long term protection against rain, snow and wind.

The Insight S455 has 24 hour full colour vision, which will activate thanks to it’s intelligent Ai chip. Capable of advanced algorithms, the S455 will wake up upon detecting human or vehicle movement and switch from IR night vision to full colour night vision using its integrated white light. The light provides crisp, clear footage; whilst also acting as a deterrent to possible intruders. The IR vision is set as a default when there is no movement, reducing light pollution and power usage.

With a 2.8mm fixed focal lens and an incredible 5MP resolution, the S455 provides sharp, clear footage and is capable of detection from 64m away in daylight, or 30m at night. You can get instant alerts via the VIGI app or cloud platform as well as utilising the Two-Way talk option if you are away from the site. You can even set up a variety of Smart Event alerts, such as Loitering, Abnormal Sound, Video Tampering and Line Crossing.

Designed by VIGI, TP-Links range has been specially developed for professional surveillance, the ideal solution for both businesses or large residential properties. The Insight S455 is designed with accuracy and intelligence in mind, suitable for busy environments with high foot and vehicle traffic.

Features

  • 5MP Super High Definition
  • 24 Hour Full Colour capture, day or night
  • Human or Vehicle – Smart Detection
  • Human or Vehicle – Analytics*
  • Smart Video Enhancement Technology – Smart IR, True WDR, 3D DNR
  • Smart Detection
  • Active Defence
  • Two-Way Audio – Built in Mic & Speaker
  • IP67 Rated Waterproof
  • H.265+ Compression Technology
  • Additional MicroSD Storage Slot**

*This function must be used with VIGI specified software. When enabled, only DWDR is supported.

**MicroSD up to 512GB, SD card not included.

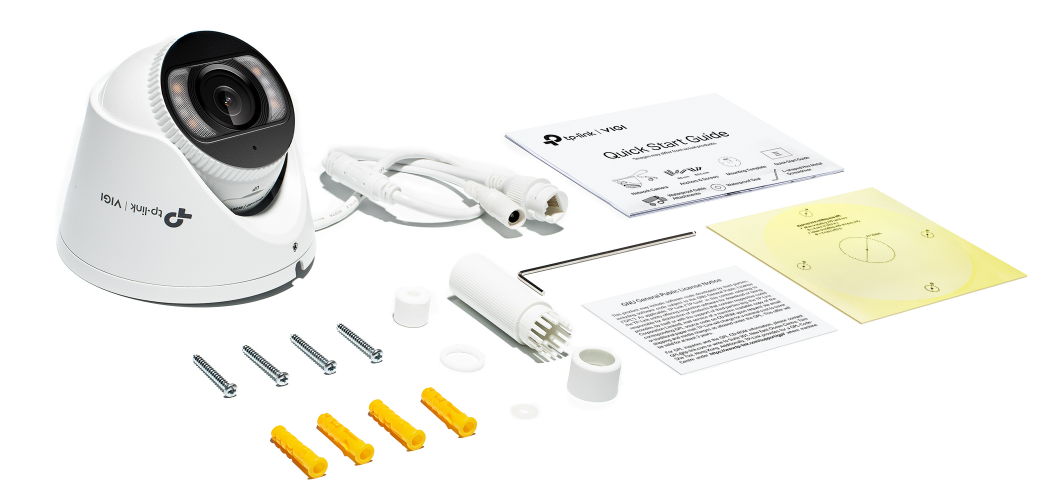

What’s in The Box

  • VIGI Insight S455 Network Camera
  • Waterproof Cable Attachments
  • Quick Start Guide
  • Mounting Accessories
  • Mounting Tools – Screws, Allen Key & Wall Plugs

Videos

Product Specifications

Physical and Performance Attributes

Weight480 grams
Dimensions (L x W x H)111 × 111 × 83.7 mm
Protection Rating (IP)67
Vandal Resistant?Yes
Mounting TypeSurface Mounted
Operating Temperature-30 – 60 °C
Operating Humidity95% or less (non-condensing)

Misc Product Attributes

General

Material: Metal

Certifications: CE, NTRA, VCCI, KC, BSMI, FCC, IC

Power Supply: 12V DC ± 5%, Max. 11 W, 5.5 mm Coaxial Power Plug

Power Supply PoE: 802.3af/at, class 0, Max. 12 W



Camera

Image Sensor: 1/2.7” Progressive Scan CMOS

Shutter Speed: 1/3 to 1/10000 s

Slow Shutter: Yes

Minimum Illumination: 0.005 Lux; 0 Lux with IR/White light

Day / Night Mechanism: IR Cut Filter

Day / Night Switch: Unified / Scheduled / Auto



Lens

Type: Fixed Focal Lens

Focal Length: 2.8mm

Aperture: F1.6

FOV: Horizontal FOV = 111.4°   Vertical FOV= 58.8°    Diagonal FOV= 134°

Lens Mount: M12*P 0.5

DORI Distance: Detect = 64m   Observe = 27m   Recognise = 13m   Identify = 6m

Range: Pan: 0° to 360°, Tilt: 0° to 85°, Rotation: 0° to 360°



Light

IR LED: Quantity = 4   Range = 30m   Wavelength = 850nm

White LED: Quantity = 4   Range = 30m

Light On/Off Control: Auto / Scheduled / Always On / Always Off

Video

Max Resolution: 2880 x 1620

Bit Rate Control: CBR, VBR

Video Compression Main Stream: H.265+/H.265/H.264+/H.264

Video Compression Sub Stream: H.265/H.264

Video Bit Rate Main Stream: 256 Kbps to 6 Mbps

Video Bit Rate Sub Stream: 64 Kbps to 512 Kbps




Image Settings: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure

Image Enhancement: BLC/3D DNR/HLC/Smart IR

Wide Dynamic Range: 120 dB (When People & Vehicle Analytics is enabled, only DWDR is supported)

SNR: ≥ 52 dB

Image Parameters Switch: Yes

Privacy Mask: Up to 4 Masks

ROI: 1 Region

OSD Setting: Yes



Audio

Audio Communication: Two Way Audio

Audio Input: Yes

Audio Output: Yes

Audio Compression: Yes

Audio Sampling Rate: 8KHz

Environment Noise Filtering: Yes

Audio Bit Rate: 64 Kbps (G.711 alaw)



Network

Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP

ONVIF: Yes

API: ONVIF Profile S/T/G

Simultaneous Live View: 3 Main Streams & 3 Sub-Streams

Client: VIGI App, VIGI Security Manager, Web UI, VIGI VMS, VIGI Cloud VMS

Cloud: Yes

Security: Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication



Alarm & Event Management

Smart Events: Alert can be set on the following Detections – Intrusion, Line Crossing, Region Entering & Exiting, Object Abandoned, Object Removed, Loitering, People, Vehicle, Abnormal Sound, Scene Change

Basic Events: Motion Detection, Video Tampering Detection, Exceptions & Illegal logins

Alarm Linkage: Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing

Output Notification: Message Push

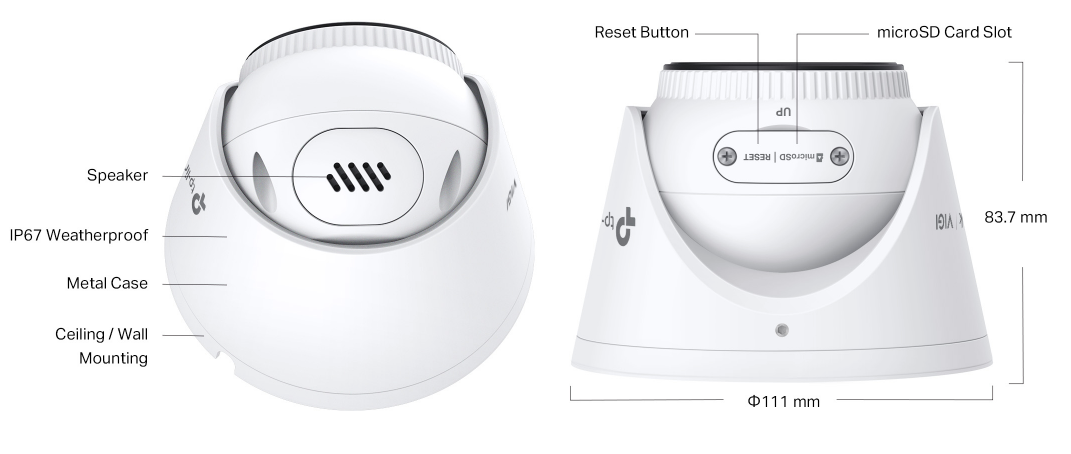

Interfaces

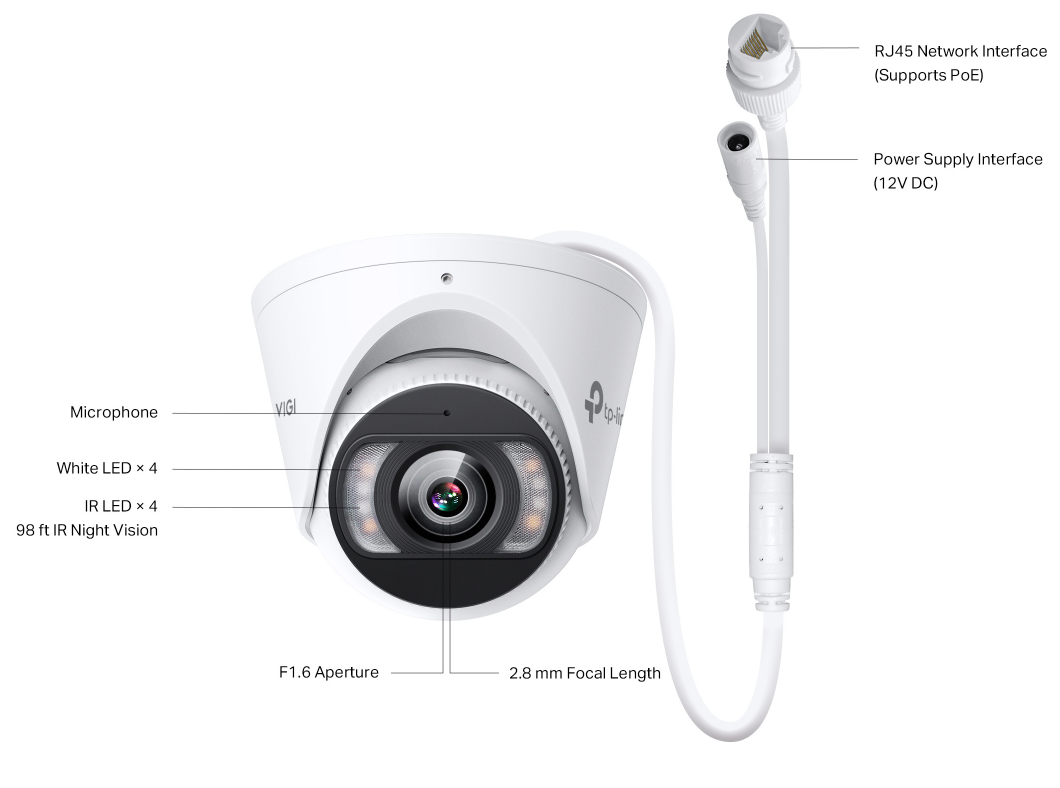

Network Interface: 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE

Alarm: N/A

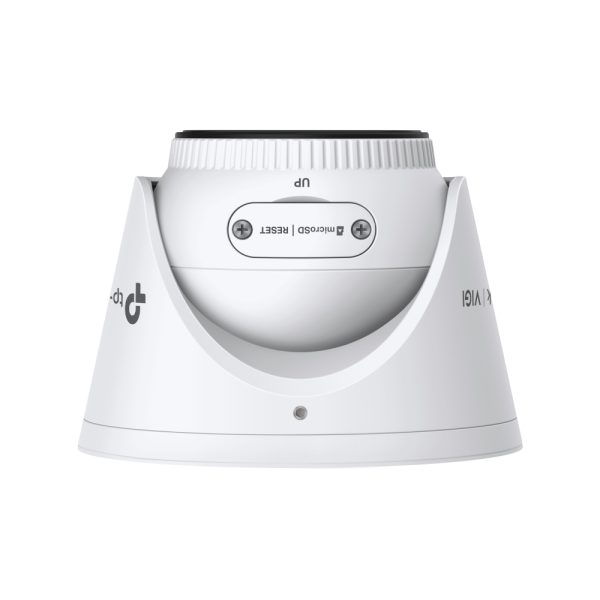

Reset Button: Yes

Power: DC Power Port

On-board Storage: Memory Card Slot, Supports MicroSD up to 512GB (not included)

Built in Microphone: Yes, Records up to 15ft Radius

Built in Speaker: Yes

Audio: N/A
