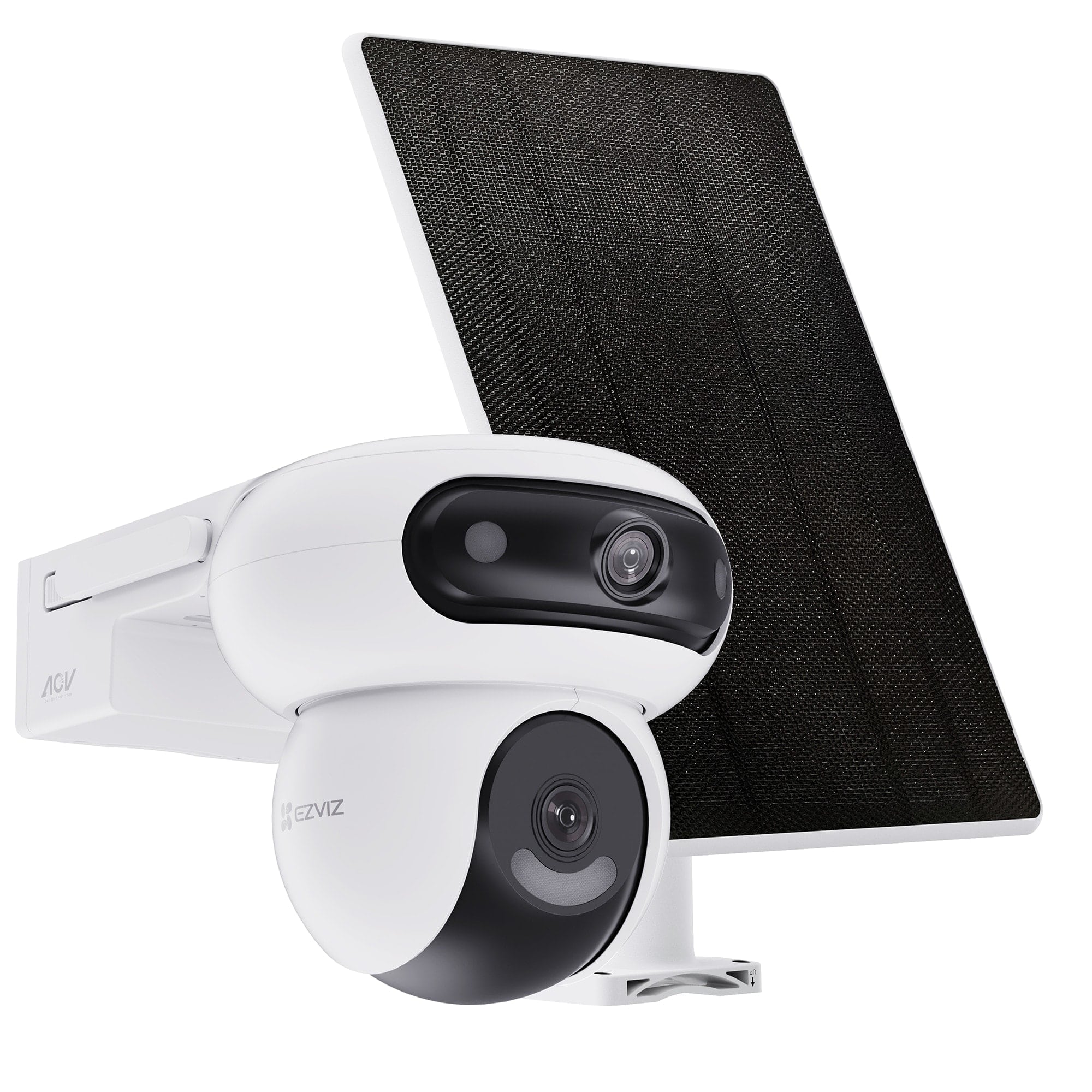

EZVIZ HB90 Dual-Lens Pan & Tilt Wi-Fi Camera Kit With 8W Solar Panel

EZVIZ’s HB90 Dual Kit uses AOV technology to balance security and power consumption, utilizing solar power to overcome battery issues and installation limitations.

£152.99 inc VAT

Free Shipping for Mainland UK orders over £15 incl. VAT ** (excluding Scottish Highlands)

Compatibility

EZVIZ HB90 Dual-Lens Pan & Tilt Wi-Fi Camera Kit With 8W Solar Panel is compatible with the following systems:
Wi-Fi Compatible DeviceWorks with AlexaWorks with the Google Assistant

SKU: CS-HB90/SP-R100(4MP+4MP) Category: Tags: ,

EAN / Barcode: 6941545636993

Description

HB90 Dual Kit – Dual-Lens All-Day Recording Wi-Fi Camera + Solar Panel 8W

Superb defence that never stops

With EZVIZ’s ground-breaking AOV technology, the inventive HB90 Dual Kit intelligently balances high security requirements and power consumption while employing solar power to overcome battery anxiety and installation limitations. It’s also a thrilling addition to EZVIZ’s Dual-Lens camera line, which homeowners can rely on to identify, track, and record significant activity as well as to secure two different areas simultaneously.

Key Features

  • 2K+ & 2K+ Dual Lenses
  • Always-On Video Mode 2.0
  • Co-Detection for Auto Smart Tracking
  • One-Tap Control for Linked View Change
  • 8W High-Efficiency Solar Panel Included
  • 10,400 mAh Rechargeable Lithium Battery
  • Dual Rotations for Ultra-Flexible Vision
  • AI-Powered Human / Vehicle Shape Detection
  • 360° Panoramic View
  • Two-Way Talk
  • Active Defense with Siren and Strobe Light
  • Weatherproof Design
  • Supports Wi-Fi 6 Network (2.4 GHz)
  • Color Night Vision2
  • Smart Integration with Google Assistant & Amazon Alexa1
  • Supports MicroSD Card (Up to 512 GB) & EZVIZ CloudPlay Storage2

  1. The purpose of the HB90 Dual’s supporting solar panel is to give the primary device an extra power source, extending the camera’s battery life and lowering the need for frequent recharging. We advise you to use the AOV mode for more efficient power use in order to extend the battery life. Please be aware that only EZVIZ solar panels that use Type-C charging cables are compatible with the HB90 Dual.
  2. In some languages and countries, Amazon Alexa and Google Assistant are unavailable.
  3. Cards for local storage must be bought individually. Only a few markets provide cloud storage services. Before making a purchase, please confirm availability.
  4. According to EZVIZ Lab’s test findings under normal circumstances, the HB90 Dual can detect movements up to 25 meters during the day and up to 12 meters at night when the AOV mode is used. Other environmental conditions may cause the actual detection range to vary.
  5. A suitable microSD card, which is available separately, needs to be put into the camera in order to use this feature.
  6. Information derived from test results conducted by EZVIZ Lab under the standard conditions listed below: SMQ, AM=1.5, 25°C, 1000W/m². With the camera in AOV mode and the AOV interval set to AUTO, the data is acquired. The amount of sunshine and other environmental elements can affect the real charging efficiency, and the frequency of camera activities and other environmental factors can affect the actual hours of camera usage.
  7. Data from tests conducted by EZVIZ Lab under typical circumstances. The four spotlights or infrared lights on the camera are turned on and pointed in the same direction to get the distance measurements. Battery level and other environmental conditions can affect the actual distance.
  8. Results of tests conducted in an open setting by EZVIZ Lab. The Wi-Fi frequency, camera placement, transmission process and other ambient conditions will all affect this.

Product Specifications

Physical and Performance Attributes

Weight1.930 KG

Misc Product Attributes

Specifications
Model CS-HB90/SP-R100(4MP+4MP)
Camera
Image Sensor 1/3” 4-Megapixel Progressive Scan CMOS Sensor
Shutter Speed Self-adaptive shutter
Lens Top Lens: 2.8mm @ F1.2, Field of view : Diagonal 110°, Horizontal 96°, Vertical 54° Bottom Lens: 6mm @ F1.2, Field of view : Diagonal 60°, Horizontal 52°, Vertical 28°
PT Angle Top Lens: Pan: 220°, Tilt: 10° Bottom Lens: Pan: 324°, Tilt: 90°
Minimum Illumination 0.01 Lux @ (F1.2, AGC ON ), 0 Lux with IR (* data is obtained from EZVIZ laboratories)
Day & Night IR-cut filter with auto switch
DNR 3D DNR
Night Vision Distance 35 m
Video & Audio
Max Resolution 2K+ (2560 × 1440)
Frame Rate Max. 15fps; Self-Adaptive during network transmission
Video Compression H.265 / H.264
Video Bit Rate Quad HD; HD; Standard; Adaptive bit rate
Audio Bit Rate Self-adaptive
Max. Bitrate 2 Mbps (Total)
Network
Bluetooth Supports
Wi-Fi Standard IEEE802.11b, 802.11g, 802.11n , 802.11ax
Frequency Range 2.4 GHz ~ 2.4835 GHz
Channel Bandwidth Supports 20 MHz
Security WPA-PSK / WPA2-PSK, WPA3-Personal
Transmission Rate 11b: 11Mbps,11g: 54Mbps,11n: 72Mbps, 11ax: 114Mbps
Wi-Fi Pairing AP pairing
Minimum Network Requirement 4 Mbps
Function
Smart Alarm AI-Powered Human Shape Detection AI-Powered Vehicle Shape Detection
Auto Tracking Supports
Customized Alert Area Supports
Two-Way Talk Supports
General Function Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark
Storage
Local Storage Supports microSD card (max. 512 GB)
Cloud Storage Supports EZVIZ CloudPlay storage (Subscription required)
General
Operating Conditions -20°C to 50°C ( -4°F to 122 °F ) Humidity 95% or less (non-condensing)
Battery Capacity 10,400 mAh
IP Grade IP65
Power Supply DC 5 V / 2 A (Adapter needs to be purchased separately)
Power Consumption Max. 10 W
Specifications
Model CS-PSP8-R100-3M
Performance Parameter
Power Voltage 5.4 V ± 5%
Power Current 1.48 A ± 5%
Open Circuit Voltage 6.8 V ± 5%
Short Circuit Current 1.64 A ± 5%
Max. Power 8 W ± 5%
Interface Type-C
Solar Cell Efficiency 0.235
Operating Conditions -20 °C to 60 °C (-4 °F to 140 °F), Humidity 90% or less (non-condensing)
IP Grade IP65
Solar Cell Type Monocrystalline solar cells
Power Cable Length 3 meter
General
Product Dimensions HB90 Dual: 135 × 136.5 × 229.5 mm (5.31 × 5.374× 9.04 inch) Solar Panel 8W: 267.3 × 186.5 × 17.5 mm (10.45 × 7.49 × 0.61 inch)
Packaging Dimensions 300 × 204 × 175 mm (11.81 × 8.03 × 6.89 inch)
Net Weight HB90 Dual: 890 g (31.39 oz) Solar Panel 8W: 428 g (15.09 oz)
Weight with Package 1930 g (68.08 oz)
In the box
In the box – HB90 Dual Camera
– Solar Panel 8W
– Drilling Template
– Adjustable Mounting Bracket
– Screw Kit × 2
– Power Cable
– Regulatory Information × 3
– Quick Start Guide × 2
Certifications
Certifications CE / REACH / WEEE / RoHS
