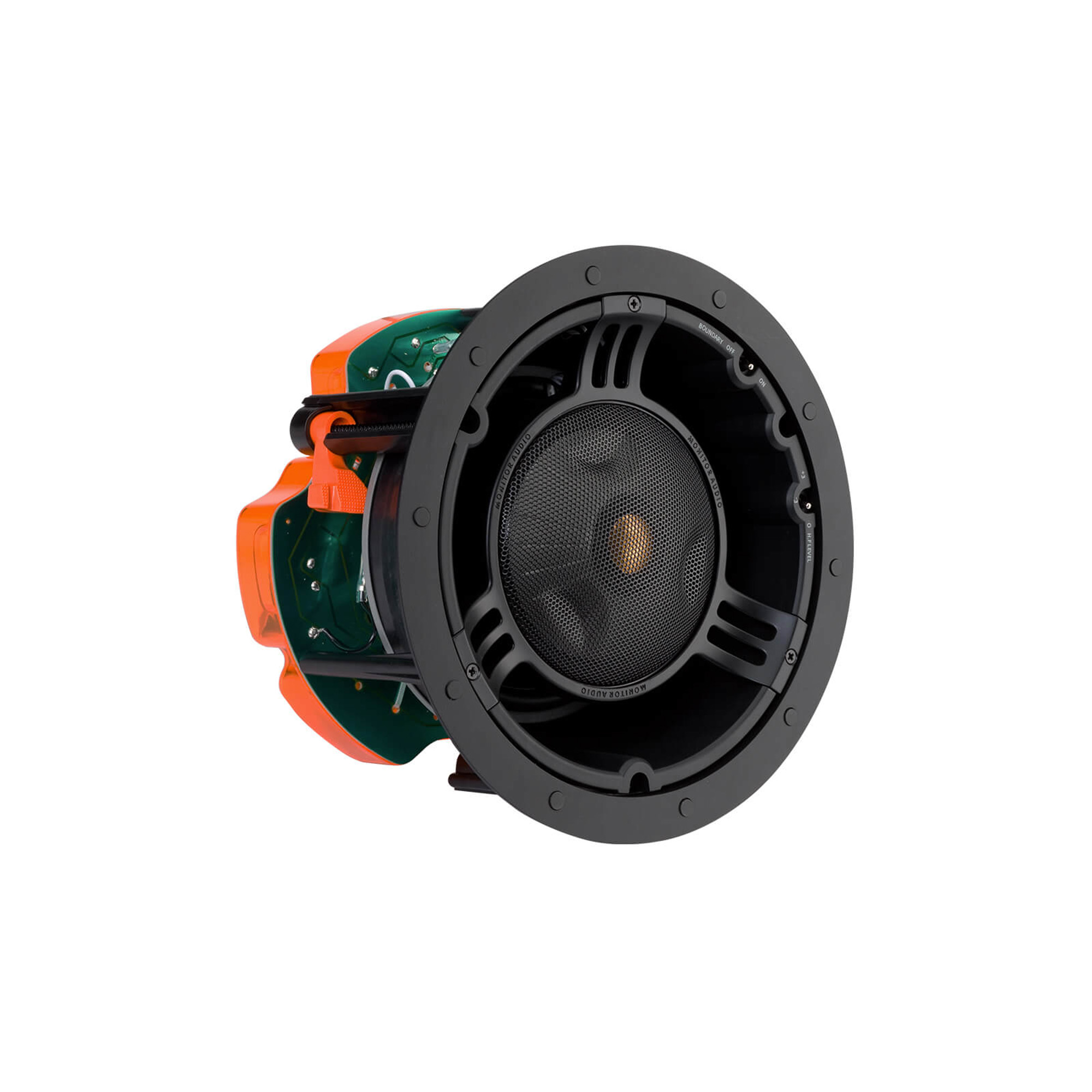

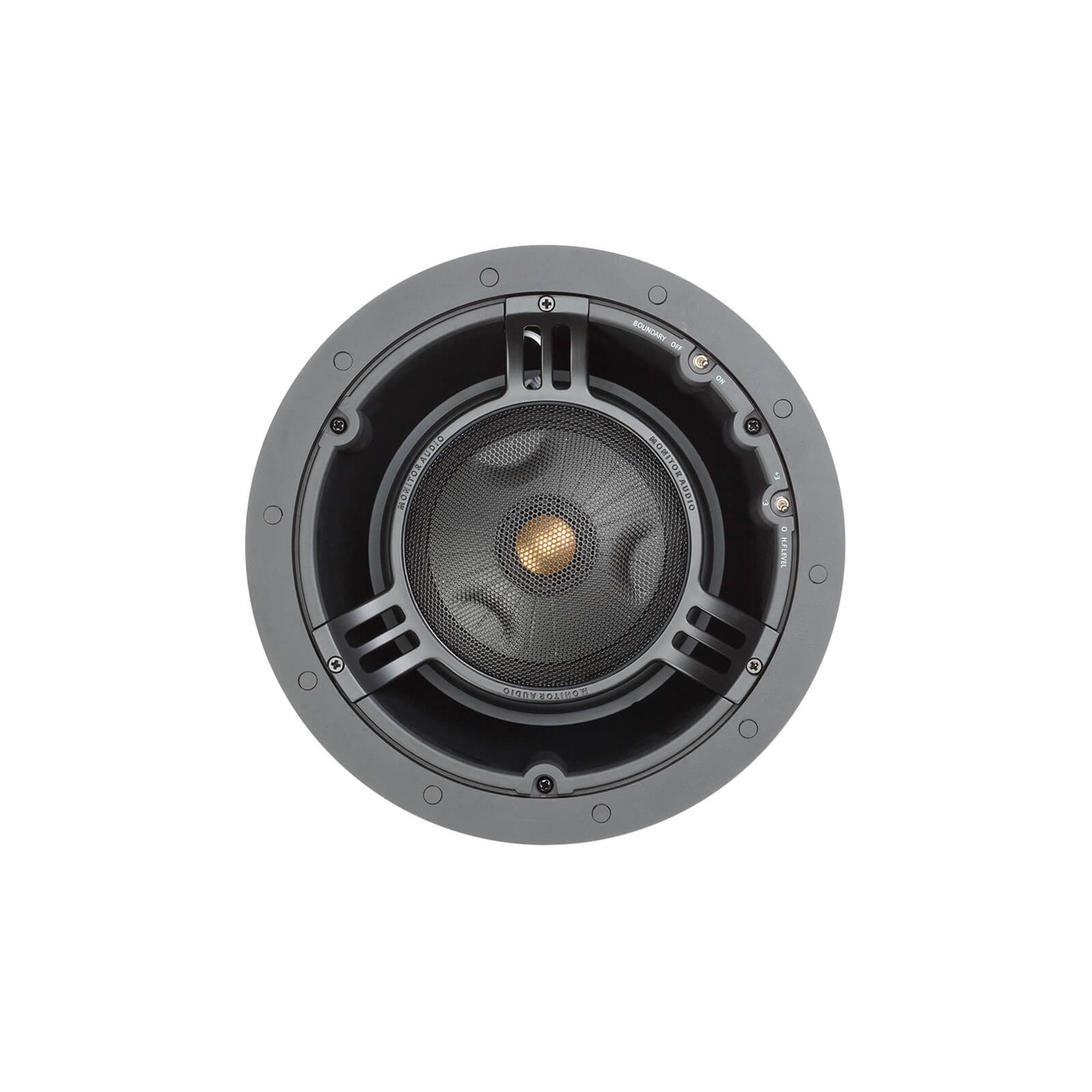

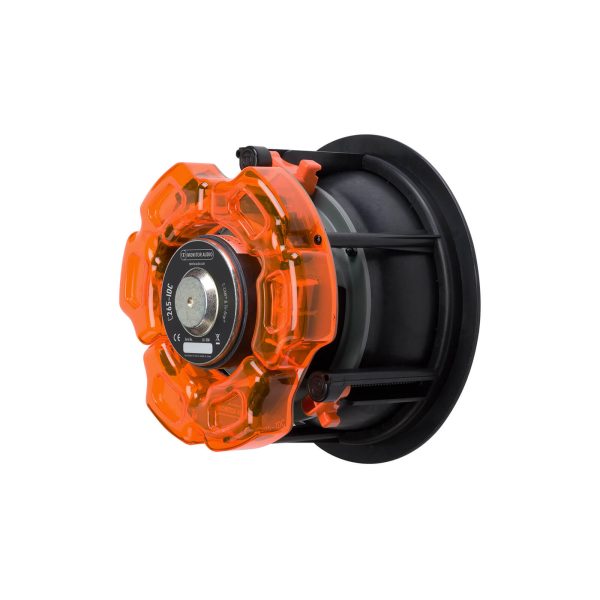

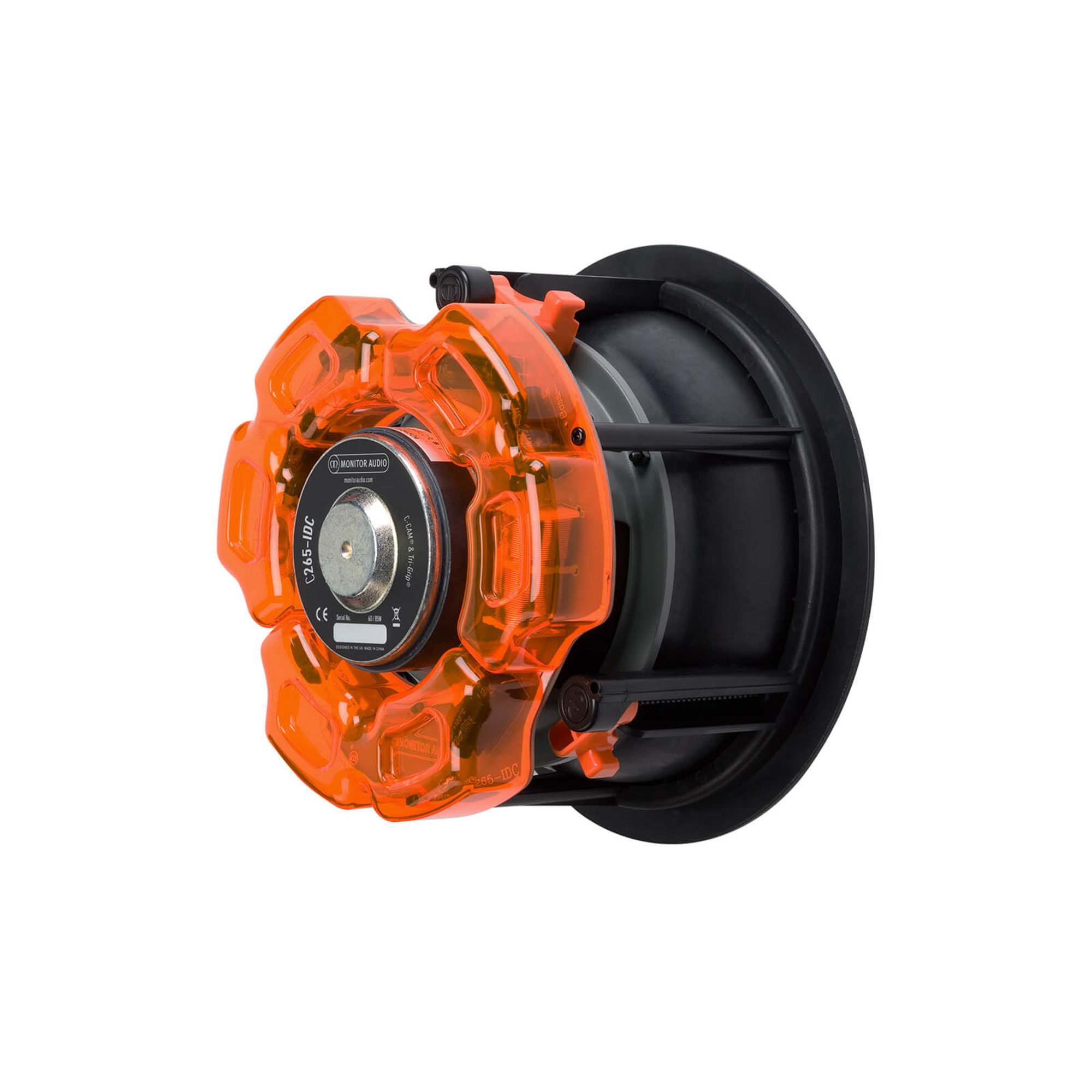

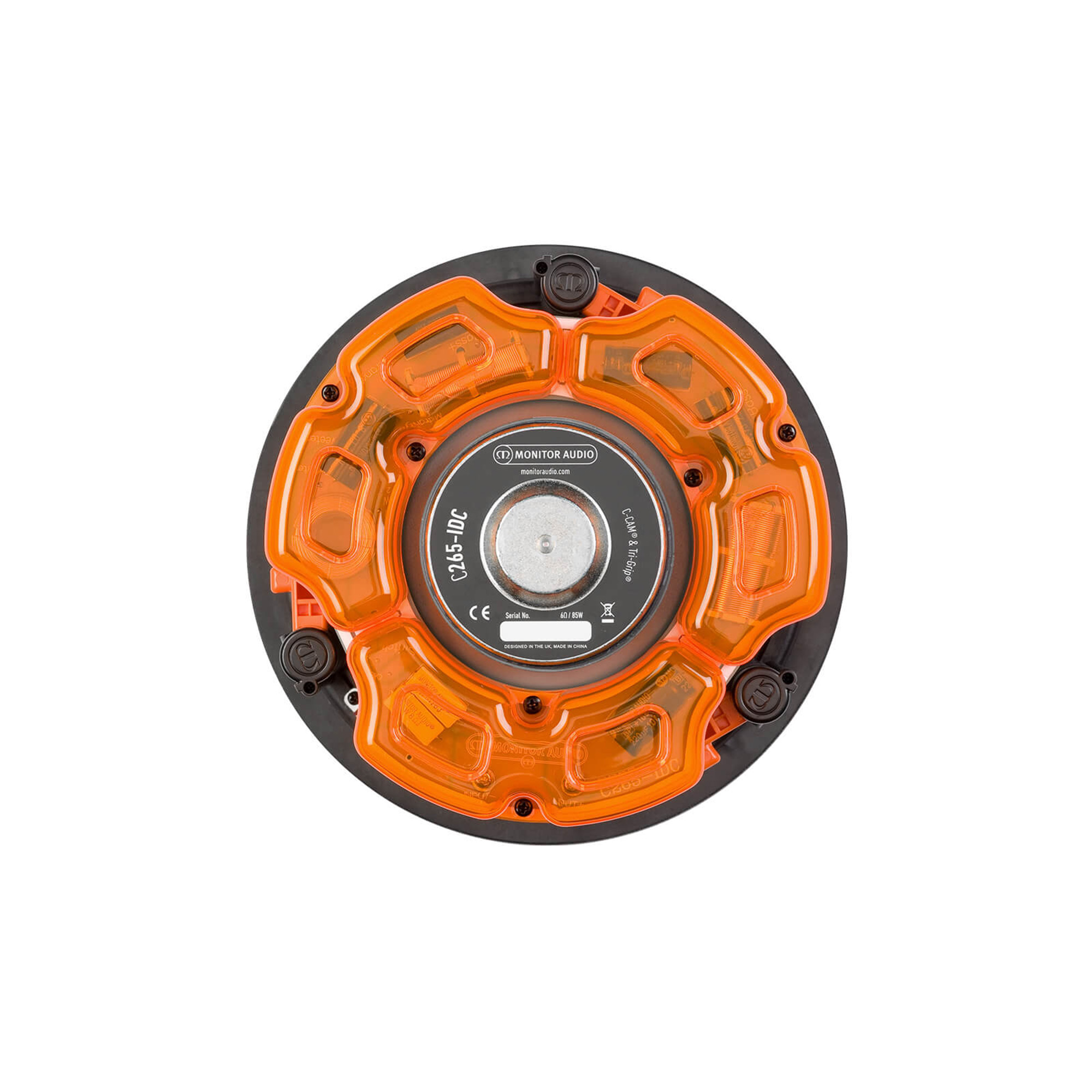

Monitor Audio – C265-IDC In-Ceiling Speaker

Description

Features a 6 1/2 inch C-CAM bass driver and a pivoting IDC module, housing a 4-inch C-CAM RST inverted midrange driver and a 1-inch C-CAM Gold Dome tweeter.

True 3-way design provides rich midrange detail, higher system output, greater power handling, and superior vocal intelligibility and sound localisation. Optimum imaging and set-up are established via the pivoting IDC, high frequency (+3 dB /0 dB / -3 dB) level adjustment, and boundary compensation (on / off) controls.

Technical Specs

• Frequency Response: 60 Hz – 30 kHz
• Nominal Impedance: 6 ohms
• Sensitivity (1W@1M): 88.5 dB
• Maximum SPL: 108 dBA
• Power Handling (RMS): 85 W
• Recommended Amplifier Requirements: 20 – 85 W
• Drive Unit Complement: 6 ^1/2” C-CAM cone bass driver, pivoting IDC module housing:
  4″ C-CAM RST inverted mid range driver
  1″ C-CAM Gold Dome tweeter
• Adjustment Controls: HF Level Switch (+3 dB / 0 dB / -3 dB)
  Boundary Compensation Switch
• Overall Diameter (Including Grille): 250 mm (9^13/16“)
• Overall Depth (Including Grille): 154 mm (6^1/16“)
• Mounting Depth: 150 mm (5^7/8“)
• Cut-Out Hole Diameter: 211 mm (8^1/4“)
• Optional Square Grille – Outer Dimensions: 249 x 249 mm (9 ^3/16“)
• Fixing Type: 3 position Tri-Grip dog fixings
• Weight: 2.54 kg (6 lb 10 oz)
