Monitor Audio – C280 In-Ceiling Speaker

Description

An 8-inch C-CAM bass driver and a more highly specified version of the C-CAM Gold Dome tweeter offer an extended high-frequency response to 30 kHz, as well as higher output and power handling capacity than the 2-way models.

Optimum imaging and set-up are established via a pivoting tweeter, high frequency (+3 dB / 0 dB / -3 dB) level adjustment, and boundary compensation (on / off) controls.

Technical Specs

• Frequency Response: 50 Hz – 30 kHz
• Nominal Impedance: 6 ohms
• Sensitivity (1W@1M): 90 dB
• Maximum SPL: 111.6 dBA
• Power Handling (RMS): 120 W
• Recommended Amplifier Requirements: 30 – 120 W
• Drive Unit Complement: 8″ C-CAM cone bass driver & 1″ C-CAM pivoting Gold Dome tweeter
• Adjustment Controls: HF Level Switch (+3 dB / 0 dB / -3 dB)
  Boundary Compensation Switch
• Overall Diameter (Including Grille): 285 mm (11^1/4“)
• Overall Depth (Including Grille): 126 mm (4^15/16“)
• Mounting Depth: 122 mm (4^13/16“)
• Cut-Out Hole Diameter: 247 mm (9^3/4“)

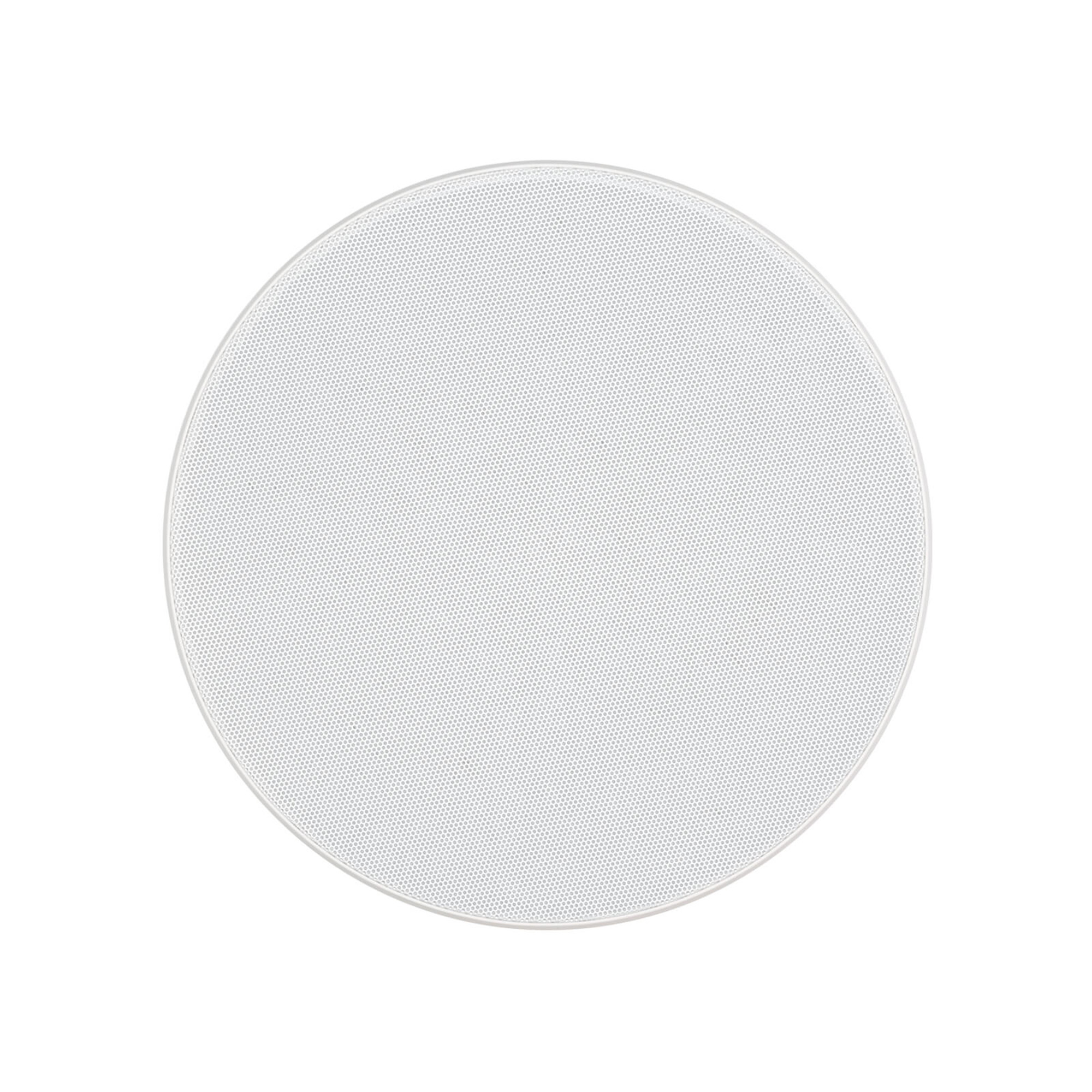

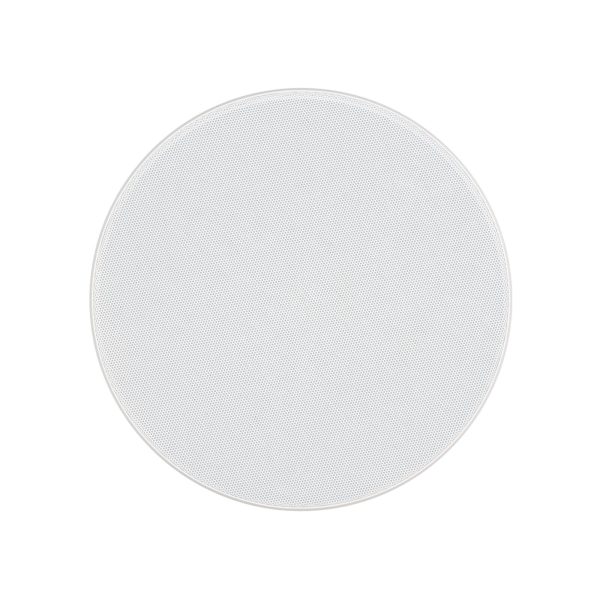

• Optional Square Grille – Outer Dimensions: 285 x 285 mm (11^1/4“)
• Fixing Type: 3 position Tri-Grip dog fixings
• Weight: 2.8 kg (6 lb 2 oz)
