Monitor Audio – CP-WT140LCR – In-Wall Speakers

Experience exceptional audio performance with the luxury Monitor Audio CP-IW460X in-wall speaker. Featuring C-CAM and RST technologies, symmetrical configuration, and high power handling.

£275.00 inc VAT

Free Shipping for Mainland UK orders ** (excluding Scottish Highlands)

SKU: SCPWT140LCR Category: Tag:

EAN / Barcode: 05060028970629


Need an Installer?

Fill out our enquiry form and we’ll put you in contact with a trusted installer in your area.

Installer Enquiry Form

    How would you prefer to be contacted?

    What areas of Home Automation are you interested in?


    Any Questions?

    Our technical team is on hand to solve any problems or help you find the ideal solution.


      The CP-WT140LCR is a multi-purpose speaker, for portrait or landscape applications as a high performance music or theatre satellite.

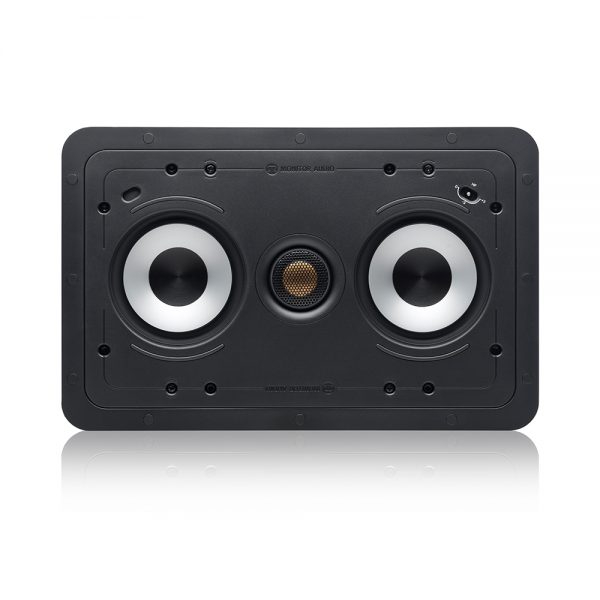

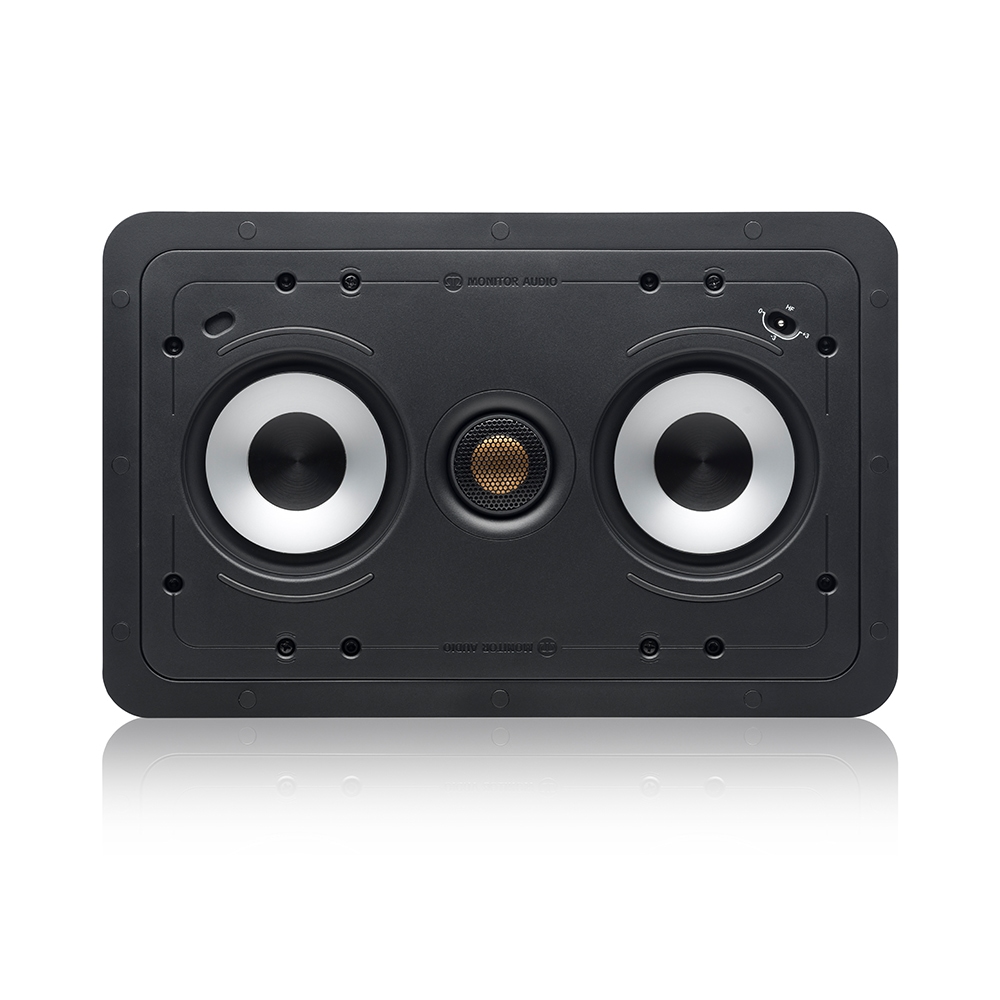

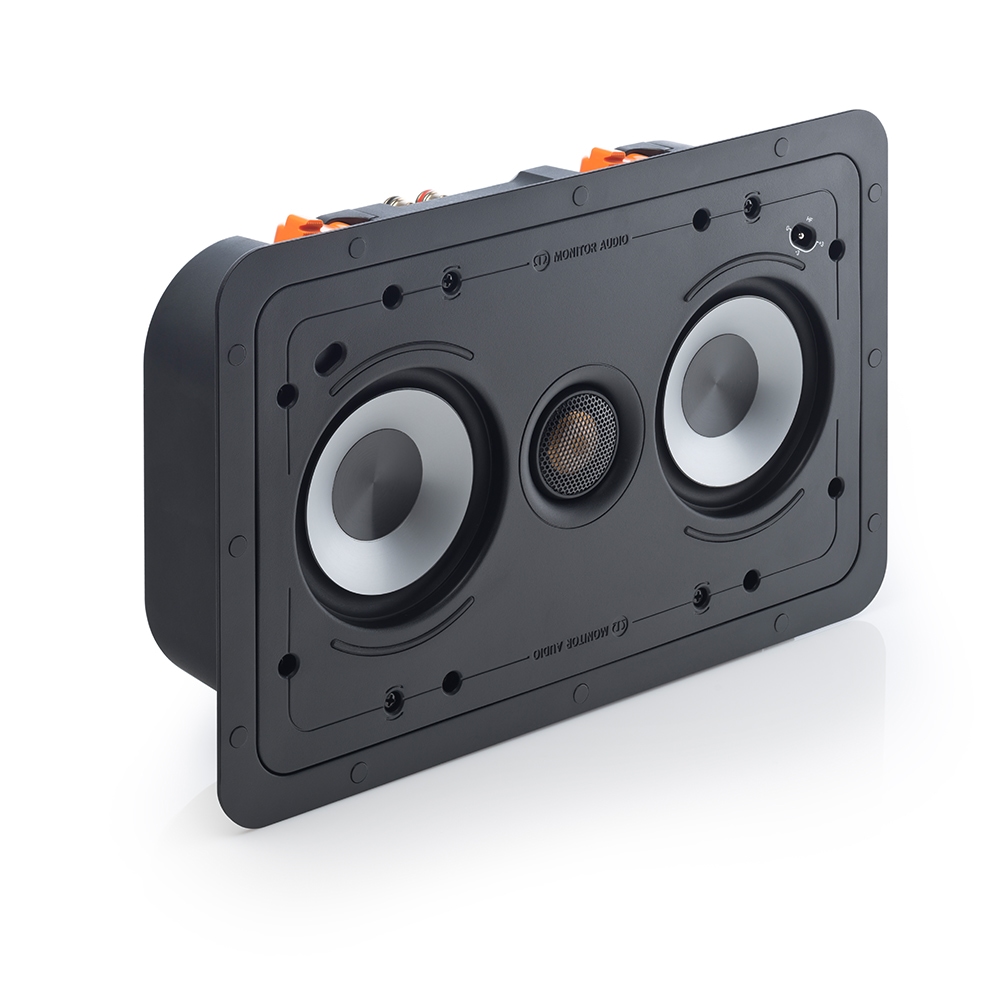

      Utilising twin 4″ MMP II drivers astride a C-CAM tweeter, the drivers offer greater radiating area working in tandem than a single 6″ bass driver.


      • Pivoting C-CAM Gold Dome tweeter.
      • 2 x MMP II bass drivers.
      • High overall efficiency.
      • High frequency level adjustment (+/-3 dB).

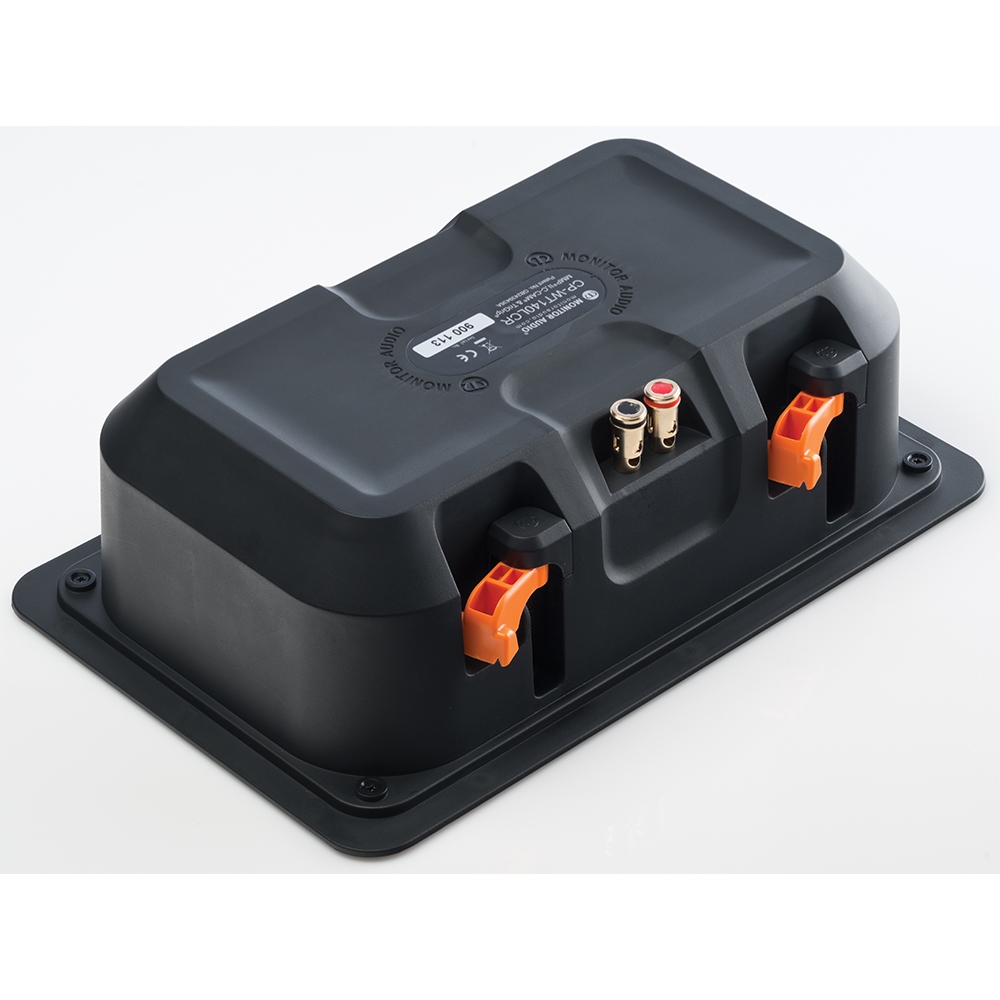

      • Our innovative Tri-Grip fixing system is easier to install than conventional clamping schemes but provides three times the surface area and a better surface seal, maximising bass response and mid-range clarity.

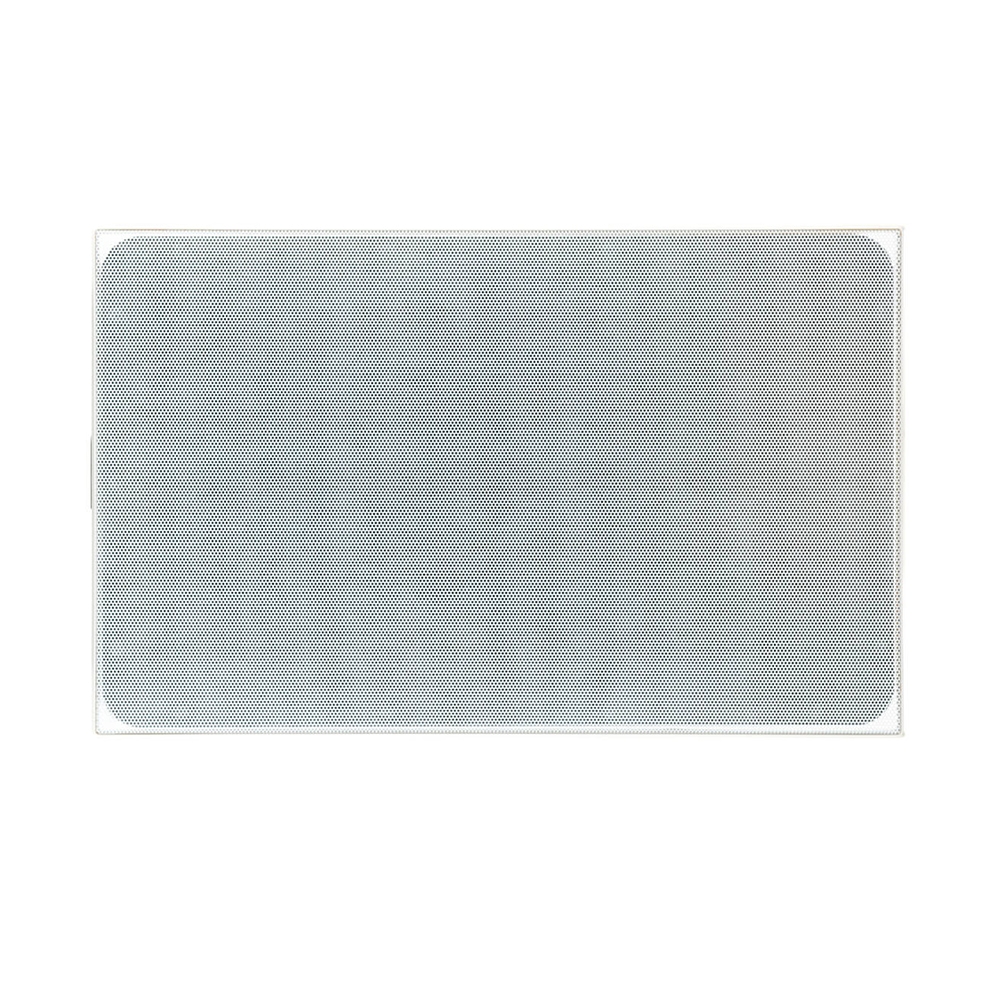

      • Magnetic and easily removable steel grille.
      • Paint-able surface to blend with the living environment. Additional scrim material is provided for trouble free painting.
      • Airtight enclosure design, which protects each precision-engineered driver system against the damaging ingress of dust and dirt.

      Technical Specs

      • Frequency Response: 60 Hz – 25 kHz
      • Nominal Impedance: 6 ohms
      • Sensitivity (1W@1M): 88 dB
      • Maximum SPL: 108.8 dBA
      • Power Handling (RMS): 100 W
      • Recommended Amplifier Requirements: 20 – 100 W
      • Crossover Frequency: 2.6 kHz @ 12 dB / Octave
      • Drive Unit Complement: 2 x 4″ MMP II cone bass driver & 1″ C-CAM pivoting Gold Dome tweeter
      • Adjustment Controls: HF Level Switch (+3 dB / 0 dB / -3 dB)
      • Overall Dimensions (H x W x D): 217 x 333 mm (89/16 x 131/16“)
      • Overall Depth (Including Grille): 103 mm (41/16“)
      • Cut-Out Dimensions: 183 x 299 mm (73/16 x 113/4“)
      • Mounting Depth: 97 mm (313/16“)
      • Fixing Type: 4 position Tri-Grip dog leg fixings
      • Weight: 2.5 kg (5 lb 8 oz)

      In-Wall Speaker | Installation Guide

      Product Specifications

      Physical and Performance Attributes

      Weight2.5 KG
