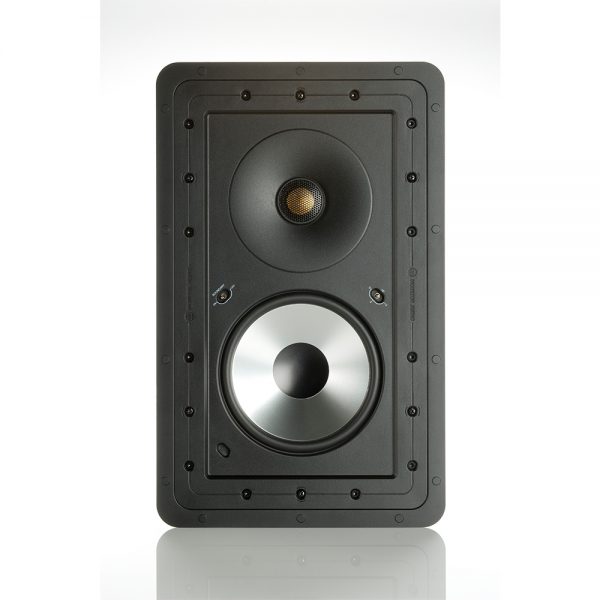

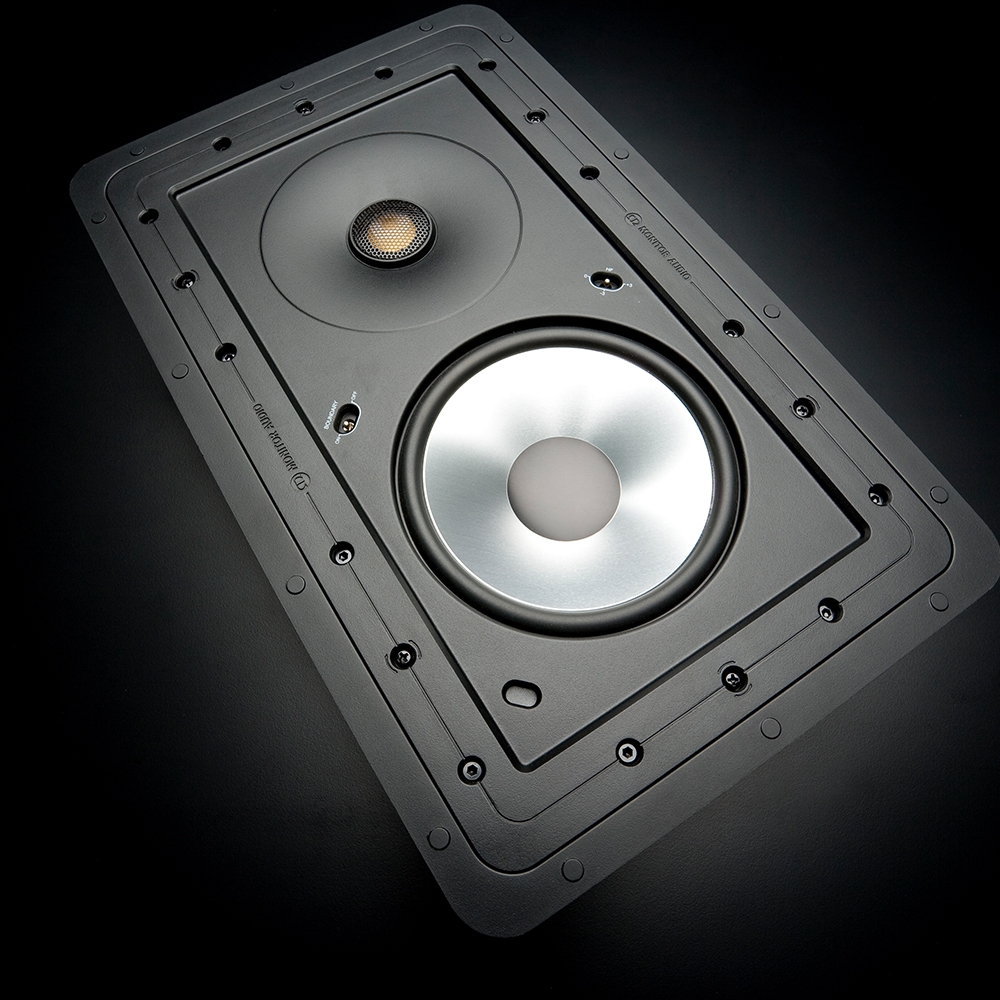

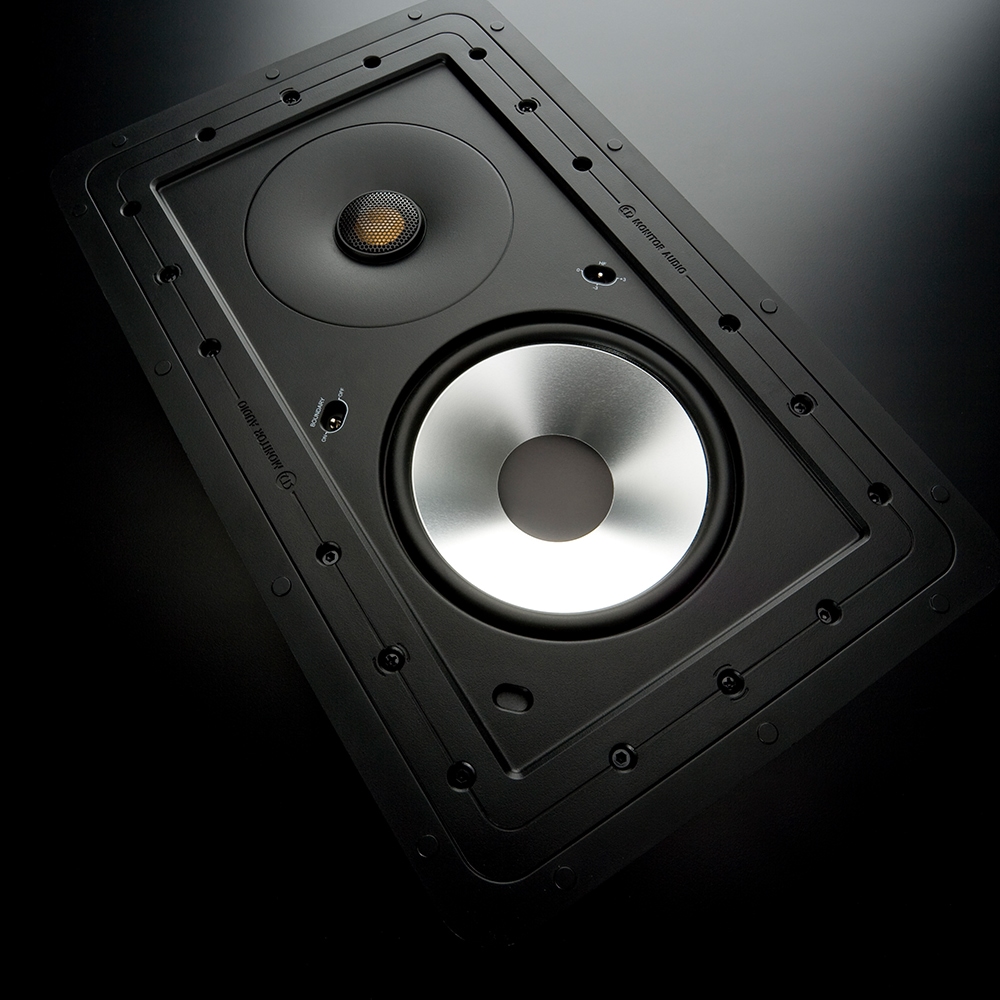

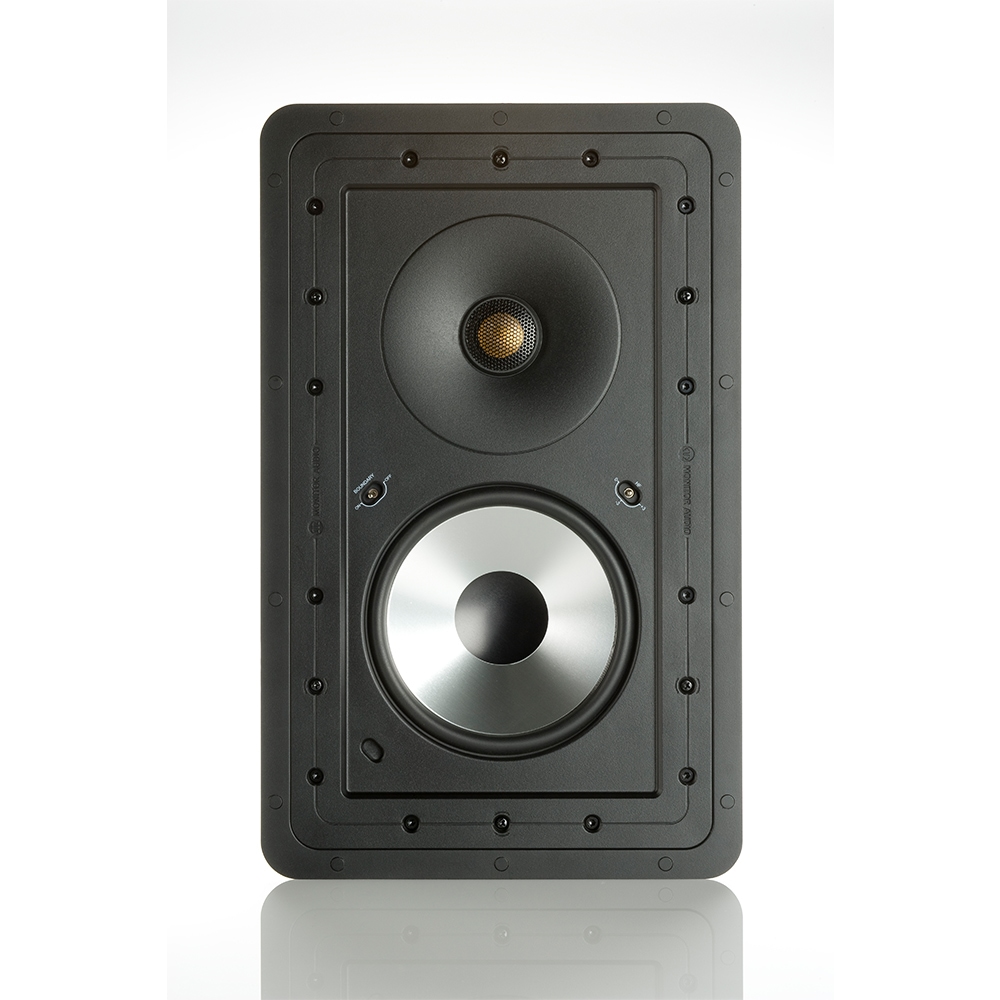

Monitor Audio – CP-WT260 In-Wall Speaker

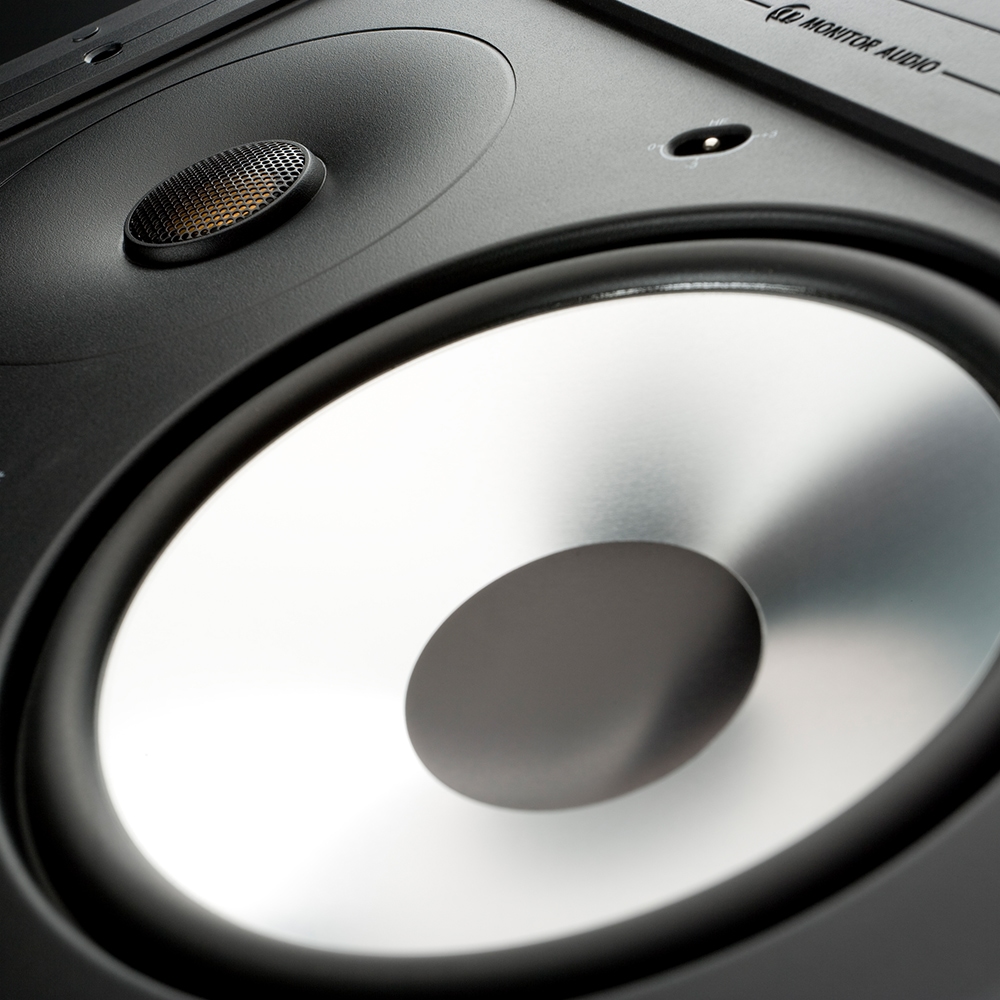

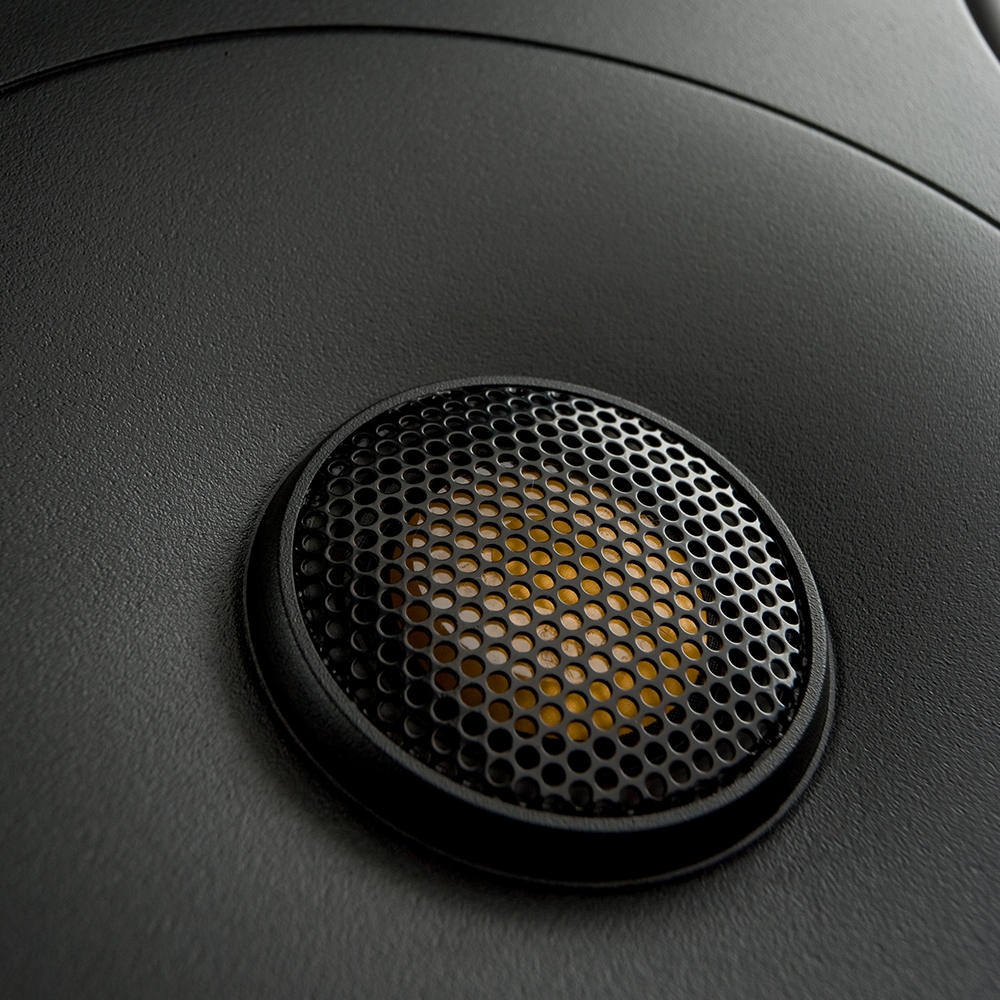

• Pivoting C-CAM Gold Dome tweeter and C-CAM bass driver.
• High overall efficiency.
• High frequency level adjustment (+/-3 dB).
• Boundary compensation controls.

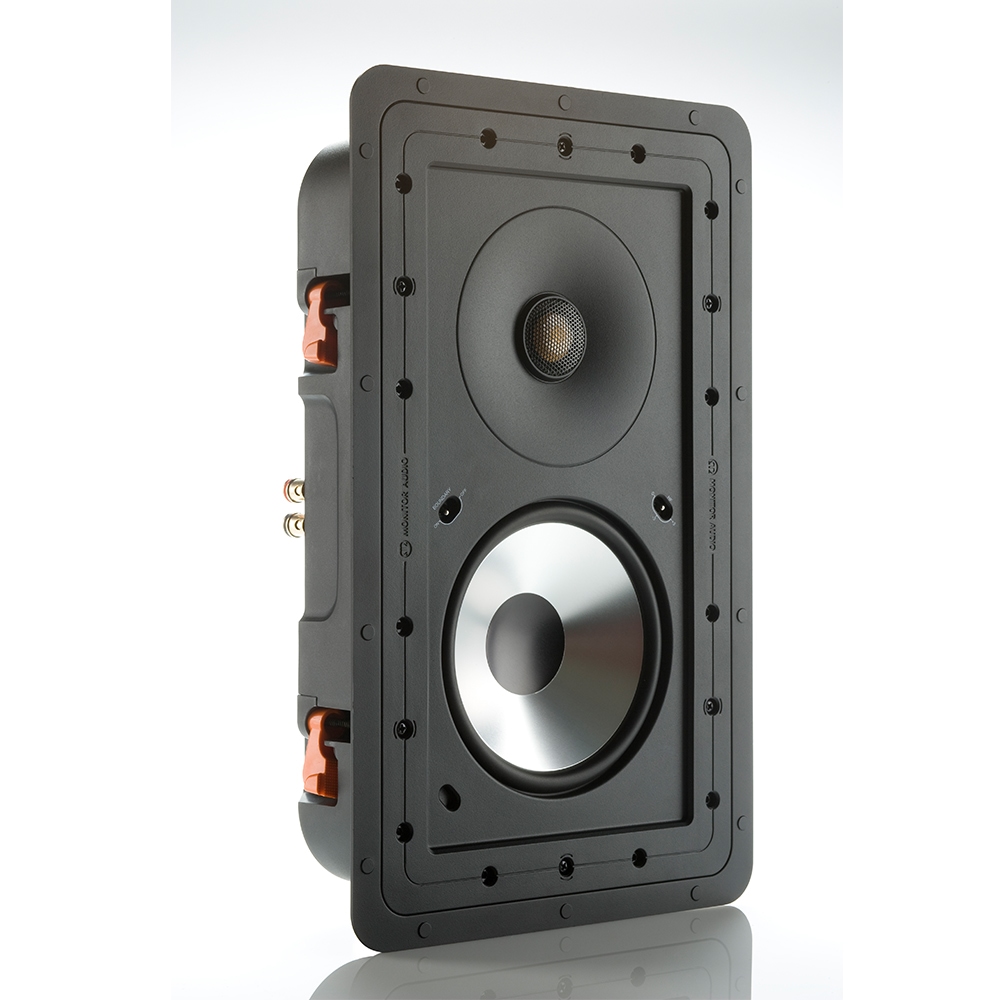

• Our innovative Tri-Grip fixing system is easier to install than conventional clamping schemes but provides three times the surface area and a better surface seal, maximising bass response and mid-range clarity.

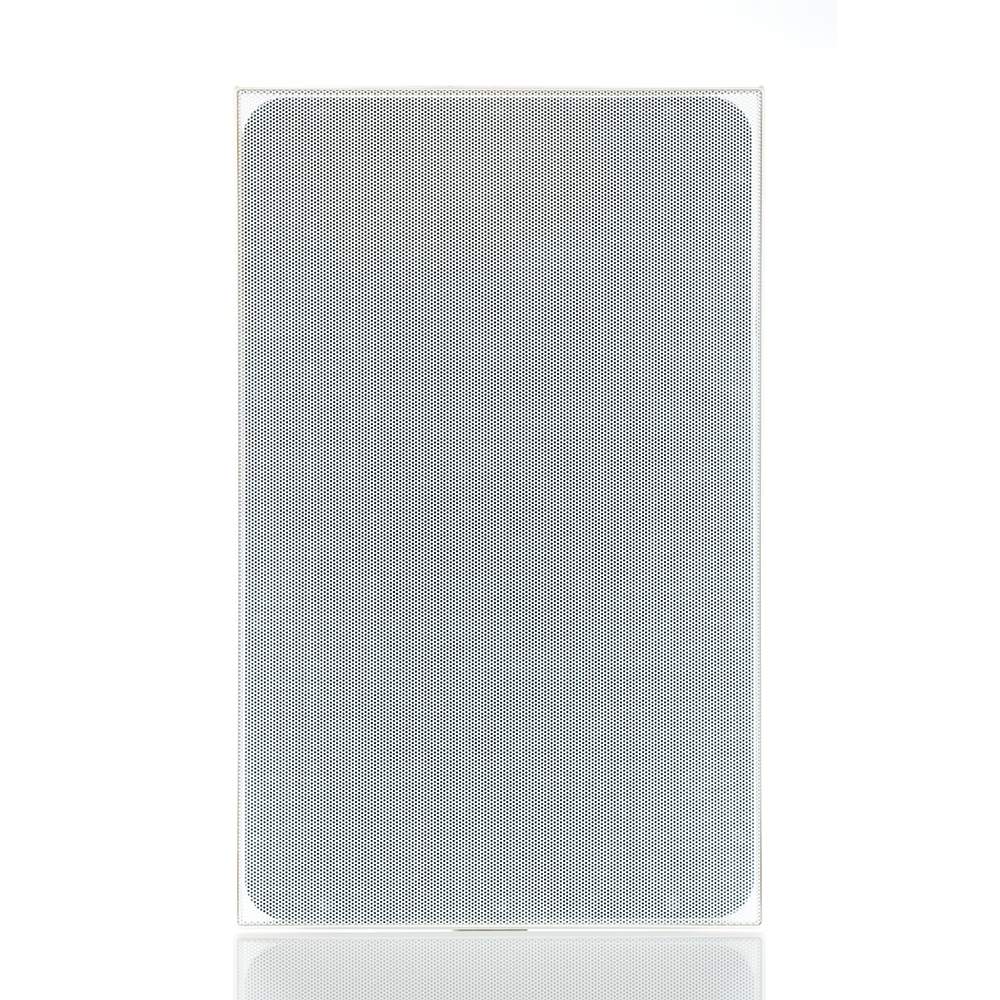

• Magnetic and easily removable steel grille.
• Paint-able surface to blend with the living environment. Additional scrim material is provided for trouble free painting.
• Airtight enclosure design, which protects each precision-engineered driver system against the damaging ingress of dust and dirt.

Technical Specs

• Frequency Response: 65 Hz – 25 kHz
• Nominal Impedance: 6 ohms
• Sensitivity (1W@1M): 88 dB
• Maximum SPL: 106.9 dBA
• Power Handling (RMS): 65 W
• Recommended Amplifier Requirements: 20 – 65 W
• Crossover Frequency: 2.6 kHz @ 12 dB / Octave
• Drive Unit Complement: 2-Way & 6″ C-CAM cone bass driver & 1″ C-CAM pivoting Gold Dome tweeter
• Adjustment Controls: HF Level Switch (+3 dB / 0 dB / -3 dB)
  Boundary Compensation Switch
• Overall Dimensions (H x W x D): 415 x 262.5 mm (16^5/16 x 10^5/16“)
• Overall Depth (Including Grille): 102 mm (4″)
• Cut-Out Dimensions: 381 x 228 mm (15 x 9″)
• Mounting Depth: 96 mm (3^3/4“)

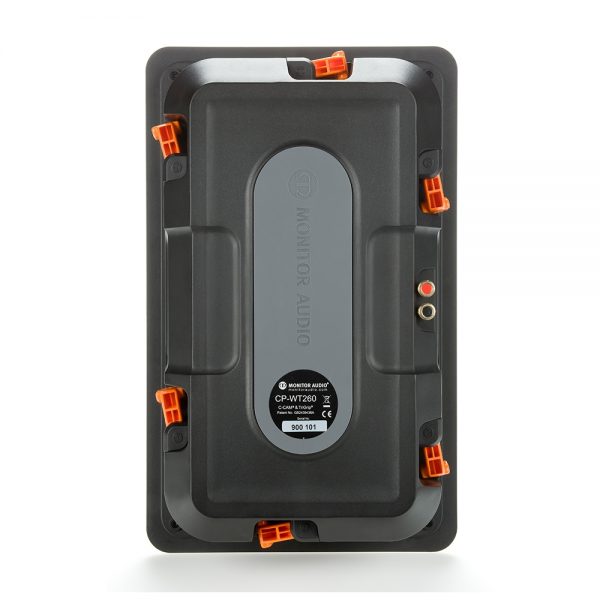

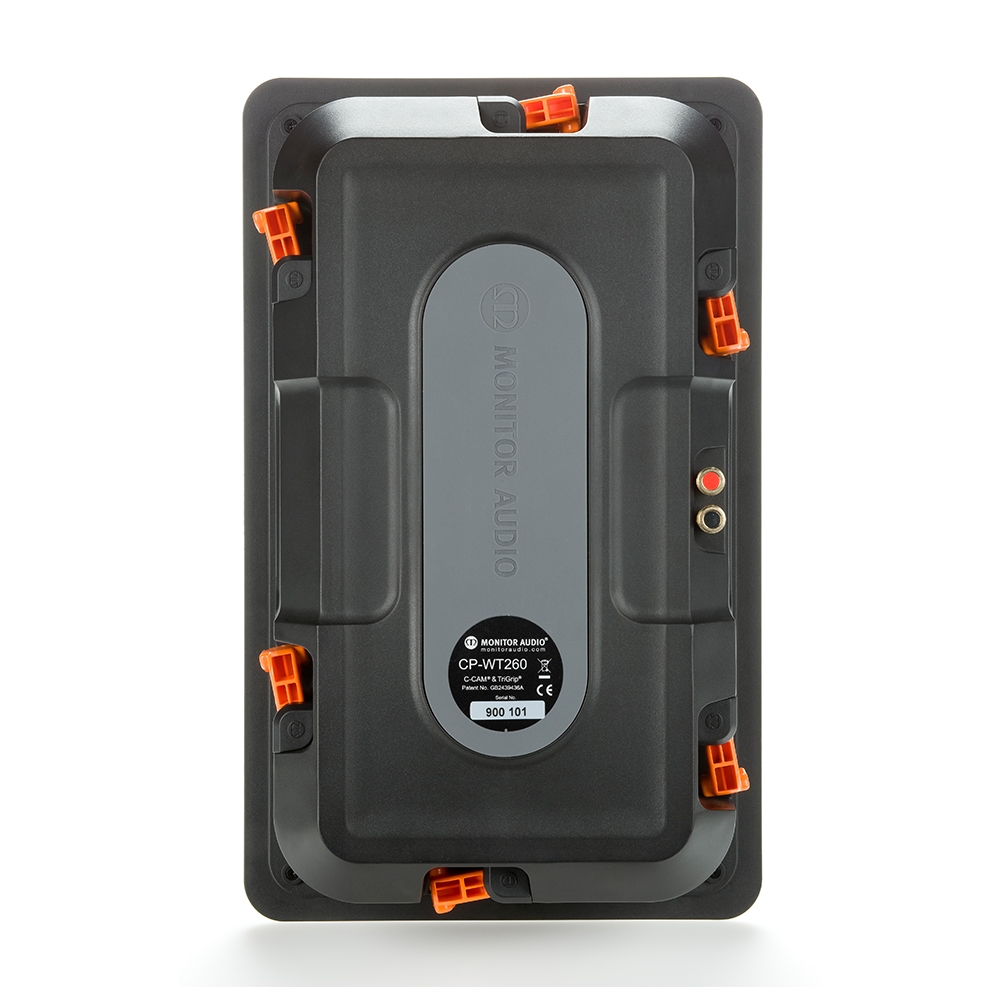

• Fixing Type: 6 position Tri-Grip dog leg fixings
