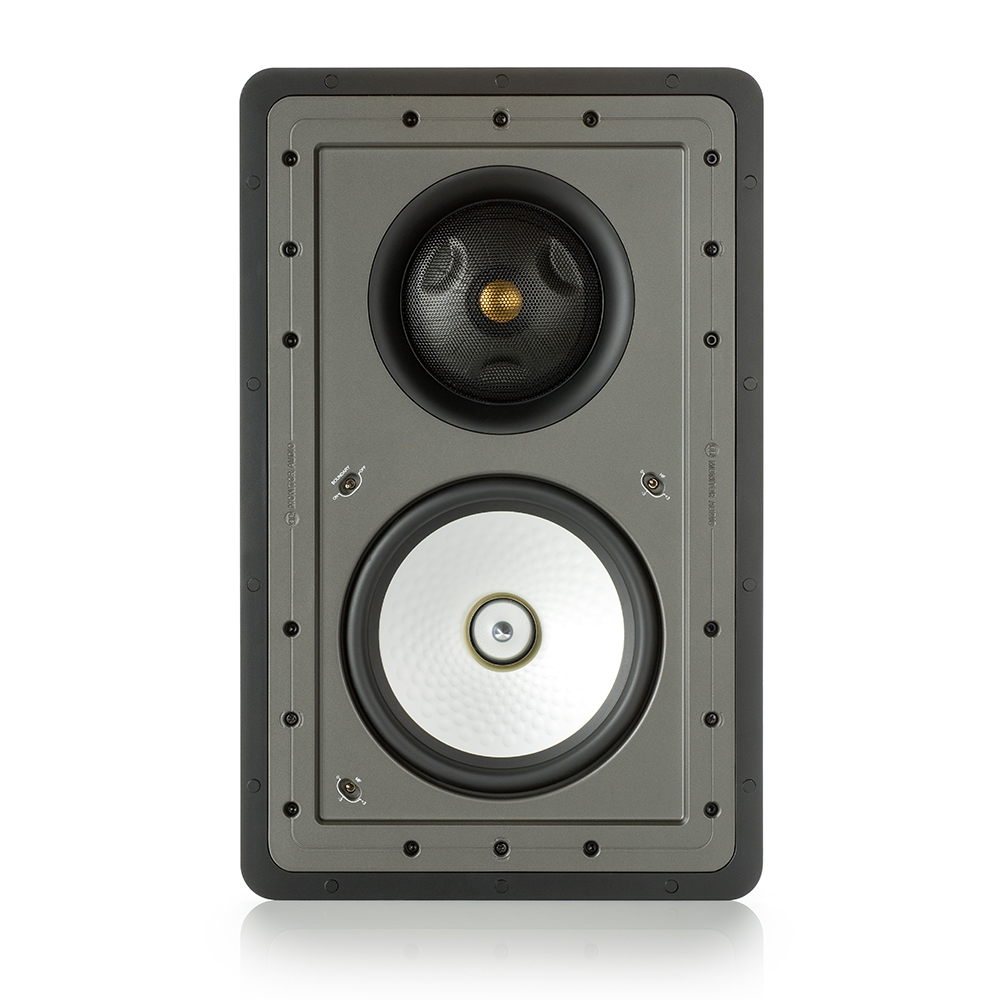

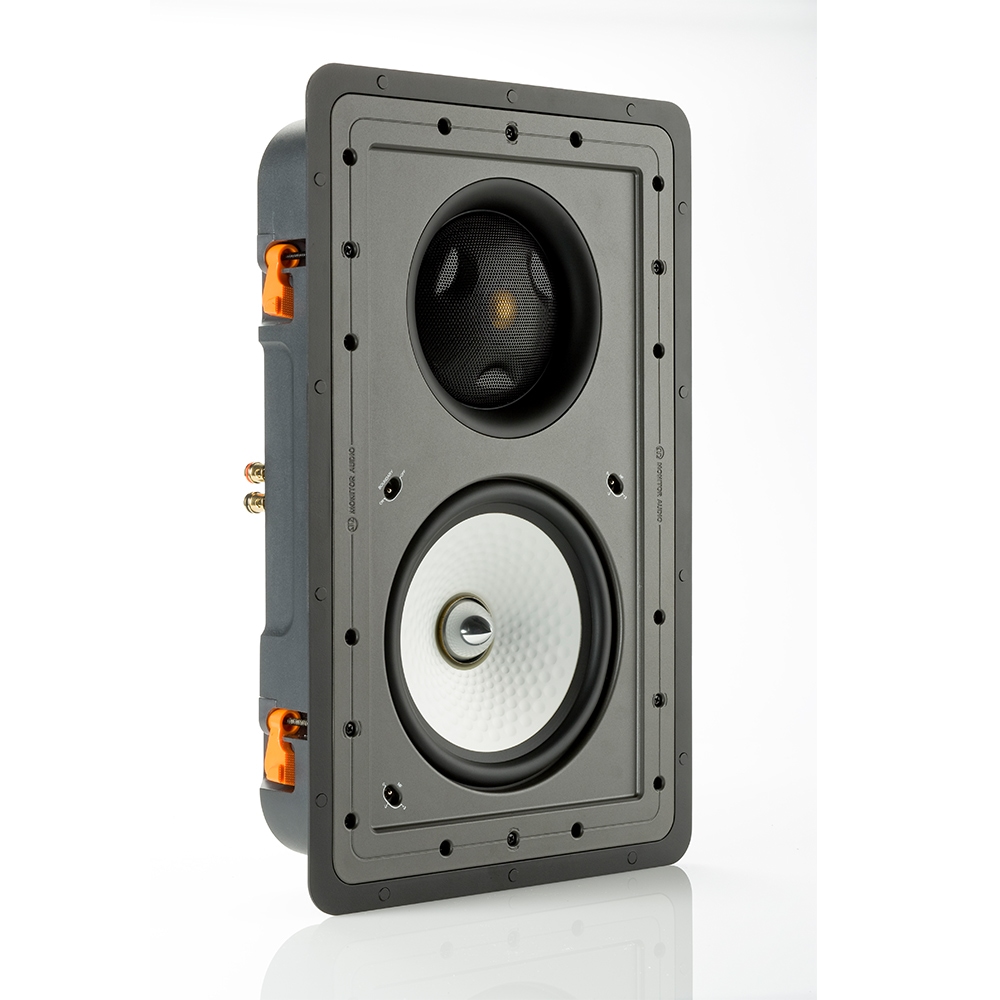

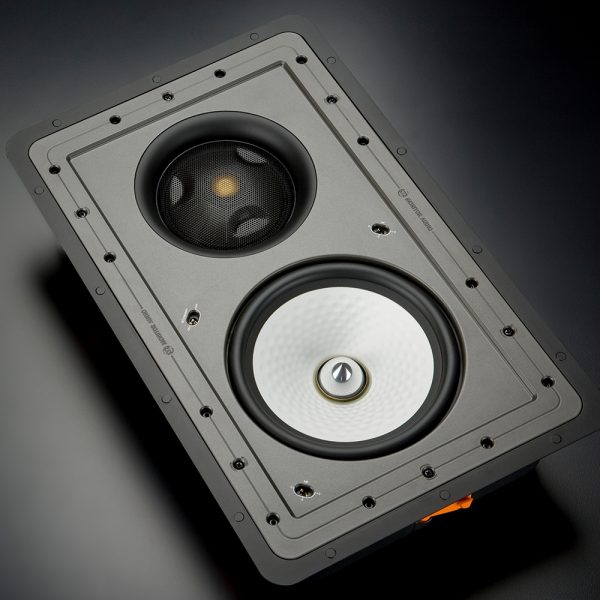

Monitor Audio – CP-WT380IDC – In-Wall Speaker

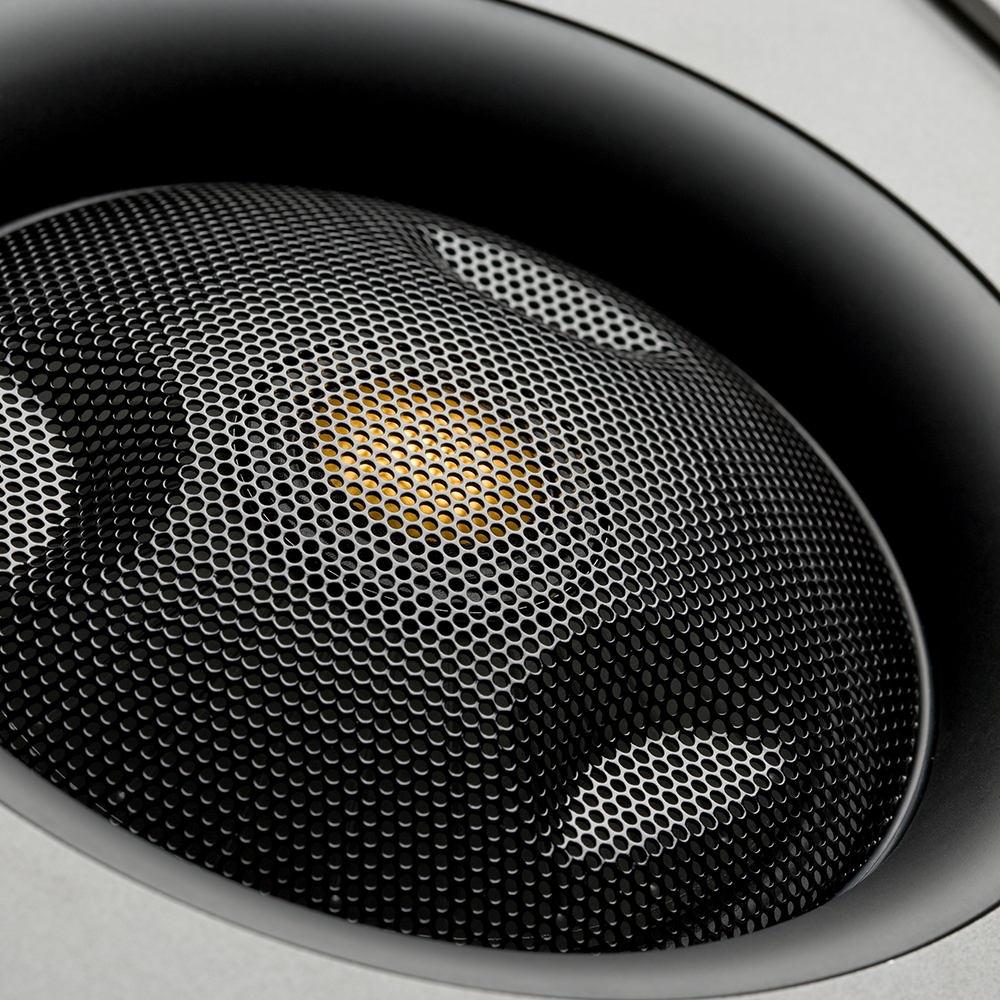

• Pivoting IDC C-CAM gold dome tweeter.
• Pivoting module consisting of IDC midrange driver and C-CAM Gold Dome tweeter.

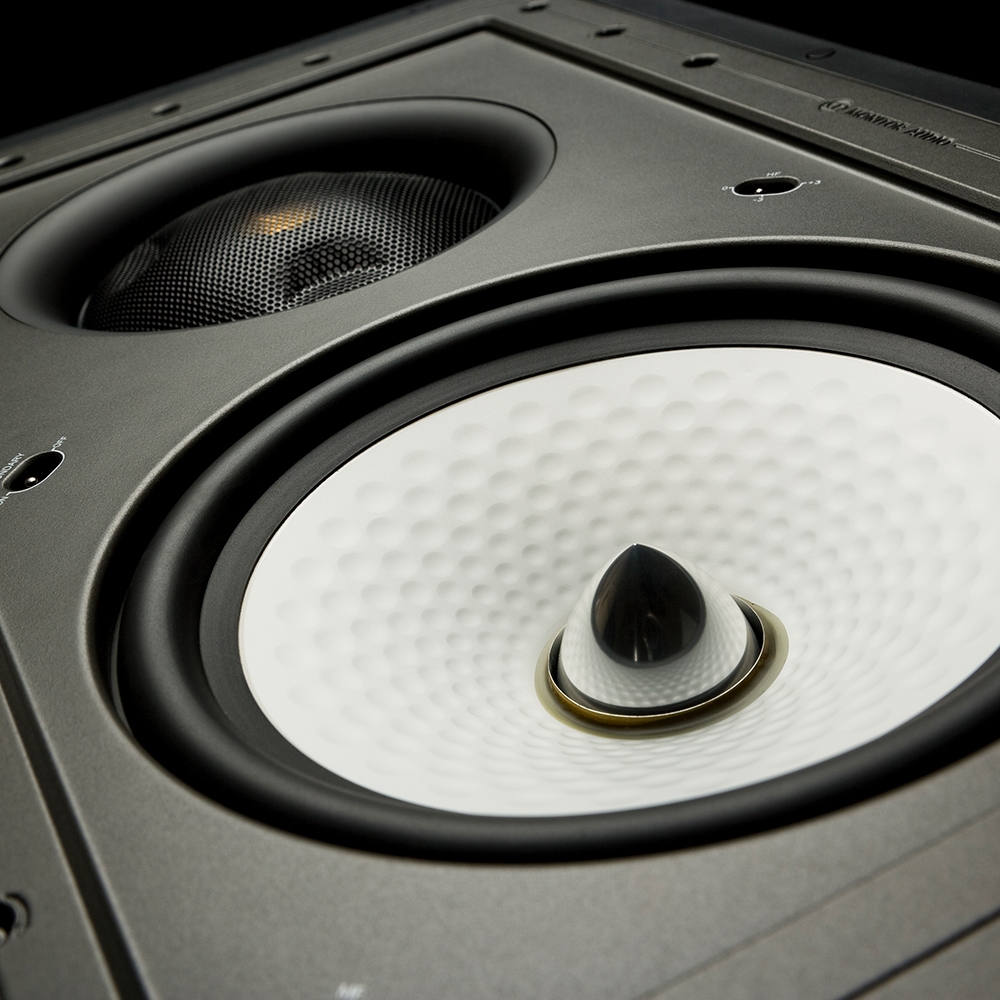

• C-CAM bass driver featuring Rigid Surface Technology (RST).
• High overall efficiency.
• High frequency level adjustment (+/-3 dB).
• Midrange frequency level adjustment.
• Boundary compensation controls.
• Die-cast aluminium front baffle.

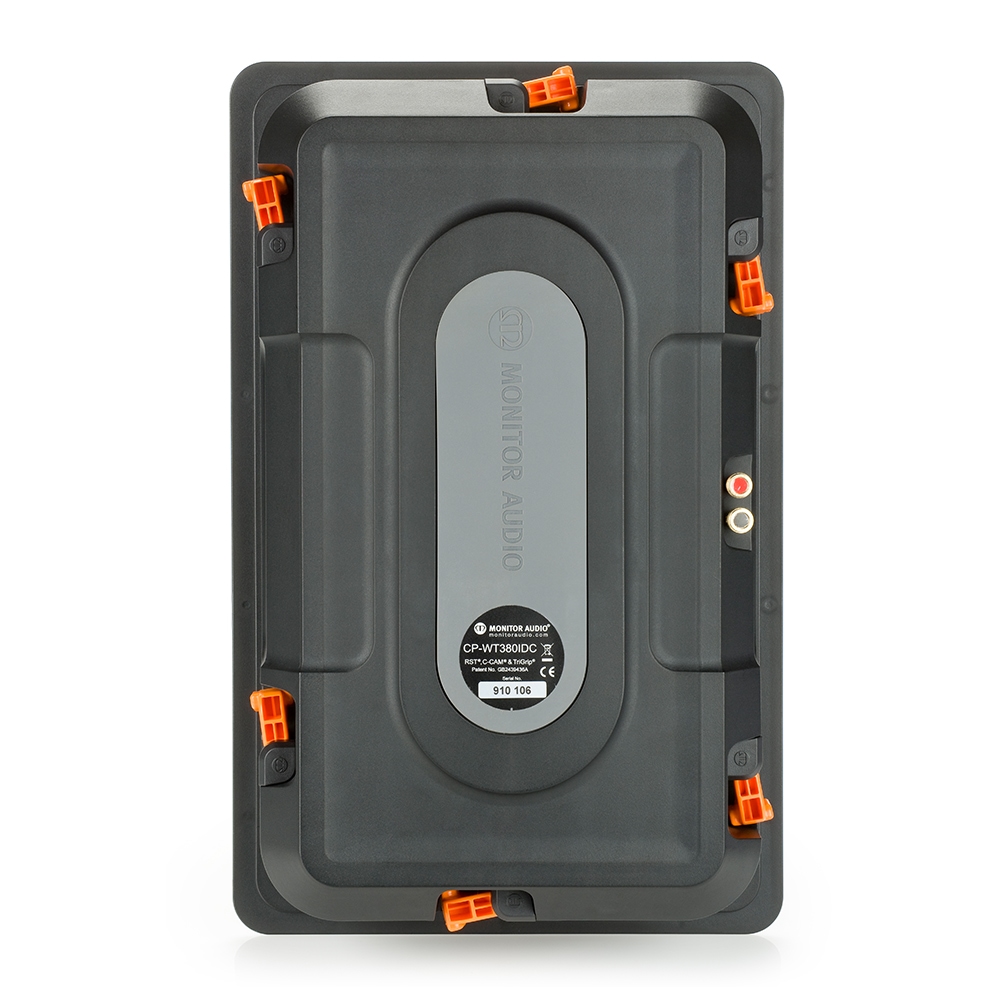

• Our innovative Tri-Grip fixing system is easier to install than conventional clamping schemes but provides three times the surface area and a better surface seal, maximising bass response and mid-range clarity.
• Magnetic and easily removable steel grille.
• Paint-able surface to blend with the living environment. Additional scrim material is provided for trouble free painting.
• Airtight enclosure design, which protects each precision-engineered driver system against the damaging ingress of dust and dirt.

Technical Specs

• Frequency Response: 50 Hz – 30 kHz
• Nominal Impedance: 6 ohms
• Sensitivity (1W@1M): 89 dB
• Maximum SPL: 109.6 dBA
• Power Handling (RMS): 120 W
• Recommended Amplifier Requirements: 30 – 120 W
• Crossover Frequency: Bass low pass: 300 Hz @ 6 dB / Octave. Mid: 300 Hz @  6 dB / Octave & 3 kHz @ 12 dB / Octave
• Drive Unit Complement: 3-Way. 8″ C-CAM RST cone bass driver. 4″ C-CAM IDC cone mid range driver. 1″ C-CAM Gold Dome tweeter
  (tweeter & midrange driver combined in a pivoting module)
• Adjustment Controls: HF Level Switch (+3 dB / 0 dB / -3 dB). MF Level Switch (+3 dB/ 0 dB/ -3 dB). Boundary Compensation Switch
• Overall Dimensions (H x W x D): 472.5 x 303.5 mm (18^5/8 x 11^15/16“)
• Overall Depth (Including Grille): 106 mm (4^3/16“)
• Cut-Out Dimensions: 438 x 269 mm (17^1/4 x 10^9/16“)
• Mounting Depth: 99 mm (3^7/8“)
• Fixing Type: 6 position Tri-Grip dog leg fixings
