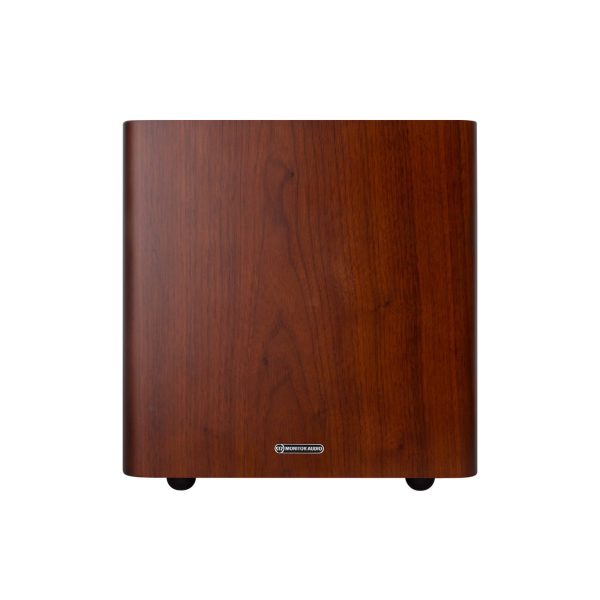

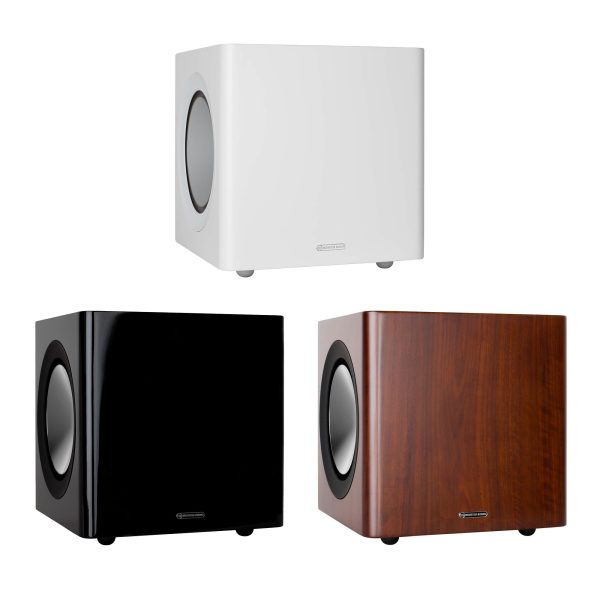

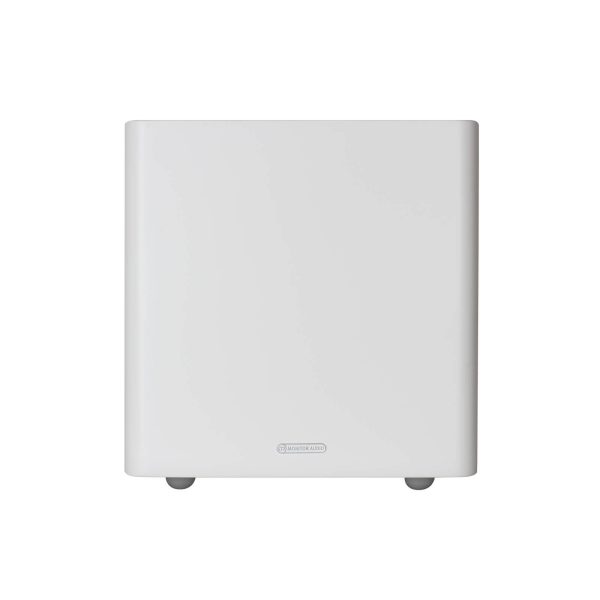

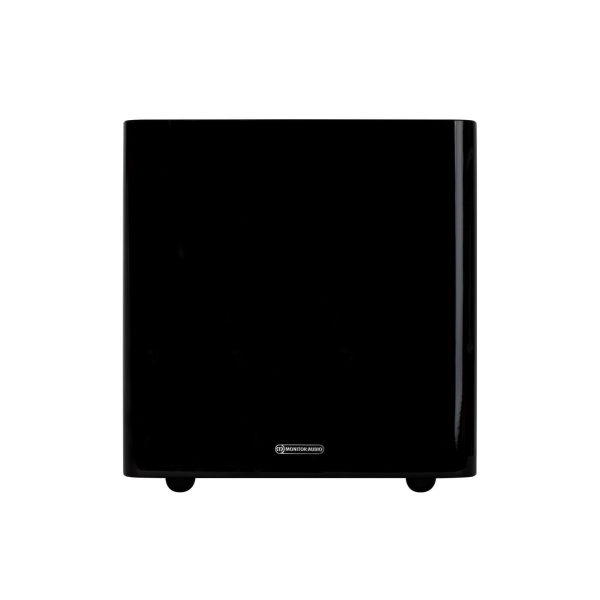

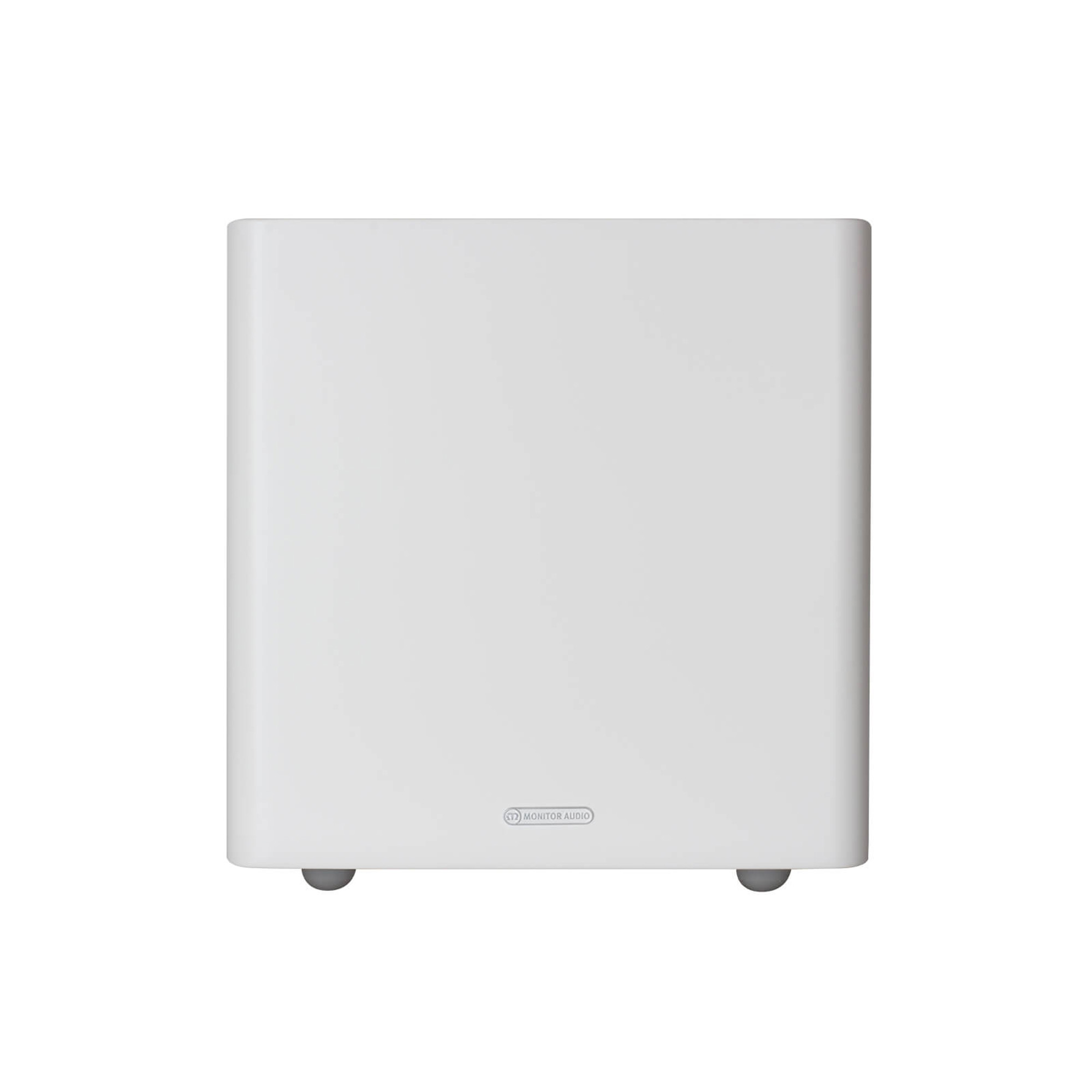

Monitor Audio – Radius 380 Subwoofer

Enhance your home audio system with the Monitor Audio – Radius 380 Subwoofer. Its twin side-firing 8″ C-CAM drivers and powerful 140W Class D amplifier provide rich and impactful bass. Featuring a low pass filter switch, pre-set EQ settings, and easy connectivity options.

£575.00 inc VAT

Free Shipping for Mainland UK orders ** (excluding Scottish Highlands)

SKU: SRAD380BL | SRAD380SW | SRAD380WN Category: Tags: ,

EAN / Barcode: 5060028973743 | 5060028973736 | 5060028973729

product-page-callout-v1-_installer

Need an Installer?

Fill out our enquiry form and we’ll put you in contact with a trusted installer in your area.

Installer Enquiry Form

    How would you prefer to be contacted?

    What areas of Home Automation are you interested in?

    product-page-callout-v1-_support

    Any Questions?

    Our technical team is on hand to solve any problems or help you find the ideal solution.

      Description

      The Radius 380’s twin side-firing 8″ C-CAM drivers – one active and one passive ABR – work in tandem with a powerful 140 W cool-running Class D amplifier (double the power of its predecessor). The drivers have no grilles but are colour-coded to coordinate with cabinet finish. A 12 V trigger syncs the 380 with other AV components when the system is activated.

      Technology

      • 18 mm MDF cabinet construction with internal bracing
      • Cool-running 140 W Class D amplifier with switch mode power supply (SMPSU)

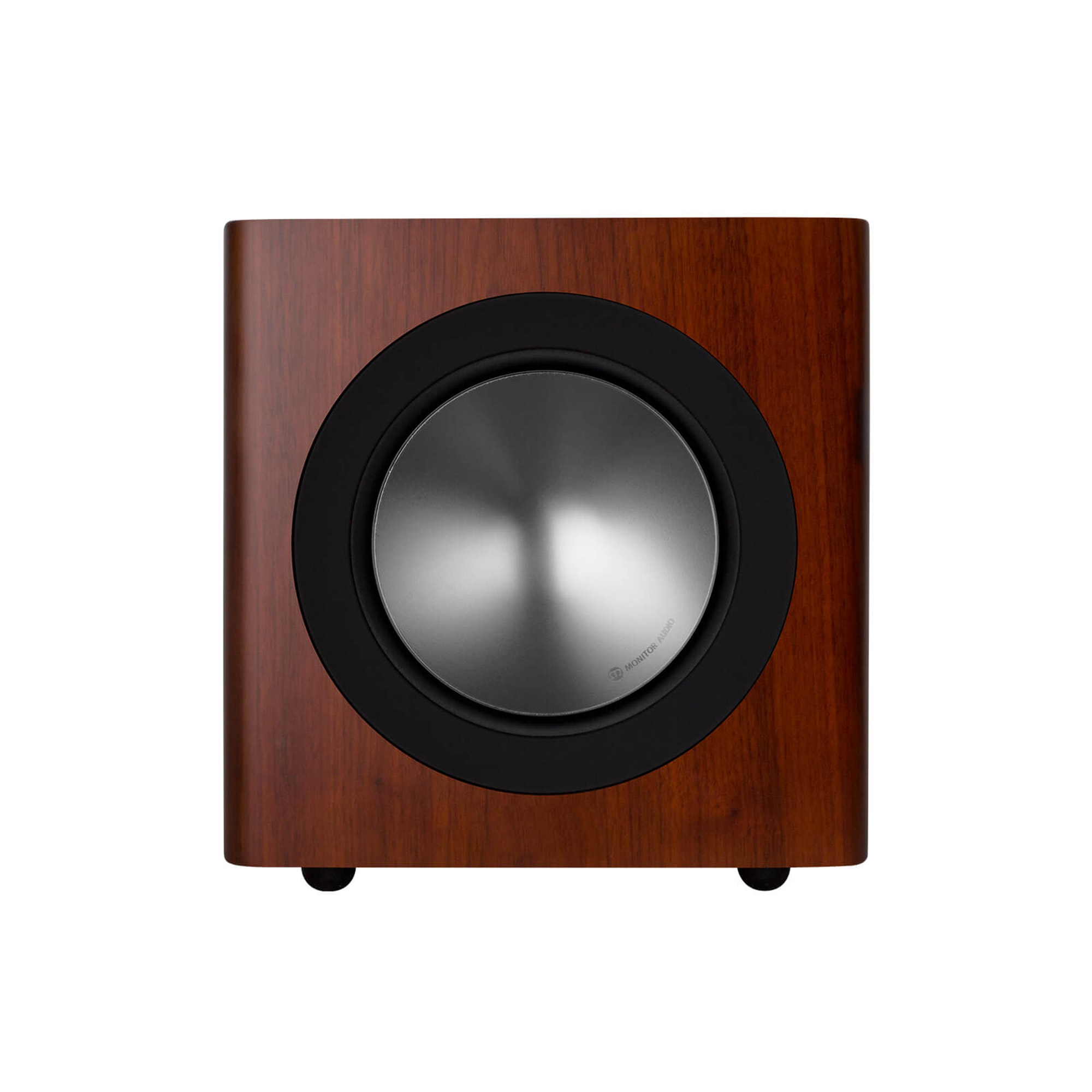

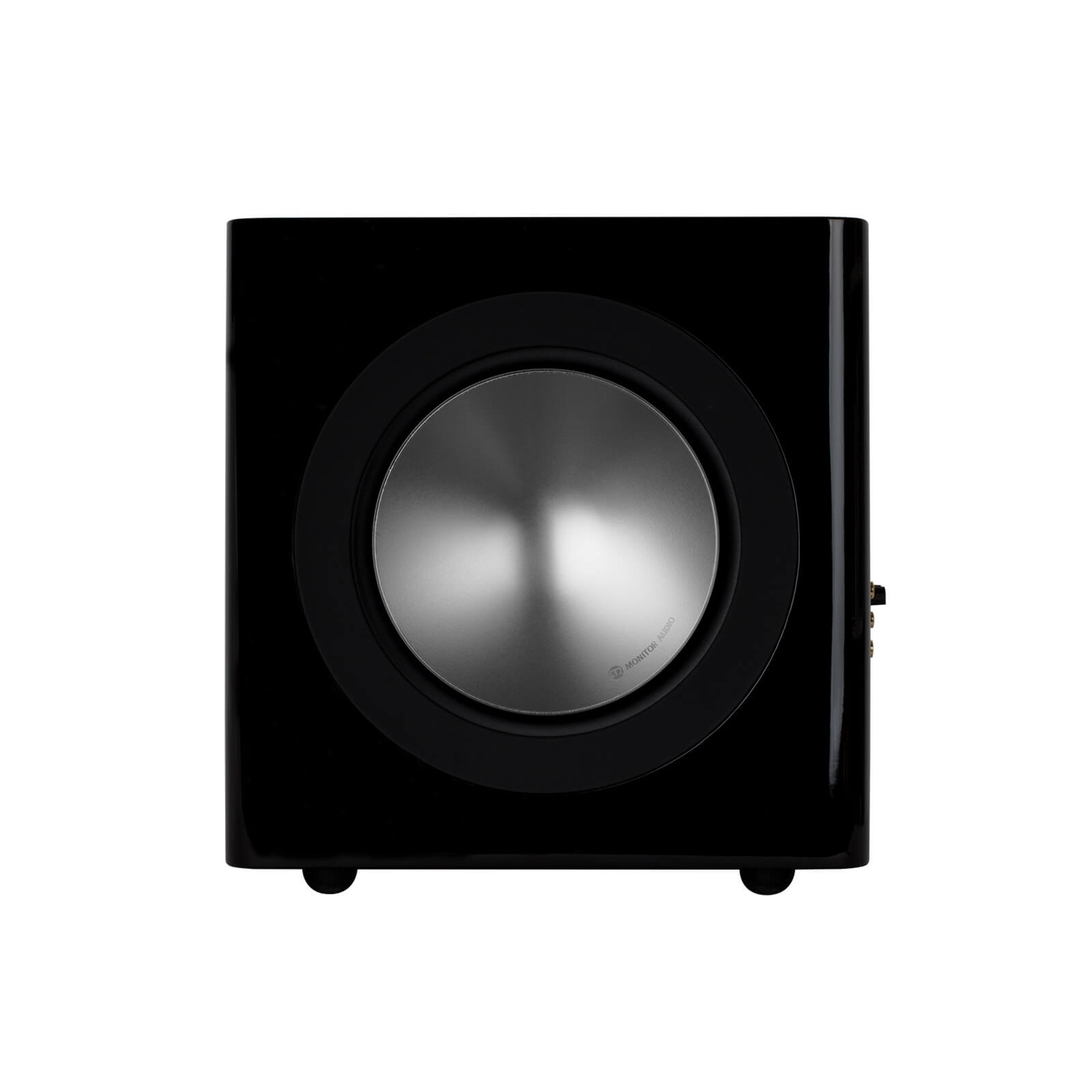

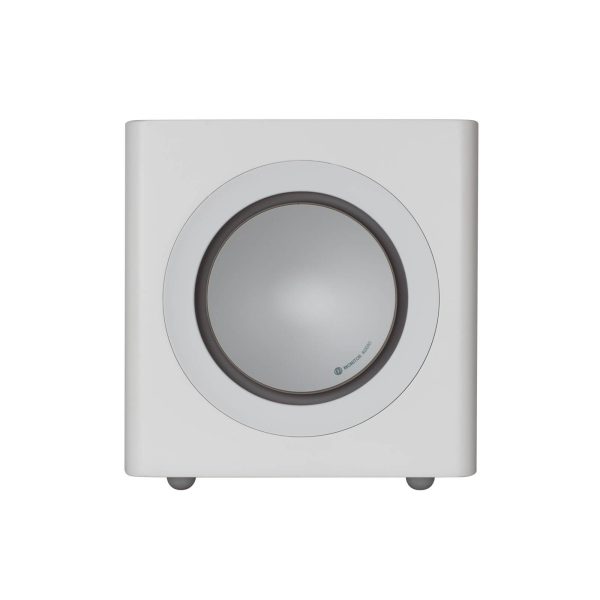

      • Twin side-firing 8″ C-CAM drivers – one active and one passive ABR
      • Low pass filter switch – for LFE or Stereo input selection
      • Power switch with ON – Auto- Off/ trigger settings
      • Stereo/ LFE RCA inputs
      • 3 x Pre-set EQ settings – Music/Movie/Impact

      Product Specifications

      Physical and Performance Attributes

      Weight10.16 KG

      Misc Product Attributes

      System Format Active sub-woofer system – Auxiliary (ABR) loading. 18 mm MDF cabinet
      Lower Frequency Limit 30 Hz (- 6 dB)
      Upper Frequency Limit Variable 40 – 120 Hz @ 24 dB/Octave
      Amplifier Output 140 Watts @ 1% THD+N
      Amplifier Classification Class D amplifier with Switch mode power supply (SMPSU)
      Bass EQ Profiles Music / Movie / Impact
      Phase Control 0 & 180 degrees
      Auto Sensing Line Level >3.5mV
      Input Level Requirements Standby after approximately 15 minutes if no signal sensed
      Drive Unit Complement 1 x 8” (200 mm) C-CAM long throw driver 1 x 8” (200 mm) ABR
      Input Impedance > 20 ohms
      Mains Input Voltage AC 110 – 120 V ~ 50/60Hz; AC 220 – 240 V ~ 50/60Hz (Factory Region Preset)
      Dimensions (Including Amp and Feet (H x W x D)) 308 x 290 x 305 mm (12 1/8 x 11 7/16 x 12″)

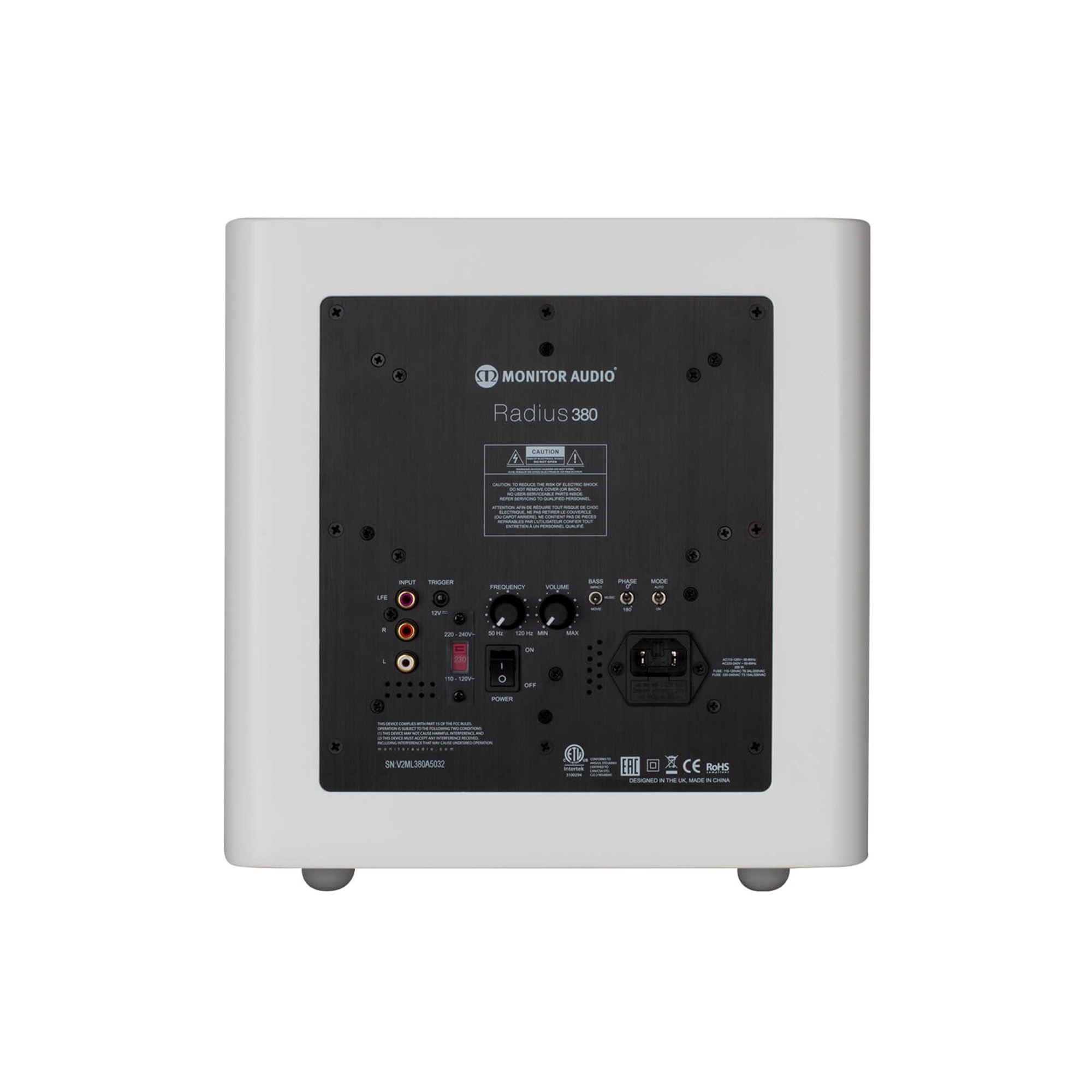

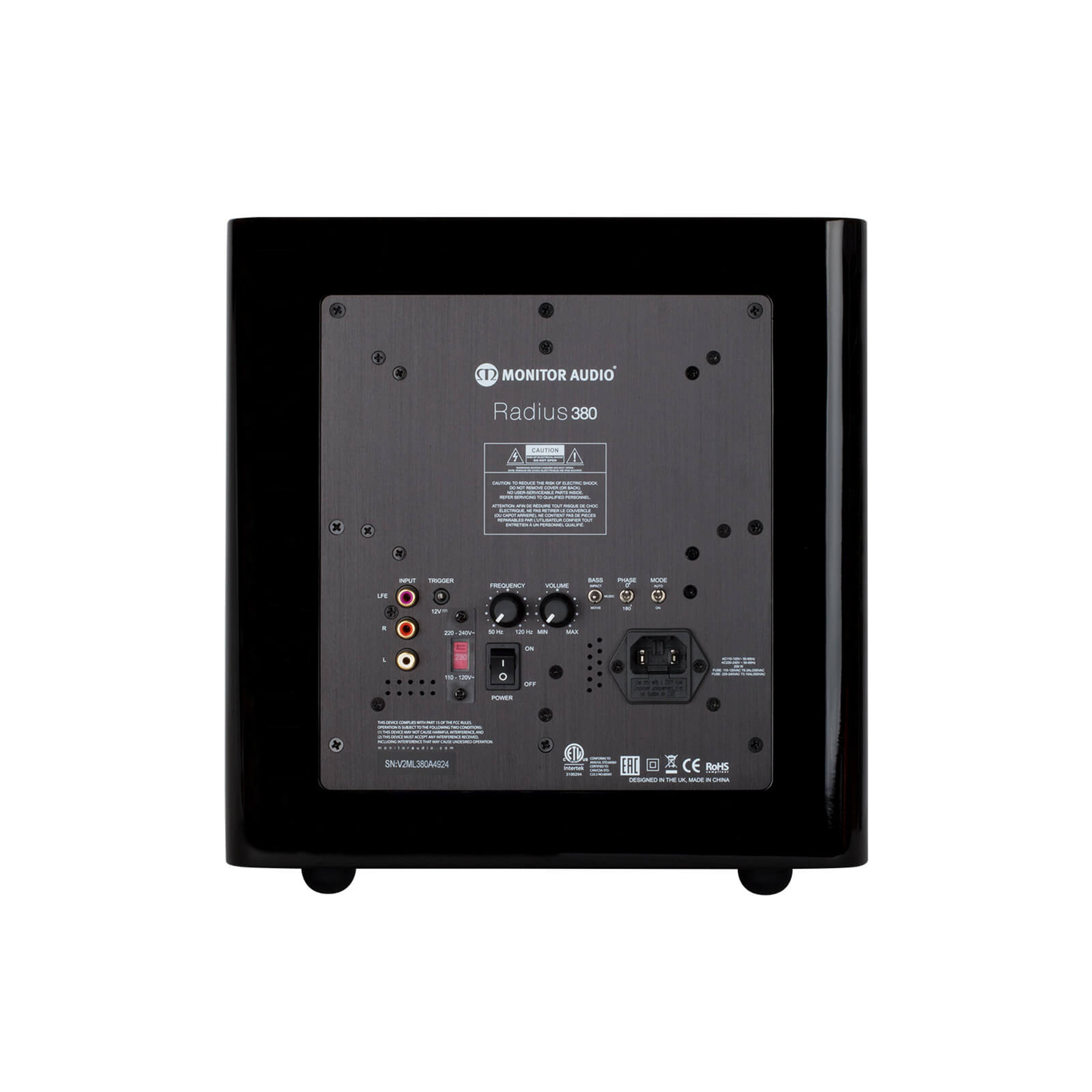

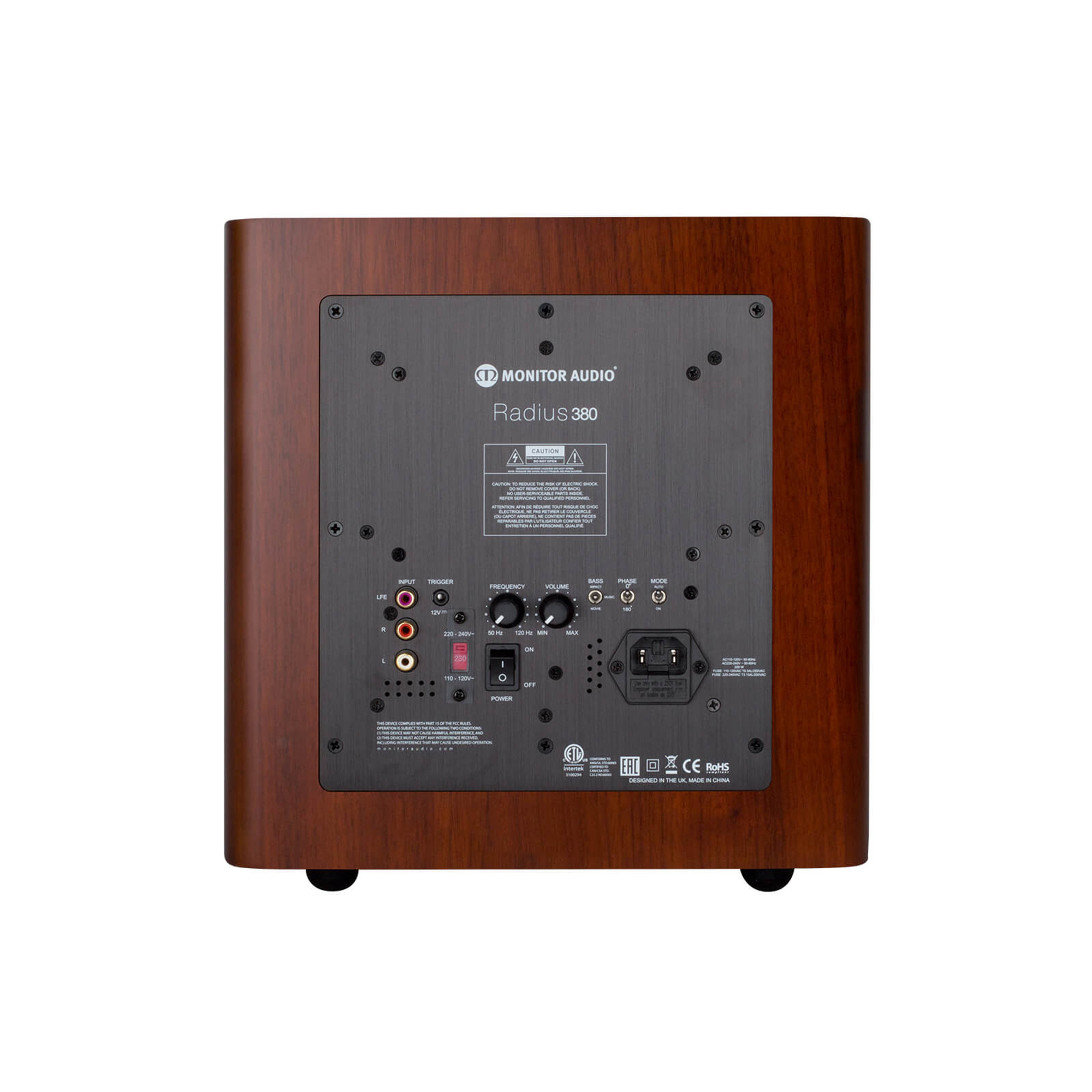

      Connection Stereo RCA in, LFE in, 12v Trigger in (3.5 mm mono mini-jack)
      Trigger Input 5 – 12v via 3.5 mm mono mini-jack socket
      Power Consumption 200 Watts / 0.5 Watts in Standby (ErP approved)
      Weight (unpacked) 10.16 kg (22 lb 6 oz)
