Shelly WiFi Operated Dual Relay Switch With Power Monitoring PLUS-2PM-GEN3

Shelly 2PM Gen3 is a dual-channel smart switch for power monitoring and cover control, offering Wi-Fi or cloud connectivity, enhanced performance, and Venetian blind support.

Original price was: £27.97.Current price is: £20.47. inc VAT

SKU: PLUS-2PM-GEN3 Category: Tags: ,

Compatibility

Shelly WiFi Operated Dual Relay Switch With Power Monitoring PLUS-2PM-GEN3 is compatible with the following systems:
Wi-Fi Compatible DeviceMatter CompatibleWorks with AlexaWorks with the Google AssistantHome Assistant CompatibleWorks With SmartThings

product-page-callout-v2-_support-full-width

Any Questions?

Our technical team is on hand to solve any problems or help you find the ideal solution.

Contact Us
Sale!

Description

Shelly 2PM Gen3 is a compact, two-channel smart switch designed for power measurement and cover control. It enables remote management of electrical appliances via mobile devices, PCs, or home automation systems. The device operates either locally on a Wi-Fi network or through cloud-based automation services. Compared to its predecessor, it features an upgraded processor and expanded memory for improved performance. It also supports Venetian blinds control.

Key Features

  • Smart Switching with Power Monitoring
    Controls connected appliances while tracking their energy consumption (AC only).
  • Compact Design

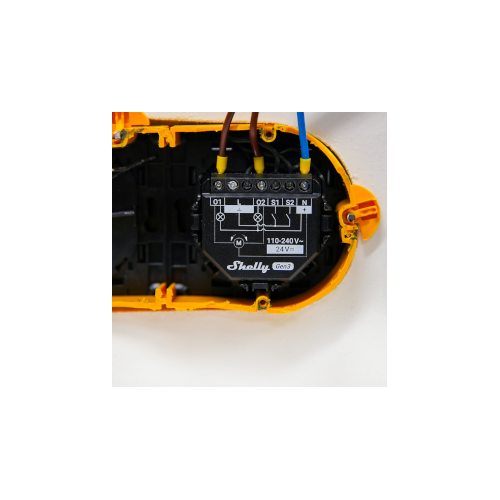

    Fits into standard electrical wall boxes, behind light switches, or other tight spaces for easy retrofitting.
  • Remote Control & Access
    Manage and monitor devices from anywhere with internet connectivity, provided the unit is connected to Wi-Fi.
  • Local & Cloud Operation
    Works standalone on a local network or integrates with cloud automation platforms.
  • Embedded Web Interface
    Built-in interface for device monitoring, control, and configuration.
  • BLE Gateway
    Acts as a bridge between Shelly BLU devices and the Shelly ecosystem, forwarding Bluetooth signals locally or to the cloud.
  • Wi-Fi Range Extender
    Expands your IoT network coverage by boosting and retransmitting Wi-Fi signals.
  • Advanced Scripting
    Customize functionality and create additional processes for specific integrations.
  • Broad Integration Support
    Compatible with third-party systems via HTTP API, MQTT(s), webhooks (HTTP/HTTPS), and UDP.
  • KNX Support
    Supports KNXnet/IP communication (switch mode only, firmware 1.5.0+).
  • Scheduling
    Automate complex operations based on time, date, or recurring intervals.
  • Virtual Components
    Create virtual devices to control third-party hardware or custom entities.
  • Venetian Blinds Mode
    Controls motorized blinds, shutters, awnings, and similar devices, including tilt adjustment for slats. Requires motors with properly configured limit switches.

What’s Included:

  • 1 x Shelly 2PM Gen3
  • 1 x Instruction Manual

Product Specifications

Physical and Performance Attributes

Weight27 grams

Misc Product Attributes



Device Specifications
POWER
Power supply AC 110-230V ±10%, 50/60Hz
Power supply DC 24V ±10%
Maximum load per channel 10A
Device total maximum load 16A (18A peak)
Maximum switching voltage 240V AC / 30V DC
Electrical consumption < 1.4W
FEATURES
Channels 2
Dry contacts No
Roller shutter mode Yes, with position control – roller shutters, blinds, awnings, curtains, gates, shades, sliding door, pool covers, garage door, bi-directional AC motors
Device temperature protection Yes
Overload protection Yes
Power measurement Yes (AC only)
HTTP/HTTPS webhooks Yes
Custom scripts (mJs) Yes
Operational temperature -20°C to +40°C
CONNECTIVITY
Wi-Fi Protocol 802.11 b/g/n
Wi-Fi Radio frequency 2412 – 2472 MHz
Wi-Fi Radio signal power 1mW
Wi-Fi range • up to 50 m outdoors
• up to 30 m indoors
Bluetooth Yes
Bluetooth Protocol 4.2
Bluetooth Range • up to 30m/100ft outdoors
• up to 10m/33ft indoors
DIMENSIONS
(H x W x D) 37 x 42 x 16 ±0.5 mm / 1.46 x 1.65 x 0.63 ±0.02 in
